EverFocus EPN4230d Manuel utilisateur

EPN Series IP Speed Dome

EPN4230d/4230di

Quick Installation Guide

Release Date: August, 2014

EPN4230d/4230di

1. Overview

The EPN series IP Speed Dome comes in two types: Indoor (EPN4230di) and Outdoor (EPN4230d).

Outdoor

(EPN4230d)

Indoor

(EPN4230di)

Top Housing Top Housing

Outer Housing Outer Housing

Camera Main Body Camera Main Body

Packing List

The main box contains 3 large boxes and a small box. Each box contains the items as listed below. Please

check that there is no missing item in the package before installing.

•Box 1: Top housing with a network connector and tool packet

Tool packet (Indoor only): Includes 6 Plastic Anchors and 6 Screws.

•Box 2: Camera main body with a tool packet

Tool packet: Includes 1 pair of Gloves, 3 Desiccant Packs and 1 Power Terminal Block.

•Box 3: Outer housing

•Small Box: Power adapter

•Software CD

•Quick Installation Guide

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your local

EverFocus office or agents for more information. Please also keep the shipping carton for possible

future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

2. System Requirement

Before installing, please check that your computer meets this system requirement.

•Operating System: Microsoft Windows XP / Vista (32-bit) / 7 (32-bit)

•Microsoft Internet Explorer 7 or above

EPN4230d/4230di

3. CablesandI/OTerminalBlock

CableDescriptions



NoNameandDescriptionsNo NameandDescriptions

1RS‐485+:ConnectstoanRS‐485device.5AudioOut:Connectstoaspeaker.

2RS‐485‐:ConnectstoanRS‐485device.6AudioIn:Connectstoamicrophone.

324VAC~:Connectstothepoweradapter.7LAN/PoE:Connectstoa10/100

EthernetorPoE.

4VideoTest‐OutCable:ConnectstoaDVRormonitor.

Note:Microphoneswithexternalpowersuppliesarerequired.

Notethattheaudioin/outcablesfeatureline3.5mmjack(TRS).Besuretopreparespeakers/

microphoneswithTRSconnector(seeTRSConnectorimagebelow).Also,speakers/microphoneswith

a(built‐in)amplifierandexternalpowersupplyarerequired.



ToactivatetheAudiofunction,theEnableAudiomustbechecked.

See7.6AudiointheUser’sManual.



I/OTerminalBlock

TheI/Oterminalblock,locatedontherearpaneloftheBaseBoard,canbeusedtodevelopapplications

foralarminputandoutput,motiondetection,PTZcontroloravarietyofotherfunctions.

EPN4230d/4230di

Pin Assignment

No. Functions No. Functions

1 GND (-) 8 Alarm In 1 GND (-)

Alarm Out B

NO (+) 9 Alarm In (+)

3 COM (-) 10 Alarm In 2 GND (-)

4 NC (+) 11 Alarm In (+)

Alarm Out A

NO (+) 12 GND (-)

6 COM (-)

7 NC (+)

4. Optional Accessories

•EPTZ-PBOX (External power connection box)

•Corner mount adapter

•Pole mount adapter

•Indoor ceiling pendant mount bracket

•Outdoor sunshield

•Indoor recessed mount bracket

•Wall mount bracket

•Indoor concrete ceiling mount adapter

•EKB500 (RS-485 keyboard)

•EKB200 (USB controller keyboard)

5. Installation

This installation guide provides the basic instructions on installing an EPN series IP camera. For details,

refer to the EPN Series IP Speed Dome User’s Manual in the software CD.

Note: Installation should be handled by a qualified service agent and complied with all local regulations.

ReplacingtheDesiccantBags/InsertingaMicroSDCard

Beforeinstalling,insertamicroSDcardintothemainbodyandreplacethedesiccantbagsinsidethetop

housing.Itishighlyrecommendedtoreplacethedesiccantbagseverytimewhenyouopenthecamera.



Toreplacethedesiccantbags:

1. OntheTopHousing,slightlypresstheblackplasticsocketbackwardandliftupthebaseboard.



2. Removethedesiccantbagsfromthetophousing.

3. Stickthesupplied3newdesiccantbagsinsidethetophousing. Placebackthebaseboard.



Note:EnsureNottoplacethedesiccantbagsunderthepositionofthefan.



ToinsertamicroSDcard:

1. Unscrewthefourscrewsonthecameramainbodytoremovetheblackhousing.



2. InsertthemicroSDcardtothecardslot.Screwbacktheblackhousing.



EPN4230d/4230di

Installing Outdoor Models (EPN4230d)

Two mounting types are available for the outdoor models: Wall Mount and Ceiling Mount.

Wall Mount

1. Drill 4 screw-depth holes for the bracket base plate and then drill a through-wall hole for the camera

cables. You can optionally drill a second through-wall hole to separate cable feeding (see Step 4).

2. Attach the waterproof silicon pad to the bracket base plate for waterproofing.

3. Feed the camera’s cables through the conduit in the wall mount bracket.

4. Connect the camera’s cables to the related devices. Feed the cables of the related devices, such as the

speaker, through the wall and then through the holes of the bracket base plate.

5. Screw the bracket base to the wall using the 4 screws.

6. Screw the wall mount bracket to the bracket base using the 4 long screws.

7. Put on the supplied gloves. Line up the red triangles and then push the main body upward to the

top housing. Push the main body upward into the top housing until the orange catches on both sides

click into position.

Top Housing

Main Body

Note: To release the main body, press the two orange release buttons on both sides.

8. Screw the housing cover to the top housing slowly by twisting it clockwise.

Waterproof

silicon pad

Bracket base plate

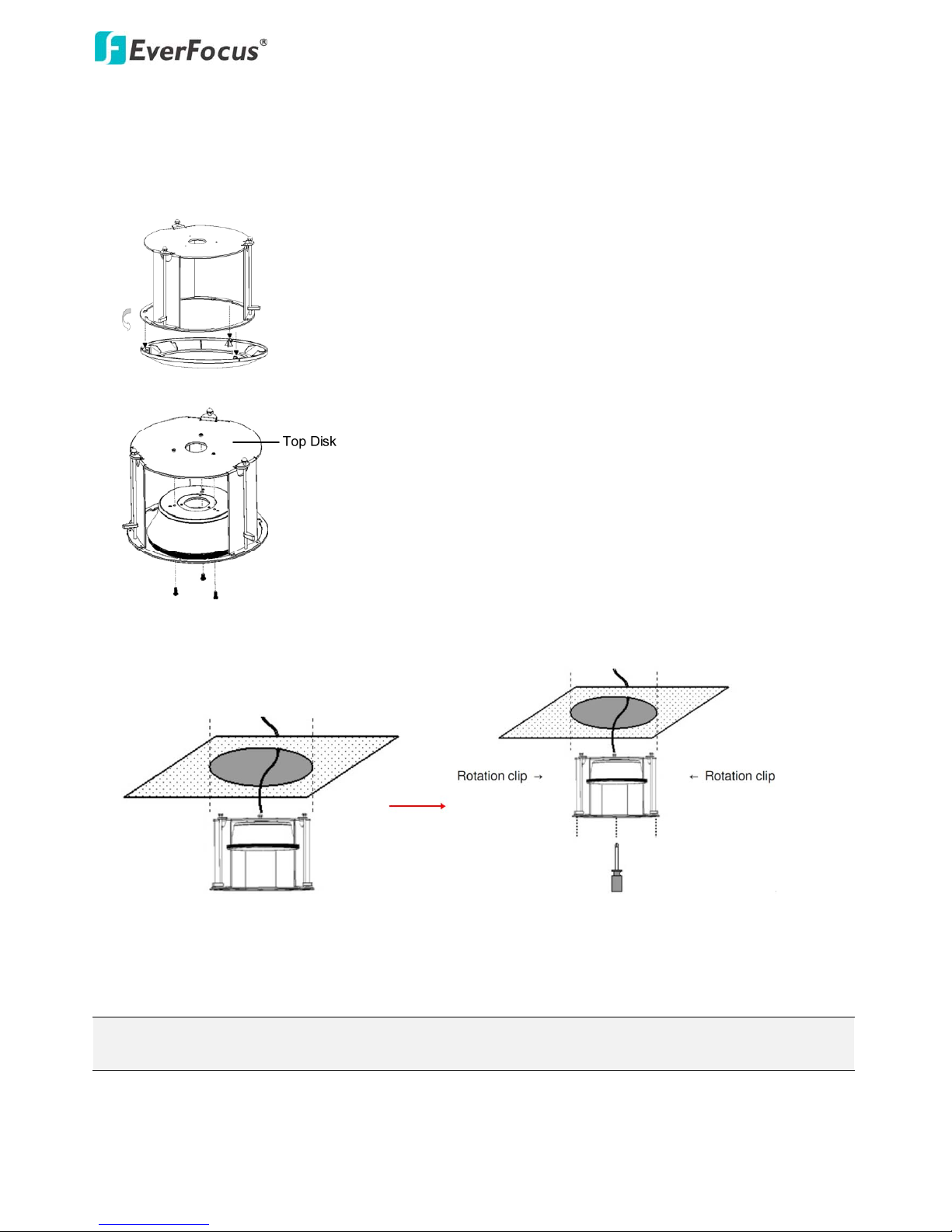

CeilingMount

ItisrequiredtousetheoptionalIndoorRecessedMountBracketandSurfaceRingtoattachthecamerato

theceiling.

1. Cutaholeontheceilingusingthesuppliedtemplate.

2. Slightlyturnthesurfaceringandremoveitfromthebracket.



3. Placeandthenscrewthecamera’stophousingonthetopdiskofthebracketusingthe3shortscrews.



4. Useacableorothermechanismtohangthebracketontheceiling.Screwthe3rotationclipsofthe

bracketontheceilingusingascrewdriver.



5. Putonthesuppliedglovesandthenpushthemainbodyupwardtothetophousing.SeeStep7inWall

Mount.

6. Screwthehousingcovertothetophousingslowlybytwistingitclockwise.

7. Slidethesurfaceringtothefillisteronthebracket.

Note:Whenyouturnonthepower,thecamerawillenterself‐inspectionmodeandrunaself‐testing

program.Oncethisiscomplete,youwillbeabletooperateitviaanyIPnetwork.



6. NetworkConnections

Youcanuseoneofthemethodsbelowtoconnectthecameratothenetwork.



RouterorLANconnection

ThisisthemostcommonconnectioninwhichtheIPcameraisconnectedtoarouterandallowsmultiple

usersonandoffsitetoseetheIPcameraonaLAN/WAN(Internet).ThecameramustbeassignedanIP

addressthatiscompatiblewithitsLAN.Bysettingupportforwardingontherouter,youcanviewcameras

fromoutsideoftheLANviatheInternet.ToremotelyaccesstheWebinterfaceoftheIPcamera,please

referto7.3.2DDNSintheUser’sManual.Tosetupportforwarding,pleaseconsultthemanualofthe

router.



DirectHigh‐SpeedConnection

InaDirectHigh‐SpeedConnection,thecameraconnectsdirectlytoamodemwithouttheneedforarouter.

YouneedtosetthestaticordynamicWANIPaddressassignedbyyourISP(InternetServiceProvider)inthe

camera’sconfigurationwebpages.Toaccessthecamera,justtype“http://xxx.xxx.xxx.xxx”,where

xxx.xxx.xxx.xxxistheIPaddressgivenbyyourISP.IfyouhaveadynamicIPaddress,thisconnectionmay

requirethatyouuseDDNSforareliableconnection.Pleasereferto7.3.2DDNSintheUser’sManual.



One‐to‐oneConnection(DirectlyfromPCtoIPCamera)

Youcanconnectdirectlywithoutusingaswitch,routerormodem.However,onlythePCconnectedtothe

camerawillbeabletoviewtheIPcamera.YouwillalsohavetomanuallyassignacompatibleIPaddressto

boththecomputerandtheIPcamera.UnlessthePChasanothernetworkconnection,theIPcamerawill

betheonlynetworkdevicevisibletothePC.Seethediagrambelow:



EPN4230d/4230di

7. Checking the Dynamic IP Address

You can look up the IP address and access the Web interface of the camera using the IP Utility (IPU)

software included in the software CD or from the Website of EverFocus (click here to download). Please

connect the IP camera in the same LAN of your computer.

1. Install and then start the IPU program . The following IPU window appears. The IPU will

automatically search the IP devices connected in the LAN.

2. Double click the IP address of the desired device, the login window pops up. Type the user ID and

password to log in. By default, the user ID is user1 and the password is 11111111. Click OK, the Live

View window appears.
