EverFocus EHA1281 eZ.HD Series Manuel utilisateur

EHA1281 eZ.HD Series

1080p Dual Power FHD IP66 IR Dome Camera

User’s Manual

Release Date: November, 2022

All the images including product pictures or screen shots in this document are for example only.

The images may vary depending on the product and software version. Information contained

in this document is subject to change without notice.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng Dist., New Taipei City 222, Taiwan

TEL: +886 2 2662 2338 FAX: +886 2 2662 3632 www.everfocus.com.tw

1. Introduction

Equipped with a 1080p Sony CMOS sensor, the EHA1281 deliver 1080p full HD

image quality. The model provides 2.8-12mm lens with ICR. Featured with Digital

Wide Dynamic Range (D-WDR), the camera can provide clear images even under

backlight circumstances where intensity of illumination can vary excessively. The

EHA1281 supports dual power (12VDC / 24VAC) and supports both NTSC and PAL

scanning systems.

1.1 Packing List

Camera x 1

Mounting Sticker x 1

L-Type Wrench x 1

Screw & Screw Anchor x 4

Desiccant Bag x 1

User Manual x 1

1.2 Features

1080p Sony CMOS sensor, delivering amazing high sensitivity

Varifocal 2.8-12mm with ICR to capture the desired field of view

Extended IR range of up to 30m / 98ft. with 30 LEDs (depends on scene IR

reflectivity)

D-WDR to improve the visibility under high contrast scene

3-Axis rotation design allows wall or ceiling mounting

IP66-rated with metal housing

Supports dual power (12VDC / 24VAC)

Supports UTC function: Control camera OSD settings directly from DVR end

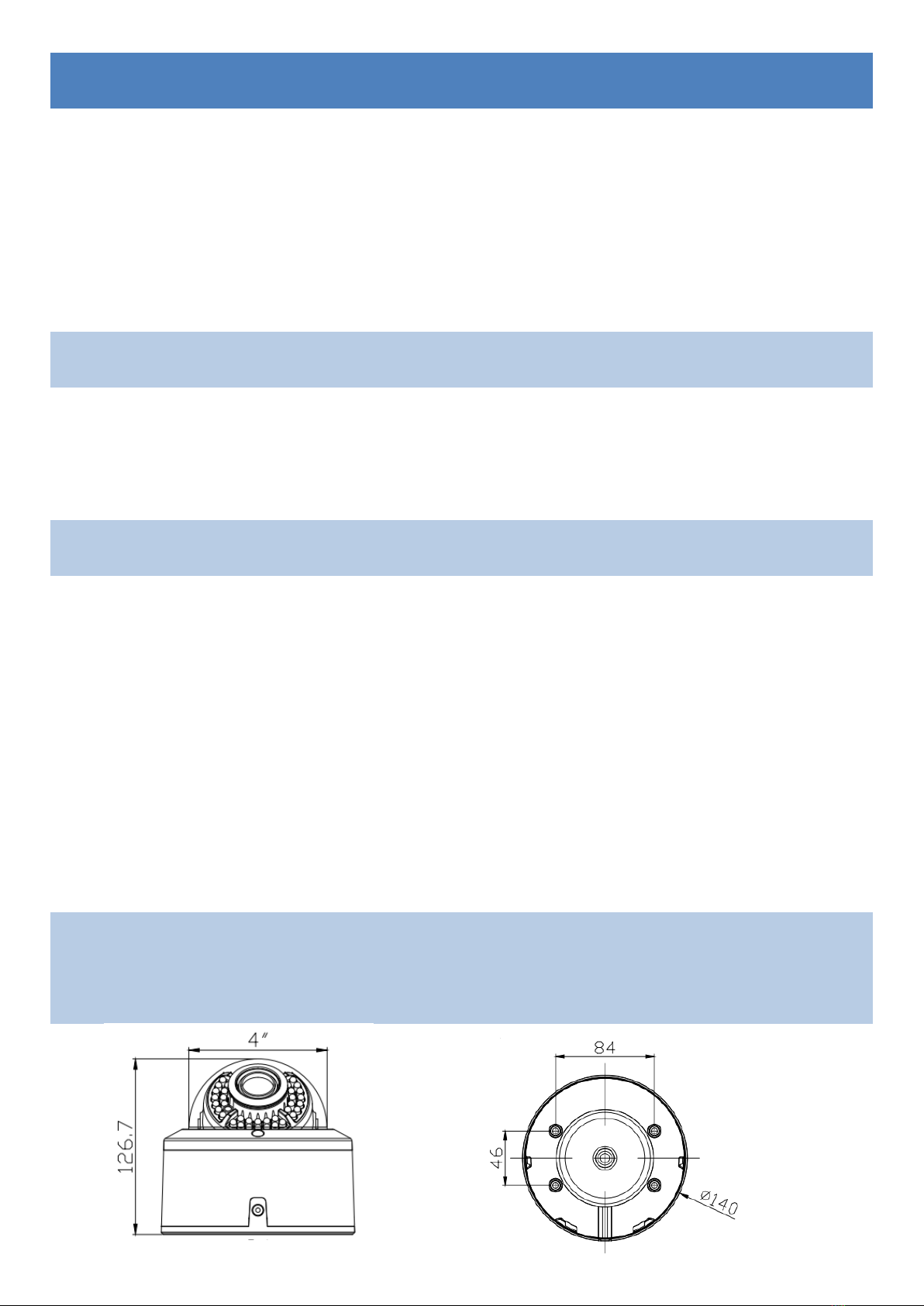

1.3 Dimensions

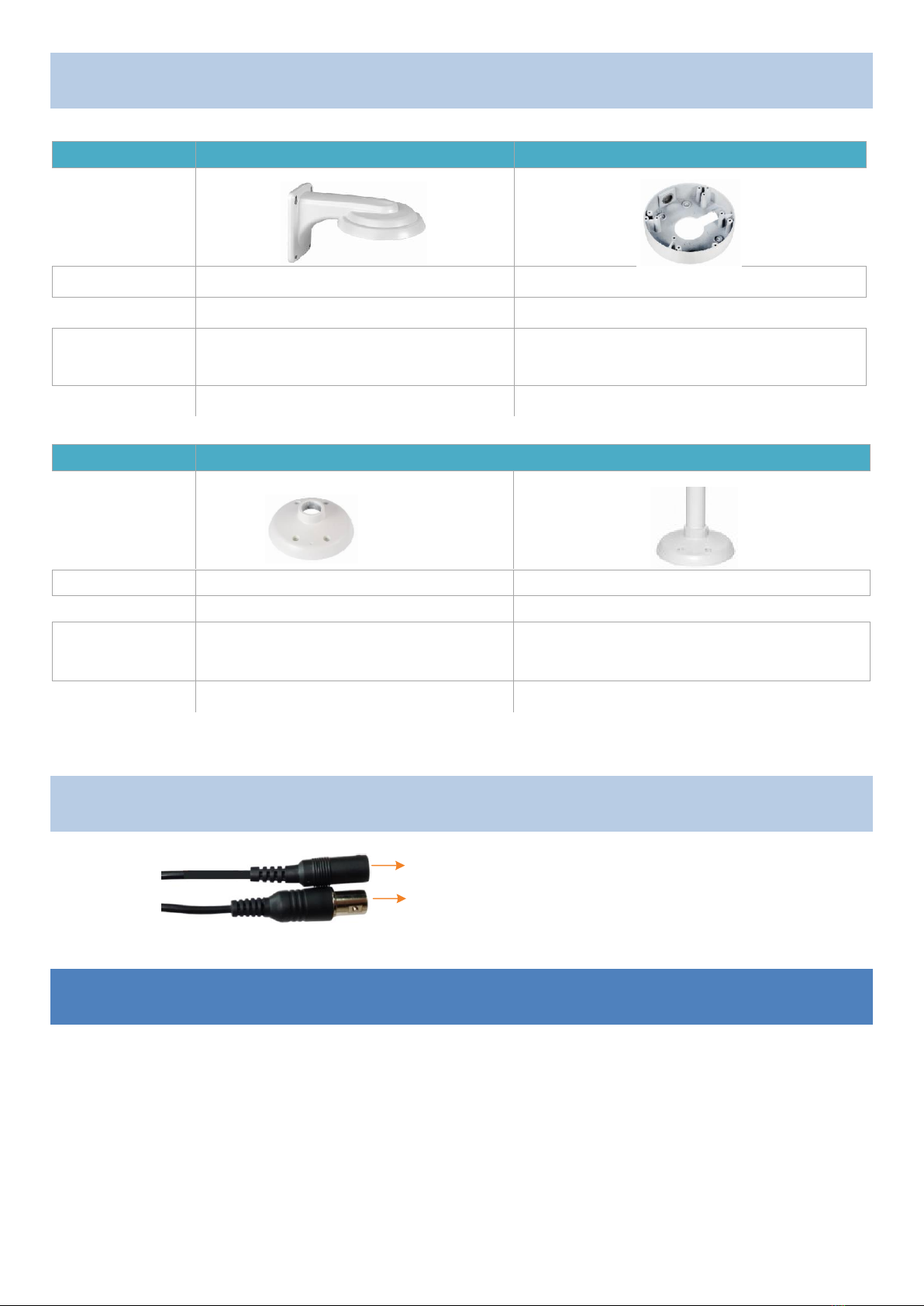

1.4 Optional Accessory

Type

Wall Mount Bracket

Junction Box


Model

Name

BA-EB45-A

BA-EB18-A

Color

White / Metal

Size

(WxDxH)

208L*120mm

Φ136mm

Weight

285g

215g

Type

Ceiling Mount Bracket


Model

Name

BA-EB3A-A

BA-EB3B-A

Color

White / Metal

Size

(WxDxH)

Φ135.7mm

Weight

155g

346g

1.5 Cable Description

12VDC / 24VAC Power Cable

Video Output Cable (BNC, 75Ohm)

2. Installation

1. Stick the supplied Mounting Sticker to the surface to mark the 4 screw

positions. Drill four holes on the surface and insert the supplied 4 Screw

Anchors into the screw holes. If you want to run the cable through the

surface, drill a hole within the 4 screw area.

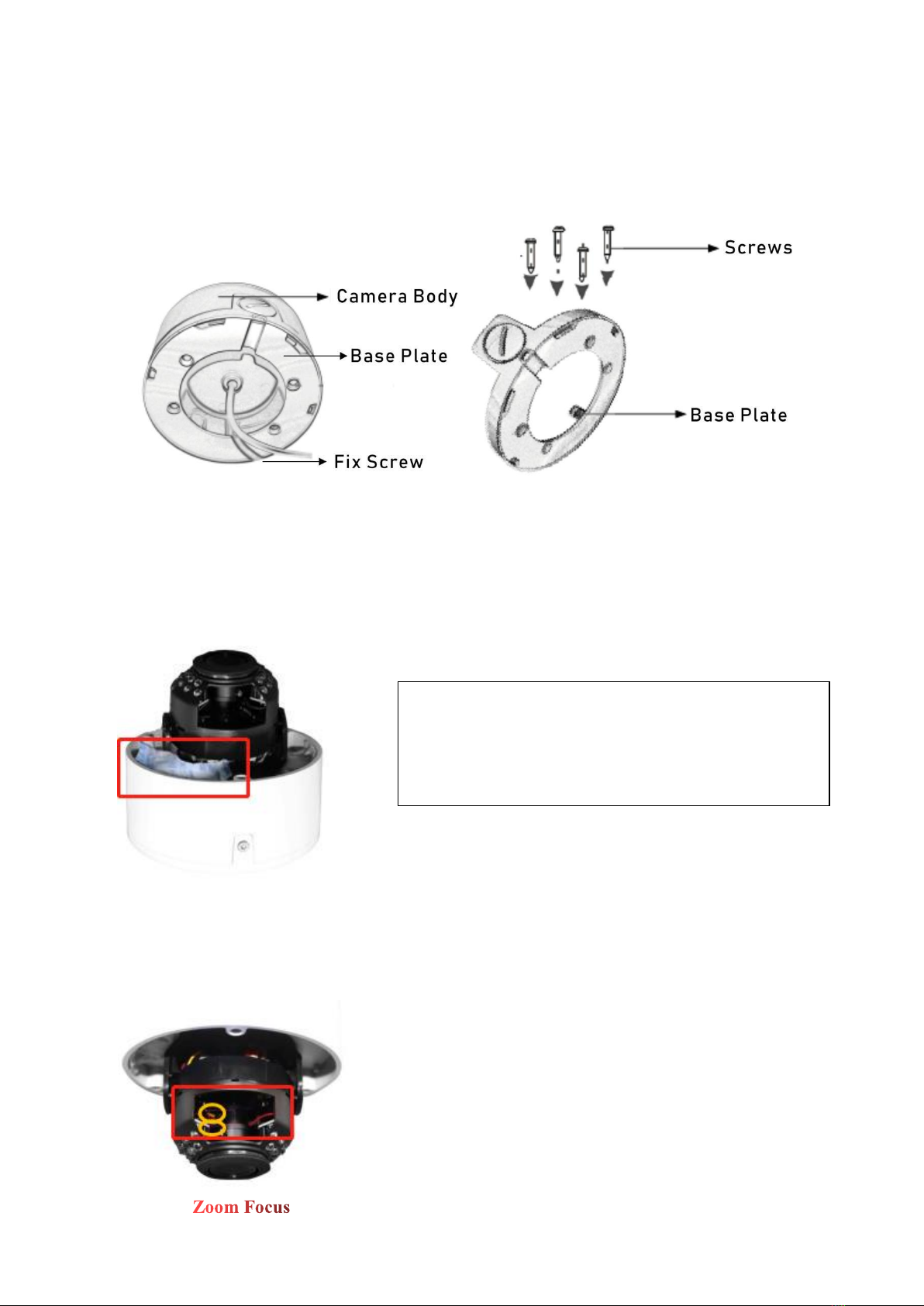

2. To mount the camera to the surface:

a. Remove the Base Plate from the camera. To do so, 1) Remove the Fix

Screw 2) Slightly push the Base Plate backward from the Fix Screw side

and then pull out the Base Plate. Screw the Base Plate to the surface using

the supplied 4 Screws.

b. Open the Camera Cover to remove the old desiccant bag from the Camera

Body and stick the supplied Desiccant Bag inside the Camera Body. It’s

highly recommended to replace the desiccant bag every time when you

open the Camera Cover.

c. For the first time installation, check whether the camera is properly

focused. If not, you can optionally adjust camera zoom and focus by

adjusting the Zoom Screw or Focus Screw using a slotted screwdriver.

Note: Please screw back the Camera

Cover immediately in case of reducing

the absorption capacity of the desiccant

bag inside the camera body.

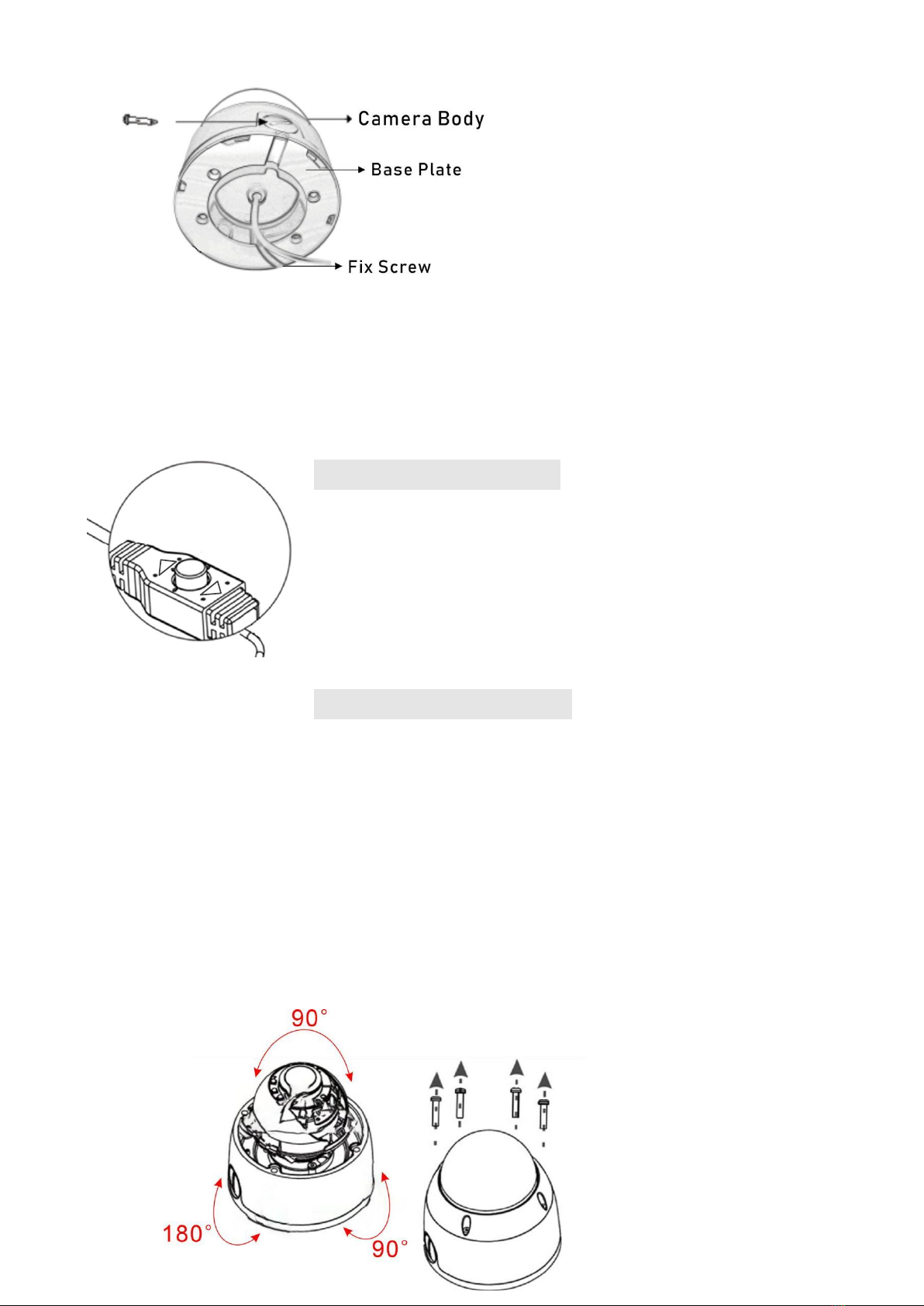

d. Attach the Camera Body to the Base Plate. Screw back the Fix Screw.

3. Connect the Power Cable to a 12VDCpower source. Connect the Video

Output Cable to a monitor or DVR.

4. You can use the Joystick on the cable to configure camera OSD settings or

switch to different video formats. Remove the Protection Cap from the

Joystick before using it.

Switching Video Format:

Push the joystick up for 5 sec. to switch to

resolution1080p/720p.

Push the joystick right for 5 sec. to switch to AHD.

Push the joystick down for 5 sec. to switch to

NTSC/PAL.

Push the joystick left for 5 sec. to switch to CVBS.

Push the joystick center to enter main menu.

Configuring OSD Settings:

Push the Joystick up / down to select among

menu items.

Push the Joystick left / right to adjust the level of

the selected item.

Press the Joystick to enter the sub-menu or exit

the OSD Setup Menu.

5. You can optionally adjust the camera angles. To do so, unscrew the 4 cover

screws using the supplied L-Type Wrench and then remove the cover. Adjust

the camera angles (Tilt: 90°, Pan: 180°, Rotate: 90°). After adjusting camera

angles, screw back the camera cover.

3. Configuration in the OSD Menu

You can configure camera settings in the OSD menu from DVR end.

Main

Sub

Sub Menu / Function

Lens

Manual / DC

Exposure

Brightness

0-100

Shutter

Auto

Manual

Spee

1/25,1/50, 1/200, 1/400, 1/1000,

1/2000, 1/5000, 1/10000

Flicker

Sens-Up

Off, x2, x4, x8, x10, x15,x20,x25,x30

AGC

0-15

Sens-up

Auto/Off

Brightness

0-100

D-WDR

Off/On

Level: 0-8 ; Return: Set

Defog

Off/Auto

Pos/Size/ Gradation:0-2/ Default/Return

Return

Set: Save/End

Backlight

Off

BLC

Mode

Night Only / All Day

Level

Middle

Area

Pos/Size

Default

Return

Set

White Bal

ATW

AWC

Indoor /Outdoor

AWB

Manual

Blue

0-100

Red

0-100

Reture

Set

Day&Night

Auto

Mode

Auto

Color

B&W

Burst

Off/on

Smart

Off

Level:0-15

Area:0-2

Return: Set

Return

Set

Exter

D-N

0-60

N-D

0-60

Return

set

N R

2 DNR

Off/Low/Middle/High

3 DNR

Off/Low/Middle/High

Return

Set

Auto

D-N (AGC)

0-255

N-D(Delay)

0-60

N-D (AGC)

0-255

N-D (Delay)

0-60

Return

Set

Special

Cam Title

Off/ On

D-effect

Freeze

On/Off

Mirror

Off

V-flip

Rotate

Neg Image

On/Off

Return

Set

Motion

Off

Select

Area: 1-4

Display

On/Off

Sensitivity

0-100

Color

Red/Green/Blue/White

Trans

0, 0.25,0.75,1

Alarm

View

Type

Off/Block/Outline/All

OSD View

On/Off

Alarm

Out

On/Off

Time

0-15

Return

Set

Default

On/Off

Return

Set

Privacy

Off

Select

Area 1-4

Display

INV/MOSAIC/COLOR

Color

White/Black/Red/Blue/Yellow/

Green/Cyan/User

Trans

0,0.25,0.75,1

Default

On/Off

Return

Set

Language

ENG/CHN1/CHN2/GER/FRA/POL/RUS/POR/NED/TUR

Defect

Live DPC

Off

AGC

0-255

Level

0-255

Return

Set

White DPC

Black DPC

POS/Size

Start

DPC/Vie

On/Off

Level

0-100

Return

Set

Return

Set

RS485

Cam ID

0-255

ID Display

On/Off

Baud rate

38400/2400/4800/9600/19200

Return

Set

Return

Set

Adjust

Sharpness

Auto

Level

0-10

Start AGC

0-255

ENR AGC

0-255

Return

Set

Monitor

LSC

On/Off

Comet

On / Off

Output

Mode

Monitor Out

AHD/THD/CHD/CVBS

Output Size

1080P/720P

Video Out

NTSC/PAL

Return

Set

Return

EverFocus Electronics Corp.

EverFocus Taiwan:

2F., No.12, Ln. 270, Sec. 3, Beishen Rd., Shenkeng

Dist., New Taipei City 222, Taiwan TEL: +886 2 2662

2338 FAX: +886 2 2662 3632

www.everfocus.com.tw

[email protected]

EverFocus China - Shenzhen:

2F, Building A, Area A, Longquan Science and

Technology Park,Tongfuyu Phase II, Henglang

Community, Dalang Street, Longhua,Shenzhen

518109, Guangdong, China TEL: +86 755 2765

1313 FAX: +86 755 2765 0337

www.everfocus.com.tw

[email protected]m.tw

EverFocus USA - California:

324 W Blueridge Avenue, Orange, CA 92865, USA

TEL: +1 626 844 8888 FAX: +1 714 792 0481

www.everfocus.com

[email protected]

EverFocus Japan - Tokyo:

7-6-4-101 Takashimadaira, Itabashi-ku, Tokyo

175-0082, Japan TEL: +81 (3) 4363-2819 FAX: +81

(3) 4363-2790

www.everfocus.co.jp [email protected]

Your EverFocus product is designed

and manufactured with high quality

materials and components which can

be recycled and reused. This symbol

means that electrical and electronic

equipment, at their end-of-life, should

be disposed of separately from your

household waste. Please, dispose of

this equipment at your local

community waste collection/recycling

centre. In the European Union there

are separate collection systems for

used electrical and electronic product.

Please, help us to conserve the

environment we live in!

Ihr EverFocus Produkt wurde

entwickelt und hergestellt mit

qualitativ hochwertigen Materialien

und Komponenten, die recycelt und

wieder verwendet werden können.

Dieses Symbol bedeutet, dass

elektrische und elektronische Geräte

am Ende ihrer Nutzungsdauer vom

Hausmüll getrennt entsorgt werden

sollen. Bitte entsorgen Sie dieses Gerät

bei Ihrer örtlichen kommunalen

Sammelstelle oder im Recycling Centre.

Helfen Sie uns bitte, die Umwelt zu

erhalten, in der wir leben!
