Overview

The ELEDR Power Load Controller

is used to switch circuits for

lighting, motor, receptacle, or

general purpose loads. It receives

input from linked wireless devices

or gateways based on switch

stations, room occupancy state,

ambient light levels, scheduled

events and network commands.

The ELEDR can also provide

process control for circuit or fan

control applications eliminating

long wire runs.

This document covers installation

of ELEDR(H) Power Load

Controller models. The Echoflex Power Load Controller ELEDR Configuration

Guide is available for download at echoflexsolutions.com.

The package contents includes the controller and the installation guide.

Prepare for Installation

Echoflex recommends paying special attention to the installation

environment.

• High density construction materials and large metal appliances or

fixtures in the space may disrupt wireless reception.

• Mount the controller to an electrical junction box or a panel in a

location and at a height where it is not subject to tampering by

unauthorized personnel.

Supplies required to install the controller (not provided):

• Appropriately sized wire nuts

• Wire insulation

• Small cable ties

High voltage

model shown

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 2 of 8 Echoflex

IMPORTANT SAFEGUARDS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

• This product is suitable for use in dry locations where the ambient

temperature is -5°C to 50°C (23°F to 122°F).

• Do not use outdoors.

• Do not mount near gas or electric heaters

• Equipment should be mounted in locations and at heights where it is

not subject to tampering by unauthorized personnel.

• The use of accessory equipment not recommended by the

manufacturer may cause an unsafe condition.

• Do not use this equipment for other than its intended use.

• Servicing should be performed by qualified service personnel.

• Pollution Degree: 2.

SAVE THESE INSTRUCTIONS

WARNING: Risk of electric shock! This device utilizes high

voltage and should only be installed by a qualified installer or

electrician. Follow all local codes for installation. Before

terminating the AC power wiring verify that the main breaker

is in the off position and follow the proper lockout/tag out

procedures per NFPA Standard 70E.

AVERTISSEMENT: Risque de décharge électrique! Cette

appareil utilise une haute tension et ne doit être installé que

par un installateur qualifié ou un électricien. Suivez tous les

codes locaux pour l'installation. Avant de raccorder le câblage

du courant alternatif, vérifiez que le disjoncteur principal est

en position d'arrêt et suivez les procédures de Consignation/

Déconsignation prescrites par la norme NFPA 70E.

WARNING: For indoor use only! Must install to an electrical

junction box or wireway.

AVERTISSEMENT: Uniquement pour usage d'intérieur! Doit

être installé sur une boîte de raccordement électrique ou un

chemin de câbles.

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 3 of 8 Echoflex

Installation

All local codes and standard electrical practices should be observed. Ensure

that the junction box is clean and free of obstructions and that all wiring is

installed correctly.

Install the Controller

Mount the controller directly to the exterior of the junction box or panel

either at the electrical load or before the load in the circuit.

Review these instructions completely before installing the controller.

1. Locate the circuit breaker panel and terminate power to the circuit.

2. Remove the cover plate and other hardware from the junction box to

access the wiring.

3. Mount the controller.

4. Refer to the wiring diagram to connect the controller to line power,

neutral, and load wires. Use wire nuts on all connections and

individually cap any bare wires, except the orange antenna wire.

5. Replace the electrical box cover plate.

6. Restore power to the circuit.

Note:

Follow applicable NEC and local electrical code

requirements when installing and powering the

controller.

Note:

The Micro USB port is for factory use only. Do not attach

cables or accessories to this port.

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 4 of 8 Echoflex

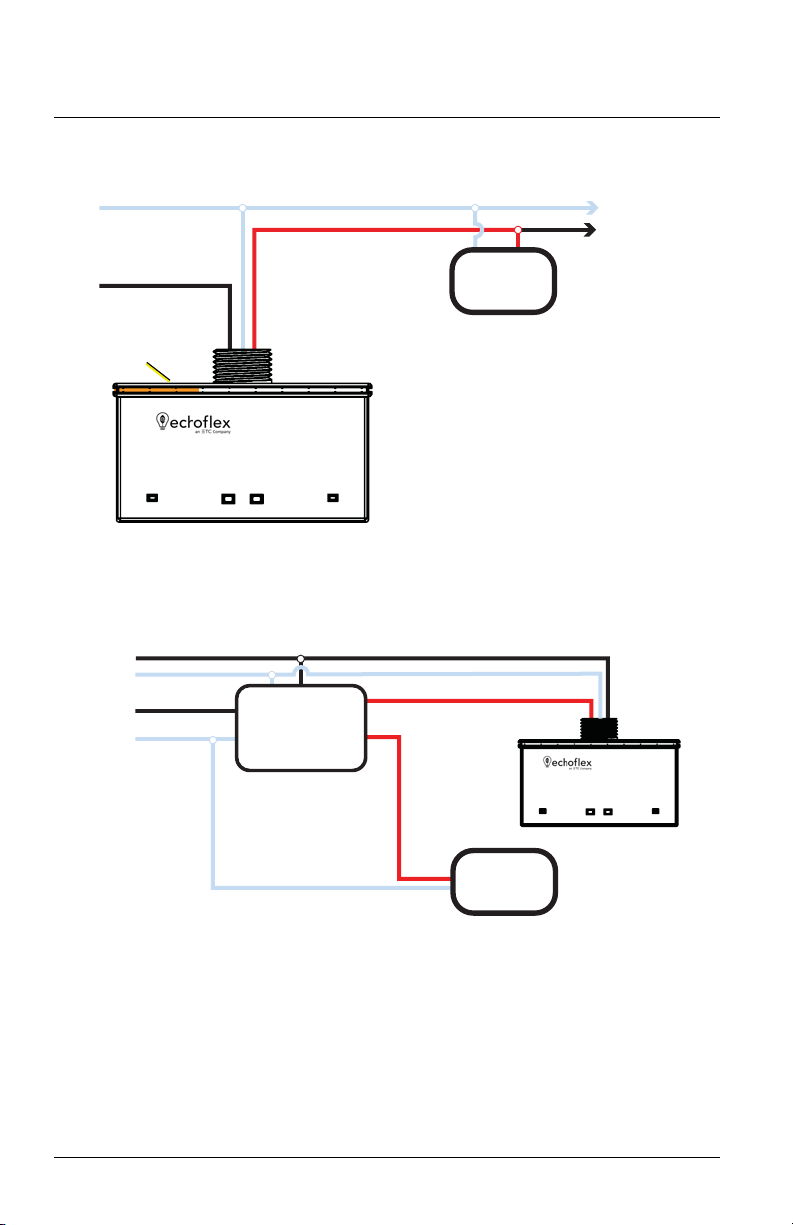

Wiring Diagram

Wiring Diagrams for Emergency Fixtures

Diagram 1 of 2

ELEDR or ELEDRH

Power Load Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

Load

Red - Load, Switched Hot

Neutral to others

Red- Tootherloads

Antenna (orange)

Do not cut or cap

Black - Line,

120-277 VAC or 240-347 VAC

@ 50/60 Hz 500 mW max

White - Neutral

Max. Load:

(ELEDR) 20 A @ 120-277 VAC,

Electronic Ballast or LED Driver

(ELEDRH) 20 A @ 240-277 VAC

Electronic Ballast or LED Driver

(ELEDH) 16 A @ 347 VAC,

Electronic Ballast or LED driver

Max. Switching Load

(ELEDR) 20 A @ 120-277 VAC, Electronic Ballast or LED Driver

(ELEDRH) 20 A @ 240-277 VAC, Electronic Ballast or LED Driver

(ELEDRH) 16 A @ 347 VAC, Electronic Ballast or LED Driver

Max. Impulse Voltage: 4000 V

Internal Relay: Type 1.C

Motor load rang: 1.5 HP @ 120 VAC and 3.0 HP @ 277 VAC

Power Load Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

Load

Normal

Emergency

Load

LEDDriverNeutral

Normal Control Sense

Hot

UL924 Emergency

Bypass Relay

(Echoﬂex Soluons

EREB-AP)

Normal Hot

Normal Neutral

Emergency Hot

Emerency Neutral

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 5 of 8 Echoflex

Diagram 2 of 2

Electrical Terminations

Power to the controller is connected between the White (Neutral) and the

Black Line power ELEDR (120–277 VAC) or ELEDRH (240-347). Do not cut,

cap or connect this wire. Use only UL approved wire when making

connections to the controller (see table below).

Controller Interface

The controller interface has two LEDs and two buttons.

LEDs

The Power LED (red) and Learn LED (green) indicate whether the controller is

providing information via blink codes or is in an operational mode. See

Blink Codes and Operations on page 7.

Learn Button

The [Learn] button initiates Link mode for linking switches or sensors to the

controller. See the relevant switch or sensor documentation for information

on linking. Link mode times out after 30 seconds of inactivity.

Repeating the linking process for a device that is already linked to a

controller will unlink it from that controller.

Connection Color Specification

Load Red 14 AWG, 600 V

Neutral White 14 AWG, 600 V

Line Black 14 AWG, 600 V

Power Load Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

Baery BackupLED Emier LED Driver

LED +

LED -

Normal Hot

Normal Neutral

ELED3 Load Control

Neutral

LED +

LED -

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 6 of 8 Echoflex

Clear Button

The [Clear] button resets the controller either to its pre-commissioned state

or to its factory default state.

To reset to pre-commissioned state:

1. Press the [Clear] button until the Power and Learn LEDs start blinking.

2. Release the [Clear] button. The Power LED displays a color blink code

to indicate the type and number of devices linked to each channel at

pre-commissioning.

To reset to factory default state:

1. Press and hold the [Clear] button until the Power and Learn LEDs start

blinking. Continue to hold for 15 seconds until the LEDs turn solid.

2. Release the [Clear] button. The Power LED displays solid red to indicate

factory default state. All links are removed.

Test the Controller

Echoflex provides the controller in either a pre-commissioned state or a

factory default state.

• Pre-commissioned devices are linked, configured, and labelled

according to customer specifications. When powered up, the Power

LED repeats a blink code to indicate the type and number of devices

currently linked to the controller. See Blink Codes and Operations

on page 7. To test the relay(s), press the [Learn] button or use a

linked switch.

• In factory default state, when powered up, the Power LED displays

solid red to indicate the controller has no linked devices. To test the

relay(s), press the [Learn] button or link a switch. See relevant switch

documentation.

A maximum of 20 switches or sensors can be linked to one controller.

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 7 of 8 Echoflex

Blink Codes and Operations

The tables below describe the controller's LED blink codes and operating

activity.

• If the controller is in factory default state, the Power LED remains solid

On.

• If the controller has one or more devices linked to it, the Power LED

repeats a code of blinks that represent the type and number of linked

devices. Long blinks=type. Short blinks=count.

Blink Codes

Operations

Description Power LED Learn LED

Factory default On solid Off

Switch(es) 1 long blink followed by

short blinks counting switches Off

Occupancy

sensor(s)

2 long blinks followed by

short blinks counting sensors Off

Photo sensor(s) 3 long blinks followed by 1

short blink counting sensor Off

Central command 4 long blinks followed by

short blinks counting devices Off

Demand response 5 long blinks followed by

short blinks counting devices Off

Activity Power LED Learn LED Relay/Light

Link mode Blink On solid Toggle

Store link ID On 4 seconds On solid On 4 seconds

Clear link ID Off 4 seconds On solid Off 4 seconds

Factory default On solid One blink

(on power-up) On solid

Echoflex Installation Guide

Power Load Controller

Power Load Controller Page 8 of 8 Echoflex

Compliance and Listings

For complete regulatory compliance information, see the Echoflex Power

Load Controller datasheet at echoflexsolutions.com.

FCC Part 15.231 Contains FCC ID: SZV-STM300U

This device complies with part 15 of the FCC rules. Operation is

subject to the following two conditions: (1.) this device may not

cause harmful interference and (2.) this device must accept any

interference received, including interference that may cause

undesired operation.

IC RSS-210

Table des matières

Autres manuels ETC Contrôleurs

ETC

ETC Echoflex Elaho Inspire Station Mode d'emploi

ETC

ETC Echoflex ELED3 Manuel utilisateur

ETC

ETC Foundation HD Manuel utilisateur

ETC

ETC Expression Guide de configuration

ETC

ETC echoflex ElahoTouch Manuel utilisateur

ETC

ETC Unison Mosaic Manuel utilisateur

ETC

ETC ArcSystem Pro D4 Series Manuel utilisateur

ETC

ETC QuickTouch Manuel utilisateur

ETC

ETC Unison Foundry Relay Controller Manuel utilisateur

ETC

ETC Element Manuel utilisateur

ETC

ETC ArcSystem Navis 100 Manuel utilisateur

ETC

ETC Paradigm P-TS7-PE Manuel utilisateur

ETC

ETC echoflex ELED2-BCL Manuel utilisateur

ETC

ETC EchoDIN Power Control Processor Mk2 Manuel utilisateur

ETC

ETC Echoflex ELED2 Manuel utilisateur

ETC

ETC EA07 Manuel utilisateur

ETC

ETC Echoflex ELED2 Manuel utilisateur

ETC

ETC Echoflex ELED1-BUN Manuel utilisateur

ETC

ETC Foundation Rigging Controller Manuel d'installation et d'exploitation

ETC

ETC Echoflex ELED3 Manuel utilisateur

ETC

ETC F-Drive W1 Series Manuel utilisateur

ETC

ETC echoflex ELED1 Manuel utilisateur

ETC

ETC Unison Foundry Manuel utilisateur

ETC

ETC QuickTouch Preset Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

ETC echoflex ELEDR-RH Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques
