Overview

Dimming

control

The LED Fixture Controller

(240-347VAC) (ELED1H) provides

wireless control of an individual fixture

or single zone lighting based on

occupancy state, manual switch action,

ambient light levels, and gateway

commands.

This document covers installation of all

the ELED1H models. The

Echoflex LED

Fixture Controller ELED1(H)

Configuration Guide

is available for

download at echoflexsolutions.com.

The product package includes the

controller and the installation guide.

Prepare for Installation

To ensure optimal function, consider the installation environment and the

following guidelines:

•

Avoid spaces with high density construction materials and large

metal appliances or fixtures as they may disrupt wireless reception.

•

For optimal performance, switches and sensors should be installed

within a 24 m (80 ft) unobstructed view of the controller. Consider

adding a repeater to extend the wireless signal, if required.

•

Mount the controller to an electrical junction box (preferably non-

metallic) or a panel in a location and at a height where it is not

subject to tampering by unauthorized personnel.

•

Make sure the antenna wire is unrestricted and not in contact with

any metal surface.

Supplies required to install the controller (not provided):

•

Appropriately sized wire nuts

•

Wire insulation

•

Small cable ties

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

IMPORTANT SAFEGUARDS

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

WARNING: RISKOFELECTRICSHOCK! This device utilizes

high voltage and should only be installed by a qualified

installer or electrician. Follow all local codes for

installation. Before terminating the AC power wiring verify

that the main breaker is in the off position and follow the

proper lockout/tag out procedures required by NFPA

Standard 70E.

AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLECTRIQUE!

Cette appareil utilise une haute tension et ne doit être

installé que par un installateur qualifié ou un électricien.

Suivez tous les codes locaux pour l'installation. Avant de

raccorder le câblage du courant alternatif, vérifiez que le

disjoncteur principal est en position d'arrêt et suivez les

procédures de Consignation/Déconsignation prescrites par

la norme NFPA 70E.

WARNING: For indoor use only! Must install to an

electrical junction box or wireway.

AVERTISSEMENT : Uniquement pour usage d'intérieur!

Doit être installé sur une boîte de raccordement électrique

ou un chemin de câbles.

•

This product is suitable for use in dry locations where the ambient

temperature is -5°C to 50°C (23°F to 122°F).

•

Do not use outdoors.

•

Do not mount near gas or electric heaters.

•

Equipment should be mounted in locations and at heights where it is

not subject to tampering by unauthorized personnel.

•

The use of accessory equipment not recommended by the

manufacturer may cause an unsafe condition.

•

Do not use this equipment for other than its intended use.

•

Servicing should be performed by qualified service personnel.

•

Pollution Degree: 2.

SAVE THESE INSTRUCTIONS

LED Fixture Controller (240-347VAC) Page 2 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

Installation

Ensure that the junction box is clean and free of obstructions and that all

wiring is installed correctly. Review these instructions completely before

installing the controller.

Note:

Follow applicable NEC and local electrical code

requirements when installing and powering the controller.

Install the Controller

The controller can be mounted directly to the exterior of the junction box

or panel either at the electrical load or before the load in the circuit.

1. Locate the circuit breaker panel and terminate power to the circuit.

2. Remove the cover plate and other hardware from the junction box to

access the wiring.

3. Mount the controller.

4. Refer to the

Wiring Diagram below

to connect the controller to line

power, neutral, and load wires. Use wire nuts on all connections and

individually cap any bare wires, except the orange antenna wire.

5. Connect the gray and the violet wires to the driver or ballast’s

dimming interface (optional).

6. Replace the electrical box cover plate and restore power to the circuit.

Note:

The USB port is for factory use only. Do not attach cables or

accessories to this port.

Wiring Diagram

ELED1H-AU

LED Fixture Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

Max. Switching Load:

20 A @240-277 V,

Electronic Ballast or LED Driver

16 A @347 V,

Electronic Ballast or LED Driver

Antenna (orange)

Do not cut or cap

Line (black)

240-347 V @50/60 Hz

500 mW max

Neutral (white)

LED Driver

Max. Dimming Load: 100 mA sinking

Max. Impulse Voltage: 4000 V

Internal Relay: Type 1.C

Dimming output is Class 1 circuit

Independently mounted control for

panel-mount/surface-mount

LED Fixture Controller (240-347VAC) Page 3 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

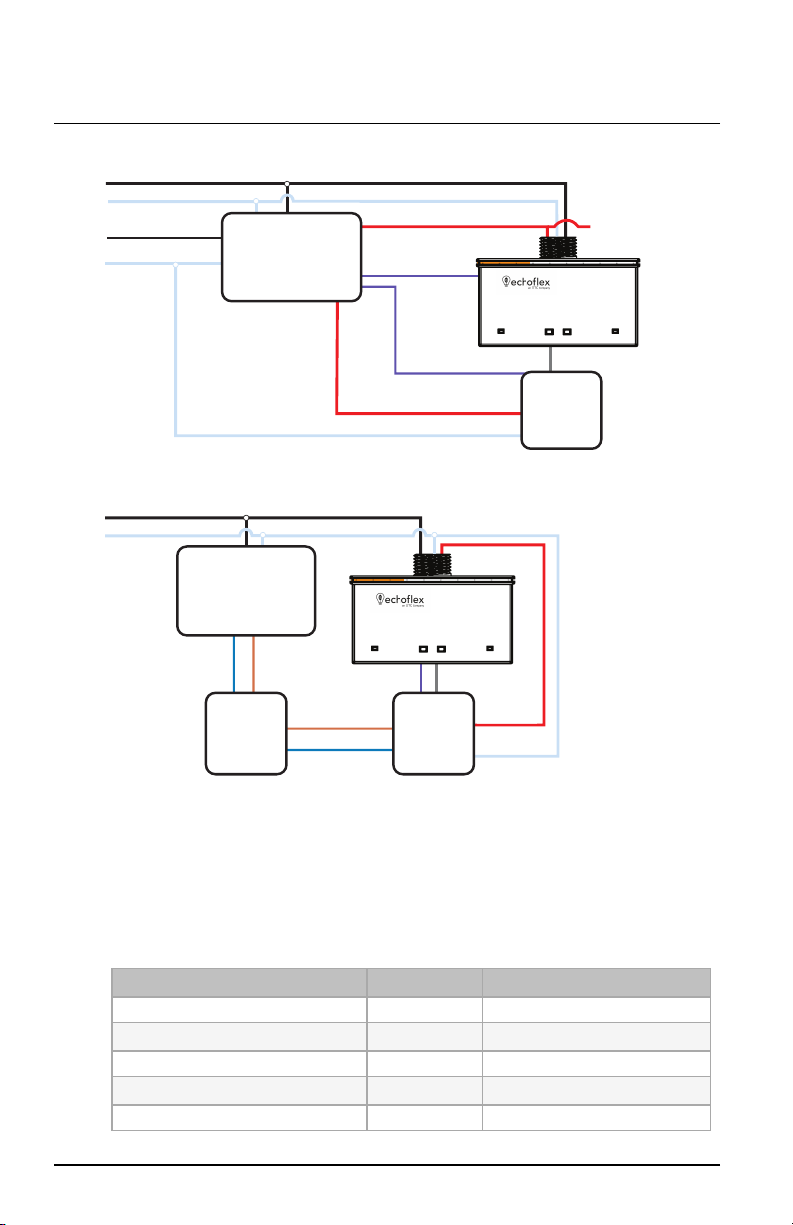

Diagram for Emergency Fixtures 1 of 2

ELED1H-AU

LED Fixture Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

Normal Line (Hot)

Normal Neutral

UL924 Emergency

Bypass Relay

(Echoflex EREB-AD) Dimming +

Dimming + Dimming -

ELED1H

Load Control

Normal Luminaires

Normal Control Sense

LED Driver

Emergency Hot

Emergency Neutral

LED Driver Hot

LED Driver Neutral

Normal/

Emergency

Load

Diagram for Emergency Fixtures 2 of 2

ELED1H-AU

LED Fixture Controller

Power

LED

Clear

Button

Learn

Button

Learn

LED

LED Driver

LED Emitter

Board

Battery

Backup

Normal Line (Hot)

Normal Neutral

LED +LED -

LED +

LED - Neutral

ELED1H

Load Control

Dimming + Dimming -

Line (Hot)

Electrical Terminations

Power to the controller is connected between the white (neutral) and the

black line power (240–347VAC). The Class 1 power limited dimming

lines (violet and gray wires) can be used to provide 0–10V intensity

control of a dimming ballast or LED driver. The orange wire is an antenna.

Do not cut, cap, or connect this wire. Use only UL-approved wire when

making connections to the controller.

Connection Color Specification

Load Red 14AWG, 600V

Neutral White 14AWG, 600V

Line 240–347VAC Black 14AWG, 600V

Dimming 0–10V Violet 18AWG, 600V

Dimming COM Gray 18AWG, 600V

LED Fixture Controller (240-347VAC) Page 4 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

User Interface

Note:

Garibaldi Pro software is the ideal tool to set up your

project and configure settings, or even to make edits if your

project has been pre-commissioned. Garibaldi Pro is available for

download at echoflexsolutions.com.

Two buttons on the controller can be used to activate features and set

specific configurations directly on the device. Two LEDs beside the

buttons provide feedback about stored information and activities.

Learn Button

The [Learn] button initiates Link mode for manually linking compatible

Echoflex devices to the controller. See the relevant switch or sensor

documentation for information on linking. Link mode times out after

60seconds of inactivity.

Devices can be linked to a controller manually, using Garibaldi Pro, or

during the Echoflex pre-commissioning process.

Remote Linking Solution

Use the following method to link the first switch if you cannot access the

[Learn] button on a controller that has not been pre-commissioned and

you do not have Garibaldi Pro software.

This method only works if there are no switches linked to the controller.

You cannot link a scene station using this method.

1. Ensure you are within wireless range of the controller and have a

wireless paddle switch.

a. If the controller has a linked sensor, you must press the [Teach]

button on the sensor and complete step 2 within 60 seconds.

2. Click the switch paddle ON three times, OFF three times, and ON

three times quickly, for a total of nine consecutive clicks. The relay

will toggle and the Power LED will indicate the switch is linked.

Clear Button

The [Clear] button can be used to reset the controller either to its pre-

commissioned state or to its factory default state.

To reset to pre-commissioned state:

1. Press and hold the [Clear] button until the red Power and green Learn

LEDs start blinking.

2. Release the [Clear] button. The Power LED blink codes indicate the

type and count of devices linked at pre-commissioning.

LED Fixture Controller (240-347VAC) Page 5 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

To reset to factory default state:

1. Press and hold the [Clear] button until the red Power and green Learn

LEDs start blinking, and continue to hold for 15 seconds until the

LEDs stay on solid.

2. Release the [Clear] button. The Power LED displays solid red to

indicates factory default state.

Blink Indications

The tables below describe the LED codes that identify linked devices and

the LED indications that describe linking activities.

Device Count Codes

The following codes provide a visible report of the devices that are linked

to the controller. The Power LED repeats a code of blinks that represent

the type and number of linked devices. Long blinks = type. Short blinks =

count. If the controller does not have any linked devices, the Power LED

remains on solid.

Device Type Power LED LearnLED

Switches 1 long blink followed by short blinks

that count the switches Off

Occupancy sensors 2 long blinks followed by short blinks

that count the sensors Off

Photo sensor

(maximum of 1)

3 long blinks followed by short blink

that counts the sensor Off

Gateways and TimeClocks 4 long blinks followed by short blinks

that count the devices Off

Demand response 5 long blinks followed by short blinks

that count the devices Off

Entry door sensors 6 long blinks followed by short blinks

that count the sensors Off

Window sensors 7 long blinks followed by short blinks

that count the sensors Off

Keycard switches 8 long blinks followed by short blinks

that count the switches Off

Linking Activities

Activity Power LED LearnLED Light Response

Linkmode Blinking On solid Cycles ON and OFF

StorelinkID On for 4 seconds, and then

blinking On solid ON for 4 seconds, and

then cycles

ClearlinkID Off for 4 seconds, and

then blinking On solid OFF for 4 seconds, and

then cycles

LED Fixture Controller (240-347VAC) Page 6 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

Test the Controller

Echoflex provides the controller in either a pre-commissioned state or a

factory default state.

•

Pre-commissioned devices are linked, configured, and labeled

according to customer specifications. When powered up, the red

Power LED repeats a blink code to indicate the type and number of

devices currently linked to the controller. To test, press the [Learn]

button or use a linked switch.

•

In factory default state, when powered up, the Power LED displays

solid red to indicate the controller has no linked devices. To test,

press the [Learn] button or link a switch. See relevant switch

documentation.

A maximum of 20 switches or sensors can be linked to one controller.

LED Fixture Controller (240-347VAC) Page 7 of 8 Echoflex

Echoflex Installation Guide

LED Fixture Controller (240-347VAC)

Compliance

For complete regulatory compliance information, see the Echoflex LED

Fixture Controller (240-347VAC) datasheet at echoflexsolutions.com.

FCC Compliance

Echoflex LED Fixture Controller (240-347VAC)

(For any FCC matters):

Echoflex Solutions, Inc.

3031 Pleasant View Road

Middleton, WI 53562

+1 (608) 831-4116

echoflexsolutions.com

This device complies with Part 15 of the FCCRules. Operation is subject to the following two

conditions:(1) this device may not cause harmful interference, and (2)this device must accept

any interference received; including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. Any modifications or changes to this product not expressly approved by

Electronic Theatre Controls, Inc. could void the user’s authority to operate the product.

Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at their own expense.

Contains FCC ID: SZV-STM300U

ISED Compliance

This device contains a license-exempt transmitter/receiver that complies with Innovation,

Science, and Economic Development Canada’s license-exempt RSSs. Operation is subject to

the following two conditions:

1. This device may not cause interference.

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

Contains IC ID: RSS 210

Conformité ISDE

Cet appareil contient un émetteur/récepteur conforme aux CNR d'Innovation, Sciences et

Développement économique Canada (ISDE) applicables aux appareils radio exempt de licence.

Son fonctionnement est soumis aux deux conditions suivantes:

1. L'appareil ne doit pas produire d'interférences.

2. L'utilisateur de l'appareil doit accepter toute interférence, même si l'interférence est

susceptible d'en compromettre le fonctionnement.

Contient ID IC: RSS 210

LED Fixture Controller (240-347VAC) Page 8 of 8 Echoflex

Autres manuels pour echoflex ELED1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ETC Contrôleurs

ETC

ETC Element Manuel utilisateur

ETC

ETC QuickTouch Preset Manuel utilisateur

ETC

ETC DMX DEBC-1 Manuel utilisateur

ETC

ETC echoflex ELEDR Manuel utilisateur

ETC

ETC QuickTouch Preset Handheld Manuel utilisateur

ETC

ETC echoflex ELED2-BCL Manuel utilisateur

ETC

ETC Unison Aero Relay Controller Manuel utilisateur

ETC

ETC Echoflex ELED3 Manuel utilisateur

ETC

ETC Echoflex ELED1H Manuel utilisateur

ETC

ETC EA07 Manuel utilisateur

ETC

ETC Expression Guide de configuration

ETC

ETC Echoflex ELED2 Manuel utilisateur

ETC

ETC QuickTouch+ Mk2 Manuel utilisateur

ETC

ETC echoflex ELEDR Manuel utilisateur

ETC

ETC EchoDIN Power Control Processor Mk2 Manuel utilisateur

ETC

ETC ION Manuel utilisateur

ETC

ETC echoflex ElahoTouch Manuel utilisateur

ETC

ETC Echoflex ELED1-BUN Manuel utilisateur

ETC

ETC Echoflex ELED2-BU Manuel utilisateur

ETC

ETC ALiEn2 Manuel utilisateur

ETC

ETC ArcSystem Navis 100 Manuel utilisateur

ETC

ETC F-Drive W1 Series Manuel utilisateur

ETC

ETC ArcSystem Pro D4 Series Manuel utilisateur

ETC

ETC Foundation Rigging Controller Manuel d'installation et d'exploitation

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur

ETC echoflex ELED1 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques
