Epson PowerLite 107 Manuel utilisateur

PowerLite 107/108/109W/970/980W/990U

User's Guide

Projector Part Locations

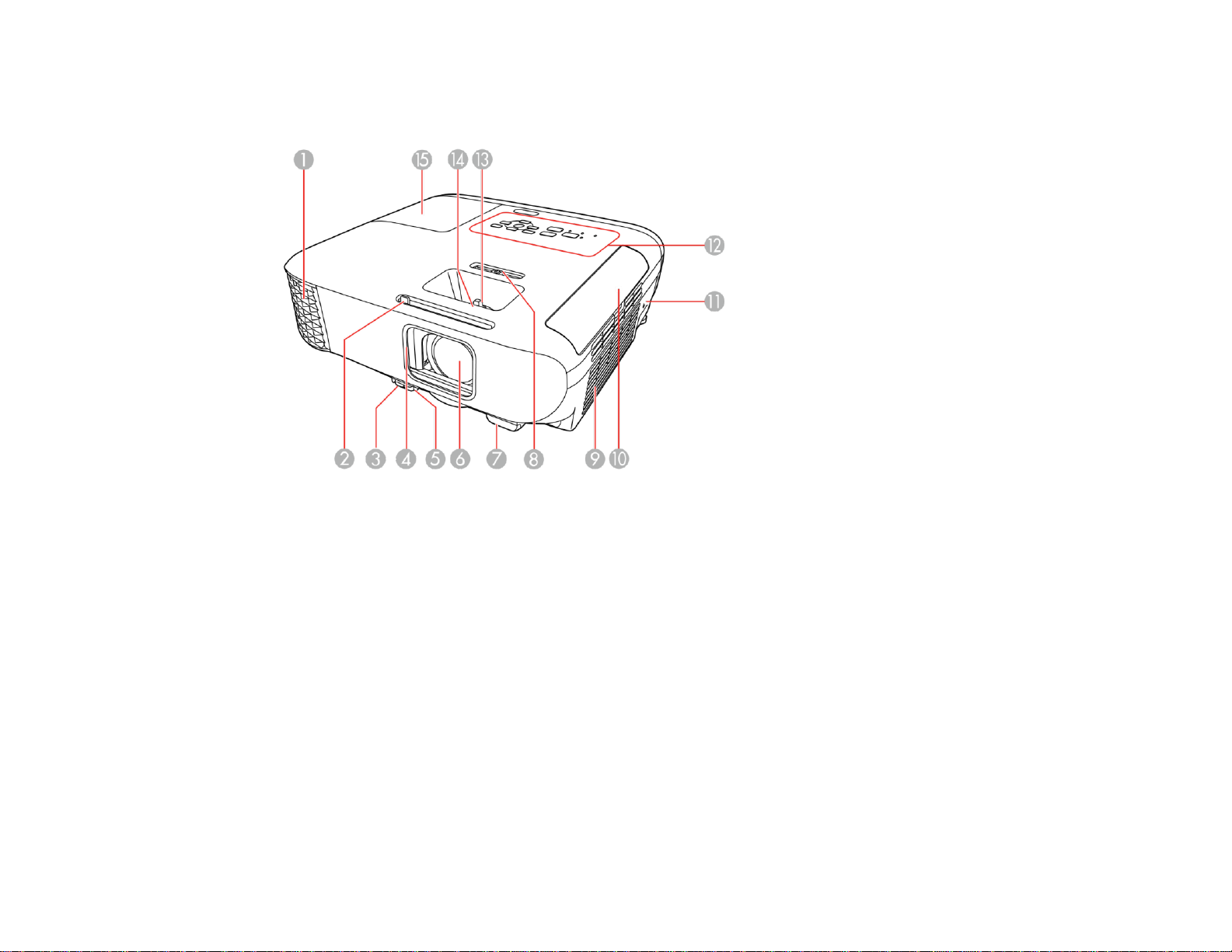

Projector Parts - Front/Top

1 Exhaust vent

2 A/V Mute slide lever

3 Foot release lever

4 Lens cover

5 Front adjustable foot

6 Lens

7 Remote control receiver

8 Horizontal keystone slider

9 Air filter/intake vent

10 Air filter cover

11 Kensington security lock slot

12 Control panel

the

13 Zoom ring

14 Focus ring

15 Lamp cover

Projector Parts - Rear

1 AC input

2 RS-232C port

3 Video port

4 Mic port

5 L and R audio ports

6 Monitor Out port

7 Audio1 port

8 Audio Out port

9 Audio2 port

10 Computer2 port

11 Speaker

12 HDMI1 and HDMI2/MHL ports

13 Computer1 port

14 Network (LAN) port

15 USB-B port

16 USB-A port

17 Wireless LAN module cover screw

18 Remote receiver

Projector Parts - Base

1 Ceiling mount holes (3)

2 Security cable attachment point

3 Rear feet

the

4 Front adjustable foot

Projector Parts - Control Panel

1 Source Search button (searches for connected video sources)

2 Enter button (selects options)

3 Vertical keystone adjustment buttons (displays the adjustment screen and adjusts screen shape)

and arrow buttons

4 Esc button (cancels/exits functions)

5 Volume buttons (adjust speaker volume), horizontal keystone adjustment buttons, and arrow

buttons

6 Menu button (accesses projector menu system)

7 Home button (displays Home screen)

8 Power button

9 Status lights

Projector Parts - Remote Control

1 Power button

the

2 Computer button (cycles through connected computer sources)

3 HDMI/Video button (cycles through connected HDMI/video sources)

4 Numeric buttons (enter numbers when you hold down the Num button)

5 Auto button (automatically adjusts position, tracking, and sync settings when projecting from a

computer using a VGA cable)

6 Aspect button (selects the image aspect ratio)

7 Num button (when held down, switches numeric buttons to number function)

8 Menu button (accesses projector menu system)

9 Arrow buttons (move through on-screen options and control wireless mouse functions)

10 Enter button (selects options and controls wireless mouse functions)

11 User button (customizable for different functions)

12 Page up/down buttons (control presentation slides)

13 E-Zoom +/–buttons (zoom into and out of the image)

14 A/V Mute button (turns off picture and sound)

15 Split button (splits the screen between two image sources)

16 Home button (accesses source selection, projector help information, and other features)

17 Freeze button (stops video action)

18 Volume up/down buttons (adjust speaker volume)

19 Pointer button (activates on-screen pointer)

20 Esc button (cancels/exits functions and controls wireless mouse functions)

21 ID button (selects which projector you want to control)

22 Color Mode button (selects display modes)

23 MHL Menu button (displays settings or performs functions for the MHL device)

24 LAN button (cycles through connected network sources)

25 USB button (cycles through connected USB sources)

26 Source Search button (searches for connected sources)

27 Remote control signal emitter (emits remote control signals)

Projector Connections

See these sections to connect the projector to a variety of projection sources.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude

Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector

through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a

USB cable.

Note: An HDMI connection is recommended for projecting content requiring high bandwidth.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

•Windows 10/Windows 8.x: Click EPSON_PJ_UD when it appears on the desktop, then select

Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

the

•Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to

install the Epson USB Display software.

•Mac: The USB Display setup folder appears on your screen. Select USB Display Installer and

follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect

the projector to the computer.

The projector displays the image from your computer's desktop and outputs sound, if your presentation

contains audio.

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video

port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.

Contact Apple for compatible adapter options.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: The projector converts the digital audio signal sent from your computer into a mono analog

signal for the internal speaker or a stereo analog signal if you are connecting to external speakers.

(Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.)

Note: If you have problems hearing audio through the HDMI connection, connect one end of an

optional 3.5 mm stereo mini-jack audio cable to the projector's Audio port and the other end to your

computer's audio out port. Then select the audio port you connected to as the HDMI Audio Output

setting in the Extended menu.

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up

the remote control to act as a wireless mouse. This lets you control projection at a distance from your

computer. To do this, connect the projector to your computer using a USB cable, if it is not connected

already.
