USER'S MANUAL Vol.1 Basic

Please read this user's manual thoroughly to ensure correct usage through understanding.

Liquid Crystal Projector

CP-322i/CP-634i

STANDBY/ONINPUT KEYSTONERESET

LANP

TENP

POWER

00CP317/327WBasic03.5.273:04PMページ2

LCD Projector CP-322i

USER'S MANUAL

USER'S MANUAL Vol.1 (Basic)

Page

PROJECTOR FEATURES................2

PREPARATIONS ..............................2

PART NAMES...................................4

SETTING UP

THE PROJECTOR ............................6

CONNECTING

YOUR DEVICES................................8

USING THE REMOTE

CONTROL.......................................13

TURNING ON THE POWER ...........14

TURNING OFF THE POWER .........16

ADJUSTING THE VOLUME ...........17

TEMPORARILY MUTING

THE SOUND....................................17

ADJUSTING THE POSITION..........18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ..............19

Page

CORRECTING KEYSTONE

DISTORTIONS ................................20

USING THE MAGNIFY

FEATURE........................................21

FREEZING THE SCREEN ..............21

SIGNAL SEARCHING.....................22

SELECTING THE ASPECT

RATIO..............................................22

TEMPORARILY BLANKING

THE SCREEN..................................22

USING THE MENU

FUNCTIONS....................................23

OPERATING THE PC SCREEN .....24

THE LAMP ......................................25

THE AIR FILTER.............................27

OTHER CARE.................................29

REGULATORY NOTICES...............30

CONTENTS

Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct

usage through understanding. After reading, store this instruction manual in a

safe place for future reference.

CP-S317/327W/最終03.5.272:22PMページ1

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

Keystone Distortion Correction

Quick correction of distorted images electrically

●

Whisper Mode Equipped

Special mode is available for reducing

projector noise to achieve quieter operation

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

STANDBY/ONINPUTKEYSTONERESET

LANP

TENP

POWER

Projector

(with Lens Cap)

USER'S MANUAL Vol.1 Basic

Pleaseread this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 1 Grundlagen

Bittelessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATIONVol.1 Fondements

Nousvous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de l'appareil.

MANUALE D'ISTRUZIONI Vol.1Informazioni di base

Vipreghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere quanto riportato

aifini di un corretto utilizzo del proiettore.

MANUAL DE USUARIOVol.1 Básico

Leacuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.1 Basis

Leesvoor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van de

uitgebreidemogelijkheden.

BRUKERHÅNDBOK Vol.1 Grunnleggende

Vennligstles denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIOVol.1 Básico

Paraassegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

PORTGÊS

Liquid Crystal Projector

CP-S317/CP-X327

(CP-S317W/CP-X327W)

STANDBY/ONINPUTKEYSTONERESET

LANP

TENP

POWER

User's Manual

Soft carrying case

Power cord

(US Type)

Power cord

(UK Type) Power cord

(Europe Type)

RGB cable USB mouse

cable

VIDEO

ASPECT

HOME

END MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

Remote control

Two AA batteries

(for the remote

control)

Video/Audio cable

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

•Keep the original packing material for future reshipment.

NOTE

CP-S317/327W/最終03.5.272:22PMページ2

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the remote

control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

•Only use the power cord that came with the projector.

•NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

•Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

812

(1) (2)

Power outlet

Power cordAC inlet

CP-S317/327W/最終03.5.272:22PMページ3

STANDBY/ONINPUTKEYSTONERESET

LANP

TENP

POWER

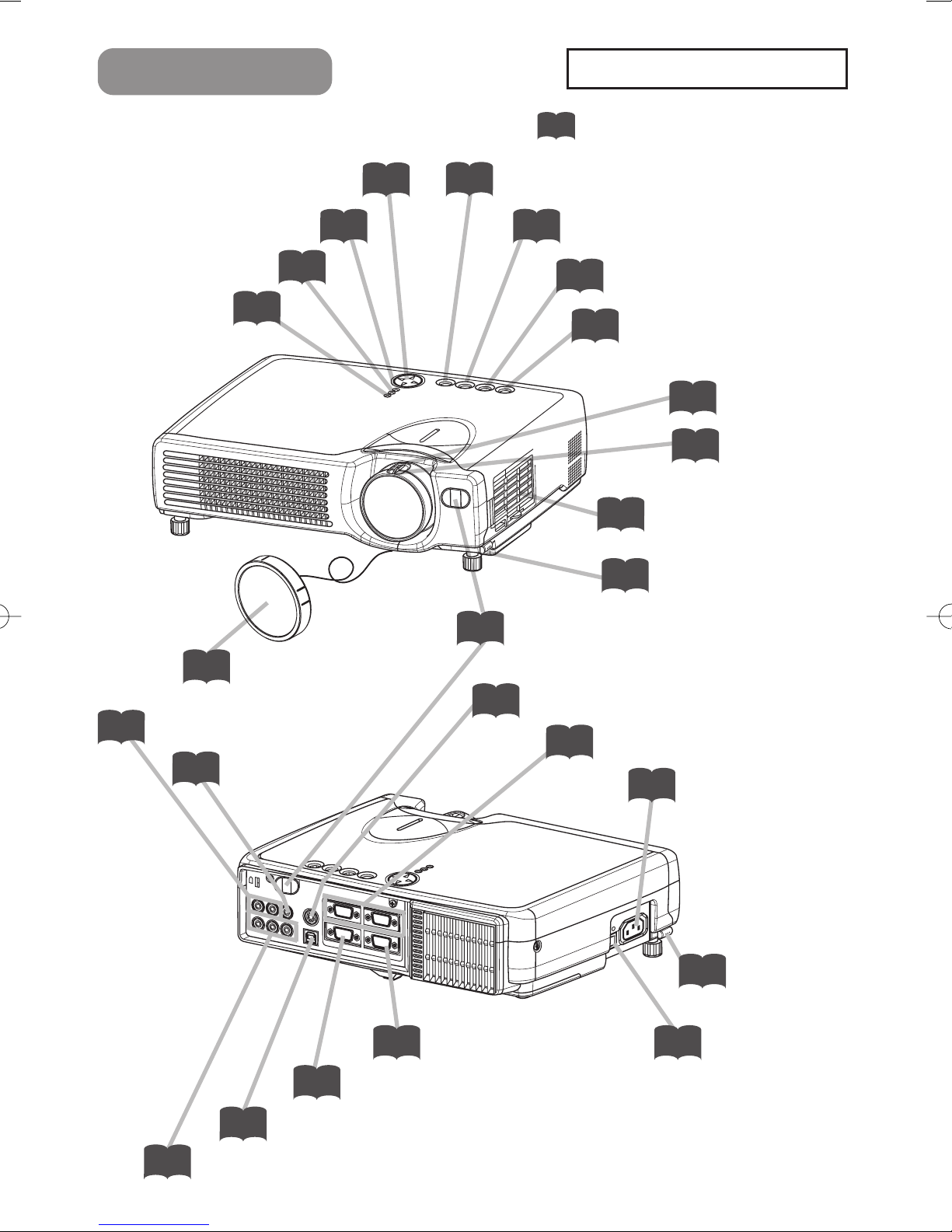

PART NAMES THE PROJECTOR

Zoom ring

Focus ring

Air filter

Elevator button

KEYSTONE button

STANDBY/ON button

INPUT button

RESET button

STANDBY/ONINPUTKEYSTONERESET

LANP

TENP

POWER

MENU button 23

LAMP indicator 26

TEMP indicator 27

POWER indicator 14

Indicates the corresponding

reference page

AC power inlet

S-VIDEO IN port

RGB IN 1 and 2 ports

AUDIO IN R and L ports

VIDEO IN port

CONTROL port

RGB OUT port

USB port

COMPONENT VIDEO port

Power switch

Lens cap 14

Remote sensor 13

CP-S317/327W/最終03.5.272:22PMページ4

THE REMOTE CONTROL

STANDBY/ON button

VIDEO button 15

MENU button

RGB button 15

BLANK button

SEARCH button

VOLUME button

MUTE button

KEYSTONE button

ASPECT button 22

AUTO button

MAGNIFY buttons 21

KEYBOARD buttons 24

FREEZE button 21

POSITION button 18

ESC button 23

,,,

Cursor buttons 23

RESET button

ENTER button

VIDEO

ASPECT

HOME

END MUTE

PAGE DOWN

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

PAGE UP VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

CP-S317/327W/最終03.5.272:22PMページ5

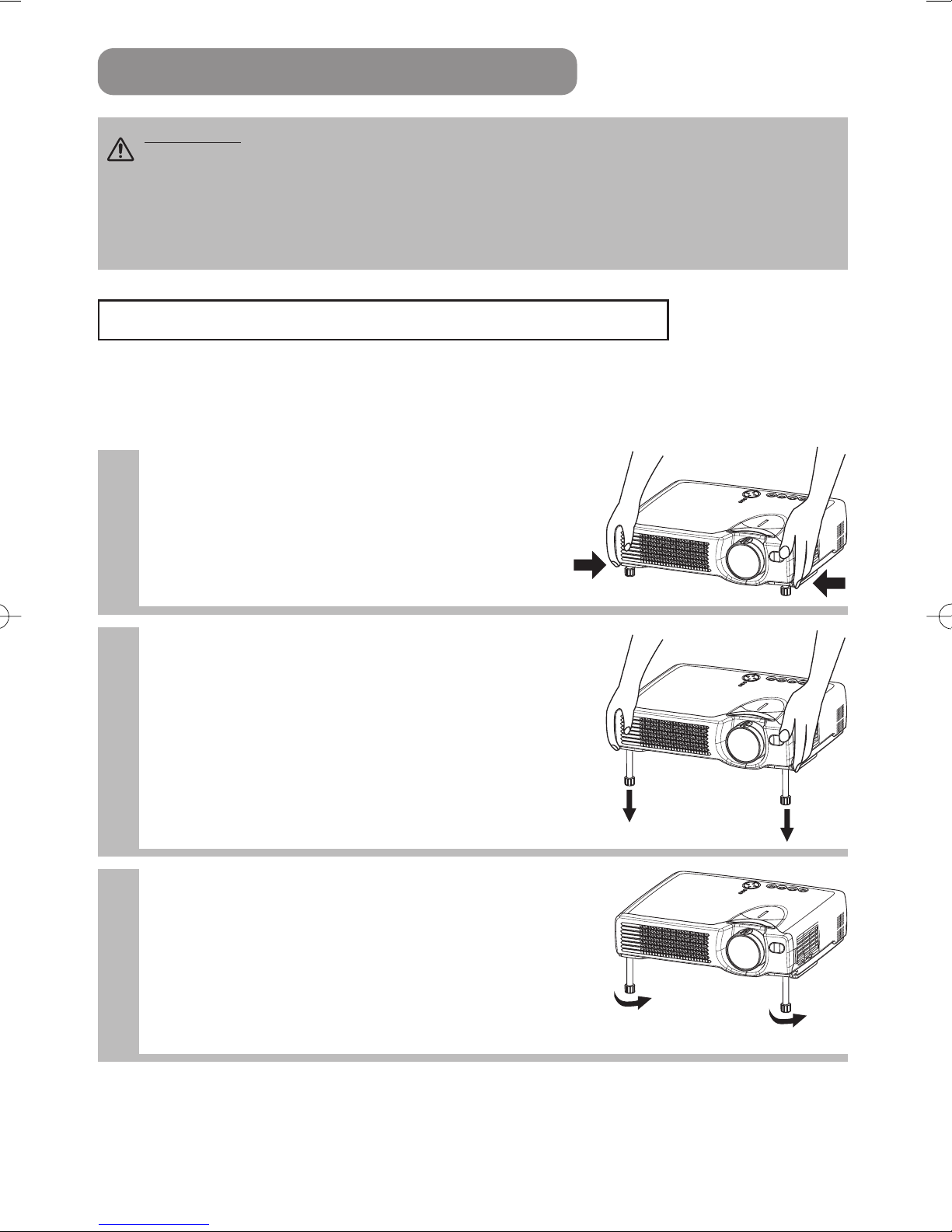

Adjusting the Projector's Elevator Feet

1Press and hold in the elevator

buttons

2Raise or lower the projector to the

desired height and then release the

elevator buttons

When you release the elevator buttons, the elevator

feet will lock into position.

3As necessary, you can also finely

adjust the height of the projector by

twisting the elevator feet by hand

You can use the elevator feet to make adjustments if the surface on which you

need to set the projector is uneven or if you otherwise need to adjust the angle of

projection. The adjustment range of the elevator feet is 0 to 9 degrees.

CAUTION •

Install the projector in a suitable environment according to instructions

of the accompanying manual “SAFETY INSTRUCTIONS”and this manual.

•If you press the elevator buttons without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

SETTING UP THE PROJECTOR

CP-S317/327W/最終03.5.272:22PMページ6

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

(CP-S318: 800x600 pixels/CP-X328: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

c:Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)

40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)

50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)

60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)

70 (1.8) 83 (2.1)

100 (2.5)

2 (5) 40 (102)

80 (2.0) 95 (2.4)

114 (2.9)

2 (6) 46 (116)

90 (2.3)

107 (2.7) 129 (3.3)

3 (7) 51 (131)

100 (2.5)

119 (3.0) 143 (3.6)

3 (7) 57 (145)

120 (3.0)

143 (3.6) 172 (4.4)

3 (9) 69 (174)

150 (3.8)

180 (4.6) 216 (5.5)

4 (11) 86 (218)

200 (5.0)

240 (6.1) 288 (7.3)

6 (15)

114 (290)

250 (6.3)

300 (7.6) 361 (9.2)

7 (18)

143 (363)

300 (7.5)

360 (9.2)

433 (11.0)

9 (22)

171 (435)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)

40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)

50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)

60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)

70 (1.8) 90 (2.3)

109 (2.8)

4 (9) 38 (96)

80 (2.0)

104 (2.6) 125 (3.2)

4 (10) 43 (110)

90 (2.3)

117 (3.0) 140 (3.6)

5 (12) 49 (124)

100 (2.5)

130 (3.3) 156 (4.0)

5 (13) 54 (137)

120 (3.0)

156 (4.0) 188 (4.8)

6 (15) 65 (165)

150 (3.8)

196 (5.0) 235 (6.0)

8 (19) 81 (206)

200 (5.0)

261 (6.6) 314 (8.0)

10 (26)

108 (275)

250 (6.3)

327 (8.3)

393 (10.0)

13 (32)

135 (343)

300 (7.5)

393 (10.0)

472 (12.0)

15 (39)

162 (412)

CP-S317/327W/最終03.5.272:22PMページ7

Display monitors

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

•Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

•TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “TECHNICAL”of the USER’S MANUAL (Vol.2) for the pin

assignment of connectors and RS-232C communication data.

•Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•A component cable and some other cables have to be used with core set. Use the

accessory cable or a designated-type cable for the connection. For cables that have

a core only at one end, connect the core to the projector.

•Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION •Incorrect connecting could result in fire or electrical shock. Please

read this manual and the separate “SAFETY INSTRUCTIONS”.

CP-S317/327W/最終03.5.272:22PMページ8

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a

given device. Use this table for determining which cables to prepare.

About Plug-and-Play Capability

•This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by

connecting this projector to computers that are VESA DDC (display data channel)

compatible. Please take advantage of this function by connecting the accessory RGB

cable to the RGB IN 1 port (DDC 1/2B compatible). Plug-and-Play may not work

properly if any other type of connection is attempted.

•Plug-and-Play is a system composed of the computer, its operating system and

peripheral equipment (i.e. display devices).

•Please use the standard drivers as this projector is a Plug-and-Play monitor.

•Plug-and-Play may not function properly with some type of computers. Use the RGB

IN 2 port if Plug-and-Play does not function correctly.

NOTE

Function Projector Port Connection Cables

RGB input RGB IN 1 Accessory RGB cable or optional RGB

cable with D-sub 15-pin shrink jack and

inch thread screws

RGB IN 2

RGB output RGB OUT

USB mouse control USB Accessory USB cable

PS/2 mouse control

CONTROL

Optional PS/2 mouse cable

ADB mouse control Optional ADB mouse cable

Serial mouse control Optional serial mouse cable

RS-232C communication Optional RS-232C cable

S-video input S-VIDEO IN Optional S-video cable with mini DIN 4-pin

jack

Video input VIDEO IN Accessory audio/video cable

Component video input

COMPONENT VIDEO Y

Optional component video cableCOMPONENT VIDEO CB/PB

COMPONENT VIDEO CR/PR

Audio input AUDIO IN L Accessory audio/video cable or optional

audio cable with RCA jack

AUDIO IN R

CP-S317/327W/最終03.5.272:22PMページ9

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels BOXLIGHT Projecteur

BOXLIGHT

BOXLIGHT Seattle X30N Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite5 Manuel de programmation

BOXLIGHT

BOXLIGHT MP-63E Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-86i Manuel utilisateur

BOXLIGHT

BOXLIGHT Studio Experience PREMIERE 30HD Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-41t Manuel utilisateur

BOXLIGHT

BOXLIGHT CP755ew Manuel utilisateur

BOXLIGHT

BOXLIGHT CD-725c Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-300t Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-40t Manuel utilisateur

BOXLIGHT

BOXLIGHT Seattle X30N/W Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite DX25N-U Manuel utilisateur

BOXLIGHT

BOXLIGHT mimio P12T Manuel utilisateur

BOXLIGHT

BOXLIGHT Projector Manuel utilisateur

BOXLIGHT

BOXLIGHT Beacon CP720e Manuel utilisateur

BOXLIGHT

BOXLIGHT P9 WX33NST Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-320tA Manuel utilisateur

BOXLIGHT

BOXLIGHT PhoenixS25 Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-39t Manuel utilisateur

BOXLIGHT

BOXLIGHT BL WX25NU Manuel utilisateur

BOXLIGHT

BOXLIGHT MP-25t Manuel utilisateur

BOXLIGHT

BOXLIGHT ProjectoWrite6 Manuel utilisateur

BOXLIGHT

BOXLIGHT P12 Manuel utilisateur

BOXLIGHT

BOXLIGHT P12 Manuel d'instructions d'installation

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
