Epson EMP-51 Manuel utilisateur

WARNING Never look into the lens while

the projector's power is turned on.

Be sure to read the Instruction Manual thoroughly before using this projector.

QUICK REFERENCE GUIDE

402029801

(90022021)

02.01-.5A(C05)

Printed in Japan

Printed on 100% recycled paper.

20cm

Page 16 of Instruction Manual

Adjust the distance between the projector and

the screen until the desired image size is obtained.

screen size

* When installing against a wall, leave a

space of about 7.87 inches (20cm) between

the projector and the wall.

projection distance

300"

200"

150"

120"

100"

80"

60"

40"

30"

28"

Setting Up

433.07

515.75inch (11.0

13.1m)

287.4

342.52 (7.3

8.7)

216.54

255.91 (5.5

6.5)

173.23

208.66 (4.4

5.3)

145.67

169.29 (3.7

4.3)

114.17

133.86

(2.9

3.4)

86.61

102.36

(2.2

2.6)

59.06

66.93

(1.5

1.7)

43.31

47.24

(1.1

1.2)

39.37 43.31

(1.0 1.1)

Operation Display indicator

Checking the Indicators

The projector is equipped with indicators that alert you to problems with projector operation.

The following tables show what the indicators mean and how to remedy problems that they indicate.

Problem/Alarm Display indicator

Troubleshooting

Standby condition

This is the only time when the power

cord can be disconnected.

Projection starts when the is

pressed.

Cool-down in progress

After approximately 2 minutes, the projector

switches to the standby condition

(the indicator lights orange).

Projecting in progress

Warm-up in progress

After warm-up is complete, projection

will start when a video signal is input.

Indicator status Problem and remedy

Lights

orange

Flashes

orange

Lights

green

Flashes

green

Off Power is not turned on

If an indicator is showing a status which does not appear in the previous

tables, contact your dealer or the nearest address provided at "International

Warranty Conditions" in "Safety Instructions/World-Wide Warranty Terms"

included in the package.

Contact your dealer for a spare lamp.

Indicator status Problem and remedy

High temperature inside projector (overheating).

The lamp will turn off automatically and

projection will stop.Wait for about 5 minutes

without operating the projector.After 5 minutes

have elapsed, disconnect the power plug and

re-insert it.After re-inserting it, press the to

turn the power back on.

Remove the lamp and check if it is broken.

If the lamp is not broken, reinstall it.

If the lamp is broken, replace it with a

new lamp.*2

High-speed cooling in progress.

If the internal temperature rises any higher,

projection will stop.

Check that the air inlet and exhaust vents are clear

and that the indoor temperature is not too high.

Internal problem

Stop using the projector and ask for

projector to be repaired. *1

Flashes

orange

Lights red

Off

Flashes red

(1-second

intervals)

Flashes red

(2-second

intervals)

Lamp abnormality.

Operating normally.

(Operation Display) indicator

(Problem/Alarm Display) indicator

Pages 54-56 of

Instruction Manual

Troubleshooting

Viewing the Online Help

This projector is provided with an online help function which can be used when you have a

problem using the projector.

Press or .

Select the item to view.

Press the on

the projector's control panel.

Or tilt the on the

remote control.

Accept the selected item.

Press the on the

projector's control panel.

Or press the on the

remote control.

The selected item will appear

on the screen.

Projector Remote Control

You may need to use an optional

adapter or purchase a separate adapter

to connect the computer to the projector,

depending on the shape of the

computer's monitor port.

If connecting component video source

(such as a DVD player), you can use the

optional component video cable to

connect the source to the Computer

/Component Video port at the rear of

the projector.

Connections

Setting Up /

Connections

Connecting to a Computer

* Turn off the power for both the projector and the other equipment before connecting them.

Computer cable (accessory)

To computer's

monitor port

(video port)

Computer/Component Video port

Connecting to aVideo Source

A/V cable (accessory)

To Video port (Yellow)

To Audio (L) port (White)

To Audio (R) port (Red)

Video port (Yellow)

Audio (R) port (Red) Audio (L) port (White)

Tip

Page 40 of Instruction Manual

Pages 18-23 of

Instruction Manual

Momentarily turning off images and sound

You can momentarily pause images and sound.When paused, the screen appears completely

black or blue. It can be used when you do not want to show viewers details of operations such

as selecting different files when computer images are being projected.

First press the , select "Setting" and then "A/V Mute".Then select the type of screen to be displayed

when projection is being stopped.The following choices are available.The default setting is the black screen.

Press .

Press once more.

Projection of the images and sound will be restarted.

If you use this function while projecting moving images, the images and sound will still continue to be

played back, and you cannot return to the point where the A/V Mute function was activated.

Functions for

Enhancing Projection

A/V Mute function

Page 39 of Instruction Manual

The indicator will light orange.

Projecting Remove the lens cover.

Connect the power cord to the projector.

Connect the power cord to an electrical outlet.

Turn on the power for the

input source.

In the case of aVCR,

press the PLAY button.

An image will be projected.

Press the to turn on the

projector's power.

If using the remote control, set the R/C

switch to the ON position and then

press the .

The indicator will start

flashing green and projection

will start. (Warm-up in progress)

(Operation Display)

indicator

Pages 24-27 of

Instruction Manual

Projecting

Tip

Press or , and then

follow the instructions.

Each time the is pressed,

the video source cycles between

Computer/Component Video,

S-Video, and Video.

If images do not appear ...

If you have other problems ...

Change the input signal.

Refer to the online

Help information.

* Refer toTroubleshooting.

Projector Remote Control

If a laptop computer or a computer with a

LCD screen has been connected to the

projector, you may need to change the

output destination for video signals

depending on the computer keys (the

symbols and are indicated

above the keys) or the computer's

settings.The output destination can

normally be changed by holding down the

computer's key and pressing one of

the Function keys.

Once the source has been changed, after

a short wait the projector will start

projecting. If the output has been

changed to external output, only the

external output should be used.

For details, refer to the documentation

provided with your computer.

Examples of changing output

NEC

Panasonic

TOSHIBA

IBM

SONY

FUJITSU

Macintosh

After restarting the computer,

change the Control Panel

monitor and sound settings

so that Mirroring is active.

Tip

Enlarging part of projected images

Enlargement ratio

To cancel the enlargement effect, press

the .

You can press the side

of the button to reduce the

size of the enlarged area.

Functions for

Enhancing Projection

Press the for enlarging the projection image.

Tilt the on the remote control to scroll the image for viewing a desired part of the image.

Press the side of the

button to enlarge the

center part of the image.

E-Zoom function

Page 36 of Instruction Manual

The desired image

part is displayed.

Press . Press .

Press .

Functions for

Enhancing Projection

Tip

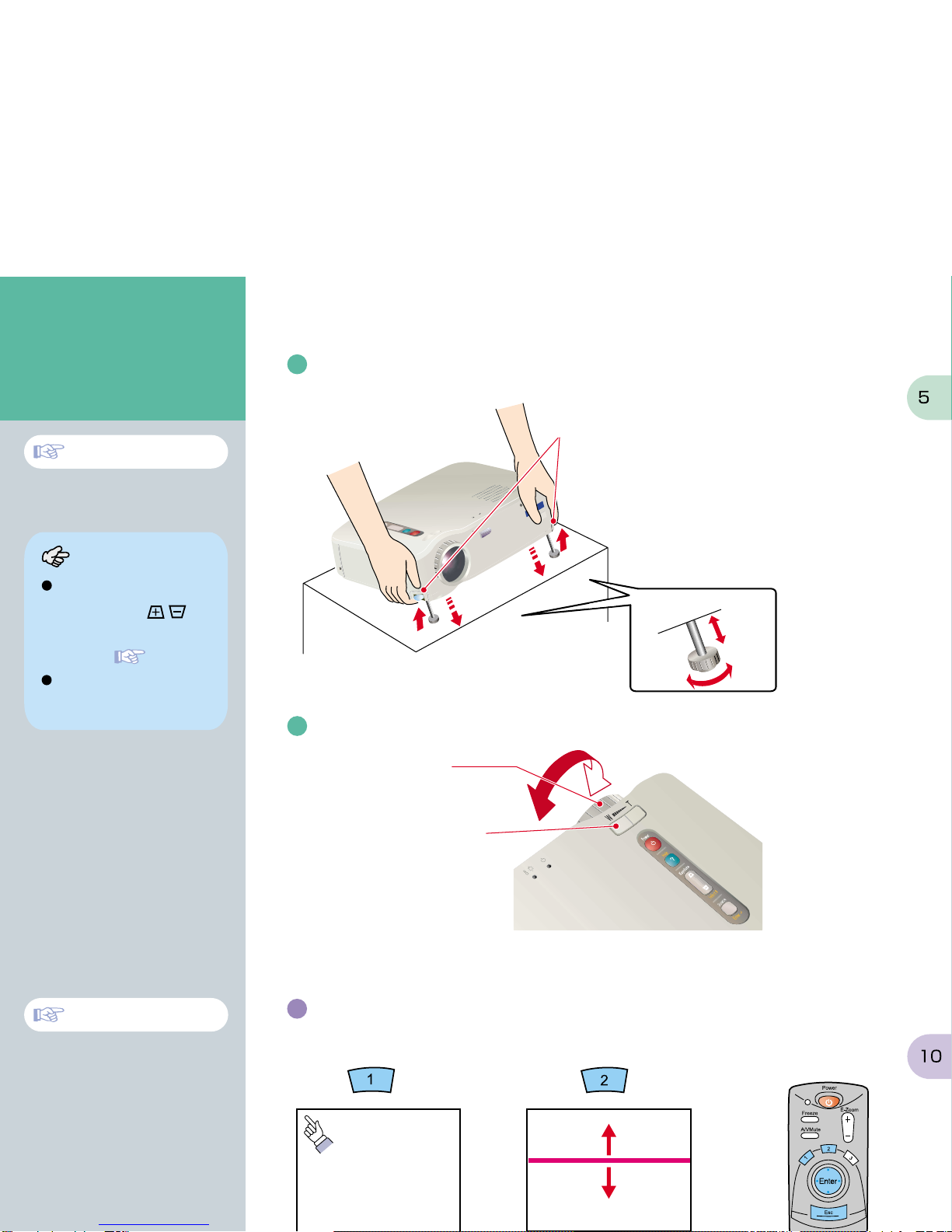

Adjustment Adjusting the projection angle

Adjusting the image size and focus

Focus adjustment

Image size adjustment

If you change the projection angle,

you may get keystone distortion in the

images.You can use the , on

the projector's control panel to correct

keystone distortion. See page 7.

The front foot can be retracted by

pulling the front foot adjust levers and

lower slowly the front of the projector.

Use the foot adjust levers to adjust the projection angle for the projector.

Lower

With the foot adjust levers released,

lift the front of the projector.

For fine adjustment

Push the W (Wide) side

to increase the size.

Push the T (Tele) side

to reduce the size.

A cursor icon appears on

the screen.

Tilt the to move

the cursor.

Press the to stamp

the cursor icon on the screen.

Enhancing presentation materials effectively

A bar (straight line) appears

on the screen.

Tilt the up or down

to move the bar.

The stamp or the bar disappears.

Effect function

Page 38 of Instruction Manual

Pages 28-30 of

Instruction Manual

Higher

Return

Select

Remote control

Press on the remote control.The setting menu will be displayed on

the projection screen, and you can then adjust settings such as brightness, contrast and sharpness.

Automatically adjusting computer images to the

optimum settings

Press on the remote control.The tracking,

display position and synchronization will be automatically adjusted.

Other adjustments

Main menu

Move

down Move

right

Move

left

Move

Adjustment /

Turning Off the Projector

Using the on-screen menus

Tip

Using the remote control for one-person presentations

Functions for

Enhancing Projection

When using the remote control as a

wireless mouse, you need to connect

the projector as follows.

Use a USB mouse cable to connect

the projector to the USB port of a

computer.

If the mouse function does not work

after connecting a PS/2 mouse, you

will need to restart the computer.

Use only the accessory mouse

cable provided, otherwise the

wireless mouse function may not

operate correctly.

Mouse/USB port

Mouse/Com port

and USB mouse port

Mouse cable

(accessory)

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse

buttons on a computer.You can use the remote control to control the computer's mouse pointer from a distance.

Mouse pointer movement

Tilt the Enter button in the direction you want

the mouse pointer to go.

Mouse clicks

For left clicks: Press [Enter] button

For right clicks:Press [Esc] button

The following functions for

enhancing the projection are explained here.

Refer to the corresponding pages of the Instruction Manual for

details on each function.

Wireless mouse Effect E-Zoom A/V Mute

Wireless mouse function

Page 34 of Instruction Manual

(Operation Display) indicator

Tip

To prevent miss-operation press once to display a confirmation message.

When pressing once more the power will be switched off.

You can also press twice successively.

After getting accustomed you can try this operation.

Turning Off

the Projector Turn off the power for the equipment connected

to the projector.

Adjustment /

Turning Off the Projector

When a message for confirmation is

displayed, press a button other than

to turn the message off.The previous

condition will be restored.

The indicator will start flashing orange.(Cool-down in progress/approx. 2 minutes)

After the indicator lights orange steadily you can

disconnect the power cord.

If the power cord is disconnected while the indicator is still flashing orange,

it may cause problems with projector operation.

*Do not forget to set the R/C switch of the remote control to the OFF position.

Press the twice to turn off the projector's power.

Pages 31, 32 of

Instruction Manual

Tip

If the images have keystone distortion ...

Press , on the projector's control panel to correct the keystone distortion.

A keystone correction reduces screen

size.

The keystone correction is stored in

memory.You will need to readjust the

image if the projector is moved to a

different location or the projection angle is

changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Keystone Correction

Page 29 of Instruction Manual

When the bottom is

too wide

When the top is

too wide

Adjustment

(Operation Display) indicator

Tip

To prevent miss-operation press once to display a confirmation message.

When pressing once more the power will be switched off.

You can also press twice successively.

After getting accustomed you can try this operation.

Turning Off

the Projector Turn off the power for the equipment connected

to the projector.

Adjustment /

Turning Off the Projector

When a message for confirmation is

displayed, press a button other than

to turn the message off.The previous

condition will be restored.

The indicator will start flashing orange. (Cool-down in progress/approx. 2 minutes)

After the indicator lights orange steadily you can

disconnect the power cord.

If the power cord is disconnected while the indicator is still flashing orange,

it may cause problems with projector operation.

*Do not forget to set the R/C switch of the remote control to the OFF position.

Press the twice to turn off the projector's power.

Pages 31, 32 of

Instruction Manual

Tip

If the images have keystone distortion ...

Press , on the projector's control panel to correct the keystone distortion.

A keystone correction reduces screen

size.

The keystone correction is stored in

memory.You will need to readjust the

image if the projector is moved to a

different location or the projection angle is

changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Keystone Correction

Page 29 of Instruction Manual

When the bottom is

too wide

When the top is

too wide

Adjustment

Return

Select

Remote control

Press on the remote control.The setting menu will be displayed on

the projection screen, and you can then adjust settings such as brightness, contrast and sharpness.

Automatically adjusting computer images to the

optimum settings

Press on the remote control.The tracking,

display position and synchronization will be automatically adjusted.

Other adjustments

Main menu

Move

down Move

right

Move

left

Move

Adjustment /

Turning Off the Projector

Using the on-screen menus

Tip

Using the remote control for one-person presentations

Functions for

Enhancing Projection

When using the remote control as a

wireless mouse, you need to connect

the projector as follows.

Use a USB mouse cable to connect

the projector to the USB port of a

computer.

If the mouse function does not work

after connecting a PS/2 mouse, you

will need to restart the computer.

Use only the accessory mouse

cable provided, otherwise the

wireless mouse function may not

operate correctly.

Mouse/USB port

Mouse/Com port

and USB mouse port

Mouse cable

(accessory)

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse

buttons on a computer.You can use the remote control to control the computer's mouse pointer from a distance.

Mouse pointer movement

Tilt the Enter button in the direction you want

the mouse pointer to go.

Mouse clicks

For left clicks: Press [Enter] button

For right clicks:Press [Esc] button

The following functions for

enhancing the projection are explained here.

Refer to the corresponding pages of the Instruction Manual for

details on each function.

Wireless mouse Effect E-Zoom A/V Mute

Wireless mouse function

Page 34 of Instruction Manual

Autres manuels pour EMP-51

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Epson Projecteur

Epson

Epson LS300BATV Fiche technique

Epson

Epson PowerLite 6100 Manuel utilisateur

Epson

Epson EX31 Fiche technique

Epson

Epson PowerLite 8300i withEasyMP.net module Guide de démarrage rapide

Epson

Epson PowerLite 400W Instructions d'installation

Epson

Epson PowerLite 1985WU Manuel utilisateur

Epson

Epson LightScene EV-115 Manuel utilisateur

Epson

Epson WorkForce 60 Manuel utilisateur

Epson

Epson EB-485Wi Manuel utilisateur

Epson

Epson PowerLite Home Cinema 707 Fiche technique

Epson

Epson BrightLink 475Wi Manuel utilisateur

Epson

Epson BrightLink 455Wi Manuel utilisateur

Epson

Epson EasyMP EMP-735 Feuille d'instructions

Epson

Epson EH-TW5825 Manuel utilisateur

Epson

Epson 5350 - EMP SVGA LCD Projector Manuel utilisateur

Epson

Epson PowerLite 5000 Manuel utilisateur

Epson

Epson BrightLink 455Wi Manuel utilisateur

Epson

Epson PowerLite 7300 Manuel utilisateur

Epson

Epson 6110i - PowerLite XGA LCD Projector Manuel utilisateur

Epson

Epson ELP-600 Manuel utilisateur

Epson

Epson CO-FH02 Manuel utilisateur

Epson

Epson PowerLite 750c Manuel utilisateur

Epson

Epson BrightLink 695Wi+ Manuel utilisateur

Epson

Epson PowerLite Pro G5350NL Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
