Epson EMP-TS10 Manuel utilisateur

Connecting to aVideo Source

Connecting to a Computer

Setup

Screen Size and Setting-up Distance

Setting-up Methods

START

Hannover SET UP GUIDE English-hyoshi

Printed in Japan

402171600

(9002555)

02.02-.6A(C05)

Using the Remote Control

Remote Control Operating Range

Before Using the Remote Control

1Inserting the Batteries

Before Using the Remote Control

The batteries are not inserted into the remote control at the time of purchase, and so you

need to insert them before the remote control can be used.

Inserting the Batteries

Remove the battery compartment cover.

While pressing the cover here, lift the cover up.

Insert the batteries.

Make sure the polarities of the batteries are correct.

Replace the battery compartment cover.

After inserting the tab of the battery cover, push the

cover down until it clicks into place.

Hannover SET UP GUIDE English-01

Battery Replacement Period and Cautions

If the remote control becomes slow in responding or if it stops working, the batteries

may be spent. If this happens, replace the batteries with fresh ones.

Guide for battery replacement: Approximately 3 months if used for 30

minutes per day

*The replacement period given above may vary depending on the amount of usage

and the ambient conditions.

Use the following type of batteries as replacements.

Alkaline dry cell LR6 (AA) x 2

Using the Remote Control

Set the R/C switch on the remote control to

the ON position.

Point the remote control

light-emitting area toward one of

the remote control light-

receiving area on the projector

and operate the remote control

buttons.

Do not allow sunlight or light from fluorescent lamps to shine directly

onto the projector's remote control light-receiving area, otherwise it may

interfere with the reception of signals from the remote control.

Opening the cover

Hold the cover on both

sides.

Remote control light-receiving area

Hannover SET UP GUIDE English-02

Approx. 30˚ Approx. 30˚ Approx. 30˚Approx. 30˚

Approx. 15

Approx. 15˚

Approx. 10 m

(30 ft.)

Approx. 10 m

(30 ft.) Approx. 10 m

(30 ft.)

Remote Control Operating Range

Remote Operating Range

Use the remote control within the ranges indicated below. If the distance or angle between

the remote control and the remote control light-receiving area is outside the normal

operating range, the remote control may not work.

Operating distance Operating angle

Approx. 10 m (30 ft.) Approx. ±30˚ horizontally

Approx. ±15˚ vertically

illumination

button

Approx. ±30˚ horizontally

Approx. ±15˚ vertically

(illumination) button

When the button is pressed, the

buttons shown in colour in the

illustration at left are illuminated for

10 seconds. If you press the

button while the buttons are

illuminated, the illumination will

continue for a further 10 seconds.

Hannover SET UP GUIDE English-03

Setup

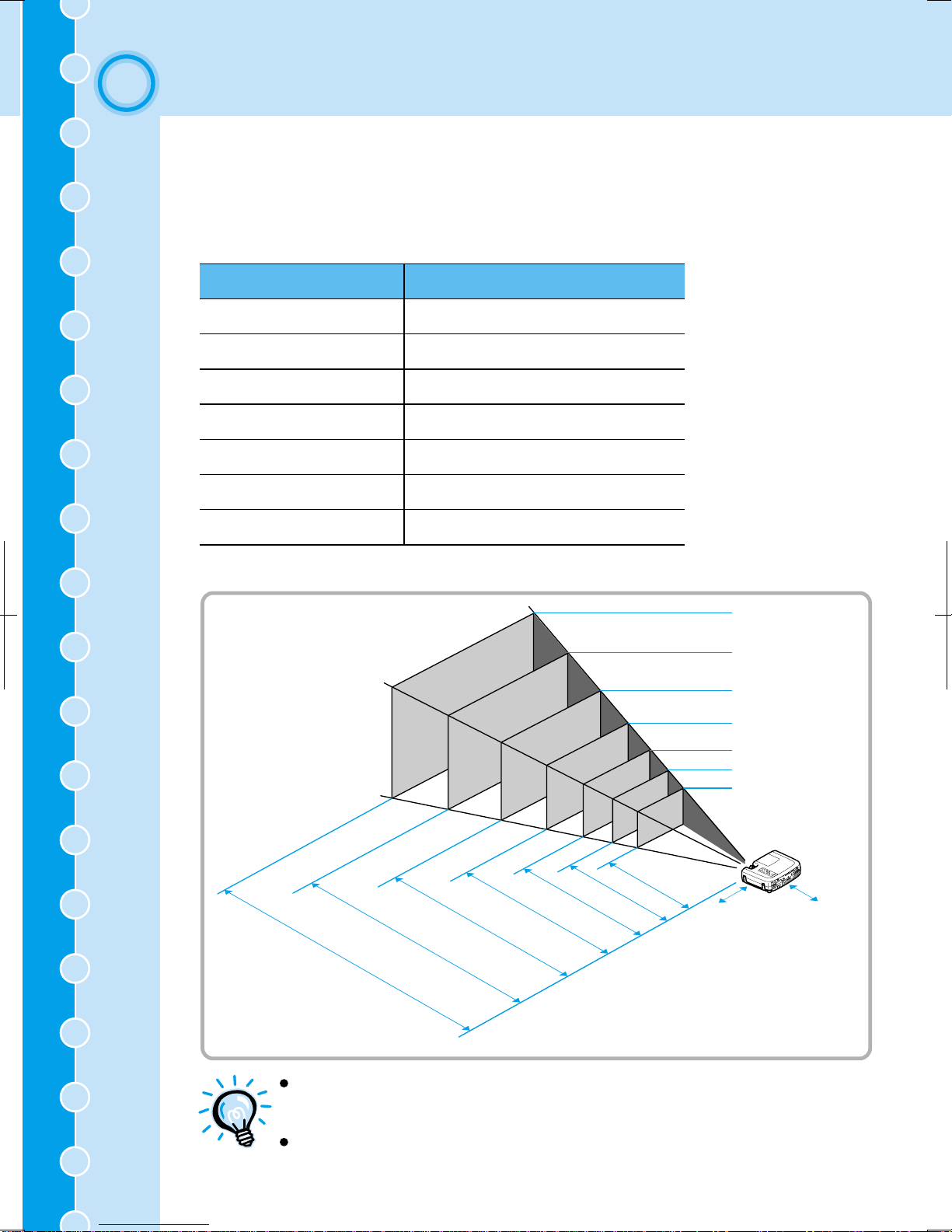

Screen Size and Setting-up Distance

*When installing against a wall, leave a

space of about 20 cm (7.9 inches) between

the projector and the wall.

300”

200”

100”

80”

60”

40”

30”

610

460 (cm)

410

300

200×150

160×120

120×90

81×61

61×46

0.9 – 1.1

1.2 – 1.6

1.8 – 2.4

2.5 – 3.2

3.1 – 4.1

6.1 – 8.3

9.2 – 12.4(m)

20 cm

(7.9 inches)*

20 cm

(7.9 inches)*

The distance between the projector and the screen determines the actual image size.

Recommended distance : 0.9m - 12.4m (3.0 - 40.7 ft.)

While referring to the table below, position the projector so that the image size is smaller

than the screen size.

Screen size (cm (ft.))

30” (61 × 46 (2.0 × 1.5))

40” (81 × 61 (2.7 × 2.0))

60” (120 × 90 (3.9 × 3.0))

80” (160 × 120 (5.3 × 3.9))

100” (200 × 150 (6.6 × 4.9))

200” (410 × 300 (13.5 × 9.8))

300” (610 × 460 (20.0 × 15.1))

Approximate projection

distance* (m (ft.))

0.9 – 1.1 (3.0 – 3.6)

1.2 – 1.6 (3.9 – 5.2)

1.8 – 2.4 (5.9 – 7.9)

2.5 – 3.2 (8.2 – 10.5)

3.1 – 4.1 (10.2 – 13.5)

6.1 – 8.3 (20.0 – 27.2)

9.2 – 12.4 (30.2 – 40.7)

The projector’s lens allows a zoom ratio of up to about 1.35.The

image size at the maximum zoom setting is about 1.35 times bigger

than the image size at the minimum zoom setting.

The image size will be reduced when keystone correction is carried

out.

* The value for the projection distance should be used as a guide for setting up the projector.

The actual distance will vary depending on projection conditions.

Hannover SET UP GUIDE English-04

Front projection

Rear projection using a

translucent screen

Rear projection onto a

translucent screen with the

projector installed to the ceiling

Front/ceiling projection

The projector supports the following five projection methods, allowing you

to choose the best method for displaying your images.

After setting up the projector, refer to the User's Guide for details on turning

on the power and adjusting settings such as the screen size.

("Basic Operations" in User's Guide)

Setting-up Methods

When turning the projector upside

down, attach the rubber stands that

are included.

This can prevent the control panel

from directly touching the

installation surface.

When setting up the projector, be sure to first read the

Safety

Instructions/World-Wide Warranty Term

s for information on the

safety precautions that must be observed at this time.

* A special method of installation is required in order to suspend the projector from the ceiling. Please

contact the place of purchase if you would like to use this installation method.

* When projecting with the projector installed upside down or behind the screen, turn on both the "Rear

Proj." and "Ceiling" settings in the "Advanced" menu.

("Advanced" menu in User's Guide)

Rubber stands

(Attach in

3 places)

Projecting from locations such as the

top of a cabinet

When installing the projector upside down, set

the "Ceiling" command in the "Advanced"

menu.

("Advanced" menu in User's Guide)

Hannover SET UP GUIDE English-05

Continued

To Audio 2 port

(white/red)

To video

output port

To audio

output port To Audio 1 port

Component video cable

(accessory)

Stereo mini-pin audio cable

(commercially-available)

red

white

To Computer 2/Component

Video port

To Computer 2/Component

Video port

Connecting to aVideo Source

Projecting Component Video Images

When audio output is via a stereo mini-pin audio cable

Component video cable

(accessory)

2RCA audio cable (white/red)

(commercially-available)

Turn off the power for both the projector and the video source before connecting them.

If the power for either device is on at the time of connection, damage may result.

Check the shapes of the cable connectors and the device ports before making the

connections.If you try to force a connector to fit a device port with a different shape or

number of terminals, a malfunction or damage to the connector or port may result.

Refer to the "Appendices - Optional Accessories" in the separate User's Guide for details

of the optional cables.

When audio output is via a 2RCA audio cable

To audio output

L port (white)

To audio output

R port (red)

To video

output port

Hannover SET UP GUIDE English-06

After making the connections, change the "Comp2/YCbCr Input" in the

"Setting" menu to either "YCbCr" or "YPbPr" to match the signals from

these devices. ("Setting" menu in

User's Guide

)

After making the connections, change the "Audio Input" setting in the

"Audio" menu to either "Audio1" or "Audio2", depending on which input

port you are using.

Hannover SET UP GUIDE English-07

Projecting Composite Video Images

yellow

white

red

3RCA A/V cable

(commercially-available)

Stereo mini-pin audio cable

(commercially-available)

RCA video cable (yellow)

(commercially-available)

When connected via a 3RCA A/V cable

When connected via an RCA video cable and a stereo mini-pin audio cable

After making the connections, change the "Audio Input" setting in the

"Audio" menu to either "Audio1" or "Audio2", depending on which

input port you are using.The default setting is "Audio2".

To Audio 1 port

To Video port (yellow)

To audio output

port

To video output

port (yellow)

To Video port (yellow)

To Audio 2 port (white/red)

To video output port (yellow)

To audio output L port (white)

To audio output R port (red)

Hannover SET UP GUIDE English-08

red

white

To S-Video port

To Audio 2 port

(white/red)

To S-Video port

To Audio 1 port

2RCA audio cable (white/red)

(commercially-available)

S-Video cable

(commercially-available)

Stereo mini-pin audio cable

(commercially-available)

When audio output is via a 2RCA audio cable

When audio output is via a stereo mini-pin audio cable

S-Video cable

(commercially-available)

To audio output

port

To video output

port

To audio output

L port (white)

To audio output

R port (red)

To video output

port

After making the connections, change the "Audio Input" setting in the

"Audio" menu to either "Audio1" or "Audio2", depending on which

input port you are using.The default setting is "Audio2".

Hannover SET UP GUIDE English-09

Projecting S-Video Images
