Product Description / Lens Specifications

Distance charts and formulas

Dimensional Drawings

Accessories/Ceiling Mounts

Projector Interface Panel and Control Panel

Pin outs and RS232 Control codes

Product Description

PowerLite Pro G5150NL (V11H273920) / G5350NL (V11H286920)

Type: 3LCD Projector Brightness: G5150 – 4000 / 3200

0.8” Poly Silicon TFT G5350 – 5000 / 4000

Resolution: XGA - 1024 x 768 Dimensions: 18.5” (W) x 5.96” (H) x 12.26” (D)

Fan Noise: 35dB/29dB (G5150) / 38dB/31dB (G5350) Weight: 14.5lbs (G5150) /14.8lbs (G5350)

Power Rating: G5150 – 343W (max) BTU: G5150 – 1171 BTU/hr

G5350 – 423W (max) G5350 – 1444 BTU/hr

Available Lens

(Part Number)

V12H004S03 Standard Zoom Lens

V12H004R03 Rear Projection Wide Lens

V12H004M04 Middle Throw Zoom Lens #1

V12H004M05 Middle Throw Zoom Lens #2

V12H004L06 Long Throw Zoom Lens

Lens Specifications

ELPLS03 Throw Ratio: 1.3 – 2.4:1 Focal Length: 21.27mm – 37.93mm

V12H004S03 Screen Sizes 30” – 300” F/#: 1.64 – 2.5

Zoom Ratio: 1 – 1.82:1

ELPLR03 Throw Ratio: 0.78:1 Focal Length: 12.76mm

V12H004R03 Screen Sizes 30” – 200” F/#: 2.03

Zoom Ratio:

ELPLM04 Throw Ratio: 2.4 – 3.6:1 Focal Length: 38.07mm – 57.09mm

V12H004M04 Screen Sizes: 40” – 300” F/#: 1.83 – 2.45

Zoom Ratio: 1 – 1.53:1

ELPLM05 Throw Ratio: 3.5 – 5.4:1 Focal Length: 56.95mm – 85.5mm

V12H004M05 Screen Sizes: 40” – 300 F/#: 1.83 – 2.53

Zoom Ratio: 1 – 1.53:1

ELPLL06 Throw Ratio: 5.3 – 7.2:1 Focal Length: 84.91mm – 114.61mm

V12H004L06 Screen Sizes 40” – 300” F/#: 1.83 – 2.32

Zoom Ratio: 1 – 1.36:1

PowerLite Pro Series

G5150NL / G5350NL

V1.7

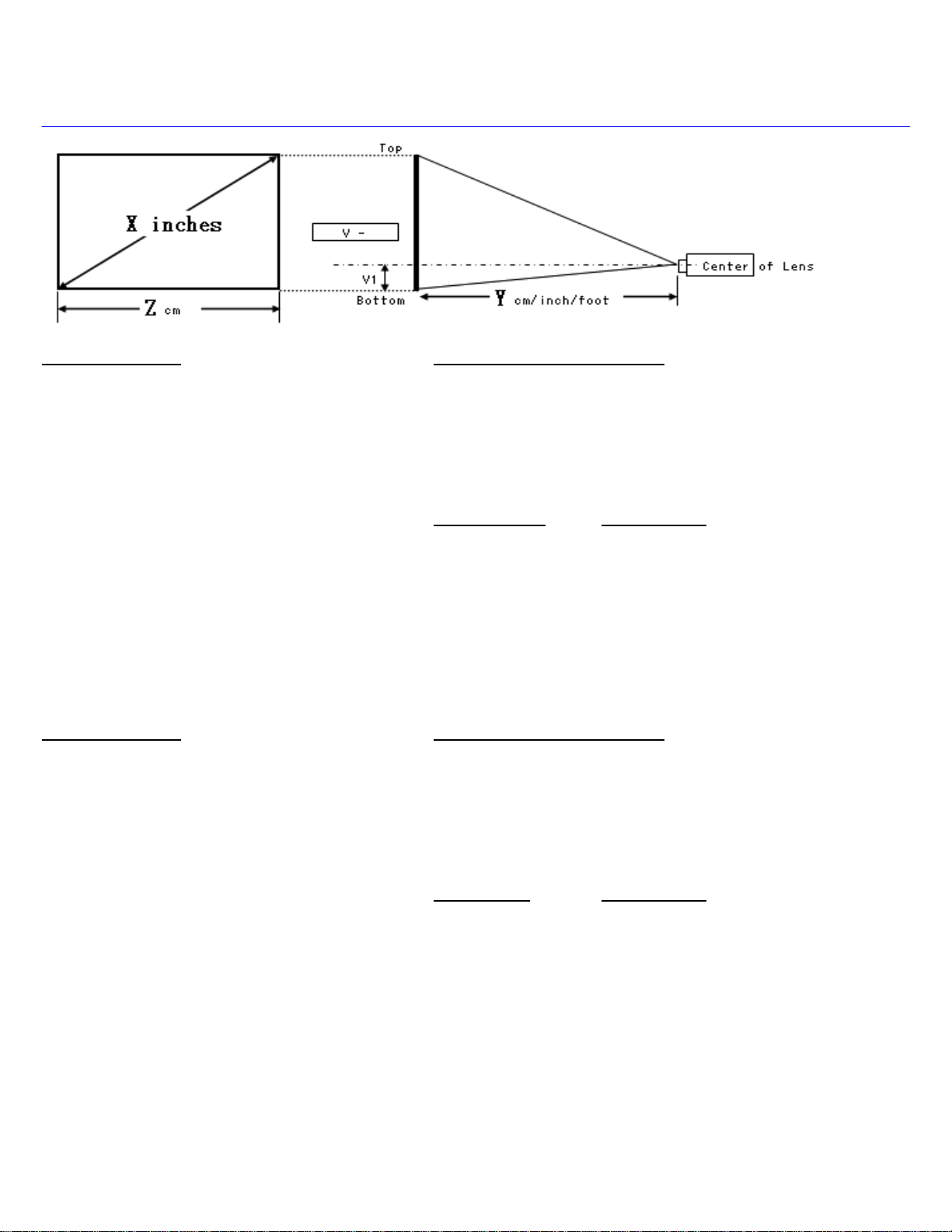

Lens Formulas - XGA Models (G5150 / G5350)

Distance Formulas (4:3) Definitions (units are in inches)

ELPLR03 Y = 0.64X -1.54 Y = throw distance

V1 = 0.3X X = diagonal screen size

W = image width

ELPLS03 Y(wide) = 1.07X – 1.80 H = image height

Y(tele) = 1.92X – 1.72 V1 = vertical offset

V1 = 0X ~ 0.6X

ELPLM04 Y(wide) = 1.92X – 3.94

Y(tele) = 2.91X – 3.88 4:3 Formulas 16:9 Formulas

V1 = 0X ~ 0.6X W = X / 1.25 W = X / 1.147375

W = H x 4/3 W = H x 9/16

ELPLM05 Y(wide) = 2.88X – 6.48 H = W x 4/3 H = W x 9/16

Y(tele) = 4.37X – 6.34

V1 = 0X ~ 0.6X

ELPLL06 Y(wide) = 4.31X – 6.99

Y(tele) = 5.81X – 7.18

V1 = 0X ~ 0.6X

Distance Formulas (16:9) Definitions (units are in inches)

ELPLR03 Y = 0.69X – 1.67 Y = throw distance

V1 = 0.245X X = diagonal screen size

W = image width

ELPLS03 Y(wide) = 1.16X – 1.96 H = image height

Y(tele) = 2.09X – 1.87 V1 = vertical offset

V1 = -0.081X ~ 0.572X

ELPLM04 Y(wide) = 2.09X – 4.30

Y(tele) = 3.17X – 4.22 4:3 Formulas 16:9 Formulas

V1 = -0.081X ~ 0.572X W = X / 1.25 W = X / 1.147375

W = H x 4/3 W = H x 9/16

ELPLM05 Y(wide) = 3.14X – 7.06 H = W x 4/3 H = W x 9/16

Y(tele) = 4.76X – 6.91

V1 = -0.081X ~ 0.572X

ELPLL06 Y(wide) = 4.69X – 7.62

Y(tele) = 6.33X – 7.83

V1 = -0.081X ~ 0.572X

** Note – popular screen sizes are listed in the charts below. If you do not see your screen size in the chart, please

use the formulas above **

V1.7

Distance Charts – Standard Lens (ELPLS03) - XGA Models (G5150 / G5350)

V1.7

Distance Charts – Rear Projection Wide Lens (ELPLR03) - XGA Models (G5150 / G5350)

V1.7

Distance Charts – Mid Throw Lens (ELPLM04) - XGA Models (G5150 / G5350)

V1.7

Distance Charts – Mid Throw Lens (ELPLM05) - XGA Models (G5150 / G5350)

V1.7

Distance Charts – Long Throw Lens (ELPLL06) - XGA Models (G5150 / G5350)

V1.7

Projector Dimensions

V1.7

Available Accessories

V12H007T16 IR Mouse Receiver for Remote Control

V13H010L47 Replacement Lamp for PowerLite Pro G5150

V13H010L46 Replacement Lamp for PowerLite Pro G5200W

V13H010L46 Replacement Lamp for PowerLite Pro G5350

V12H005C28 Remote Control Cable Set

V13H134A17 Air Filter

V12H306P11 Optional Wireless 802.11 g/b/a Module for PowerLite Pro G5150NL/G5350NL

Available Ceiling Mounts

ELPMBPRG Advanced Projector Ceiling Mount with Precision Gear

ELPMBP01 Adjustable Suspended Ceiling Channel Kit

ELPMBP02 False Ceiling Plate

ELPMBP03 Structural Round Ceiling Plate

ELPMBC01 Adjustable Extension Column (Pipe) 8" - 11"

V1.7

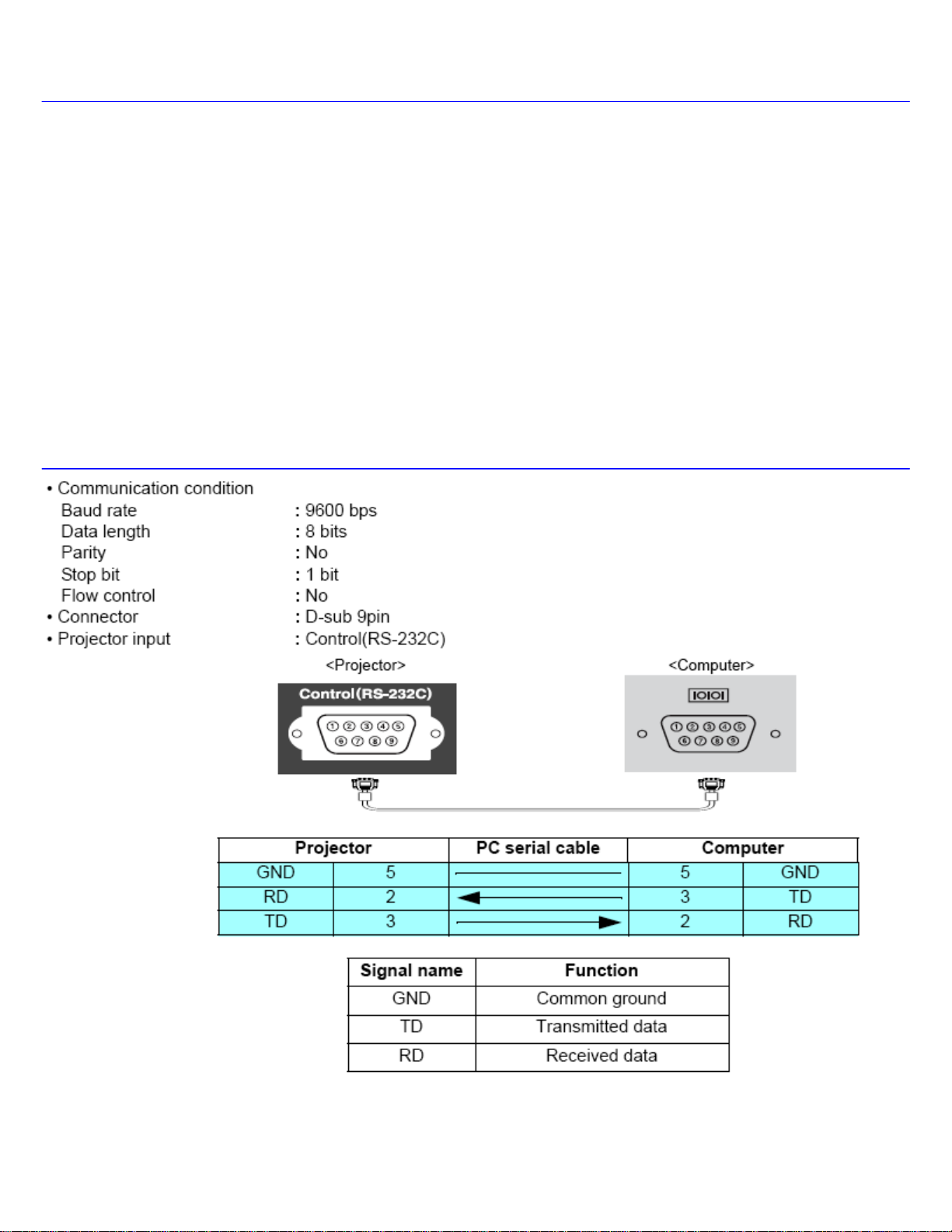

Projector Panel

Serial Cable Connection
