Attaching the Paper Support

Insert the paper support into the slots at the rear of the printer.

Plugging in the Printer

1. Make sure that the printer is turned off. It is off when the

P power

button protrudes slightly from the surface of the control panel.

2. Check the label on the back of the printer to make sure the voltage

required by the printer matches that of the electrical outlet you will be

plugging it into. Also, make sure that you have the correct power cable

for your power source.

cCaution:

It is not possible to change the printer's voltage. If the rated voltage and

your outlet voltage do not match, contact your dealer for assistance. Do

not plug in the power cord.

3. If the power cord is not attached to the printer, connect it to the AC inlet

on the back of the printer.

4. Plug the power cord into a properly grounded electrical outlet.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Connecting the Printer

If you have a PC, it is possible to connect to your printer via the parallel or

USB interface. Macintosh can only be connected via the USB interface.

Depending upon your geographic location, you may have to acquire the

appropriate cable. See "Options and Consumable Products" in the Daily Use

guide for details.

Note:

In order to connect your PC via the USB interface, your computer must be equipped

with a USB port.

Using a parallel interface for PCs

To connect the printer to your PC, you need a shielded, twisted-pair parallel

cable.

1. Make sure both the printer and computer are turned off.

2. Plug the cable connector securely into the printer's interface connector.

Then squeeze the wire clips together until they lock in place on both

sides. If your cable has a ground wire, connect it to the ground connector

below the interface connector.

3. Plug the other end of the cable into the computer's parallel interface. If

there is a ground wire at the computer end of the cable, connect it to the

ground connector at the back of the computer.

Using a USB interface for PCs and Macintosh

To connect the printer to a USB port, you need a standard shielded USB

cable. Follow these steps.

1. Make sure both the printer and computer are turned off.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

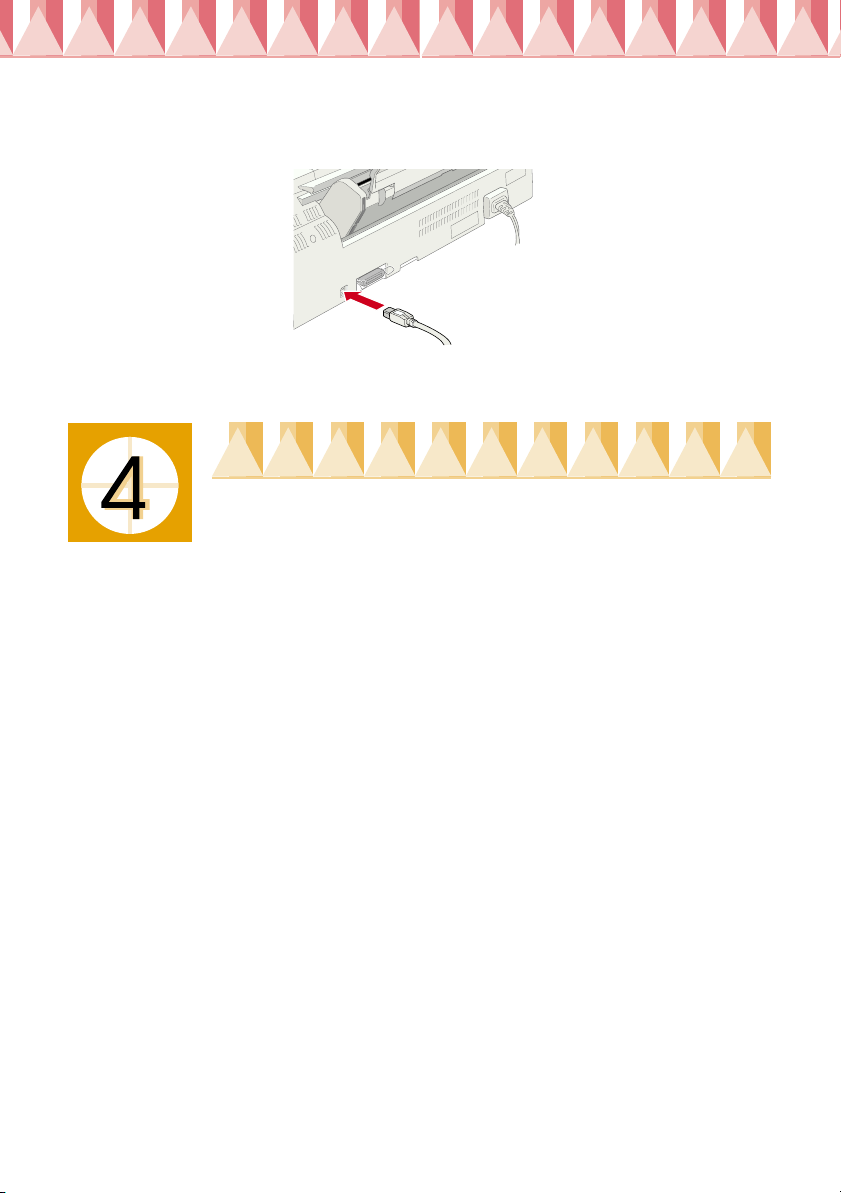

2. Plug the appropriate end of the cable into the USB port on the back of

the printer. (The end that fits the printer has a different shape from the

end that fits the computer.)

3. Connect the other end of the cable to the computer’s USB port.

Installing the Printer Software

After connecting the printer to your computer, you need to install the

software included on the “Printer Software for EPSON Stylus Photo 1270”

CD-ROM shipped with your printer.

Your printer software includes:

❏Printer driver and utilities

The printer driver runs, or “drives,” your printer; use it to make settings

such as print quality, speed, media type, and paper size. The Nozzle

Check, Head Cleaning, and Print Head Alignment utilities help you

keep your printer in top operating condition. EPSON Status Monitor 3

(for Windows) or EPSON StatusMonitor (for Macintosh) notifies you of

printer errors and displays printer status information such as the

amount of ink remaining. The Status Monitor also guides you through

the ink replacement process.

❏Online guides

The online Reference Guide and Color Guide help you learn more about

your printer and color printing.

If you are using the floppy disk version of the software, make a backup copy

of the EPSON printer software disk before you begin installation. If you

wish to make a floppy disk version of the printer software on your CD-

ROM, you can use the driver disk creation utility included on the CD.

Installing in Windows

Follow these steps to install your printer software.

1. Make sure that your printer is off.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

2. Turn on your computer and start Windows. If the New Hardware

Found screen or any other Wizard appears, click Cancel.

3. Insert the printer software CD shipped with your printer in the CD-

ROM drive. The Installer dialog box appears. (For floppy disk users,

insert the disk in a disk drive and double-click the My Computer icon,

then the floppy disk drive icon, and then Setup.exe.)

4. Double-click Install Printer Driver/Utility, then click OK in the dialog box

that appears to start the printer software installation

5. Follow the on-screen instructions to turn on your printer.

For Windows 98 users, the printer port configuration starts

automatically.

For printers connected via USB cable, the USB device driver installation

starts automatically at this point.

6. After turning on the printer, the Setup utility opens automatically.

Follow the on-screen instructions to install the ink cartridges, check the print

head nozzles, and clean the print head. When a message appears informing

you that the setup is complete, click OK.

Note:

If the Setup utility does not start, go to step to install the ink cartridge using

the printer’s control panel.

Printed in Japan.xx-xx

Nagano, Japan.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

7. When a message appears informing you that the installation is

complete, click OK.

Note:

If an error message appears, either the printer driver or the EPSON USB

printer device driver is not installed correctly. See "Troubleshooting" in the

Daily Use guide.

After the setup is complete, go to step to print your first page.

Ensuring that the USB driver is installed correctly in Windows

Follow the directions below to confirm that the USB driver is installed

correctly.

1. Click the Start button, point to Settings, and click Printers. Make sure

that the icon for your printer appears in the Printers window.

2. Click the icon for your printer, then click Properties on the File menu.

3. Click the Details tab and make sure that EPUSBx: (EPSON Stylus Photo

1270) is displayed in the Print to the following port list box.

Note:

If the correct port is not displayed, refer to the "Troubleshooting" section of the

Daily Use guide or the Online Guide.

Installing in Macintosh

cCaution:

Turn off all virus protection programs before you install your printer

software.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Follow these steps to install your printer software.

1. Turn on your Macintosh and insert the software CD in the CD-ROM

drive. The EPSON printer software disk opens automatically.

2. If a single Installer icon appears, double-click the icon. If separate

folders containing installer icons for several languages appear, double-

click the folder for your preferred language, then double-click the

Installer icon inside it.

3. At the initial screen, click Continue. The following dialog box appears.

4. To install the printer software included on your printer software CD-

ROM, make sure the Install Location box displays the correct disk drive,

then click Install.

5. When a message appears informing you that the installation is

complete, click Restart to restart your computer.

Selecting your printer in the Chooser for Macintosh

After you have installed the printer software on your Macintosh, you need

to open the Chooser and select your printer. You must select a printer the

first time you use it or whenever you want to switch to another printer. Your

Macintosh will always print using the last printer selected.

1. Choose Chooser from the Apple menu. Then click your printer's icon

and the port your printer is connected to.

2. Select the appropriate Background Printing radio button to turn

background printing on or off.

When background printing is on, you can use your Macintosh while it

is preparing a document for printing. In order to use the EPSON

Monitor3 utility to manage print jobs, background printing must be

turned on.

3. Close the Chooser.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

Installing the Ink Cartridges

This printer uses ink cartridges equipped with IC chips. The IC chip

accurately monitors the amount of ink used by each cartridge, so even if a

cartridge is removed and inserted again, all of its ink can be used. However,

some ink is consumed each time the cartridge is inserted because the printer

automatically checks reliability.

Be sure to use the ink cartridges packed with your printer the first time you

install ink cartridges.

Using the Setup utility for Windows

If you have Windows 95, 98, or NT 4.0 installed on your computer, the Setup

utility should open automatically when your printer software installation

is complete.

Macintosh users, please refer to the following section.

Using the printer’s control panel for PCs and Macintosh

If you are a Macintosh user, or are unable to access the Setup utility, use the

printer’s control panel to install the ink cartridges.

Note:

Do not open the ink cartridge packages until just before you install them. If you

leave a cartridge unpacked for a long time before using it, normal printing may not

be possible.

Install the ink cartridges as follows:

1. Lower the output tray, then open the printer cover.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

Proof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

2. Turn on the printer by pressing the

P power button.

The print head moves to the left, which is the ink cartridge installation

position. The

power light flashes and the

and

ink out lights come

on.

cCaution:

Do not move the print head by hand. Doing so may damage the printer.

3. Push back the release tabs and lift up the ink cartridge clamps.

4. Open the ink cartridge packages. Next, remove only the yellow tape

seals from each cartridge.

R4C479Setup Guide

Rev_C

A5 size setup 2.fm

2/15/00 Pass 0

LProof Sign-off:

M.Otsuka, CRE Tsukada_______

N.Nomoto _______

_______

cCaution:

❏You must remove the yellow tape seals from the cartridges before

installing them; otherwise, the cartridges will become unusable

and you will be unable to print.

❏If you have installed an ink cartridge without removing the yellow

tape seal, you must remove the cartridge and install a new one.

Prepare the new cartridge by removing the yellow tape seal, then

install it in the printer.

❏Do not remove the blue portion of the tape seals from the cartridges;

otherwise, the cartridges may become clogged and unable to print.

❏Do not remove the tape seals from the bottom of the cartridges;

otherwise, ink will leak.

❏Do not touch the green chip on the side of the cartridge. Doing so

may prevent normal operation and printing

5. Align the tabs on each ink cartridge so that they are resting on the tabs

protruding from the base of the opened ink cartridge clamps. Do not

apply excessive force to the cartridges.

Do not touch this part.

Autres manuels pour Stylus Photo 1270

Table des matières

Autres manuels Epson Imprimante

Epson

Epson MTX 1345 Manuel utilisateur

Epson

Epson EPL-6000 Manuel utilisateur

Epson

Epson Stylus Photo PX730WD Instructions de montage

Epson

Epson R320 - Stylus Photo Color Inkjet Printer Guide d'installation

Epson

Epson CW-C6000A Manuel d'utilisation et d'entretien

Epson

Epson ActionLaser 1000 Manuel utilisateur

Epson

Epson TM U325D Manuel utilisateur

Epson

Epson SureColor F2000 Series Manuel utilisateur

Epson

Epson B-310N - Business Color Ink Jet Printer Manuel utilisateur

Epson

Epson ActionPrinter L-1000 Dimensions

Epson

Epson PictureMate - Compact Photo Printer Manuel du propriétaire

Epson

Epson SC-P20000 SERIES Manuel utilisateur

Epson

Epson SC-P8500D Series Manuel utilisateur

Epson

Epson Stylus C84WN Instructions d'utilisation et de sécurité

Epson

Epson Stylus®Pro 4000 Manuel utilisateur

Epson

Epson SC-T3000 Manuel utilisateur

Epson

Epson Expression Home XP-102 Guide de l'utilisateur

Epson

Epson Stylus Color 880i Manuel utilisateur

Epson

Epson WF-6590 series Mode d’emploi

Epson

Epson Stylus Color 740 Manuel utilisateur

Epson

Epson Stylus Photo 960 Guide de l'utilisateur

Epson

Epson C31C391A8770 - TM U230P Two-color Dot-matrix... Manuel utilisateur

Epson

Epson Stylus Pro 9000 - Print Engine Manuel utilisateur

Epson

Epson TM-T88III series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur

IRA3D

IRA3D POETRY4 Manuel utilisateur

Ricoh

Ricoh Aficio AP400 Manuel utilisateur

BIXOLON

BIXOLON SRP-352plusV Manuel utilisateur
