Epson Work Force 7110 Manuel utilisateur

Refill system for

EPSON Work Force 7110

INSTALLATION GUIDE

Thank you for choosing our products. Before the installation read ca-

refully this instructions. For any clarification or tecnical support

contact our costumer service: www.cheapoffice.it

3) Manually move the printer trolley in

the cartridges change area, gently

remove the trolley cover levering with

a flat-blade screwdriver. Photo 2

4) Place the ink tanks on the

right side of the printer using

the adhesive velcro. Photo 3

5) Unscrew the bottle and

screw the measuring spout.

Photo 4

2) To facilitate assembly operations is necessary turn on the printer, wait a few

seconds and remove the power cable while the trolley moves to the left. After

removing the power cable, the printer trolley might be easly moved with your

hands.

1) Open the printer cover and insert a small piece of paper or plastic in the

closing sensor to allow the printer to work with the cover open without repor-

ting errors. Photo 1

6) Fill the tanks K/C/M/Y

following the colors sequen-

ce (photo 5).

NB: On the tanks upside the-

re are 4 big holes to refill

and 4 small holes that du-

ring the operation will must

be open, eventually you can

insert in them an air filter.

7) Reverse the cartridge

group. With a pen tip pierce

the plastic operulum that

protects the valves (Photo 6).

Pag 1/2

IMPORTANT NOTE: before starting to print verify that the ink quantityis

sufficient in order to avoid that the ink tanks get completely empty.

11) For the right functioning the pipe

should not ridde the the trolley race.

To make shure that it moves correctly

we raccommend to move manually the

trolley to the right and to the left

(photo 10-11). In this way you can a-

djust the pipe length so that, during

the movement will always remain well

stretched out and do not tuck into i-

tself.

12) During the operation the printer

will must be have the lid oper to let the

pie turn correctly.

13) When you see the message of empty

cartridge it will be necessary bring the

machine in cartridge change position

following the display instructions, it will

not be necessary remove the cartridges,

you just have to press the reset button

for 10 seconds. Photo 12

8) Insert completely the

syringe tip in a cartridge val-

ve and aspire until the syrin-

ge is full of ink. You can

return the ink that is accu-

mulate in the syringe in the

tank of the corresponding

color. Repeat the operation

for all the colors.

(Photo 7)

9)Place the cartridges in the

print trolley and press the

block untill you hear the

hooking click. photo 8

10) Place the adhesive

clip and the pipes

(photo 9).

Pag 2/2

IMPORTANT NOTE: If the printer jams the paper or or turn off suddenly, don’t leave the

printer in this position. You should remove the paper and turn on the printer, so the

print trolley can resume the position.

It will be necessary turn off the printer correctly, if the trolley stays out of the correct

position, the print head could get dry and become unusable.

Table des matières

Autres manuels Epson Imprimante

Epson

Epson SureLab D3000 - Double Roll Manuel d'utilisation et d'entretien

Epson

Epson Stylus Color 980 Manuel d'installation et d'exploitation

Epson

Epson C11C655001 Manuel utilisateur

Epson

Epson Stylus COLOR 3000 Fiche technique

Epson

Epson Stylus Color 670 Manuel utilisateur

Epson

Epson Stylus C46 Manuel utilisateur

Epson

Epson SC-T7200D Series Manuel utilisateur

Epson

Epson WorkForce ST-C8000 Manuel utilisateur

Epson

Epson WorkForce Pro WP-4540 Manuel utilisateur

Epson

Epson AcuLaser C1900 Manuel utilisateur

Epson

Epson Small-in-One XP-700 Manuel utilisateur

Epson

Epson SC-T5100 Series Manuel utilisateur

Epson

Epson Stylus Photo 950 Manuel utilisateur

Epson

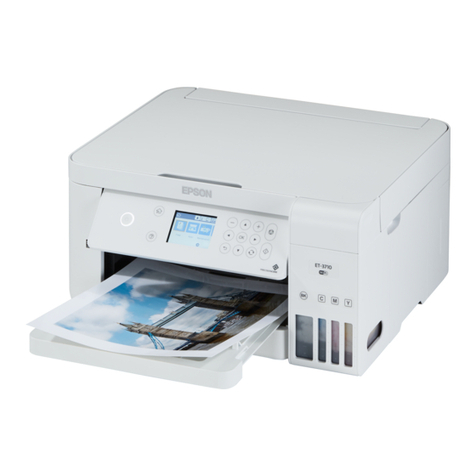

Epson ET-3710 Mode d’emploi

Epson

Epson STYLUS PRO WT7900 Manuel d'utilisation et d'entretien

Epson

Epson PP-100II Manuel utilisateur

Epson

Epson TM-S9000II-NW Manuel utilisateur

Epson

Epson Stylus Office BX305F Guide de l'utilisateur

Epson

Epson WorkForce Pro WP-4520 Manuel utilisateur

Epson

Epson Stylus Color 777 Guide d'installation

Epson

Epson Stylus C82N Manuel utilisateur

Epson

Epson EPL-N2120 Manuel utilisateur

Epson

Epson Stylus Pro 7900 Manuel d'utilisation et d'entretien

Epson

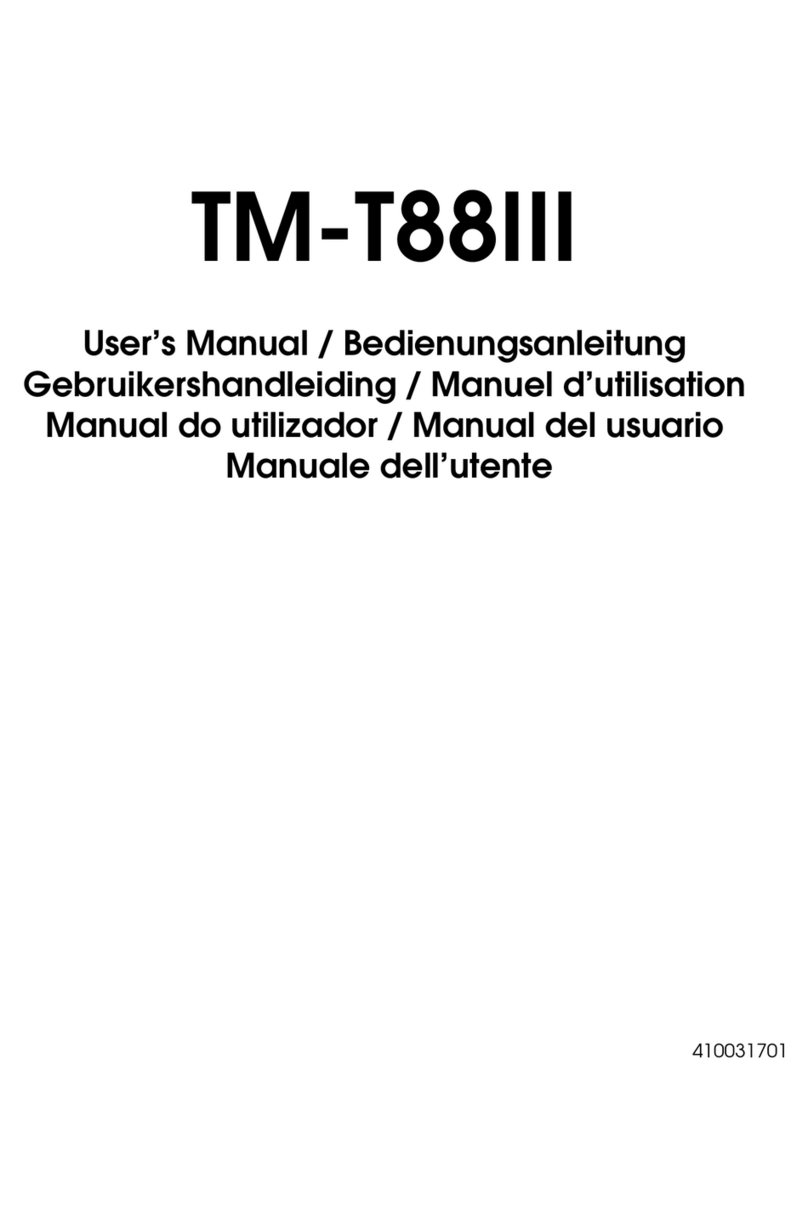

Epson TM-T88III - B/W Inkjet Printer Manuel utilisateur
