Epson TM-T70 Manuel utilisateur

One Blue Hill Plaza, 16th Floor, PO Box 1546

Pearl River, NY 10965

1-800-PC-AMERICA, 1-800-722-6374

(Voice) 845-920-0800 (Fax) 845-920-0880

1 | P a g e

EPSON TM-T70 Series Receipt Printers

Installation for Windows Vista

2 | P a g e

Installing and Replacing Roll Paper

1. Press the cover open lever down to open the roll

paper cover.

2. Remove the used roll paper core (if applicable).

3. In the correct direction (pictured left) install the roll

paper.

4. Pull the paper out through the Paper guides.

5. Close the roll paper cover.

6. Tear off any excess roll paper.

3 | P a g e

Hardware Installation

Diagram of how the printer will be interfaced with the computer

1. Using the above image to correctly plug in all of the cables that came with the TM-T70 series receipt printer.

Note: The printer may have a different interface than the one pictured above (e.g. parallel, serial, etc…).

2. Plug the other end of the interface cable into the back

of the computer.

3. Plug the other end of the cash drawer cable into the

back of the cash drawer.

4. Plug the power cable into an outlet.

4 | P a g e

Driver Installation

Before you begin please download and extract the installation files from:

http://download2.pcamerica.com/drivers/APD_402E.zip

1. Run the install file (APD_402E.exe).

2. Select Next to begin the installer.

3. Select I accept the terms in the license agreement

and select Next.

4. Select Standard and then select Next.

5 | P a g e

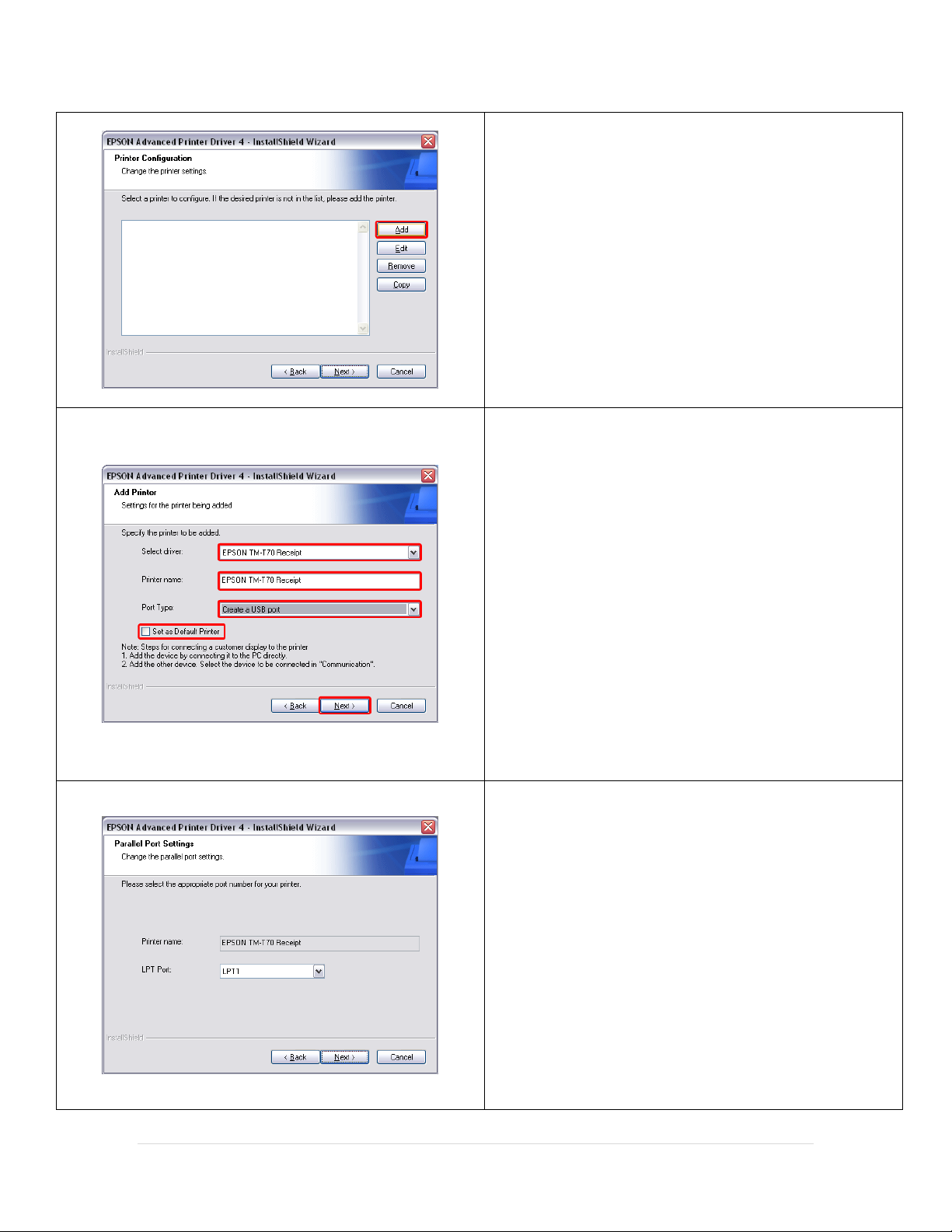

5. If no printers are listed select Add.

6. Select the correct printer that you have under Select

Driver: (e.g. EPSON TM-T70 Receipt).

7. Optionally you can give a name to the printer other

than the one that is there by default (e.g. Bar

Receipt).

8. Select the correct type of port under Port Type: (e.g.

if the printer connects via a USB port select Create a

USB port).

9. Optionally you can set the receipt printer as the

default printer in windows.

10. Select Next.

11. At the next screen (if you selected to create a Parallel

or serial port) you will be prompted to select a port

number to install this with (e.g. if your device is

installed via a parallel port select LPT1 under LPT

Port:).

12. Select Next.

6 | P a g e

13. The printer that you have configured should now

show under Printer Configuration.

14. Select Next.

15. Review the files to be installed and select Next.

The files will automatically install on your computer.

16. Select Yes, I want to restart my computer now.

17. Select Finish.

**You can now turn the printer back on.**

7 | P a g e

Driver Configuration

Once your computer has restarted and you’re back at the Windows Desktop, you’re ready to set

up the properties for your printer.

1. Select Start | Control Panel | Printers and Faxes.

2. Right-click on the EPSON Receipt printer (Epson

TM-T70) and select Properties.

3. Select the Ports tab.

4. Select the port your EPSON Receipt printer is

connected to (e.g. ESDPRT001, LPT1, COM1, USB

T70) and select Apply.

Note: If the printer is already selected and the Apply

button is disabled, just continue to the next step.

Now you can print a test page to ensure that your

printer is set up correctly.

1. Select the General tab.

2. Select Print Test Page.

Note: If your test page fails to print, see the Printer

Troubleshooting section below.

8 | P a g e

Next, you’ll adjust how the receipt paper is cut. From

the same Printer Properties window, General tab:

1. Select Printing Preferences.

2. Select the Document Settings tab.

3. At the bottom of the window select Paper

Conservation. Then select Top & Bottom.

4. Select Paper Source.

5. At the bottom of the window select

Document[NoFeed,NoCut].

9 | P a g e

Finally, you need to set the properties for the Barcode

font.

1. Select the Barcode tab.

2. Select Barcode4 from the Font Name drop-down

list the Type should be Code39.

3. Select the Advanced settings button.

4. Element Width to 2.

5. Set the Element Height to 80.

6. Select OK three times to finish configuring the

printer.

10 | P a g e

CRE/RPE Configuration

1. Select the Manager or Options button.

2. Enter the administrator password (default: admin)

where applicable.

Now you’re ready to set up your printer in RPE/CRE.

3. Select [4] Setup | [L] Friendly Printer Setup and re-enter your password if necessary.

4. Select Receipt in the Select Friendly Printer list on the left.

5. Select the EPSON TM-T70 Receipt printer in the Select local Windows printer list on the right.

6. Select Epson Thermal Receipt Printer as the Printer Type.

7. Select Cut Receipt at this Station.

8. Select Print logo on receipts at this station then select the logo file you would like to print on receipts (if

applicable).

Note: The Pixel aspect ratio for the logo must be 1:3 (i.e. if the image has a 100px height then the width must be

300px). If the image you are using is not in that aspect ratio then it will be distorted.

9. Select Save & Exit.
