Emerson Rosemount 5408 Manuel utilisateur
Quick Start Guide
00825-0300-4408, Rev BA
May 2019
Rosemount™ 5408 and 5408:SIS Level
Transmitters
Parabolic Antenna
Contents
About this guide...........................................................................................................................3
Confirm approval type..................................................................................................................5
Components of the parabolic antenna......................................................................................... 6
Mount the transmitter..................................................................................................................8
Adjust the inclination of the antenna..........................................................................................17
Connect the air purging..............................................................................................................20
Adjust display orientation (optional).......................................................................................... 21
Prepare the electrical connections..............................................................................................22
Connect wiring and power up.....................................................................................................29
Configure transmitter using Guided Setup................................................................................. 33
Quick Start Guide May 2019
2 Rosemount 5408 and 5408:SIS Level Transmitters
1 About this guide
This Quick Start Guide provides basic guidelines for the Rosemount 5408
and 5408:SIS Level Transmitters. Refer to the Rosemount 5408 and 5408:SIS
with HART® Reference Manual and Rosemount 5408 with FOUNDATION™
Fieldbus Reference Manual for more instructions. The manuals and this
guide are also available electronically on Emerson.com/Rosemount.
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Make sure the transmitter is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the equipment only as specified in this manual. Failure to do so may
impair the protection provided by the equipment.
•For installations in hazardous locations, the transmitter must be installed
according to the Rosemount 5408 and 5408:SIS Product Certifications
document and System Control Drawing (D7000002-885).
•Repair, e.g. substitution of components etc., may jeopardize safety and
is under no circumstances allowed.
Explosions could result in death or serious injury.
•Verify that the operating atmosphere of the transmitter is consistent
with the appropriate hazardous locations certifications.
•Before connecting a handheld communicator in an explosive
atmosphere, ensure the instruments are installed in accordance with
intrinsically safe or non-incendive field wiring practices.
•In Explosion-proof/Flameproof and Non-Incendive/Type n installations,
do not remove the transmitter covers when power is applied to the unit.
•Both transmitter covers must be fully engaged to meet Explosion-proof/
Flameproof requirements.
Electrical shock could cause death or serious injury.
•In Explosion-proof/Flameproof and Non-Incendive/Type n installations,
avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Make sure the mains power to the transmitter is off and the lines to any
other external power source are disconnected or not powered while
wiring the transmitter.
May 2019 Quick Start Guide
Quick Start Guide 3
WARNING
Process leaks could result in death or serious injury.
•Make sure that the transmitter is handled carefully. If the process seal is
damaged, gas might escape from the tank.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to
and/or misconfiguration of end users’ equipment. This could be
intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Hot surfaces
The flange and process seal may be hot at high process temperatures. Allow
to cool before servicing.
Quick Start Guide May 2019
4 Rosemount 5408 and 5408:SIS Level Transmitters
2 Confirm approval type
For hazardous locations transmitters labeled with multiple approval types:
Procedure
Permanently mark the checkbox of the selected approval type(s).

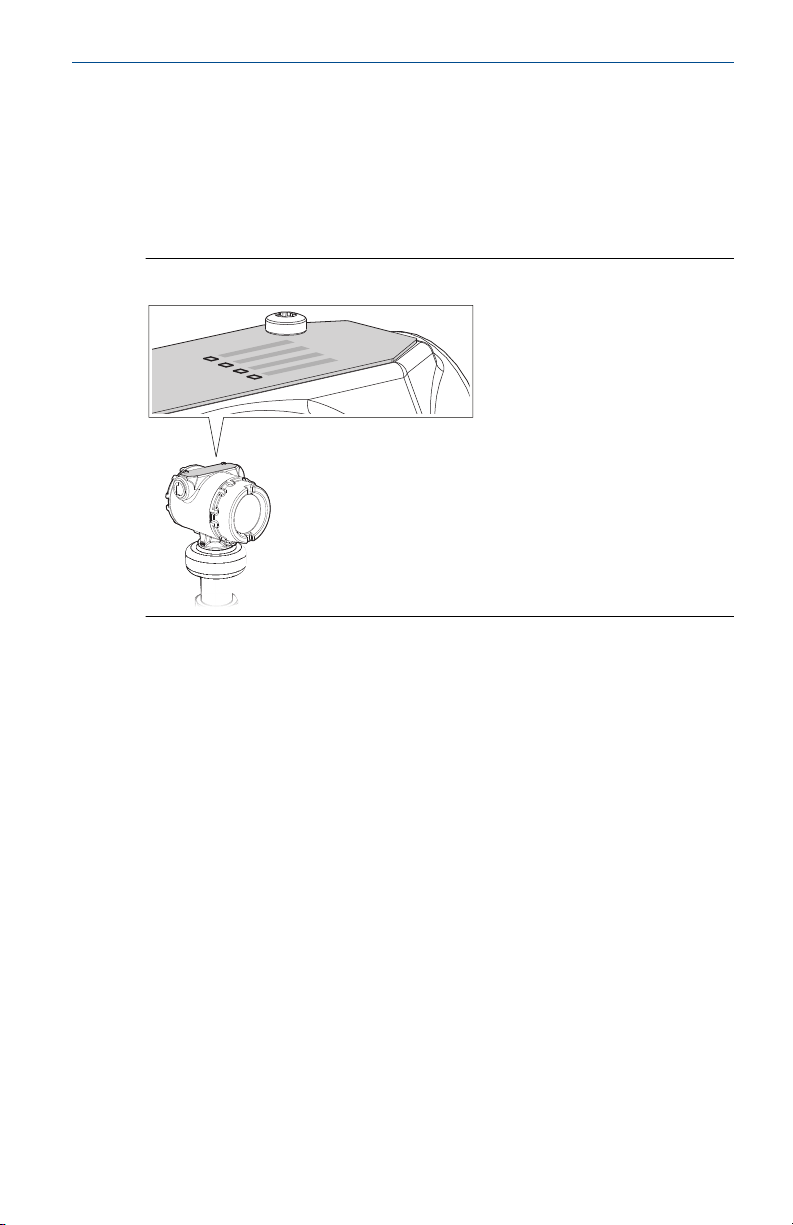

Figure 2-1: Label with Multiple Approval Types
May 2019 Quick Start Guide
Quick Start Guide 5
3 Components of the parabolic antenna

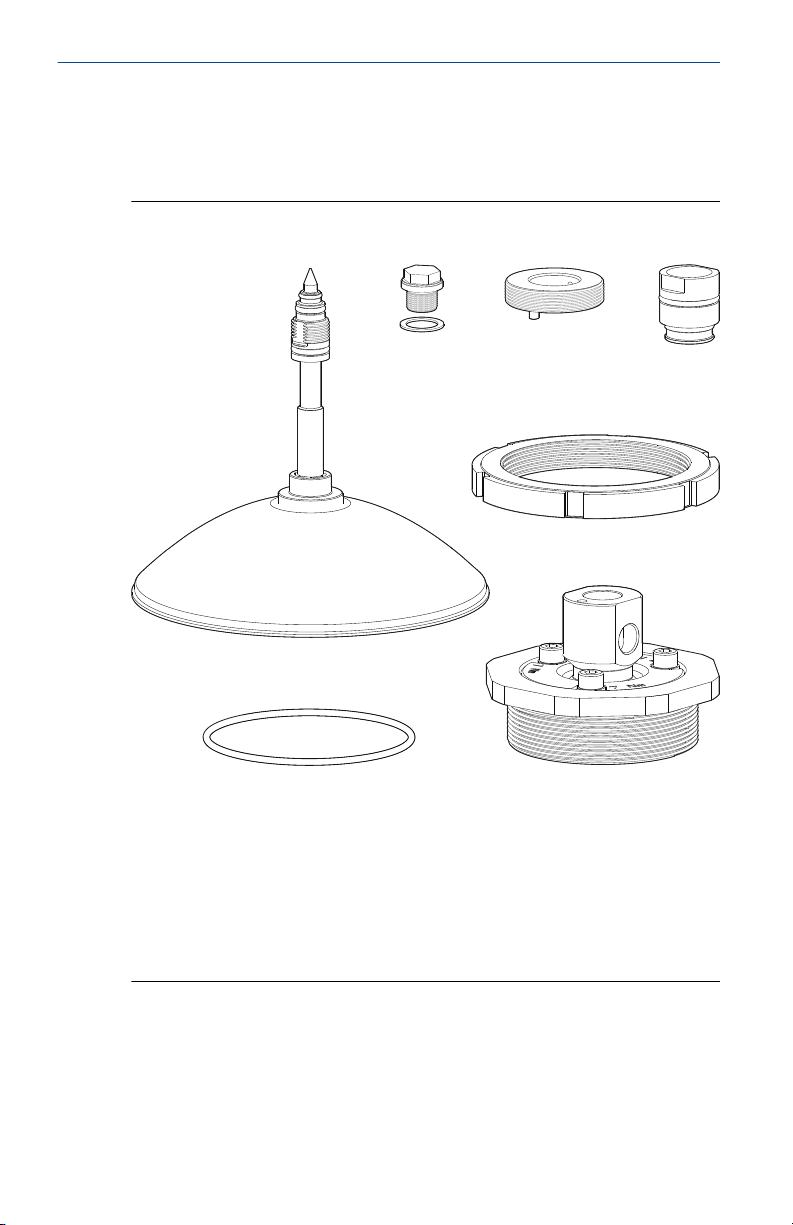

3.1 Components of the threaded version
Figure 3-1: Components
2x
[([*['[&[%[$[)
A. Antenna
B. Purge plug kit
C. Threaded sleeve
D. M20 adapter
E. Lock nut BSPP (G) 3½-in.
F. Antenna adapter with ball joint
G. O-ring
Quick Start Guide May 2019
6 Rosemount 5408 and 5408:SIS Level Transmitters

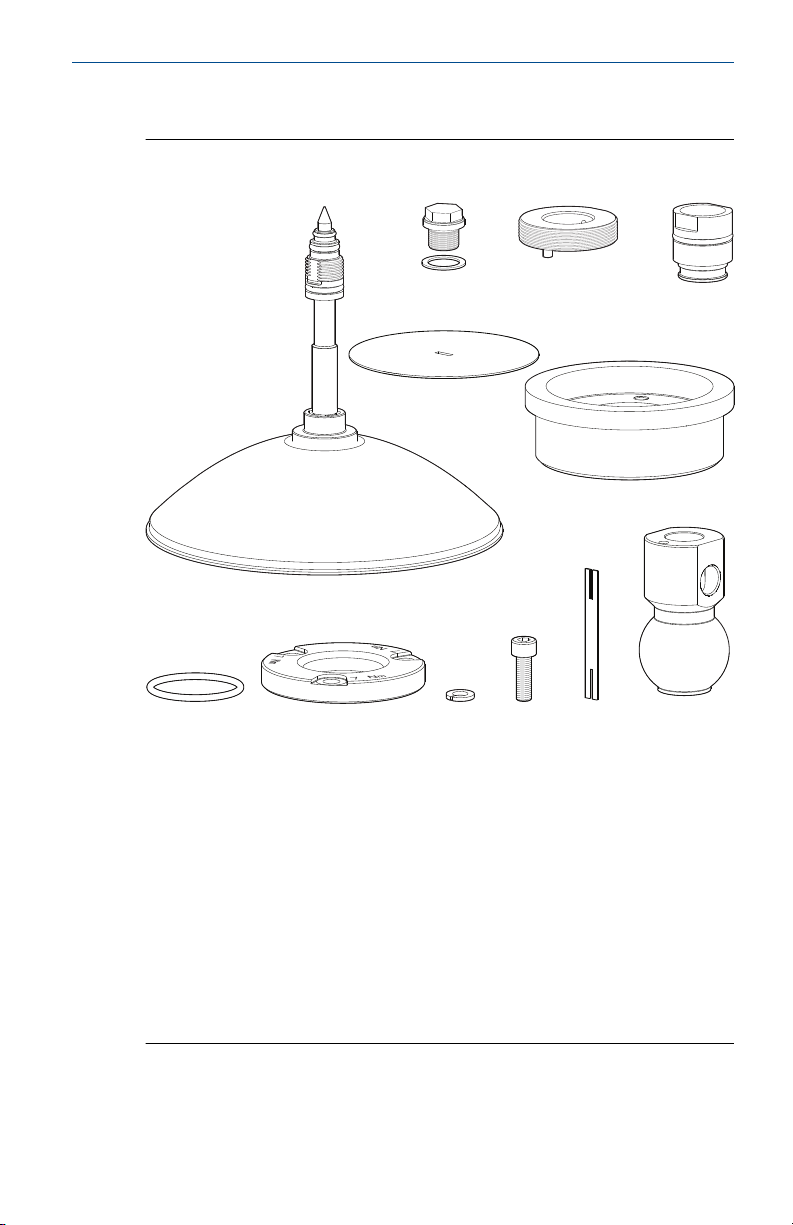

3.2 Components of the welded version
Figure 3-2: Components
[([.[)[*[/[,[-['[&[%[$[+
A. Antenna
B. Purge plug kit
C. Threaded sleeve
D. M20 adapter
E. Weld protection plate
F. Flange ball
G. O-ring
H. Clamp flange
I. Washer
J. M8 screw
K. Weld protection bar
L. Ball joint
May 2019 Quick Start Guide
Quick Start Guide 7
4 Mount the transmitter

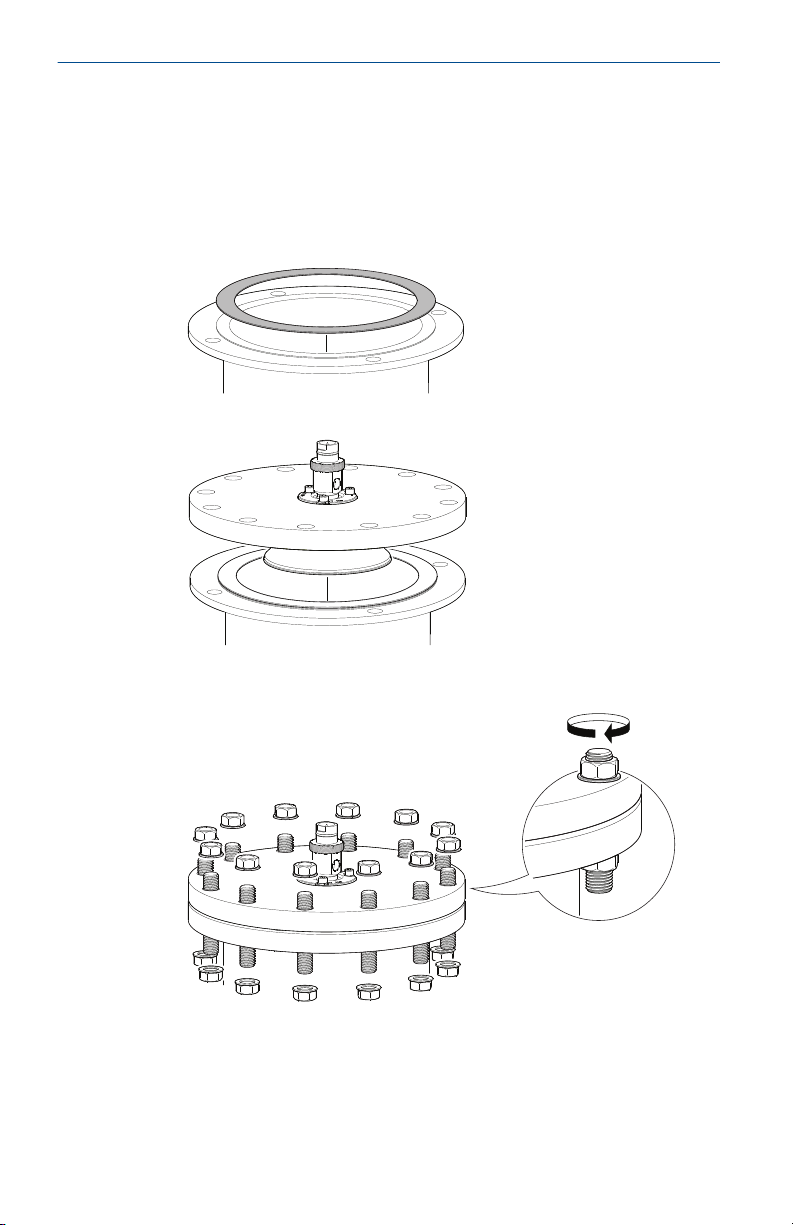

4.1 Mount the flanged version
Procedure
1. Place a suitable gasket on the tank flange.
2. Lower the flange and antenna assembly into the nozzle.
3. Tighten the bolts and nuts with sufficient torque for the flange and
gasket choice.
Postrequisites
1. Adjust the inclination of the antenna (see Adjust the inclination of
the antenna).
Quick Start Guide May 2019
8 Rosemount 5408 and 5408:SIS Level Transmitters
2. Connect the air purging system (see Connect the air purging).

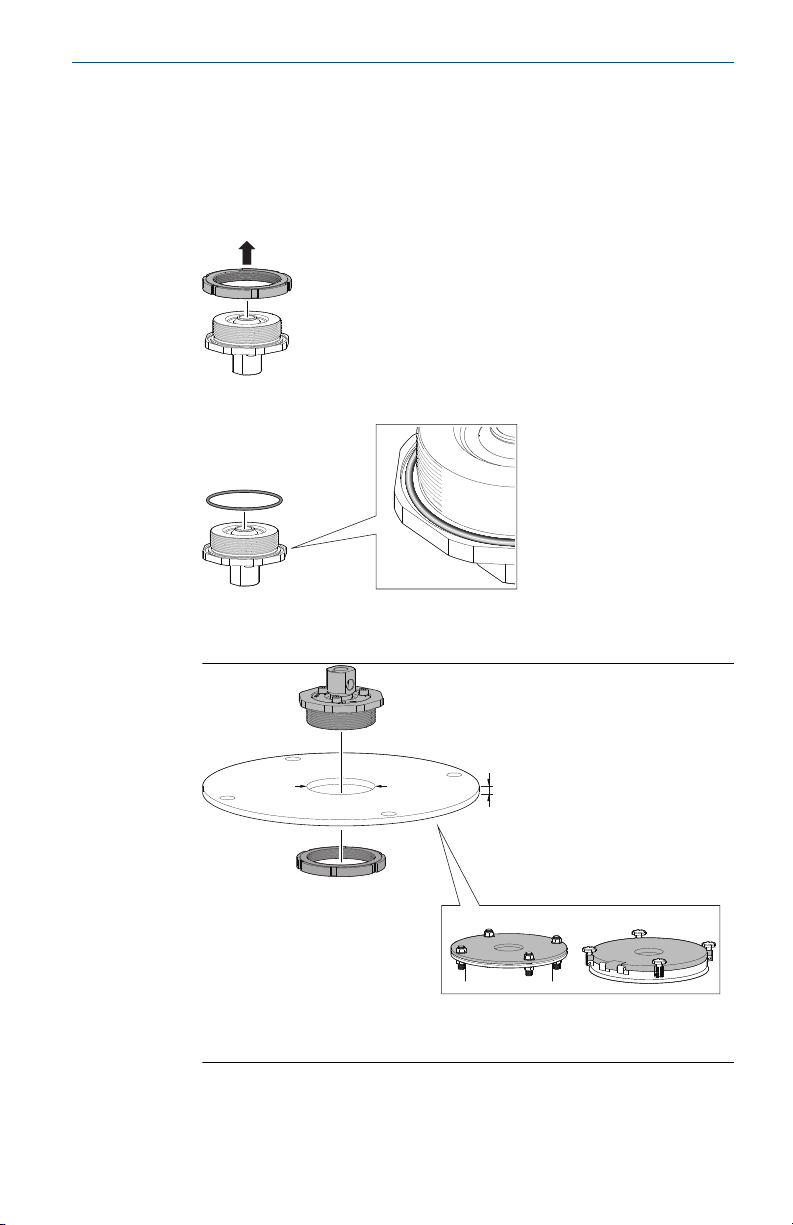

4.2 Mount the threaded version
Procedure
1. Remove the lock nut.
2. Mount the O-ring.
3. Mount the antenna adapter on flange/manhole cover. Ensure the
antenna adapter fits tightly to the flange/manhole cover.
%$
A. Ø 3.98 ± 0.02 in. (Ø 101 ± 0.6 mm) or G 3½-in.
B. Max. 0.59 in. (15 mm)
May 2019 Quick Start Guide
Quick Start Guide 9

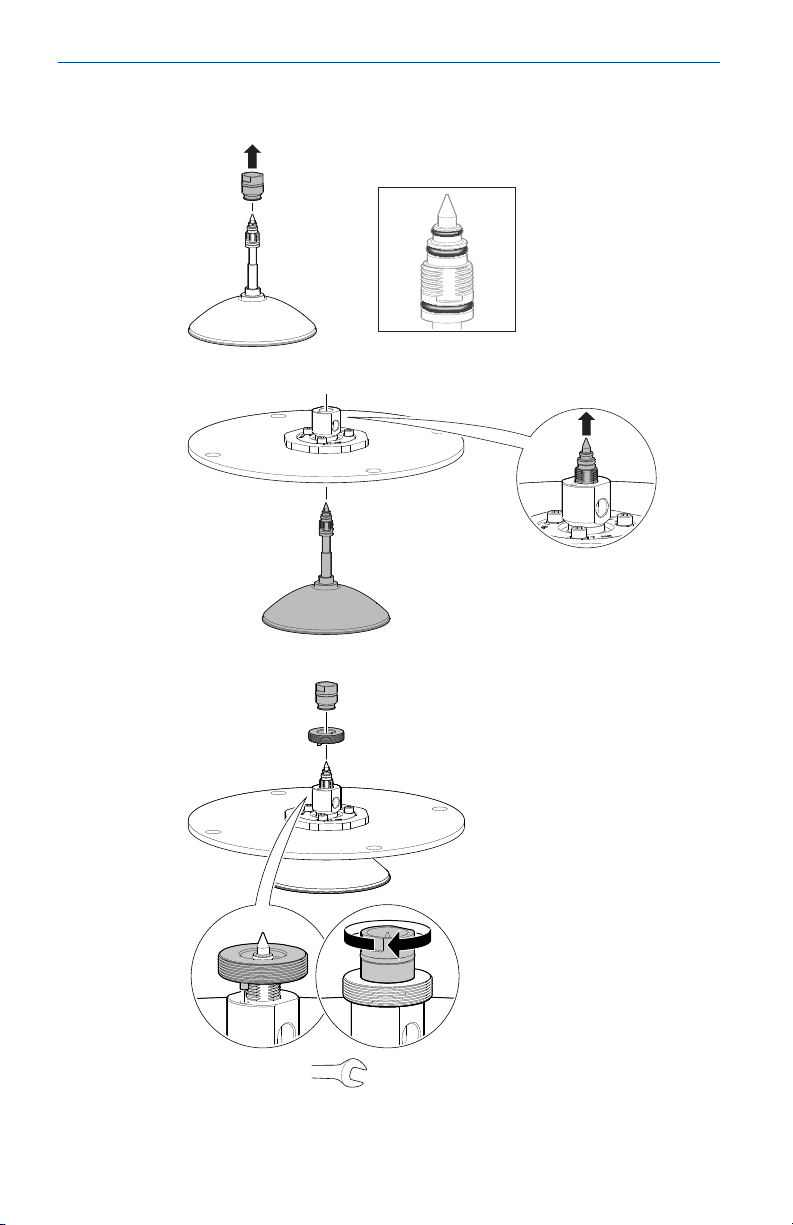

4. Remove the M20 adapter and visually inspect the O-rings for damage
and dirt.
5. Carefully insert the antenna.
6. Secure the antenna.
27 mm
Torque 180 in-lb (20 N-m)
Quick Start Guide May 2019
10 Rosemount 5408 and 5408:SIS Level Transmitters
