Quick Start Guide

00825-0100-4108, Rev BA

August 2015

Rosemount®2088, 2090F, and 2090P

Pressure Transmitter

with 4-20 mA HART®and 1-5 Vdc Low Power

HART Protocol (Revision 5 and 7)

4108_QIG_RevBA.fm Page 1 Wednesday, August 12, 2015 2:32 PM

August 2015

Quick Start Guide

NOTICE

This guide provides basic guidelines for Rosemount 2088, 2090F, and 2090P Transmitters. It does not

provide instructions for configuration, diagnostics, maintenance, service, troubleshooting,

Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. See the Rosemount 2088 Reference

Manual (document number 00809-0100-4108) for more information. This manual is also available

electronically on www.emersonprocess.com/rosemount.

Explosions could result in death or serious injury.

Installation of these transmitters in an explosive environment must be in accordance with the appropriate

local, national, and international standards, codes, and practices. Review the approvals section of the

Rosemount 2088 Reference Manual for any restrictions associated with a safe installation.

Before connecting a HART-based communicator in an explosive atmosphere, make sure the instruments

in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

In an Explosion-proof/Flameproof installation, do not remove the transmitter covers when power is

applied to the unit.

Process leaks may cause harm or result in death.

To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.

Electrical shock can result in death or serious injury.

Avoid contact with the leads and the terminals. High voltage that may be present on leads can cause

electrical shock.

Conduit/cable entries

Unless marked, the conduit/cable entries in the transmitter housing use a 1/2-14 NPT thread form. Only

use plugs, adapters, glands or conduit with a compatible thread form when closing these entries.

Contents

System readiness . . . . . . . . . . . . . . . . . . . . .3

Mount the transmitter . . . . . . . . . . . . . . . . 4

Set the switches . . . . . . . . . . . . . . . . . . . . . . 7

Connect the wiring and power up . . . . .8

Verify transmitter configuration . . . . . . . . .10

Trim the transmitter . . . . . . . . . . . . . . . . . . . . .16

Product Certifications . . . . . . . . . . . . . . . . . . . 18

4108_QIG_RevBA.fm Page 2 Wednesday, August 12, 2015 2:32 PM

Quick Start Guide

August 2015

System readiness

Confirm HART Revision capability

If using HART based control or asset management systems, confirm the HART

capability of those systems prior to transmitter installation. Not all systems

are capable of communicating with HART Revision 7 protocol. This transmitter

can be configured for either HART Revision 5 or 7.

For instructions on how to change the HART revision of your transmitter, see

page 15.

Confirm correct device driver

Verify the latest Device Driver (DD/DTM) is loaded on your systems to ensure

proper communications.

Download the latest Device Driver files at www.emersonprocess.com or

www.hartcomm.org.

Note

The 2088, 2090F, and 2090P transmitters all use 2088 Device Revisions and Drivers.

1. Download the latest DD at www.emersonprocess.com or

www.hartcomm.org.

2. In the Browse by Member dropdown menu, select Emerson™ Process

Management.

3. Select desired product.

a. Reference Table 1, Find Device Driver Files column to find the correct Device

Driver.

4108_QIG_RevBA.fm Page 3 Wednesday, August 12, 2015 2:32 PM

August 2015

Quick Start Guide

Table 1. Rosemount 2088 Device Revisions and Files

Step 1: Mount the transmitter

Rosemount 2088

Mount directly to the impulse line without using an additional mounting bracket

or mount directly to a wall, panel, or two-inch pipe using an optional mounting

bracket.

Rosemount 2090P

Mount directly to the process pipe using an existing weld spud, or have a skilled

welder install a new weld spud using a TIG welder. See reference manual for

complete welding instructions (document number 00809-0100-4690). Improper

installation may result in weld spud distortion. Upright or horizontal position

mounting is recommended to allow proper draining of vent.

Rosemount 2090F

Mount directly to the process pipe using a standard sanitary fitting (either a

1.5-in. or 2-in.Tri Clamp connection). Upright or horizontal position mounting is

recommended to allow proper draining of vent.

Identify device Find device driver files Review

instructions

Review

functionality

Software

release

date

NAMUR

software

revision(1)

1. NAMUR Software Revision is located on the hardware tag of the device. HART Software Revision can be read

using a HART capable configuration tool.

HART

software

revision(2)

2. Device Driver file names us Device and DD Revision, e.g. 10_01. HART Protocol is designed to enable legacy

device driver revisions to continue to communicate with new HART devices. To access new functionality, the

new Device Driver must be downloaded. It is recommended to download new Device Driver files to ensure full

functionality.

HART

universal

revision

Device

revision(2)

Manual

document

number

Changes to

software(3)

3. HART Revision 5 and 7 Selectable, Local Operator Interface, Scaled Variable, Configurable Alarms, Expanded

Engineering Units.

January

2013 1.0.0 01

710

AA See footnote 3 for

list of changes.

January

1998 N/A 178 5 3 N/A N/A

4108_QIG_RevBA.fm Page 4 Wednesday, August 12, 2015 2:32 PM

Quick Start Guide

August 2015

Figure 1. Transmitter Direct Mounting

Figure 2. Panel and Pipe Mounting

Do not apply torque directly to the electronics housing. To avoid

damage, apply torque only to the hex-shaped process

connection.

2088 2090P 2090F

A. 1/2-14 NPT female process connection

B. Vessel wall

C. Weld spud

D. O-ring

E. 1 1/2or 2-in. Tri Clamp

conncetion

Panel mount Pipe mount

1.5 in.

1.0 in.

4108_QIG_RevBA.fm Page 5 Wednesday, August 12, 2015 2:32 PM

August 2015

Quick Start Guide

Gage transmitter orientation

The low side pressure port (atmospheric reference) on the inline gage transmitter

is located in the neck of the transmitter, behind the housing. The vent path is

360° around the transmitter between the housing and sensor. (See Figure 3.)

Liquid flow applications

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Mount the transmitter so the drain/vent

valves are oriented upward.

Gas flow applications

1. Place taps in the top or side of the line.

2. Mount level or above the taps.

Steam flow applications

1. Place taps to the side of the line.

2. Mount beside or below the taps.

3. Fill impulse lines with water.

Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by

mounting the transmitter so the contaminants can drain away.

4108_QIG_RevBA.fm Page 6 Wednesday, August 12, 2015 2:32 PM

Quick Start Guide

August 2015

Figure 3. Gage Low Side Pressure Port

A. Low side pressure port (atmospheric reference)

Step 2: Set the switches

Set alarm and security switch configuration before installation as shown in

Figure 4.

The alarm switch sets the analog output alarm to high or low. Default alarm is

high.

The security switch allows ( ) or prevents ( ) any configuration of the

transmitter. Default security is off ( ).

Use the following procedure to change the switch configuration:

1. If the transmitter is installed, secure the loop, and remove power.

2. Remove the housing cover opposite the field terminal side. Do not remove the

instrument cover in explosive atmospheres when the circuit is live.

3. Slide the security and alarm switches into the preferred position using a small

screwdriver.

4. Reattach the transmitter cover. The cover must be fully engaged to comply

with explosion-proof requirements.

4108_QIG_RevBA.fm Page 7 Wednesday, August 12, 2015 2:32 PM

August 2015

Quick Start Guide

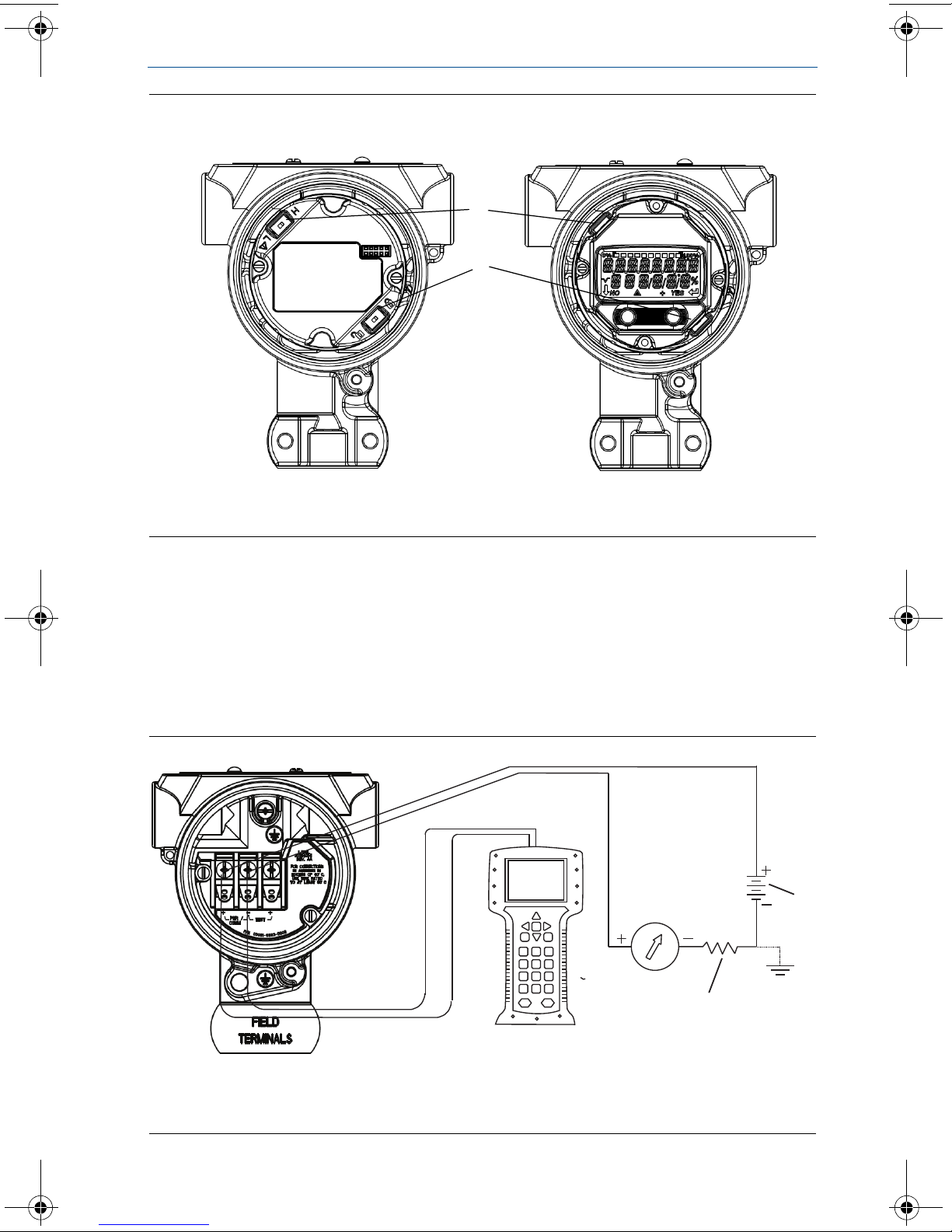

Figure 4. Transmitter Electronics Board

A. Alarm

B. Security

Step 3: Connect the wiring and power up

Shielded twisted pair cable should be used for best results. Use 24 AWG or larger

wire that does not exceed 5000 feet (1500 meters) in length. If applicable, install

wiring with a drip loop. Arrange the drip loop so the bottom is lower than the

conduit connections and the transmitter housing.

Figure 5. Wiring the Transmitter (4-20 mA HART)

A. Vdc supply

B. RL≥250 (necessary for HART communication only)

Without LCD display With LCD/LOI

4108_QIG_RevBA.fm Page 8 Wednesday, August 12, 2015 2:32 PM

Quick Start Guide

August 2015

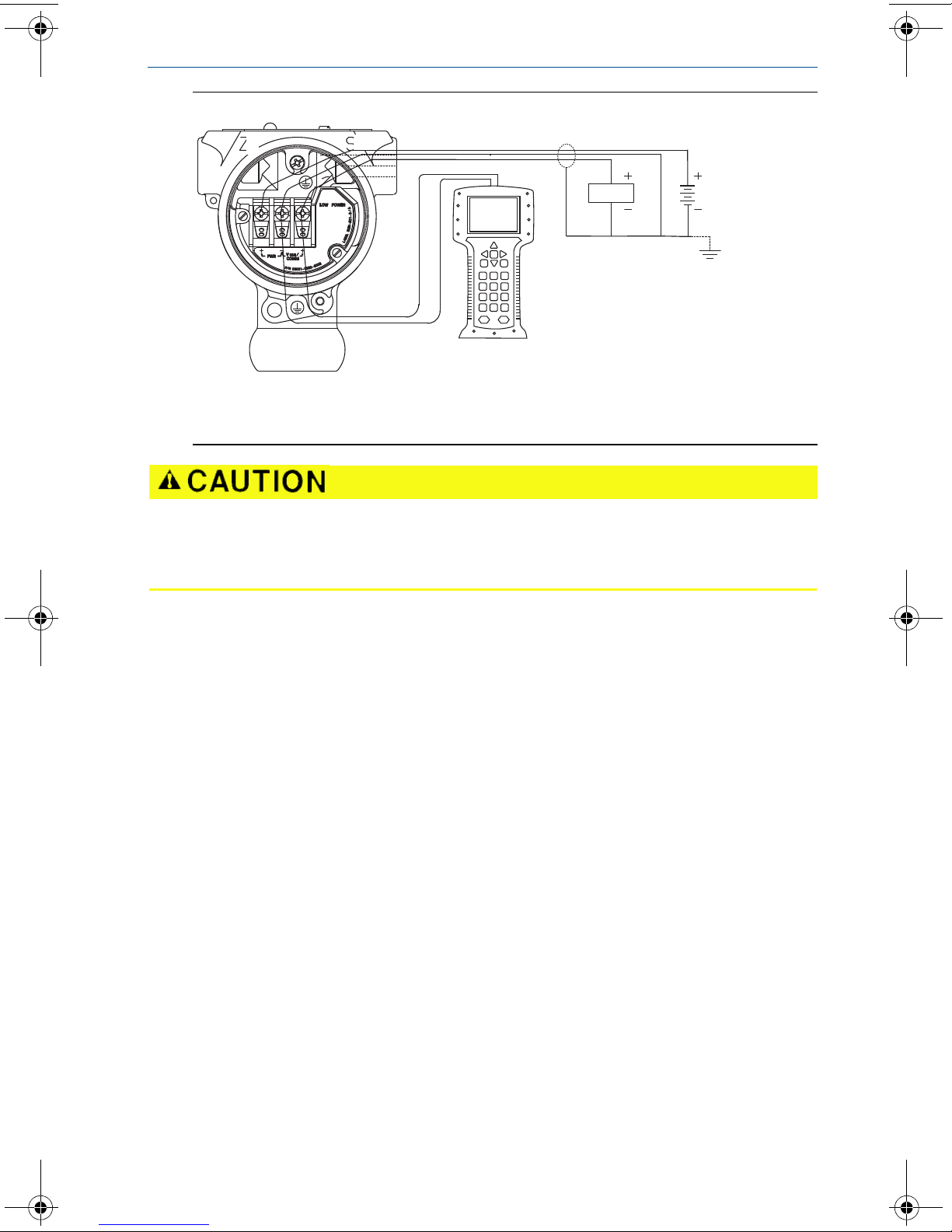

Figure 6. Wiring the Transmitter (1-5 Vdc Low Power)

A. Power supply

B, Voltmeter

C. Field teminals

Use the following steps to wire the transmitter:

1. Remove the housing cover on the FIELD TERMINALS side.

2. Connect the leads and shown in Figure 5 or Figure 6.

3. Ground housing to fulfill local grounding regulations.

4. Ensure proper grounding. It is important that the instrument cable shield:

Be trimmed close and insulated from touching the transmitter housing

Be connected to the next shield if cable is routed through a junction box

Be connected to a good earth ground at the power supply end

5. If transient protection is needed, refer to section Grounding for transient

terminal block for grounding instructions.

6. Plug and seal unused conduit connections.

7. Replace the housing cover.

Installation of the transient protection terminal block does not provide transient protection unless the

transmitter case is properly grounded.

Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.

Do not connect the powered signal wiring to the test terminals. Power could damage the test diode in the

terminal block.

4108_QIG_RevBA.fm Page 9 Wednesday, August 12, 2015 2:32 PM

August 2015

Quick Start Guide

Figure 7. Grounding

Grounding for transient terminal block

Ground termination is provided on the outside of the electronics housing and

inside the terminal compartment. These grounds are used when the transient

protection terminal blocks are installed. It is recommended that 18 AWG or larger

wire is used to connect housing ground to earth ground (internal or external).

If the transmitter is currently not wired for power up and communication, follow

procedures 1-7 of “Connect the wiring and power up” on page 8. When the

transmitter is properly wired, refer to Figure 7 for internal and external transient

grounding locations.

Step 4: Verify transmitter configuration

Verify the configuration using any HART capable configuration tool or Local

Operator Interface (LOI) - option code M4. Configuration instructions for a Field

Communicator and LOI are included in this step. See Rosemount 2088 Reference

Manual (document number 00809-0100-4108) for configuration instructions

using AMS®Device Manager.

Verifying configuration with a Field Communicator

A Rosemount 2088 DD must be installed on the Field Communicator to verify

configuration. Fast Key sequences vary depending on device and DD revisions.

Use the Determine Fast Key sequence table process below to identify the

appropriate fast key sequences.

A.Trim shield and insulate

B. Insulate shield

C. Terminate cable shield drain wire to

earth ground

D. Internal ground location

E. External ground location

4108_QIG_RevBA.fm Page 10 Wednesday, August 12, 2015 2:32 PM

Autres manuels pour Rosemount 2088

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Emerson Émetteur

Emerson

Emerson Micro Motion Transmitters and Discrete Controllers Series... Manuel d'exploitation

Emerson

Emerson Rosemount 3051S Series Manuel utilisateur

Emerson

Emerson Rosemount 3051 Manuel utilisateur

Emerson

Emerson Micro Motion 1600 Manuel utilisateur

Emerson

Emerson Rosemount 2240S Manuel utilisateur

Emerson

Emerson Rosemount 3408 Manuel utilisateur

Emerson

Emerson Micro Motion 5700 Manuel utilisateur

Emerson

Emerson Rosemount 3051 Manuel utilisateur

Emerson

Emerson Rosemount 3051HT Manuel utilisateur

Emerson

Emerson Rosemount 848T Manuel utilisateur

Emerson

Emerson Rosemount 248 Manuel utilisateur

Emerson

Emerson Rosemount 5408 Manuel utilisateur

Emerson

Emerson Rosemount FCL-01 Manuel utilisateur

Emerson

Emerson Rosemount 3051S Series Manuel utilisateur

Emerson

Emerson Micro Motion 5700 Manuel utilisateur

Emerson

Emerson Rosemount 3051N Manuel utilisateur

Emerson

Emerson Rosemount 702 Manuel utilisateur

Emerson

Emerson Rosemount 1057 Manuel utilisateur

Emerson

Emerson Rosemount 648 Manuel utilisateur

Emerson

Emerson Rosemount 2088 Manuel utilisateur

Emerson

Emerson Rosemount 2051 Manuel utilisateur

Emerson

Emerson Rosemount 248 Manuel utilisateur

Emerson

Emerson Rosemount 2051CF series Manuel utilisateur

Emerson

Emerson Rosemount Oxymitter 4000 Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
