Elite Screens GolfSim Bay Series Manuel utilisateur

Rev.08242023JA 1 U00269 www.elitescreens.com

GolfSim Bay Series

Sport Simulation Impact Projector Screen

User Guide & Assembly Instructions

For the latest updated version, visit www.elitescreens.com

Product Description: The GolfSim Bay Series is an enclosed golf and sport simulator impact screen that utilizes our

three-layer ImpactWhite® 1145. It includes a full frame assembly kit for permanent installation in dedicated spaces.

Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a

long product life.

ImpactWhite®1145 material tips and precautions

•Handle with caution, material is subject to static electricity.

•Wear gloves and unroll the material on a clean surface.

•Make sure to use the correct side. The ImpacWhite®1145 screen has a front and back side.

•Folding lines/wrinkles are normal due to the nature of the material structure and packaging but may be removed

with a steamer and/or light ironing set to no higher than Polyester.

•Make sure to allow proper distance for swing range to protect children, pets, ceilings, walls, windows, or any

other property.

•Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points

below to prevent that from occurring:

1. Do not touch the projection surface with your hands.

2. Do not write or draw on the projection surface.

3. Do not point at the projection surface with your fingers or sharp objects;this will damage the screenmaterial.

4. Use a soft bristle brush or dry microfiber cloth to remove dust from the screen surface.

5. Do NOT use any solutions, chemical cleaning agents, alcohol, or abrasive to clean the screen surface.

6. When cleaning the projection surface, use a soft cloth dampened with warm water to remove any traces.

7. Do NOT rub or apply pressure when cleaning the surface.

Assembly video

Watch our assembly video by scanning the QR code!

We consider our impact screens a wearable item and the life of them will vary according to

their use. Avoid using golf balls with scuffs or markings to maximize the life of the screen.

If possible, use new golf balls.

Rev.08242023JA 2 U00269 www.elitescreens.com

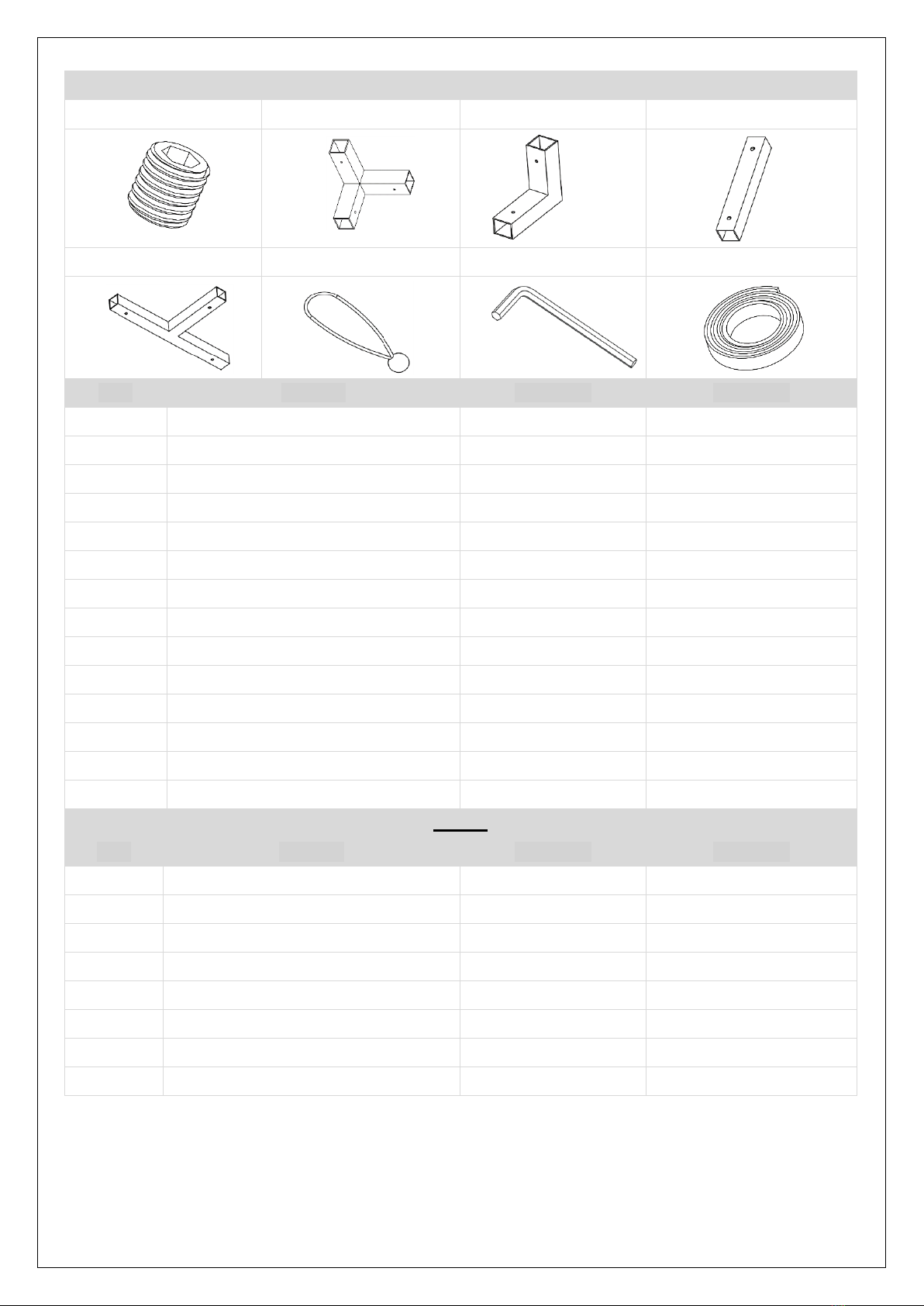

Hardware Parts List

Item

Part List

GSB10x10

GSB12x10

M8 hex screw

Three-way corner connector

L-shaped connector

Straight connector

T-shaped connector

Ball bungee

M8 Hex Wrench

Foam tape

Vertical frame (30x30x1450mm)

Horizontal frame (30x30mm)

1480mm - 6pcs

1980mm - 6pcs

Inner frame (30x30x1180mm)

Foam tube for vertical frame (1500mm)

Foam tube for horizontal frame

1500mm-4pcs

2000mm-4pcs

Foam tube for inner frame (1200mm)

Fabrics

Item

Part List

GSB10x10

GSB13x10

Golf screen

Left side enclosure panel

Right side enclosure panel

Top enclosure panel

Golf Screen top border panel

Golf Screen side border panel

Middle black backing panel

Left/Right black backing panel

Rev.08242023JA 3 U00269 www.elitescreens.com

Exploded Diagram

Assembly Instructions

Step 1: Assemble all four vertical support frames (I) using the straight connectors (D) and fasten them using the

M8 Hex Wrench (G) and M8 hex screws (A). We will refer to them as ID.

Rev.08242023JA 4 U00269 www.elitescreens.com

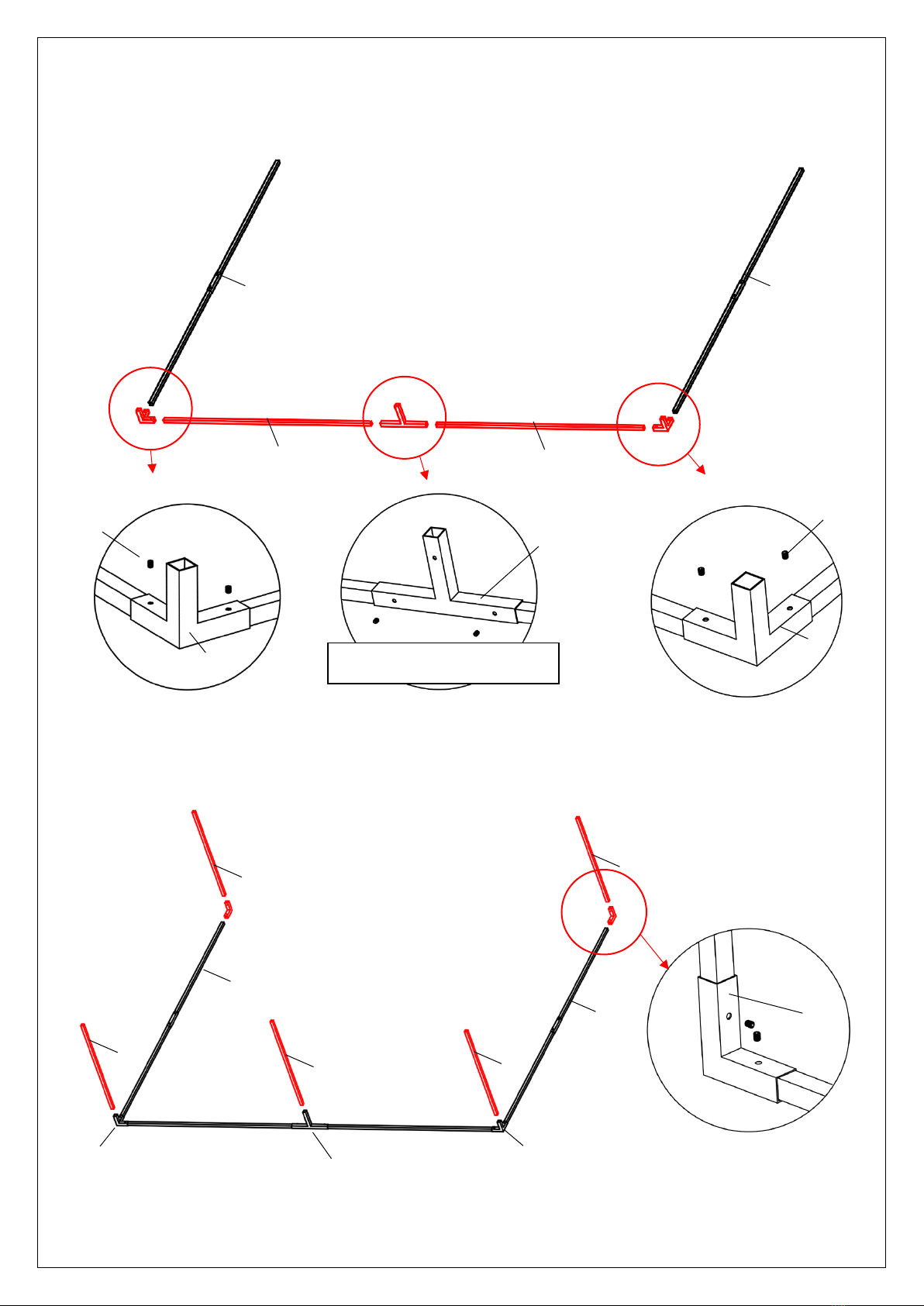

Step 2: Connect two horizontal frames (J) together using the t-shaped connector (E). Then attach two three-way

corner connectors (B) at each end to join frames ID and J together as shown below. Fasten with M8 Hex Wrench

(G) and M8 hex screws (A).

Step 3: Attach two L-shaped connectors (C) at the top of the vertical frame (ID) and attach all five inner frames

(K) to connectors (C, B, E). Then fasten them with M8 Hex Wrench (G) and M8 hex screws (A).

Screw holes must face inside.

Rev.08242023JA 5 U00269 www.elitescreens.com

Step 4. Attach a three-way corner connector (B) to inner frame (K) on all corners and attach a vertical frame (ID)

Next, attach a T-shaped connector (E) to the center inner frame (K), attach horizontal frame (J) to Band E

connectors and fasten with M8 Hex Wrench (G) and M8 hex screws (A).

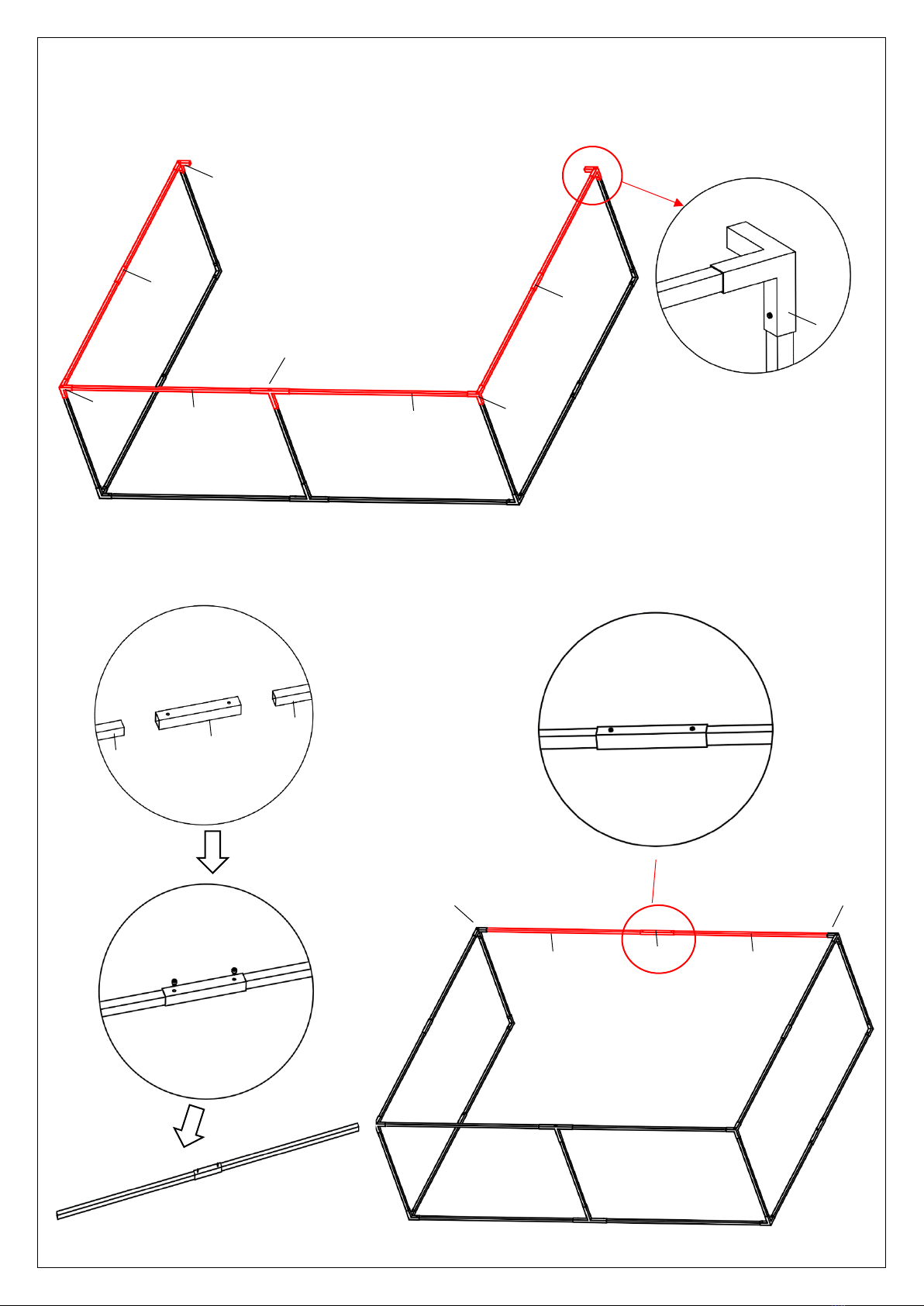

Step 5. Assemble the two horizontal frames (J) with the straight connector (D). Then attach it to the three-way

corner connector (B) and fasten using the M8 Hex Wrench (G) and M8 hex screws (A).

Screws face up.

Rev.08242023JA 6 U00269 www.elitescreens.com

Foam tape application

Step 6. Peel off the back of the foam tape (H) and adhere it to the frames as shown in the illustration.

Rev.08242023JA 7 U00269 www.elitescreens.com

Projection (Front) Side

Back Side

Golf Screen Installation

Step 7. Preparing to hang the golf screen on the frame.

7-1. Distinguishing the front and back side first.

7-2. Using the ball bungees (F)

7-3. Fasten the two top corners first. Use two ball bungees in each corner.

1. Insert the loop end of the

ball bungee through the

grommet.

2. Wrap it over the frame.

3. Hook it over the ball.

Note: Ball should end up on

the back side.

Two ball bungees go

through the same grommet.

Rev.08242023JA 8 U00269 www.elitescreens.com

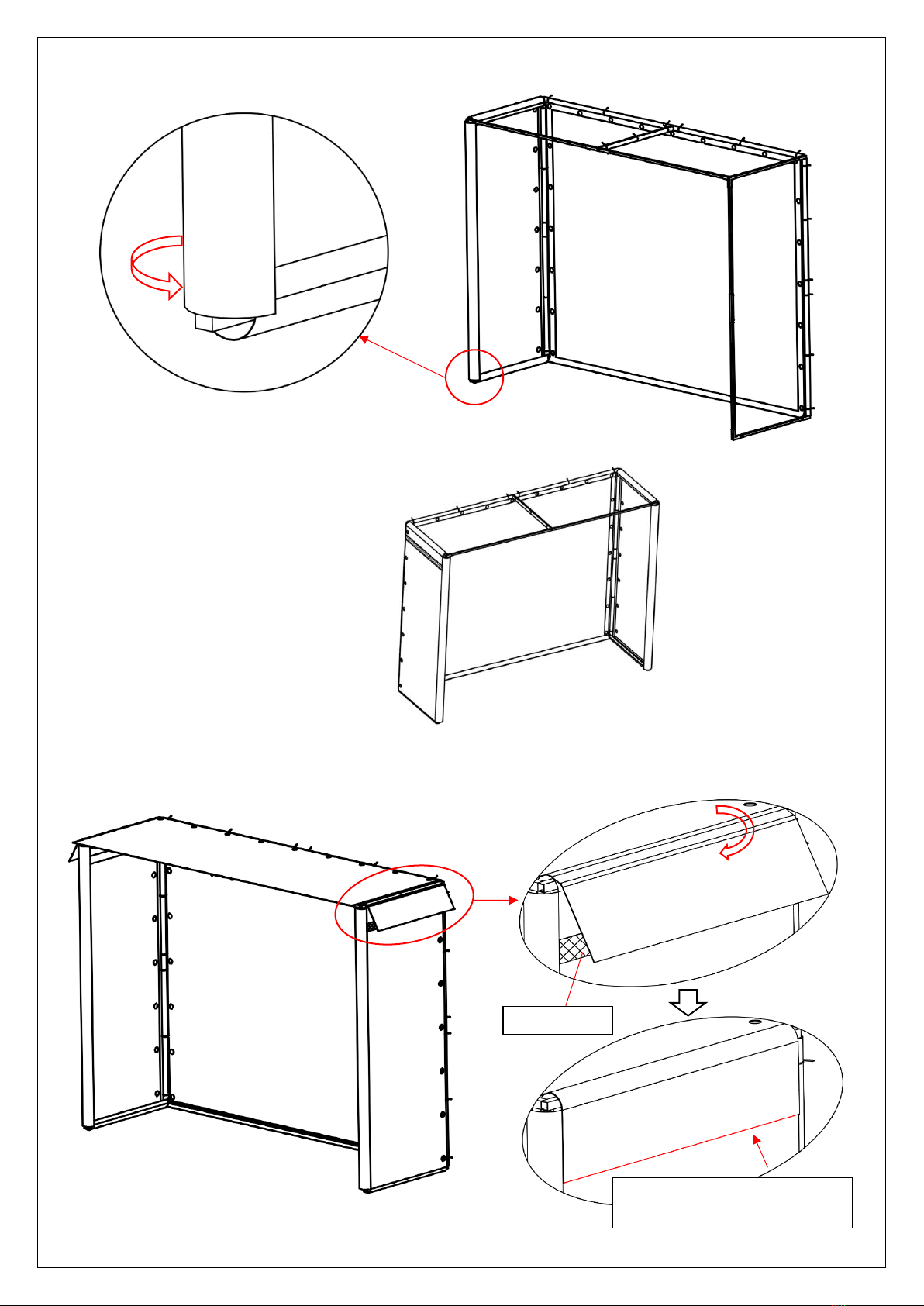

Step 8. Lift and stand up the frame. Continue attaching the Golf screen to the frame in the following order.

Enclosure panels installation

Step 9. Left and Right Enclosure panels

9-1. Distinguish the front side and back sides. The front has the loop (fuzzy) and the back has the hook (rough).

Loop side = Front

Velcro should

be pulled apart.

Use only one ball bungee

at the bottom corners.

Hook side = Back

Top

Bottom

Rev.08242023JA 9 U00269 www.elitescreens.com

Velcro strip faces outside.

9-2 Attach the top of the panel first. Assure a tight and taut finish.

9-3. Attach the bottom side. Assure a tight and taut finish.

9-4. Attach the sides with ball bungees (G).

Attach the top

flap of the panel

with the velcro.

Pull the bottom of the

panel under the frame and

attach it with the velro.

Black panel

Rev.08242023JA 10 U00269 www.elitescreens.com

9-5 Lastly, attach the edge with velcro.

9-6. Repeat step 9-1 ~ 9-4 for the other side.

Step10. Top enclosure panel

10-1. Hang the top panel (d), pull it tightly and attach it to the Velcro strip on each side panel.

Velcro strip

Attach to align with the bottom

edge of the Velcro strip.
