EVANESCE B SERIES

Section 1: Screen Design

1.1 What is it for?

The Evanesce B is a versatile in-ceiling projection screen that conveniently disappears from view when

not in use. It can be installed from within the above-ceiling airspace or from below thanks to its

removable base panels that were originally designed for the European market.

1.2 How does it work?

Its GREENGUARD certified MaxWhite® FG (fiberglass-backed) 1.1 gain matte white material provides

superb color temperature with wide diffusion uniformity. The screen is moved by a strong, fast-acting

tubular motor and comes with a full IR/RF wireless, 12-volt trigger and Ethernet control package.

Section 2: Product Features

2.1 Characteristics

Screen Material

•GreenGuard® Certified MaxWhite® Fiberglass (FG) front projection material with black backing

•1.1 Gain with a 180° wide-viewing angle for commercial and residential presentations

•Not compatible with Ultra/Short-throw Projectors

•Black masking borders enhance picture contrast

•4K Ultra HD, Active 3D, and HDR Ready

•Available in the following diagonal sizes:

•100" and 120" in 4:3 format

•92", 100", 110" and 120" in 16:9 format

Design and Installation

•Aluminum housing with white finish (RAL9003) is slim yet strong and moisture resistant

•Concealed in-ceiling recessed front projection screen for multi-use rooms

•Installation kit included for above or below ceiling

Control System

•Internal Radio Frequency/Infrared receivers with IR, RF remotes included

•Low voltage 3-way position wall switch

•Standard 5-12 volt trigger to synchronize screen operation with the projector's power cycle

•RJ45 port allows 3rd party control systems integration

•Optional in-wall up/down switch (part# ZIW-W) - sold separately

•Optional wireless 5-12v triggers - sold separately

Quality and Reliability

•Tubular motor allows swift operation with a superior weight tolerance and operational lifespan

•Flame Retardant: Complies with NFPA 701 Standards

•GREENGUARD® and GREENGUARD® Gold Certified

•2-year Parts & Labor manufacturer's warranty

•3-year warranty offered through ENR-G program (Education, Non-Profit, Religious and Government)

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 2

2.2 Certifications

2.3 Model Numbers

Model Number Diagonal

Size

Aspect

Ratio

View

Height

(in)

View

Width

(in)

Screen

Material Gain Case

Color

Net

Weight

(lbs)

Gross

Weight

(lbs)

Packaging

Dimensions

(LxHxW)

EB92HW2-E12 92" 16:9 45.1 80.2 MaxWhite® FG 1.1 White 28.1 50.6 99.2"x8.3"x7.7"

EB100VW2-E12 100" 4:3 60.0 80.0 MaxWhite® FG 1.1 White 38.7 51.9 100.0"x8.3"x7.9"

EB120VW2-E8 120" 4:3 72.0 96.0 MaxWhite® FG 1.1 White 36.3 58.8 115.4"x8.3"x7.7"

EB100HW2-E12 100" 16:9 49.0 87.2 MaxWhite® FG 1.1 White 30.6 52.5 105.7"x7.9"x7.5"

EB110HW2-E12 110" 16:9 53.9 95.9 MaxWhite® FG 1.1 White 33.4 56.8 115.0"x8.3"x7.7"

EB120HW2-E8 120" 16:9 58.8 95.9 MaxWhite® FG 1.1 White 35.9 59.6 122.8"x7.5"x7.9"

EB100HW2-E8 100" 16:9 49.0 87.2 MaxWhite® FG 1.1 White 30.5 51.2 106.2"x8.1"x7.6"

Section 3: Screen Material Specifications

3.1 Characteristics

MaxWhite® Fiberglass (FG) is fiberglass backed for

added stiffness which provides the flattest possible

non-tensioned screen surface with universal

applications. This material provides wide viewing

uniform diffusion while giving precise definition,

color reproduction and black & white contrast. The

screen surface has a black-backing to eliminate light

penetration, is mildew resistant and washable with

mild soap and water.

* Manufacturer tip: This is an enhanced matte

white product for higher end DLP/LCD projectors suitable for commercial and residential

presentations.

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 3

Features & Benefits

•Multi-layer weave with textured surface

•Fiberglass backing with black backing

•Gain: 1.1

•View Angle: 180° (90° ± LR)

•Not compatible with Ultra/Short-throw Projectors

•Mildew Resistant

•Active 3D, 4K Ultra HD, and HDR ready

•Surface can be cleaned with mild soap and water

•Flame Retardant: Complies with NFPA 701 Standards

•GREENGUARD® and GREENGUARD® Gold Certified | UL 2818

Specifications

Thickness

0.36 mm (0.014”)

Weight

350 g/m2

Maximum Height

3.2 M (10 ft)

On-axis gain

1.0

Half-Gain Angle

Does not reach half gain

3.2 Gain and Viewing Angle Chart

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 4

Section 4: Execution

4.1 Important Safety & Warning Precautions

Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top

Drop in the roller. Please be aware of this as it will void your warranty with Elite Screens. Unapproved changes or

modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void

your warranty. For more information, please contact our Technical Support Department at (877) 511-1211 Ext.

604.

•Please retain this user’s guide for future reference.

•To avoid damaging the unit, do not use with any unauthorized accessories not recommended by

the manufacturer.

•Handle the unit carefully during transportation to avoid any damages.

•To ensure safe and reliable operation, direct connection to a properly grounded power source is

advised.

•The power outlet supplying power to the unit should be close to the unit and easily accessible.

•Do not install the unit on uneven, inclined surfaces;

•Do not install in damp places to avoid an electric shock or short circuit.

•Do not place any heavy objects over the power cord.

•Position the power cord properly to avoid creating a trip obstacle.

•To avoid an electrical shock or fire, due to a loose contact or short circuit, do not overload the

power cord.

•The internal & external parts of this unit are not end user serviceable. Do not attempt to

disassemble this unit by yourself. No one except authorized technicians can open and make

repairs to this unit.

•Make sure the power source that this unit is connected to has a continuous power flow.

•If there is need to use an extension cord, make sure the cord has an equal rating as the appliance

to avoid over heat.

•Do not handle the power plug when your hands are wet or your feet are in contact with water.

•Properly dispose of this equipment according to the environmental regulations in your area when

product is no longer of service.

Do not use this unit under the following circumstances.

•Disconnect the power cord under the conditions of heavy rain, wind thunder or lightning.

•Avoid direct sun light, rain shower and moisture.

•Keep away from fire sources and high temperature to prevent this device from overheating.

•Cut off the power supply first before transportation or maintenance.

•To avoid possible injury and/or an electric shock, do not attempt to use this screen if there is

obvious damage or if there are any evident broken parts.

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 5

4.2 Installation Warning

The instructions provided in this user’s guide are for reference only. Please consult a professional

installation company for further installation and safety advice. The installer must insure that proper

mounting hardware is used to provide adequate strength suitable for the installation. Elite Screens is not

liable for any faulty installations. For limit adjustment instructions, please contact our Technical Support

Department at (877) 511-1211 Ext. 604

The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black drop in

the roller. Please be aware of this as it will void the limitation of your warranty.

Individual modifications to this product are prohibited and will void the warranty with the manufacturer. Please

contact Elite Screens Customer Service for any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that the interference will not occur on a particular installation. If this equipment

causes harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures.

Reorient or relocate the receiving antenna of the device which may be casing the interference.

Increase the separation between the screen and the device’s receiver.

Connect the equipment into a different power outlet other than the device.

4.3 Pre-Installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign

particles such as dust, sawdust, and/or liquids.

NOTE:

Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on

the viewing surface will not cause the casing to become loose or fall. The installer must insure the fasteners that

are used are of adequate strength and suitable for the installation location.

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 6

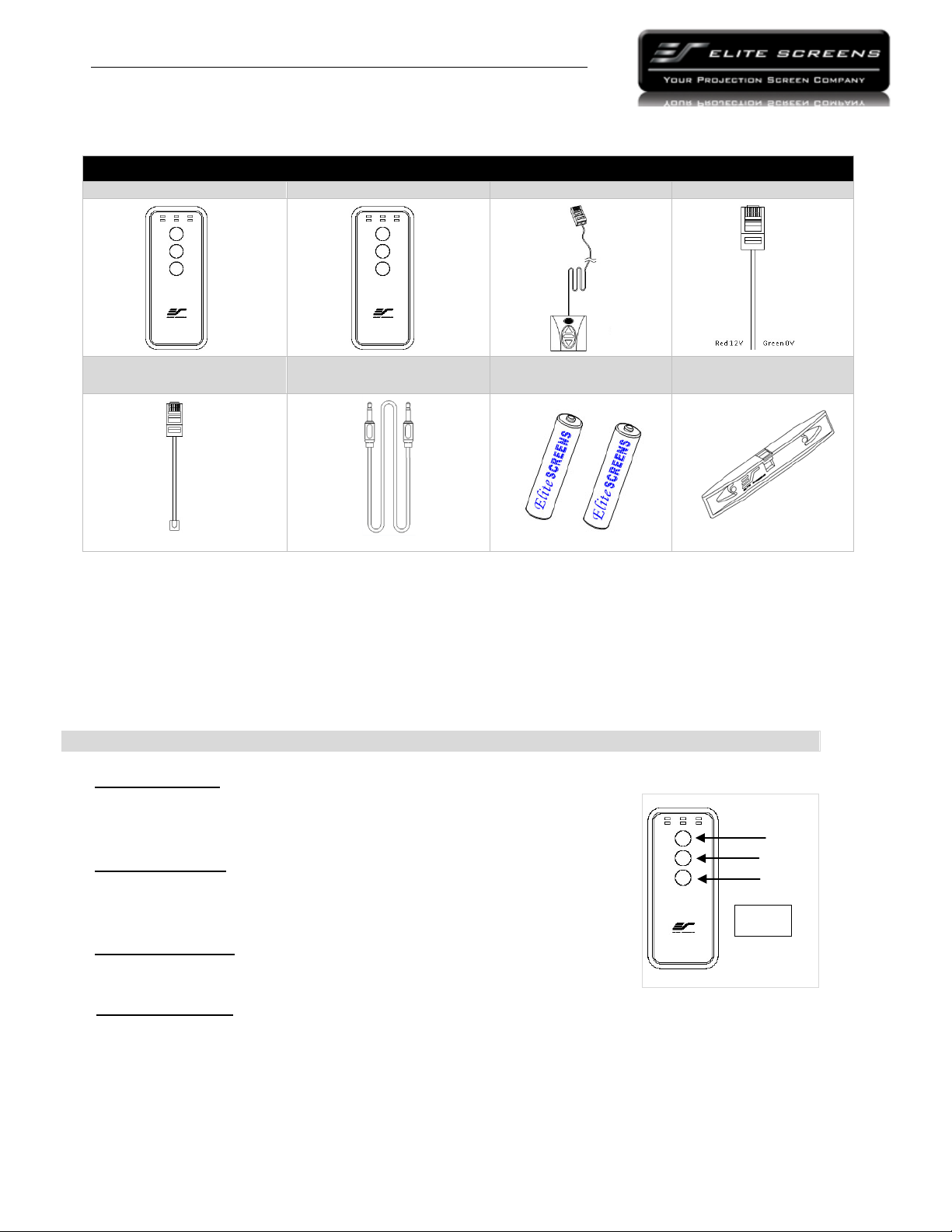

4.4 Controls and Accessories

Evanesce B Series| Controls and Accessories

A. IR Remote

B. RF Remote

C. Wall switch control box

D. 5-12 volt trigger cable

E. IR extended “eye” receiver

F. Wireless 5-12v (3.5 mm)

mono trigger cable

G. AAA batteries

H. Bubble leveler

4.5 Screen Operation

Electric Current: Depending upon region, your Elite Screen will operate on 100v, 110v, or 220v voltage.

1. After ensuring the power outlet & screen are compatible (voltage), plug the power cord into the power outlet.

2. Once the screen has power, you’ll be able to control it using any of the 6 methods described below.

6 ways to control your Evanesce B

1. IR remote control (Item A, Fig 1): The Infrared functions by direct line of

sight contact with a beam range of 30 feet. Aim the IR remote at the “eye”

receiver once it has been connected to the control box’s RJ45 port.

2. IR “Eye” Receiver (Item E, Fig 2): The IR “Eye” Receiver plugs directly

into the control box’s RJ45 port to present a low profile line-of-sight control

option for your IR remote control even in a recessed ceiling installation.

3. RF Remote Control (Item B): The radio waves eliminate the need for a direct

line of sight with a range of 100 feet.

4. 3-Way Wall Switch (Item C, Fig 3): The 3-way wall switch is a wall mount

switch with an up/stop/down button and plugs directly into the control box’s

RJ45 port.

STOP

DOWN

Fig.1

IR/RF remote

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 7

Fig.3

IR “eye” receiver

Fig.2

3 Way Wall Switch

(does not have IR sensor)

Control box

5. 5-12 volt trigger (Item D, Fig 4):The built-in 5-12V

trigger input allows your screen to synchronize its drop &

rise with the projector’s power cycle. The screen deploys

when the projector powers up and will retract when the

projector powers down. The 5-12 volt RJ45 cable connects

to your projector’s trigger output via a separate cable that

may or may not be provided by the manufacturer of the

projector. The trigger feature will not work without an

output cable from the projector, but it can be tested by

connecting the Red (+) and Green (-) cable to a 9-volt

battery.

DC 5-12V out

The back ofthe

projector

Wireless 5-12V trigger cable

Stop

Down

Fig 5

5-12 volt trigger cable

Fig.4

RJ45 Input

6. Wireless 5-12 volt trigger (Item F, Fig 5): The RF

remote control serves as a dual purpose, independently as

a handheld remote control, or in conjunction with the

Wireless 5-12 volt trigger cable. The radio frequency

technology can be programmed to send a wireless signal to

synchronize its drop/rise with the projector’s power cycle.

Here’s how to set up your Wireless 5-12 volt trigger | Synchronization Instructions

Step1: Connect one end of the 3.5 mm wireless 5-12 volt trigger cable to the RF remote.

Step 2: Connect the other 3.5 mm end of the wireless 5-12 volt trigger cable to your projector

Step 3: Make sure to unplug your screen from the power outlet

Step 4: Hold the UP button on your RF remote

Step 5: While holding the UP button, plug the screen back to the power outlet

Step 6: Wait 5 seconds and then release the UP button

Step 7: Your 5-12V wireless trigger should now be activated with your screen and ready to be used and able to

control your screen with your projector’s power cycle

Repeat the steps again if not successful.

(Please be aware, the projector on/off cycle may take longer to fully activate. It usually takes around 20-

30seconds for full off and on cycle each time)

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 8

4.6 Hardware Parts List

Please make sure all parts listed below are included before proceeding with the installation.

Hardware Parts List for above ceiling installation

A. Suspension Bracket x 2

B. Suspension Bar x 4

C. End Flange x 2

C. M8x16mmx1.5mm washer x 8

D. M6x13mmx2mm washer x 8

E. M8 nut x 4

F. M6 nut x 4

G. M8x40mm hex screw x 4

H.M6x20mm screw x 4

4.7 Installation Instructions

The Evanesce B allows access for above or below ceiling installation. Please follow the instructions described in

the following steps below for your type of installation.

Power

The Evanesce B Series includes a 3-Prong

Power Cord (2-Prong Power Cord for some

countries) for use in a non-concealed power

outlet. If your installation will be entirely

concealed (including power outlet), Elite

Screens strongly recommends a hardwire

connection. Please refer to the image below for

both 110v & 220v wiring information.

A. Above Ceiling Installation Instructions

Assembly

1. Place the hanging bracket (A) over the left and right side ends of the housing and secure each

one using the M8x40mmhex screw (G), M8x16mmx1.5mm washers (C) and M8 nut (E) as

shown below.

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia 9

2. Place the Suspension Bar (B) over the Hanging Bracket (A) and align with the hole as shown

below according to the height requirement for your installation area. Secure the Suspension Bar

(B) with the M6x20mmScrew (B), M6x13mmx2mmWasher (E) and the M6 Nut (F). Repeat

the process for the other side.

3. Insert the end flange piece (C) on the edge of the housing as shown below to complete the assembly. The

screen is now ready for installation.

Hanging Bracket

Push end flange piece into

housing end until it snaps in

PRODUCT WHITE PAPER

www.elitescreens.com

Elite Screens Inc. |Elite Screens Europe GmbH |Elite Screens France SAS |Elite Screens India | Elite Screens China Ltd.

Elite Screens Taiwan Corp. |Elite Screens Japan | Elite Screens Australia

B. Below Ceiling Installation Instructions

Please make sure all parts listed below are included before proceeding with the installation.

Hardware Parts List for below ceiling installation

A. End Flange x 2

B. Hanging bracket x 2

C. Threaded rod x 4

D. Socket wrench x 1

E. M8x16mmx1.5mm

washer x 28

F. M8 nut x 20

G.M8 Top expanding bolt x 4

H. M8x40mm hex screw x 4

1. Measure and cut the ceiling installation slot:

The width should not exceed 100mm and not less than the width of the screen’s housing. Measure the

length of your screen to determine the length.

2. Drill 4 holes in the ceiling that correspond with the attachments on the various casing sizes. The

width should be 120mm. The length of (A5) in the diagram below depicts the distance between the

holes located on each ear end of the screen’s case.

Ceiling

Ceiling Truss

Screen installation slot

100

The ceiling wall

Install screw holes

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Elite Screens Écran de projection

Elite Screens

Elite Screens Spectrum Tension Series Manuel utilisateur

Elite Screens

Elite Screens Elite Home 2 Series Manuel utilisateur

Elite Screens

Elite Screens Evanesce Tension Series Manuel utilisateur

Elite Screens

Elite Screens TE100HC2 Manuel utilisateur

Elite Screens

Elite Screens Yard Master 2 Series Manuel utilisateur

Elite Screens

Elite Screens Manual Series Manuel utilisateur

Elite Screens

Elite Screens Electric100H Manuel utilisateur

Elite Screens

Elite Screens CineTension B Series Mode d’emploi

Elite Screens

Elite Screens Osprey Tension Dual Series Manuel utilisateur

Elite Screens

Elite Screens Evanesce B Series Manuel utilisateur

Elite Screens

Elite Screens Sable Frame CineGrey 3D Manuel utilisateur

Elite Screens

Elite Screens Kestrel Tab-Tension Series Manuel utilisateur

Elite Screens

Elite Screens StarFrame Series Manuel utilisateur

Elite Screens

Elite Screens Starling Tension Series Manuel utilisateur

Elite Screens

Elite Screens Kestrel Tab-Tension 2 CLR Manuel utilisateur

Elite Screens

Elite Screens Sable Frame B2 Series Manuel utilisateur

Elite Screens

Elite Screens Insta-DE Series Manuel utilisateur

Elite Screens

Elite Screens OMS90H2 Manuel utilisateur

Elite Screens

Elite Screens TE200HR2 Manuel utilisateur

Elite Screens

Elite Screens EDGE FREE Aeon AcousticPro UHD Series Manuel utilisateur

Elite Screens

Elite Screens TE100HC2 Manuel utilisateur

Elite Screens

Elite Screens VMAX2 (Plus) Series Manuel utilisateur

Elite Screens

Elite Screens Raptor Series Manuel utilisateur

Elite Screens

Elite Screens F60XWV1 Manuel utilisateur

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Da-Lite

Da-Lite ExecutiveElectrol Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel

SI Dynamic 2 XL Manuel utilisateur

Draper

Draper Nocturne+ E Instructions d'installation
