Spectrum/VMAX2/Plus4 Series

Electric/Motorized Projection Screen

User Guide

Rev. 091709-JA

www.elitescreens.com info@elitescreens.com

ortant

safet

and

warnin

recautions

1. Be sure to read this user guide before use and follow the procedures below.

Please retain this manual for future reference.

To avoid any damage, do not use in conjunction with any accessories not recommended by the

manufacturer. Handle the device carefully during transportation to avoid damage.

To ensure safe and reliable operation, direct connection to a properly grounded power source is

advised.

The power outlet supplying power to the unit should be close to the unit and easily accessible.

Do not install the device on uneven or inclined surfaces.

Do not put heavy objects on the power cord and position it properly to avoid creating a trip obstacle.

Never overload the power cord to prevent an electric shock or fire.

Guard the device from any liquid or foreign objects to avoid electrical shock or fire due to loose

contact or short circuit.

There are no user serviceable parts in the device. Do not attempt to disassemble this device by

yourself. No one except authorized technicians can open this device to make repairs.

Make sure the power source this device is connected to has a continuous power flow.

If there is a need to use an extension cord, make sure the cord has the same equal rating as the

appliance to avoid overheat.

Do not handle the power plug when your hands are wet or your feet are in contact with water.

2. Do not use this device under the following circumstances:

Disconnect the power cord under the conditions of heavy rain, wind, thunder or lighting.

Avoid direct sunshine, rain shower or moisture.

Keep away from fire sources and high temperature to prevent this device from overheating.

Cut off the power supply first before transportation or maintenance.

Fully disconnect from the power supply when screen is not in use for a long period of time, as should

be done with any other electric household appliance. .

To avoid possible injury and/or an electric shock, do not attempt to use the screen if there is obvious damage or

if there are any evident broken parts

Rev. 091709-JA

www.elitescreens.com [email protected]

arning

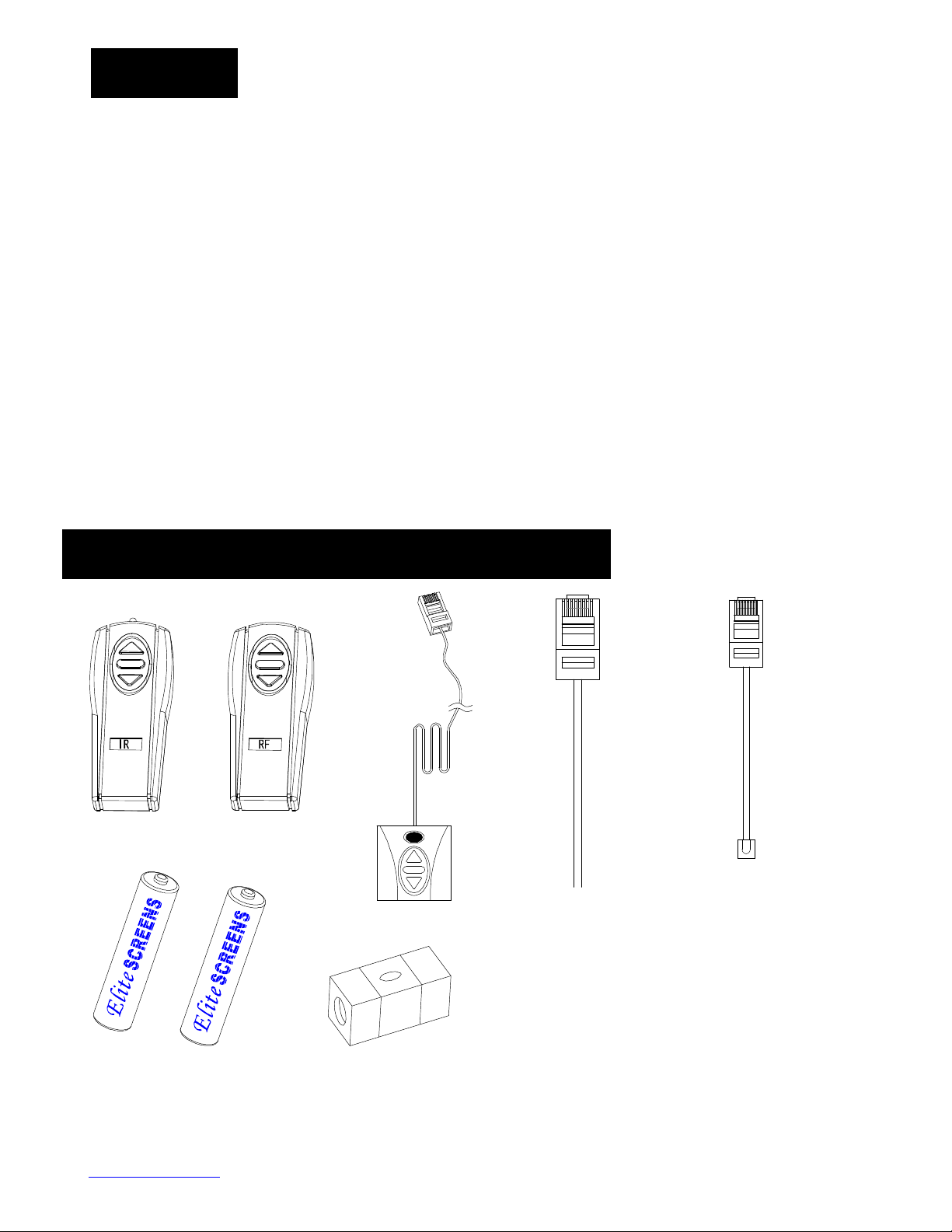

Accessories

for

ectrum an

VMAX2

Bubble level

Eye receiver

(Optional for Spectrum)

When using your IR remote,

always be sure to point your

remote at the IR receiver.

2 x AAA Batteries

Wall

ox switch

Red12V Green 0V

5-12 volt trigger cable

ote: Contact your reseller for optional

accessories or visit shop.elitescreens.com

or accessories purchase.

RFremote

(Optional for Spectrum)

IR remote

Individual modifications to this product are prohibited and will void the warranty. Please contact Elite

Screens Customer Service for any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

9Reorient or relocate the receiving antenna of the device which may be causing interference

9Increase the separation between the screen and the device’s receiver

9Connect the equipment into a different power outlet than the device

Rev. 091709-JA

www.elitescreens.com in[email protected]om

2. For the best support of your screen, it is ideal to secure your screen into the studs of your house's internal

framework. If studs are not available, use hollow anchors for mounting your wall- screws in drywall. If you

are installing in a concrete structure, use the concrete bolts for securing your screen into concrete walls.

(Always consult a professional installer or hardware professional to ensure that the proper screws and/or

anchors are used)

3. Ensure tha

oth brackets are in perfec

level alignmen

with one anothe

. Use wall/ceiling wood

screws tosecure to the wood studs.Usehollow wall anchors if mountingin drywall.

4. Position a washer to the head of the wall-screw. The washers give added stability by enabling the screw

remain firmly anchored to the wall.

5. The screen casing is designed to accept the wall screws directly. If not using the Optional L- brackets

e sure

to position the washer between the head of the wall-screw and the anchor slots on the screen’s casing

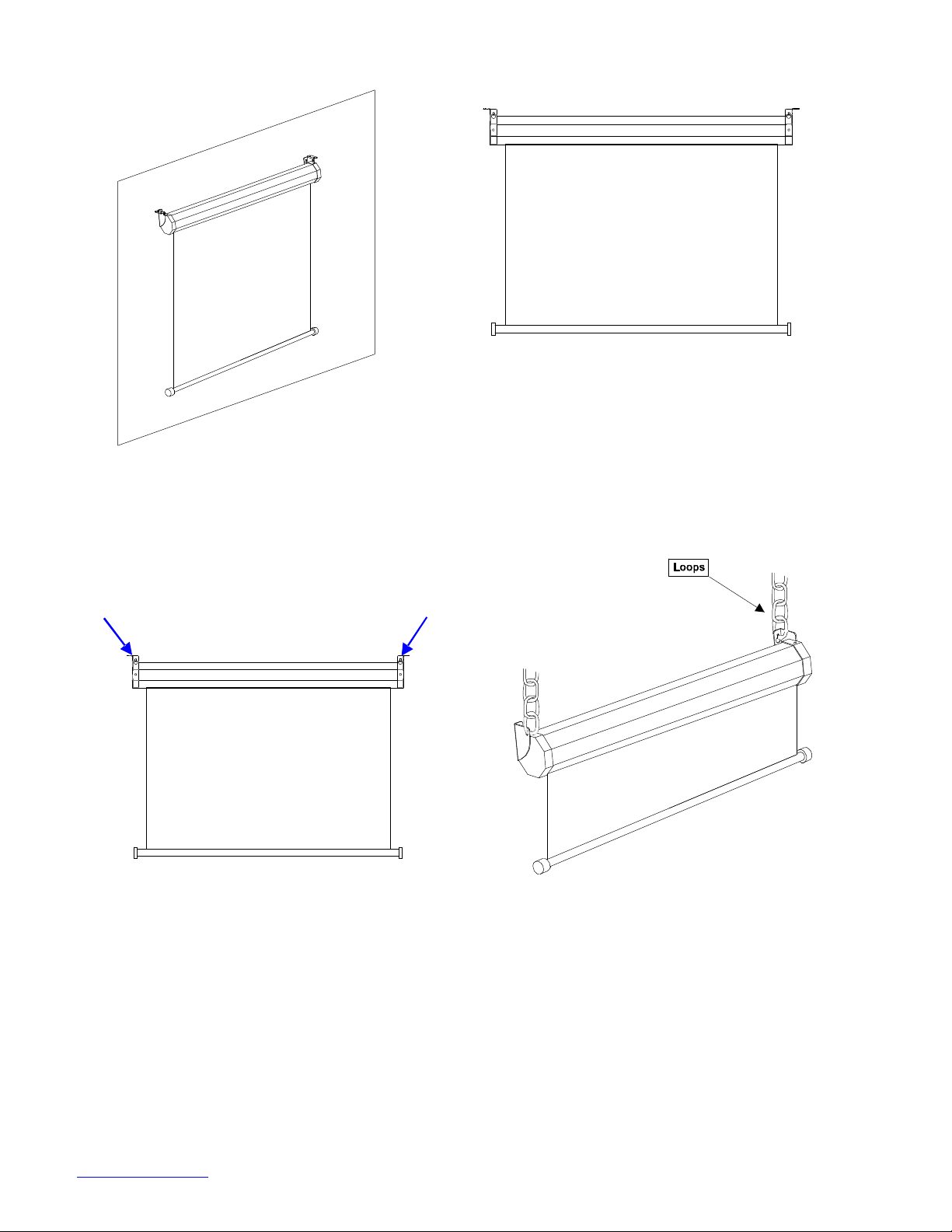

1. Select the location for your screen. Ensure that it is within a reasonable proximity from you

power source.

Be sure to allow for a reasonable angle of projection.

1. Using a tape measure, mark the keyholes that are located at the back of the screen's casing end cap.

2. After marking the area and predrilled hole, insert the screw and leave at least 1/8” of an inch from the wall

to mount the screen. (Fig. 1)

Regardless of mounting method, screen should

e securely supported so tha

ration or pulling on

the viewing surface will not cause casing to become loose or fall. Installer must insure that fasteners

used are of adequate strength and suitable for the mounting surface chosen.

PRE INSTALLATION

1. Carefully unpack the screen

2. Always handle the screen in a leveled position on a clean surface.

3. In order to protect the screen from exposure to stains, keep the screen out of contact with

foreign particles such as dust, sawdust, and/or liquids.

Rev. 091709-JA

www.elitescreens.com info@elitescreens.com

onal

nstallat

on method us

ng a cha

n to hang the screen

rom the ce

Fig.2

. 1

Rev. 091709-JA

www.elitescreens.com info@elitescreens.com

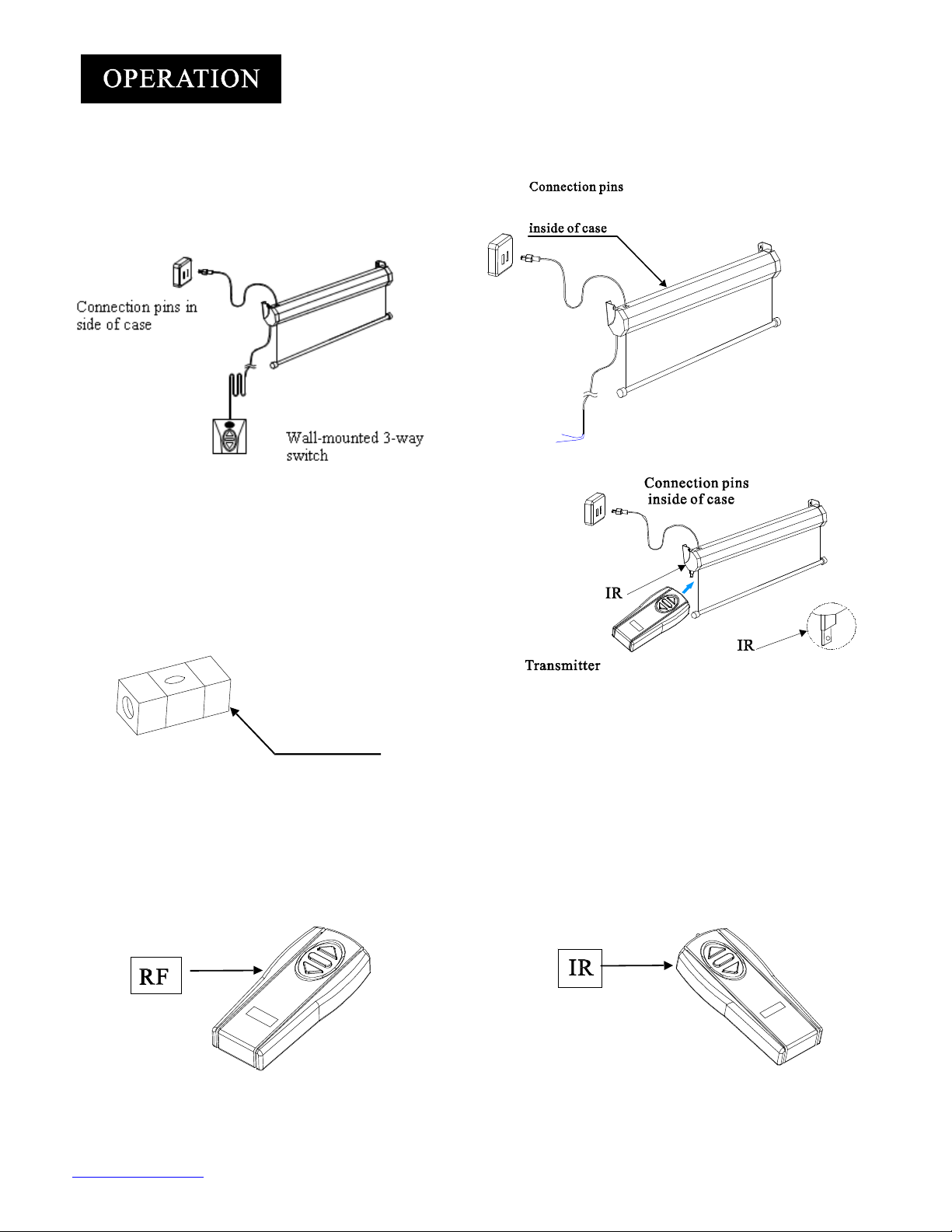

12-V Tri

The VMAX2 and Spectrum Screens have the capability of using a 12-Volt Trigger.

To Projector

Red

DC12V

Green

Video Pro

ection Interface

12-VoltTriggerAssembly

Diag

am A

Wall-mounted 3-way-switch

1. Bubble Level: Included with the installation package is a

small bubble level that can be useful in determining if the

screen is

erfectl

level when installin

Dia

ram B

Bubble Level

2. Below is the RF remote with a range of 100 Ft.

(Radio Frequency)

Note: When you get the optional RF, you should

follow the instruction and adjust the code.

Infrared “Eye” Sensor with

IR Remote Control

3. Below is the IR remote (Infra Red) with a

range of 15 Ft.

(Infra Red)

ote: The light on this remote does not turn on

when the buttons are depressed unlike the RF

remote.

Radio Frequency Remote Control Infrared Remote Control

Rev. 091709-JA

www.elitescreens.com info@elitescreens.com

FAQ’S

: Wh

does m

screen no lon

er function?

A: There are a few

ossible thin

ou could check:

I.)Make sure your wall plug has power and that the screen is properly plugged in.

II.) Please check the fuse to y our screen. (Call Tech support for location of fuse)

III.) If screen works well with the line switch but not with the remote control, make sure the remote control has good

batteries in it.

IV.) Our electric screens with a tubular motor installed are equipped with a Thermal relay. This would include all

Home (2, 3), Tension (1, 2, 3) series, and VMAX screens with a diagonal size above 180". This feature will

automatically shut off screen in the event the motor becomes too hot, preventing overheating of the motor. To

correct this, let screen alone for 10-15 minutes and try again.

2. Q: How is the screen material cleaned?

A: The screen material can be cleaned with mild soap and water.

3. Q: What type of batteries do the remote controls require?

A: The IR and RF remote controls use AAA alkaline batteries

4. Q: Can you manually pull down the screen?

A: No, manually pulling down the screen will damage the electronic motor rolling system.

5. Q: How could I setup my Screens IR receiver to work with my learning remote control system?

Do you have any IR codes I can use to achieve this?

A: Our IR remote controls have been evaluated and entered in to the databases of some Universal remote control

manufacturers. Please contact the manufacturer of your remote to inquire about your remotes ability to function with

ours. If they have not evaluated our remote control then the following list of Binary codes will be used for most remote

setups.

For Spectrum, VMAX2 (Plus), Home2(3) and Tension2(3) Series

Up: 1111 0000 0001

Stop: 1111 0000 0010

Down: 1111 0000 0100

6. Q: What is the gain on the matte white screen material?

A: The matte white material has a gain of 1.1. For detailed specs, info please check our web-site for more detail

ote: For more U

date FAQ,

lease visit www.elitescreens.com

Rev. 091709-JA

www.elitescreens.com [email protected]om

Warranty

Policy

•Two (2) year warranty on parts and labor from defects in workmanship from purchase

dateasfollows.

•Eachpartywillberesponsibleforonewayshippingduringthewarrantyreturnperiod.

•DOA(DefectiveonArrival):Mustbereportedwithin7businessdaysofreceipt. 

•AnRMA(ReturnMerchandiseAuthorization)numbermustbeissuedinordertoprocessareplacementor

authorizeawarrantyrepair.  EliteScreenswillreplacetheDOA(DefectiveonArrival)unitwithabrandnew

replacement*(seeexceptionsbelow)aftertheDOAunitisreceivedand/orconfirmeddefective.Oncethe

productisreceived,EliteScreenswillsendoutanew*unittothecustomerbygroundservice(subjectto

inventoryavailability).Shouldaproblembereportedafterthe7‐daygraceperiod,theitemmustbeshipped

tousforwarrantyrepair.

•MissingPartsmustbereportedwithinthe7‐day(DOA)graceperiod. Ifreportedafter7days,customer

will only be responsible for shipping and handling fees. If reported after 30 days of receipt, customer is

responsibleforcostofthepartsandshipping&handlingfees.

•DONOTreturnanyunauthorizeditemstoEliteScreens,astheywillberefusedatshipper’sexpense.The

RMAnumbermustbeincludedontheoutsidelabelofyourshippingboxandshippingdocuments.Our

warehouseisnotauthorizedtoacceptreturnswithoutanRMAnumberontheshippinglabel.RMA

numbersarevalidfor45daysfromtheissueddate.

*A new or refurbished replacement will be sent out to the customer depending on the type of purchase (new

or refurbished) or based on stock availability.

For

Warranty

and

Service

requests

please

fill

out

RMA

/Service

Form

at:

http://www.elitescreens.com/service_formhtm.

Please

Visit

this

link

for

full

Warranty

information:

http://www.elitescreens.com/service.htm

For

Customer

Service

and

Technical

questions,

please

contact

Elite

Screens

at:

Telephone:(877)-511-1211

Fax:(562)-483-8498

Rev. 091709-JA

www.elitescreens.com

info@elitescreens.com

your

warranty

www.elitescreens.com/register.html

US & Canada Tech Support & Warranty Claim

Please contact us at [email protected] or call +1 877-511-1211 #3 Service

Europe Tech Support & Warranty Claim

Please contact us at [email protected] or call +49-(0) 40-30392958

Asia or China Tech Support & Warranty Claim

Please contact us at [email protected] or call +86-(0) 755-8461-7989

Taiwan Tech Support & Warranty Claim

Please contact us at [email protected] or call +886-(02)2747-8979

America: Elite Screens Inc

16410 Manning Way, Cerritos, CA 90703 USA Tel:

877-511-1211 Fax: 562-483-8498

info@elitescreens.com www.elitescreens.com

Europe: Elite Screens Europe GmbH

Lübecker Straße,122087 Hamburg, Germany

Tel: +49-40-30392494 Fax: +49-40-49219200

info@elitescreens.eu www.elitescreens.eu

Asia: Elite Screens China Ltd.

Longxi Duimianling Industry Zone Longcheng

Longgang District, ShenZhen GuangDong, China

Tel: +86-(0)755-8461-7989 Fax: +86-(0)755-8461-7669

info@elitescreens.com.cn www.elitescreens.com.cn

Taiwan:

Elite Screens Taiwan Corp.

1F. No. 38 Alley 22 Lane 66 Sec. 5 Nanjing E. Rd. Songshan District. Taipei City 105, Taiwan

Tel: +886-(02)2747-8979 Fax: +886-(02)2747-8978

info@elitescreens.com.tw www.elitscreens.com.tw

Email contacts:

Latin America Contact:

erik.garcia@elitescreens.com

East Asia Contact:

info.ea@elitescreens.com

India Contact:

info.india@elitescreens.com

Japan Contact:

info.japan@elitescreens.com

Autres manuels pour Spectrum Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Elite Screens Écran de projection

Elite Screens

Elite Screens PicoScreen Series Manuel utilisateur

Elite Screens

Elite Screens 100 series Manuel utilisateur

Elite Screens

Elite Screens Vmax Series Guide de référence rapide

Elite Screens

Elite Screens VMAX113XWS Manuel utilisateur

Elite Screens

Elite Screens IWB85SW2a Manuel utilisateur

Elite Screens

Elite Screens Elite CineTension Series Manuel utilisateur

Elite Screens

Elite Screens Evanesce Tab-Tension B Series Manuel utilisateur

Elite Screens

Elite Screens Saker Series Manuel utilisateur

Elite Screens

Elite Screens Electric100H Manuel utilisateur

Elite Screens

Elite Screens Lunette Series Manuel utilisateur

Elite Screens

Elite Screens Tripod Portable Series Manuel utilisateur

Elite Screens

Elite Screens CineTension B Series Manuel utilisateur

Elite Screens

Elite Screens M170XWS1 Manuel utilisateur

Elite Screens

Elite Screens ezFrame Plus Series Manuel utilisateur

Elite Screens

Elite Screens Saker Tension Series Manuel utilisateur

Elite Screens

Elite Screens Raptor Series Manuel utilisateur

Elite Screens

Elite Screens M135XWV2 Manuel utilisateur

Elite Screens

Elite Screens Pop-Up Cinema Series Manuel utilisateur

Elite Screens

Elite Screens Kestrel Stage Series Manuel utilisateur

Elite Screens

Elite Screens FE72V Manuel utilisateur

Elite Screens

Elite Screens TE100HW2 Manuel utilisateur

Elite Screens

Elite Screens Spectrum Series Manuel utilisateur

Elite Screens

Elite Screens Elite Tripod Series Manuel utilisateur

Elite Screens

Elite Screens VMAX2 (Plus) Series Mode d’emploi

Manuels Écran de projection populaires d'autres marques

FART PRODUKT

FART PRODUKT Standard SCREEN Manuel utilisateur

Draper

Draper E Series Manuel

Laarhoven

Laarhoven Companion II Manuel utilisateur

Renogy

Renogy RMS-LFPS-US Manuel utilisateur

Da-Lite

Da-Lite ExecutiveElectrol Manuel utilisateur

Samsung

Samsung S*H65* Manuel utilisateur

FONESTAR

FONESTAR PPTR-43100-FA Manuel utilisateur

Slide Clear

Slide Clear Varro XL Manuel utilisateur

OS РХ-090Н Manuel utilisateur

Niko

Niko 10-845 Manuel utilisateur

Speaka Professional

Speaka Professional 2357532 Manuel d'utilisation

Sima

Sima XL-72 Manuel utilisateur

Jasic

Jasic EVO 2.0 ET-200P Manuel utilisateur

InFocus

InFocus SC-WALL GRY-92H Manuel

Barco

Barco OverView MVL-615 Manuel utilisateur

Draper

Draper Envoy Manuel

SI Dynamic 2 XL Manuel utilisateur

Draper

Draper Nocturne+ E Instructions d'installation
