EXTREME 240 360

Starter Liquid Cooling Kit

USER GUIDE

For EK-KIT X (R2.0) series units | 1st Revision, Nov 27th 2015

/ 1 /

EK Water Blocks bears the name of its founder Edvard König, who

started experimenting with liquid cooling in 1999. From the humble be-

ginnings in the early years of the previous decade, the company grew

steadily to become a global premium liquid cooling gear manufacturer.

Today, EKWB offers a complete range of products for liquid cooling,

from a renowned Supremacy line of CPU water blocks, to a wide range

of CoolStream radiators, from in-house developed Vardar High pressure

fans, to market-proven DDC series of liquid cooling pumps and thus

provides overclocking enthusiasts and PC builders with the best of what

the market can offer. EK-KIT X cooling solution is the next step to bring

extreme liquid cooling performance in the hands of dedicated gamers

and PC enthusiasts around the world.

Welcome to EK-World!

Safety precautions

1. Keep and store the product away from the reach of children.

2. Check the component list and condition of the product before installation.

If there is any problem, contact the shop where you have purchased the

problem to get a replacement or refund.

3. EKWB d.o.o. is not responsible for any damages due to external causes,

including but not limited to, improper use, problems with electrical power, ac-

cident, neglect, alteration, repair, improper installation and improper testing.

4. CPU and motherboard are subject to damage if the product is incorrectly

installed.

5. This product is a CPU liquid cooling solution kit, comprising of individual

original EKWB parts. Combining this liquid cooling unit with parts, other

than EK Water Blocks products, may lead to warranty loss.

6. Product warranty period is 24 months.

QUICK INSTALLATION GUIDE

/ 2 /

RADIATOR SPACE CONSTRAINT REQUIREMENTS 5

DOZEN GOOD ADVICES FOR THE NEWCOMERS 6

WATER COOLING SYSTEM 6

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 7

REPLACING THE JET PLATE /INSERT PROCEDURE (OPTIONAL) 8

INSTALLING THE WATER BLOCK 9

LGA-2011(-3) SOCKET MOTHERBOARDS 9

LGA-115xSOCKET MOTHERBOARDS 11

AMD® SOCKET MOTHERBOARDS 13

INSTALLING THE RADIATOR AND FANS 17

INSTALLING THE RADIATOR AND FANS IN ONE GO 18

INSTALLING THE PUMP UNIT 19

INSTALLING THE PUMP ON THE CHASSIS BOTTOM 19

INSTALLING THE PUMP ON THE CHASSIS WALL 20

INSTALLING THE RESERVOIR 22

CONNECTING THE TUBING 24

ELECTRICAL CONNECTIONS 26

CONNECTING THE PUMP UNIT 26

CONNECTING THE FANS 26

RECOMMENDED FILLING AND LEAK-TESTING PROCEDURE 27

FILLING THE SYSTEM FOR THE FIRST TIME 28

DRAINING OF THE LOOP 30

POSSIBILITIES OF EXPANDING THE SYSTEM 31

MAINTENANCE 32

FREQUENTLY ASKED QUESTIONS 33

TROUBLESHOOTING 34

GENERAL LIQUID COOLING PARTS CLEANING GUIDE 35

SUPPORT AND SERVICE 38

SOCIAL MEDIA 38

TABLE OF CONTENT

SCOPE OF DELIVERY 3

REQUIRED TOOLS 4

/ 3 /

CPU water Block

with AMD® mounting plate CPU Backplate mechanism Thermal grease CPU Mounting mechanism

SCOPE OF DELIVERY

Fans Pump UNI Pump Bracket

(120mm Fan)

Reservoir

Radiator Coolant TubeCompression ﬁttings

/ 4 /

REQUIRED TOOLS

ATX Bridging plug Fan cable Y-splitter Installation manual

Pair of scissors1L Bottle of distilled water

H20

LED light

Phillips-head screwdriver Mixing bottle

/ 5 /

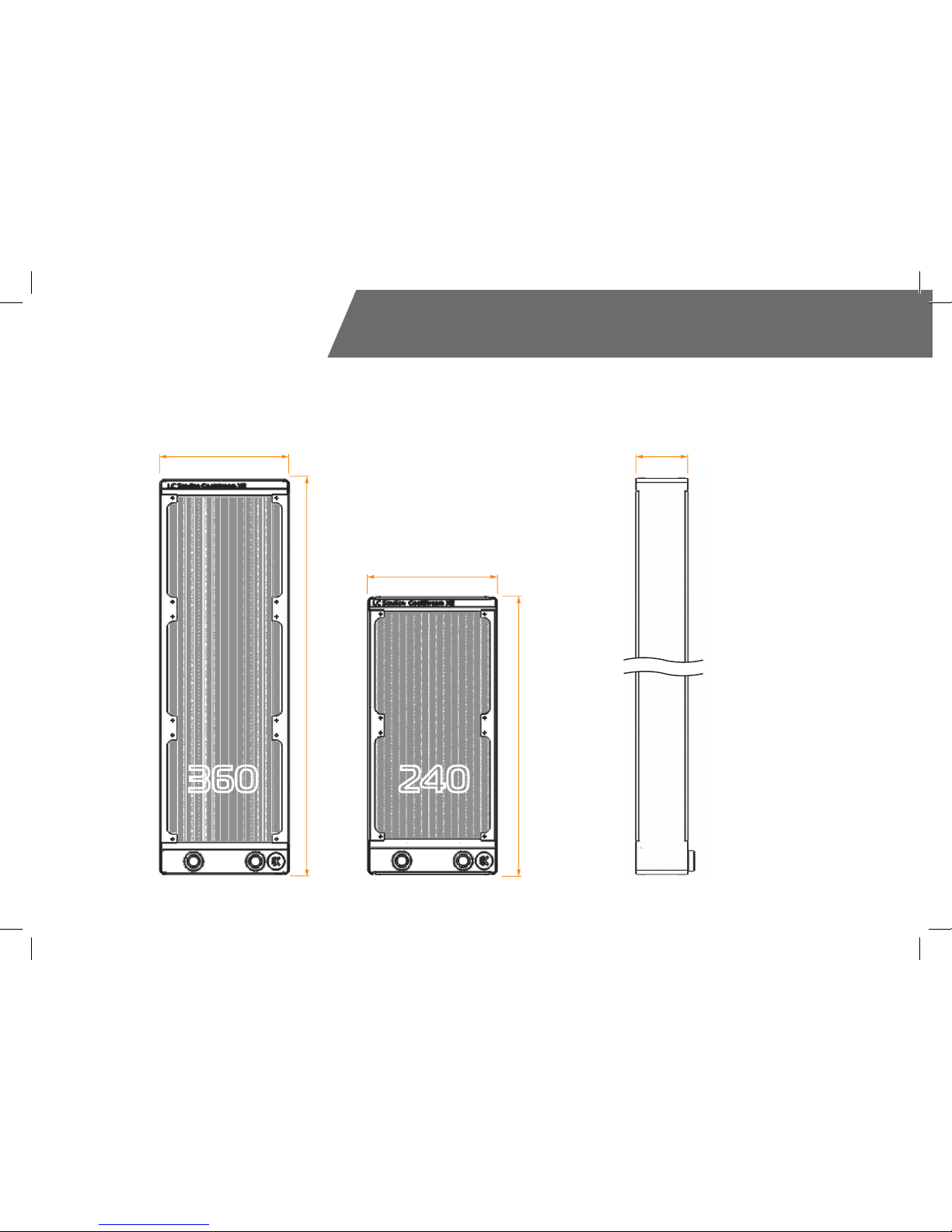

RADIATOR SPACE CONSTRAINT REQUIREMENTS

400 mm (15,75 in)

280 mm (11,02 in)

130 mm (5,12 in)

130 mm (5,12 in) 60 mm (2,36 in)

360 240

/ 6 /

DOZEN GOOD ADVICES FOR THE NEWCOMERS

1. In order to lower shipping costs we have decided to enclose only the

coolant concentrate for liquid cooling. Therefor you need to provide 1 litre

(1L) of distilled water. You can get it at every gas station or supermarket.

2. Never run this system on tap water and always use the enclosed cooling

concentrate in correct ratio.

3. Never use alcohol, alcohol derivatives or alcohol based solvents in the

system. Using alcohol might result in permanent damage to water cooling

KIT components, especially acrylic parts of the system.

4. Reservoir must be positioned above the height level of the water pump in

order for liquid to ﬂood the pump which is crucial for the ﬁrst start-up.

5. Generally, for optimal performance, the Reservoir must be positioned be-

fore the pump in the water loop.

6. Generally, for optimal performance, the CPU water block should be right

after the Radiator in the water loop.

7. Generally, for optimal performance, the Pump should be positioned before

the Radiator in the water loop.

8. It is best practice to do a proper leak test before using your computer.

9. If you spot any leaks, turn off the power immediately!

10. Optimize tubing length in order to prevent excessive bending and kinking

of the tubing.

11. Never let your pump run dry. If this is happening for a prolonged period

of time you may risk destroying water pump’s bearing, rendering the pump

useless.

12. You are encouraged to periodically clean the radiator assembly as it will

collect dust over time. This is best done with soft wide tip brush and vacu-

um cleaner. See chapter ‘General liquid cooling parts cleaning guide.’

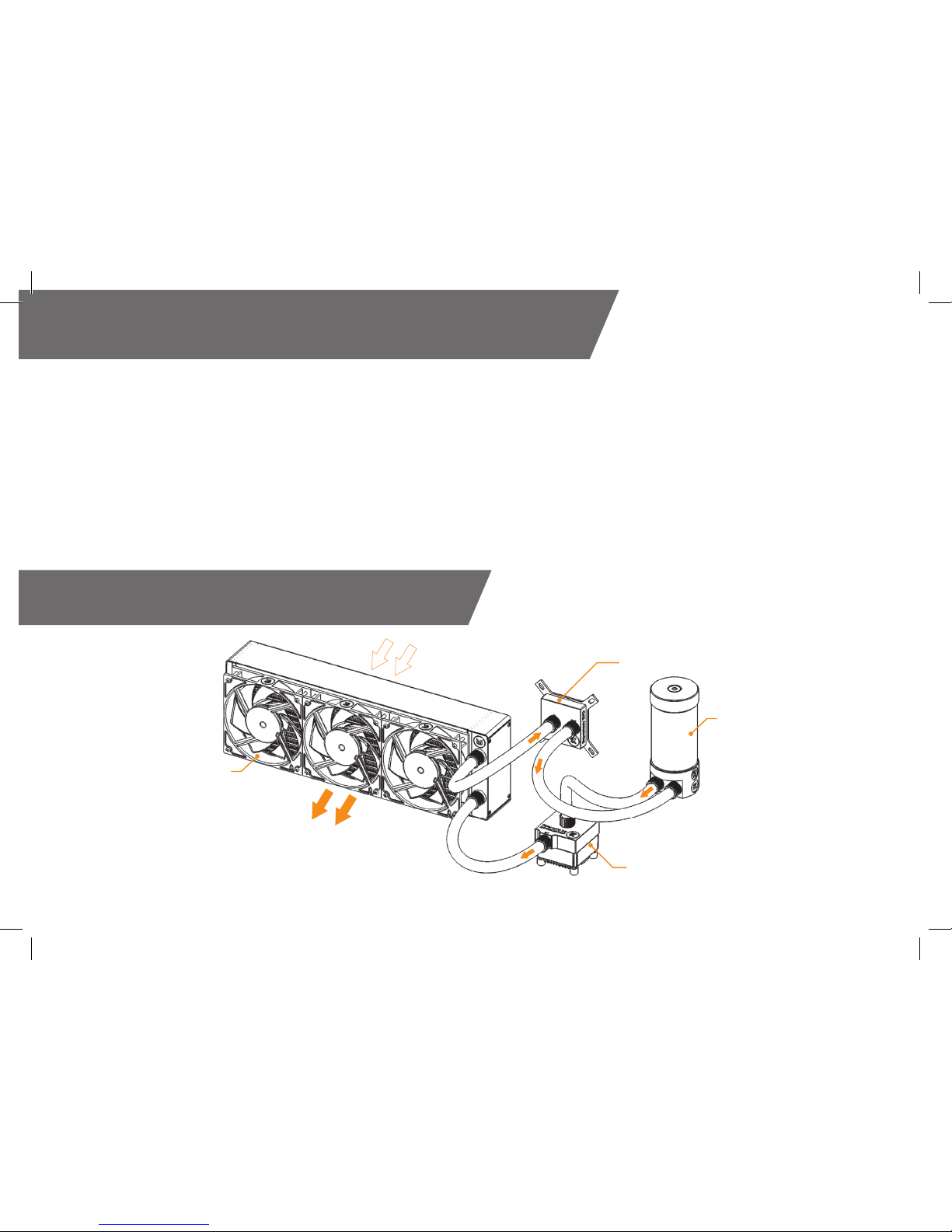

WATER COOLING SYSTEM

CPU WATERBLOCK

PUMP

RADIATOR with FANS

COLD AIR

HOT AIR

RESERVOIR

/ 7 /

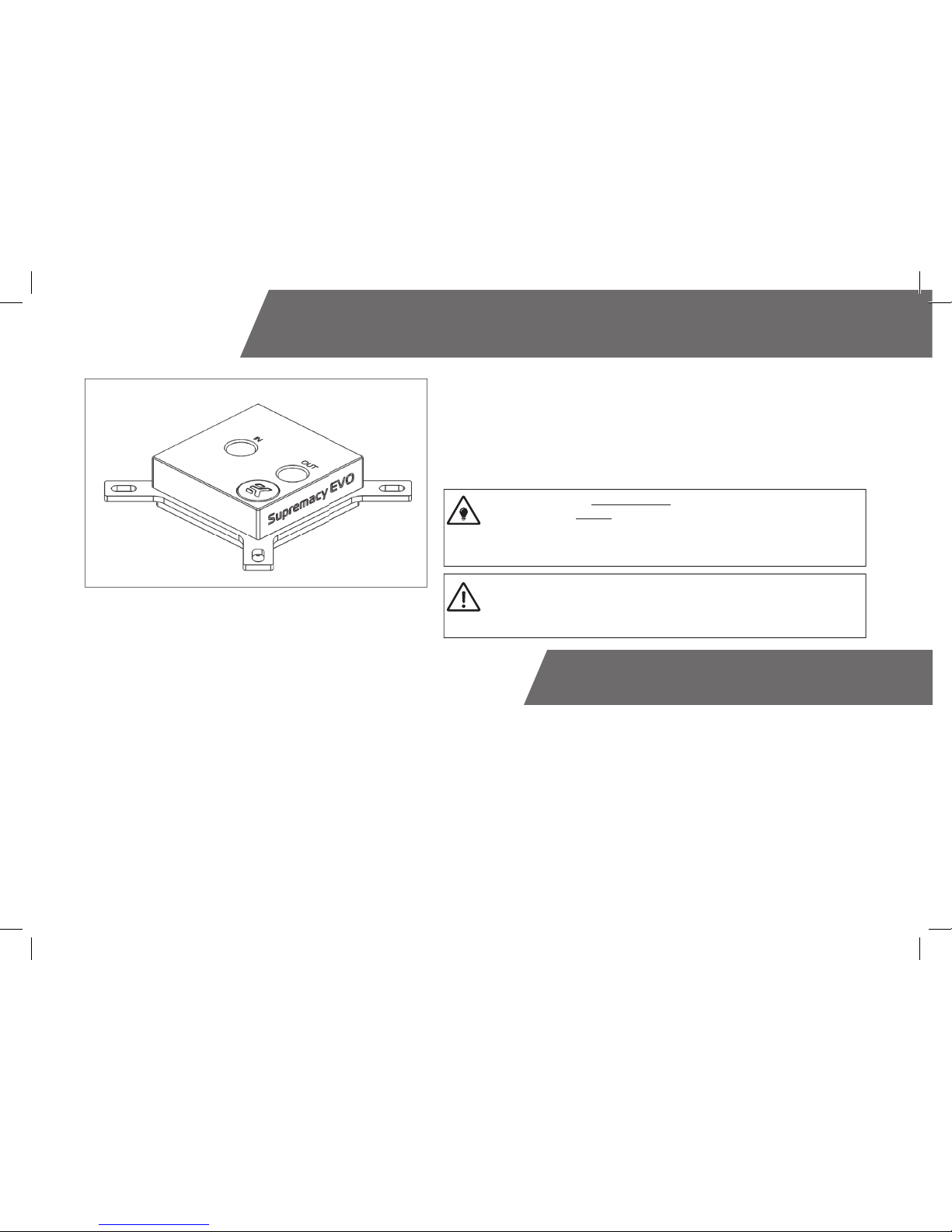

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

WHAT IS ENCLOSED

- EK-Supremacy EVO universal CPU water block.

- PreciseMount EVO universal CPU mounting mechanism:

• M4 threaded thumb screws (4 pcs)

• LGA-2011 M4 threaded mounting studs (4 pcs)

• Springs (4 pcs)

• M4 threaded thumb nuts (4 pcs)

• Washers (4 pcs)

- AMD® mounting plate

- EK-Supremacy Backplate

• Backplate rubber gasket

• Backplate for Intel® LGA-1366 and AMD® socket motherboards

• Backplate for Intel® LGA-115x socket motherboards

- Allen (hex) key 2.5mm

- Additional Inserts and Jet plates:

• Jet J2 (0.3mm thick)

• Jet J3 (0.1mm thick)

• Insert I2

This CPU liquid cooling unit is pre-assembled for use with modern Intel desktop socket

type motherboards. By default (out of the box) this water block supports the following

CPU sockets:

- Intel® Socket LGA-775

- Intel® Socket LGA-115x

- Intel® Socket LGA-1366

- Intel® Socket LGA-2011(-3)

This product is also fully compatible with AMD® AMx/FMx sockets but

requires a user to replace factory installed Intel mounting plate with AMD®

one. The following sockets are then compatible:

- AMD® Socket AMx

- AMD® Socket FMx

Narrow server type LGA-2011 is not supported by default – a Mounting plate

Supremacy LGA-2011 Narrow ILM (EAN: 3830046990600) is mandatory

to install this water block on narrow server type LGA-2011 motherboards.

Replacing the mounting plate requires disassembly of the water block.

The following items are enclosed with each EK-Supremacy EVO water block:

/ 8 /

STEP 1

Please observe the table below to determine the optimal combination of insert

and jet plate for your type of socket:

Socket Optimal Insert Optimal Jet

AMD® AMx / FMx I2 J2

LGA-7 75 I1 J2

LGA-115x I1 J2

LGA-1366 I1 J1

LGA-2011 I1 I1

LGA-2011(-3) I2 J3

STEP 2

Unscrew the four screws in counter-clockwise direction from the bottom of the

water block using 2,5mm Allen key. Then you will be able to remove the plastic

top and take the insert, inser pin and jet plate out.

When putting back together you will feel the jet plate lock into position on the

insert when it is placed correctly.

You mustn’t forget to install the insert pin. Ignoring this warning may

result in poor thermal performance of the water block. When putting

the water block back together make sure that the O-ring gasket (57x2

mm) is placed into the gap between the mounting plate and the water

block top.

Screw the four screws back in but don’t exaggerate with the force applied.

STEP 2

STEP 1

REPLACING THE JET PLATE /INSERT PROCEDURE (OPTIONAL)

d=0,25 mm

Water block top

Insert pin

Insert

Jet plate

Gasket

Mounting plate

Copper base

Screws

Insert pin

Jet plate

Insert Insert

d=0,30 mm

d=0,10 mm
