USER GUIDE

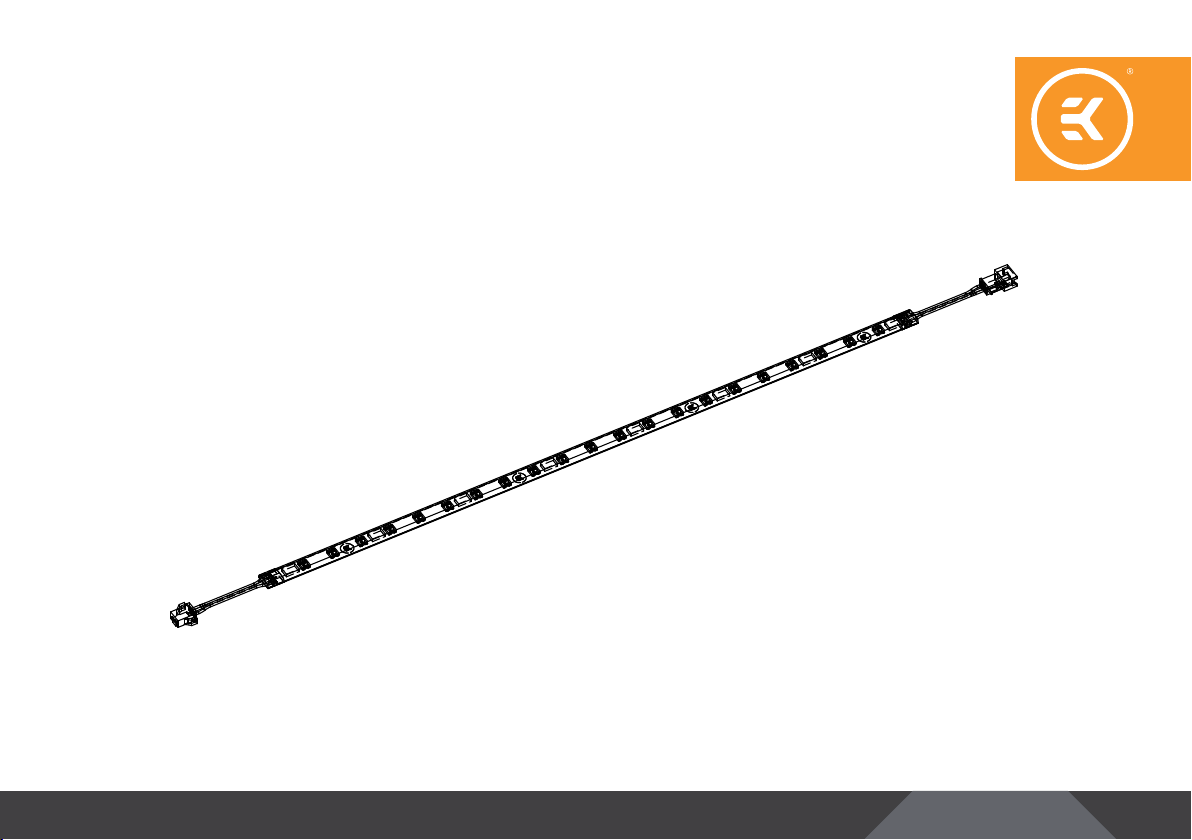

EK-Loop

D-RGB LED Magnetic Strip

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Product should not be used with 12V headers as that will

damage the diodes, they should be powered exclusively by

5V header.

- 3 -

TABLE OF CONTENTS

TEHNICAL SPECIFICATIONS 4

INSTALLING THE D-RGB LED STRIP 5

ATTACHING THE WIRE HARNESS 5

CONNECTING THE LED STRIP 6

SUPPORT AND SERVICE 7

SOCIAL MEDIA 7

- 4 -

TEHNICAL SPECIFICATIONS

- Connection type: 3-pin (+5V, D, Blocked, Ground)

- Rated voltage: 5V DC

- Number of LEDs: 81 (21/strip, 52LED/m density)

- Strip length: 4 x 400 mm

- Strip width: 10 mm

- Cable length: 2x 500 mm, 4x 150 mm wire extender

- Strip thickness: 2.6 – 3 mm

400 mm

50 mm

50 mm

150 mm

500 mm

LED STRIP:

WIRE EXTENDER:

WIRE HARNESS:

- 5 -

INSTALLING THE D-RGB LED STRIP

ATTACHING THE WIRE HARNESS

The EK-Loop D-RGB LED Magnetic strip contains 21 LEDs and

500 mm wire harness. The wire extenders (150 mm) allow you to

connect more LED strips to customize your PC LED lighting (shown

in the image).

The lighting can be attached with magnets or an adhesive strip and

connected via a 3-pin connector to supported 5V D-RGB headers

that are present on most modern motherboards.

Before connecting the LED strip with the motherboard, Wire harness

must be attached as shown in the image.

FEMALE HEADER

FEMALE HEADER

WIRE EXTENDER

LED STRIP

MALE HEADER

MALE HEADER

LED STRIP

WIRE HARNESS

- 6 -

CONNECTING THE LED STRIP

Plug the 3-pin connector of the Wire Harness to the D-RGB HEADER

on the motherboard. The LED will work if the pin layout on the header

is as follows: +5V, Digital, Empty, Ground.

D-RGB HEADER

RGB HEADER

In case you need assistance or wish to order spare parts,

please contact:

https://www.ekwb.com/customer-support/

EKWB d.o.o.

Pod lipami 18

1218 Komenda

Slovenia – EU

SUPPORT AND SERVICE

EKWaterBlocks

@EKWaterBlocks

ekwaterblocks

ekwaterblocks

EKWBofﬁcial

SOCIAL MEDIA
