Ekwb EK-Pro Manuel utilisateur

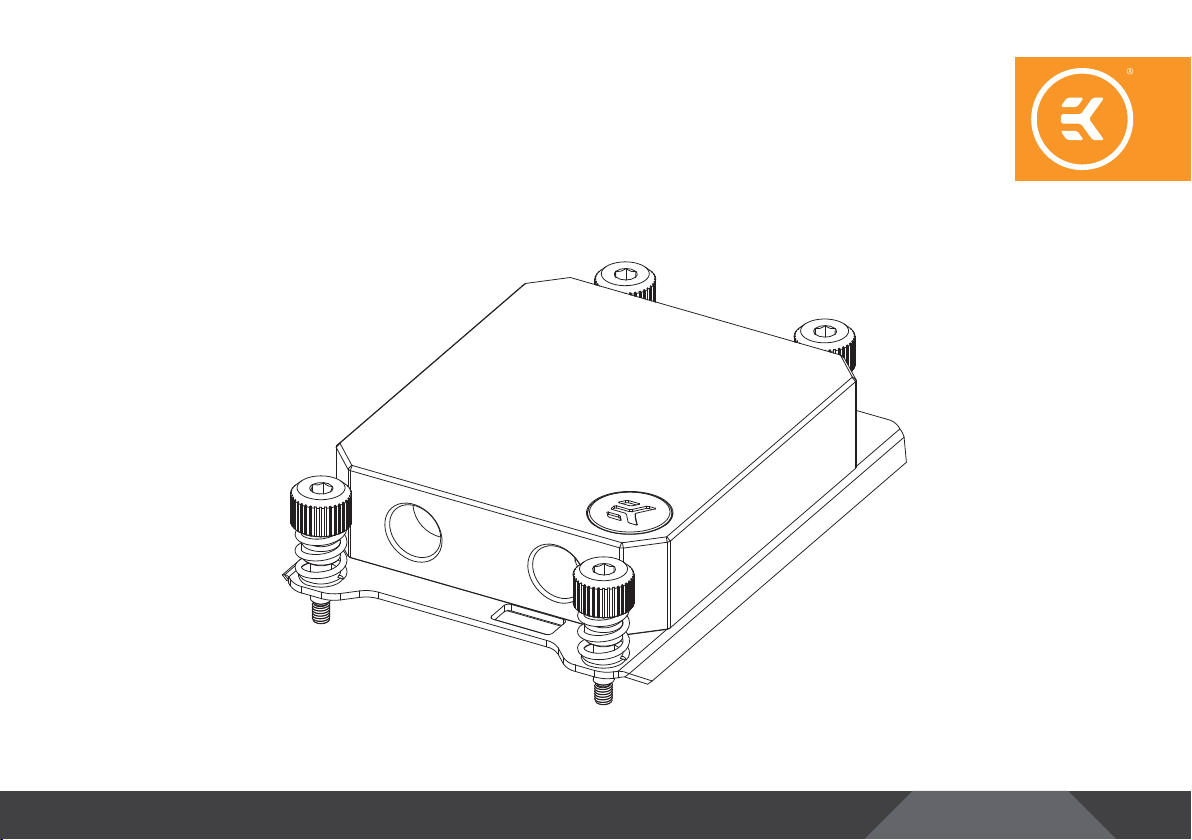

USER GUIDE

EK-Pro

CPU WB sTR Rack

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced or

feel unsure about the installation procedure, please refrain from installing

the product yourself and contact our tech support for assistance. We

disclaim our liability for any damages to the product as well as incidental,

consequential, or indirect damages incurred due to improper or

inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the installation

process.

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for liquid cooling systems, and mandatory for nickel-plated

water blocks!

Do not use pure distilled water! For best results EK recommends

the use of EK-CryoFuel coolants.

Make sure to thoroughly bleed air out of your water block, or

you will not reach optimal performance.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 4

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 5

INSTALLING THE WATER BLOCK 6

FITTINGS AND TUBING 7

TESTING THE LOOP 8

SUPPORT AND SERVICE 9

SOCIAL MEDIA 9

- 4 -

BOX CONTENTS

EK-Pro CPU WB sTR Rack

Thermal grease (1 pc)

WATER BLOCK DIMENSIONS

77 mm

89 mm

116.8 mm

85.5 mm

22.00 mm

55.00 mm

11.00 mm

- 5 -

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Technical Speciﬁcation:

- CPU socket compatibility:

• AMD Socket sTRX4

• AMD Socket TR4 (Socket SP3r2)

• AMD Socket SP3

- Water block dimensions (L x H x W): 116.8 x 85.5 x 31 mm

Position EAN Description Quantity

1103563 Top plate (Acetal) 1

2100621 Jet plate 1

3100620 Metal plate 1

4100685 Coldplate (Nickel) 1

5100158 Coiled spring 4

69033 Seeger ring 4

78616 M4 PVC Washer 4

8105256 Mounting screw 4

9100663 EK - Badge 1

10 101908 Screw M3 x 8 ISO 10642 4

11 101909 Screw M4 x 8 ISO 10642 6

12 101554 OR 46 x 1.5 mm 1

13 104307 OR 72 x 2 mm 1

- 6 -

STEP 1

If already installed, please remove the motherboard from your

computer and place it on an even surface

STEP 2

Cleaning the CPU: Wipe the IHS clean using a non-abrasive cloth or

Q-tip as shown in the illustration.

INSTALLING THE WATER BLOCK

STEP 3

Applying thermal compound: Once clean, apply a line of Thermal

Compound on one edge of the IHS and use a credit card or similar to

spread it evenly.

The layer of Thermal Compound must be thin and even in thickness

over the entire surface of the IHS. Excessive or irregular application

may lead to poor performance.

Non-abrasive

cloth

IHS

STEP 3

STEP 2

- 7 -

STEP 1

EK recommends the use of EK-HFB 10 mm barb ﬁttings and EK-Tube

ZMT 10/16 mm Matte Black tubing.

The INLET port is on the right side of the water block.

The installation of the CPU water block is now complete.

STEP 1

CLAMP

TUBING

EK-HFB 10 mm

BARB FITTING

INLET

PORT

FITTINGS AND TUBING

STEP 4

Align the water block properly on the motherboard, The screws are

not positioned in a square pattern.

Before proceeding with the installation, it is mandatory

to remove the protective foil from the backside of the

water block.

Start fastening two mounting screws at a time, preferably in a cross

pattern, and do not tighten them fully until all of them are partially

screwed in. Then - using the Allen Key 2.5 mm scrrew in all four

mounting screws until you reach the end of the thread.

STEP 4

MOUNTING SCREW

ALLEN KEY 2.5 mm

COILED SPRING

MAX TORQUE:

0.6 Nm

- 8 -

To ensure the installation of EK components was successful, we

recommend you perform a 24-hour leak test.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside of your system. Do not connect power to

any of the other components. Turn on the PSU and let the pump run

continuously.

Inspect all parts of the loop, and in the eventuality that coolant leaks,

ﬁx the issue and repeat the testing process. Ensure that all hardware is

dry before the system is powered on in order to prevent any damage.

TESTING THE LOOP

In case you need assistance or wish to order spare parts or a new

mounting mechanism, please contact:

https://www.ekwb.com/customer-support/

For spare parts orders, refer to the page with “TECHNICAL

SPECIFICATIONS AND WATER BLOCK PARTS” where you can ﬁnd

the EAN number of each part you might need.

Include the EAN number with quantity in your request. Mounting

Mechanism EAN can be found under “BOX CONTENTS”

Thermal pads are readily available in the EK shop

EKWaterBlocks

@EKWaterBlocks

ekwaterblocks

EKWBofﬁcial

SUPPORT AND SERVICE

SOCIAL MEDIA
