USER GUIDE

SP5 NI + POMC | SP5 AL + POMC | SP5 RACK NI + POMC | SP5 RACK AL + POMC

EK-Pro

CPU Water Block SP5

Please note the installation of the product is intended to be undertaken

by an adequately trained and experienced person. You are installing the

product at your own risk. If you are not properly trained or experienced

or feel unsure about the installation procedure, please refrain from

installing the product yourself and contact our tech support for

assistance. We disclaim our liability for any damages to the product as

well as incidental, consequential, or indirect damages incurred due to

improper or inappropriate installation.

Before you start using this product, please follow these basic guidelines:

Please read the manual carefully before starting the

installation process.

Please remove your graphics card from the computer

to ensure the safest mounting process and prevent any

possible damage to your GPU and/or graphics card circuit

board (PCB).

The EK-HFB and EK-ACF type ﬁttings require only a small

amount of force to screw them ﬁrmly in place since the

rubber O-ring gaskets ensure the liquid seal.

The use of corrosion inhibiting coolants is always

recommended for any liquid cooling system.

Do not use pure distilled water. For best results, EK

recommends the use of EK-CryoFuel coolants.

Make sure to bleed the air from your water block thoroughly,

or you will not reach optimal performance.

- 3 -

TABLE OF CONTENTS

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY 4

BOX CONTENTS 5

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6

INSTALLING THE WATER BLOCK 8

CLEANING THE CPU 8

INSTALLING THE WATER BLOCK ASSEMBLY 8

INSTALLING THE FITTINGS 9

TESTING THE LOOP 10

SUPPORT AND SERVICE 11

SOCIAL MEDIA 11

- 4 -

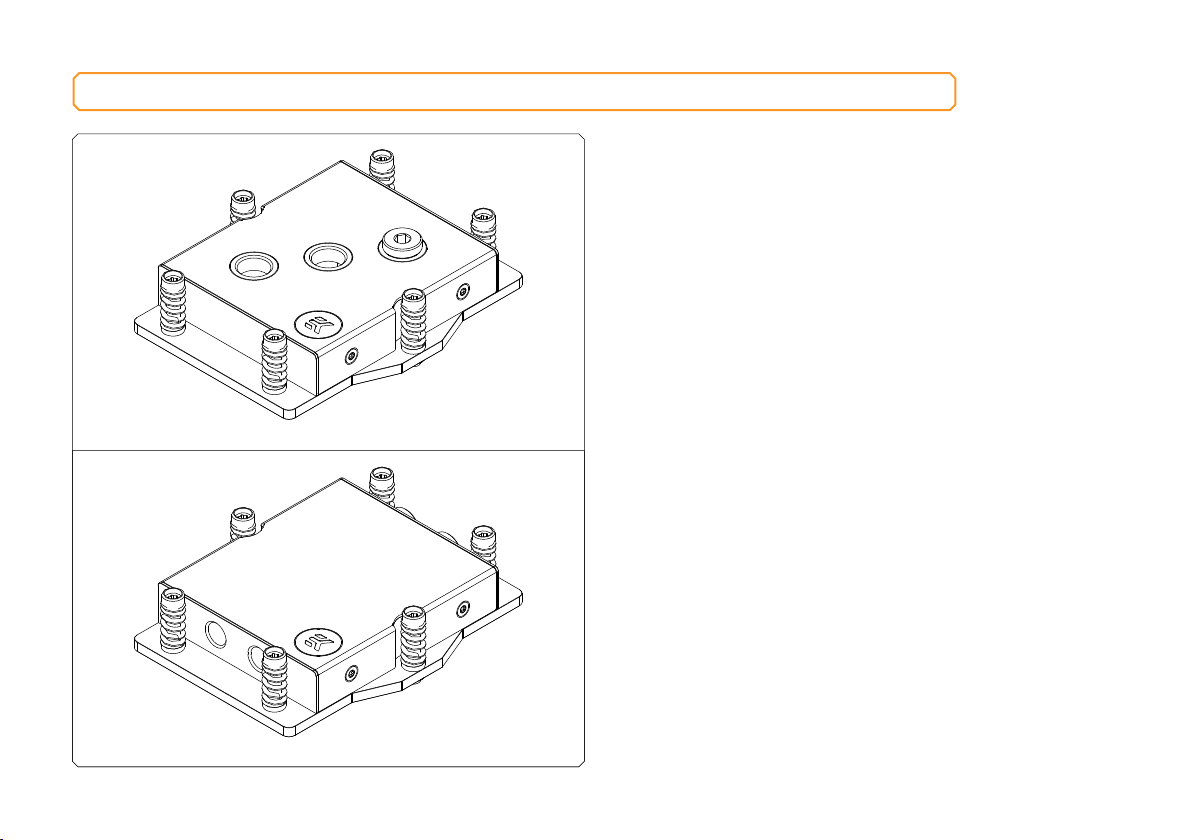

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

This CPU liquid cooling unit is pre-assembled for use with modern

AMD server socket-type motherboards. By default (out of the box),

this water block supports the following CPU sockets:

- AMD® Socket SP5

- 5 -

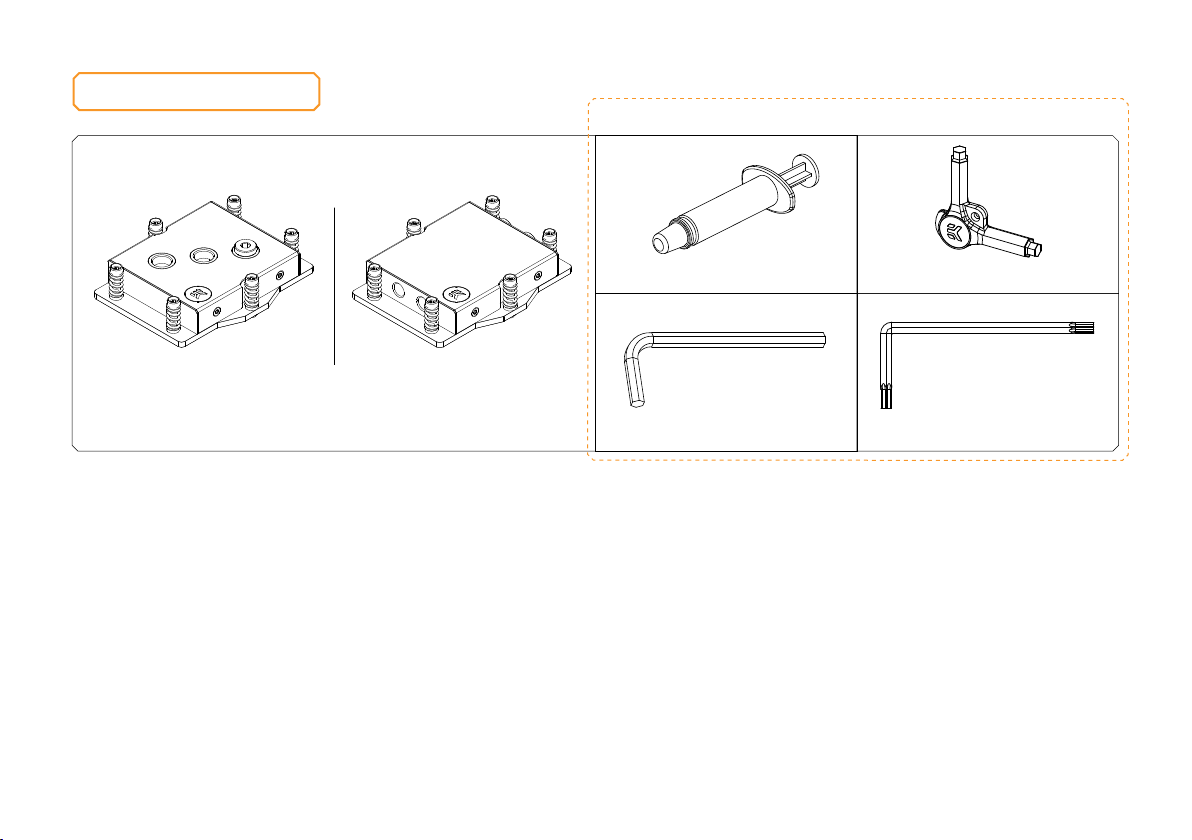

BOX CONTENTS

Allen Key 5 mm (1 pc) Torx T20 (1 pc)EK-Pro CPU Water Block SP5

Mounting Mechanism EAN: 106401

EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) (1 pc)

EK-TIM Ectotherm (1g)

- 6 -

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS

The following items are enclosed with each EK-Pro SP5 water block,

depending on the version: EK-Pro SP5 CPU water block

3831109904077 Ni + POM-C:

Position EAN Description Quantity

105819 CPU COLDPLATE Nickel

105813 TOP ACETAL

103759 M3 x 18 ISO 14583 Screw

104307 SEALING GASKET 72 x 2 EPDM70

3831109904121

EK - MOUNTING PLATE

105815 JE T PL AT E

105816 TOP COVER

103089 M3 x 5 ISO 14581 Screw

102639 MS Quantum Plug Nickel

3831109904084 Ni rack + POM-C:

Position EAN Description Quantity

105819 CPU COLDPLATE Nickel

105814 TOP ACETAL Rack

103759 M3 x 18 ISO 14583 Screw

104307 SEALING GASKET 72 x 2 EPDM70

3831109904121

EK - MOUNTING PLATE

105815 JE T PL AT E

105817 TOP COVER Rack

103089 M3 x 5 ISO 14581 Screw

3830046996435

EK-PLUG G1/8

- 7 -

3831109904091 Al + POM-C:

Position EAN Description Quantity

105820 CPU COLDPLATE ALU

105813 TOP ACETAL

103759 M3 x 5 ISO 14581 Screw

104307 SEALING GASKET 72 x 2 EPDM70

3831109904121

EK - MOUNTING PLATE

105815 JET PLATE ALU

105816 TOP COVER

103089 M3 x 5 ISO 14581 Screw

3831109890639

EK - ALU Plug G1/4 - Elox Black

3831109904107 Al rack + POM-C:

Position EAN Description Quantity

105820 CPU COLDPLATE ALU

105814 TOP ACETAL Rack

103759 M3 x 5 ISO 14581 Screw

104307 SEALING GASKET 72 x 2 EPDM70

3831109904121

EK - MOUNTING PLATE

105815 JET PLATE ALU

105817 TOP COVER Rack

103089 M3 x 5 ISO 14581 Screw

3831109810040

EK - ALU PLUG G1/8

- 8 -

Non-abrasive

Cloth

IHS

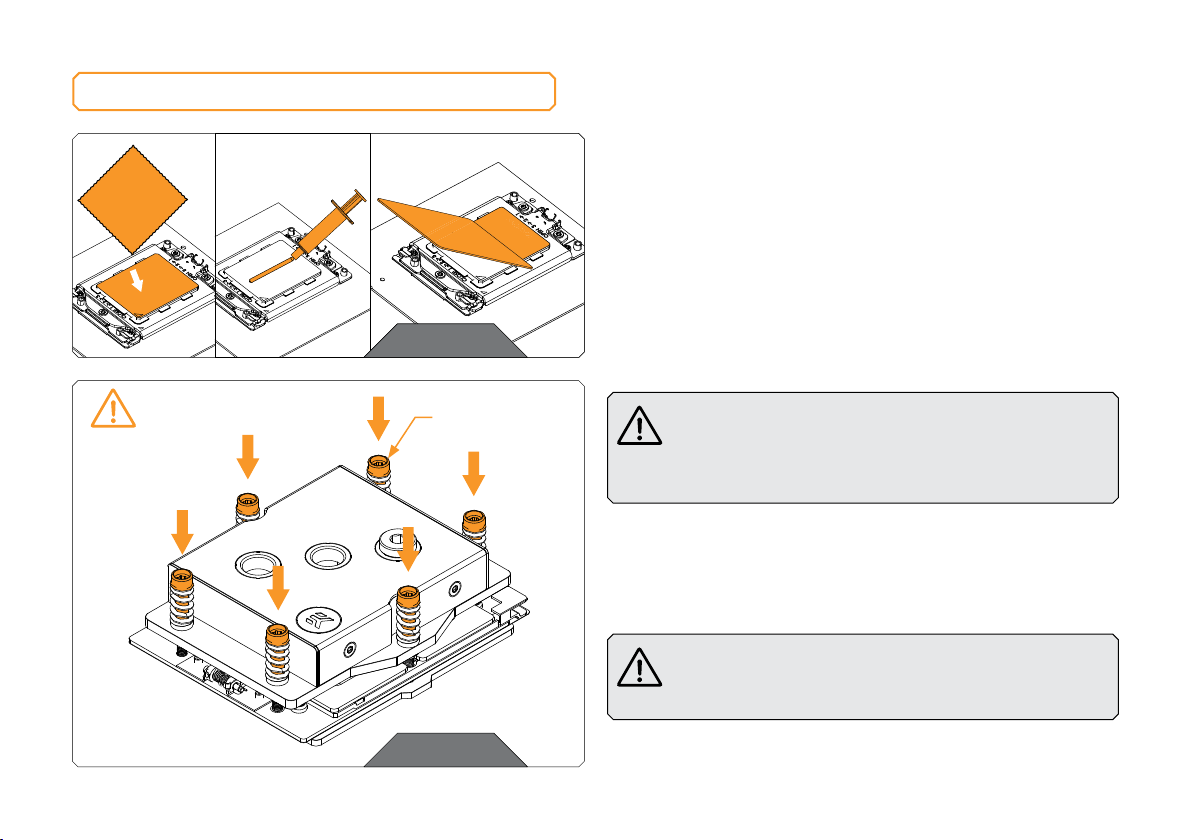

INSTALLING THE WATER BLOCK

STEP 1

CLEANING THE CPU

Wipe the CPU’s contact surface (by using non–abrasive cloth or

Q-tip). Applying thermal compound: on a clean IHS, apply a line of

thermal compound and spread it over the whole CPU heat spreader

(IHS) with a credit card or equivalent.

The layer of the thermal compound must be thin and even in thickness

through the whole surface of the IHS. A too-thick application could

lead to poor performance.

STEP 2

INSTALLING THE WATER BLOCK ASSEMBLY

Before proceeding with the installation, it is mandatory to

remove the protective foil from the backside of the water

block. The CPU should be attached to the processor

carrier before you start this step. The carrier typically

comes with the server system or motherboard.

Align the water block over the mounting screws on the SP5

motherboard. Make sure the processor is oriented correctly, aligning

the PIN 1 corners on the socket.

Next, use a T20 TORX screwdriver and tighten nuts with 1.2 - 1.5

Nm of torque.

It is recommended to remove the motherboard from the

PC chassis before proceeding with the installation of

the processor and water block assembly because of the

space constraints of different computer cases.

The installation of the CPU water block is now complete.

STEP 1STEP 1

STEP 2

MAX TORQUE:

1.5 Nm

TORX T20

- 9 -

CLAMP

INLET

OUTLET

BARB

CLAMP

BARB

OUTLET

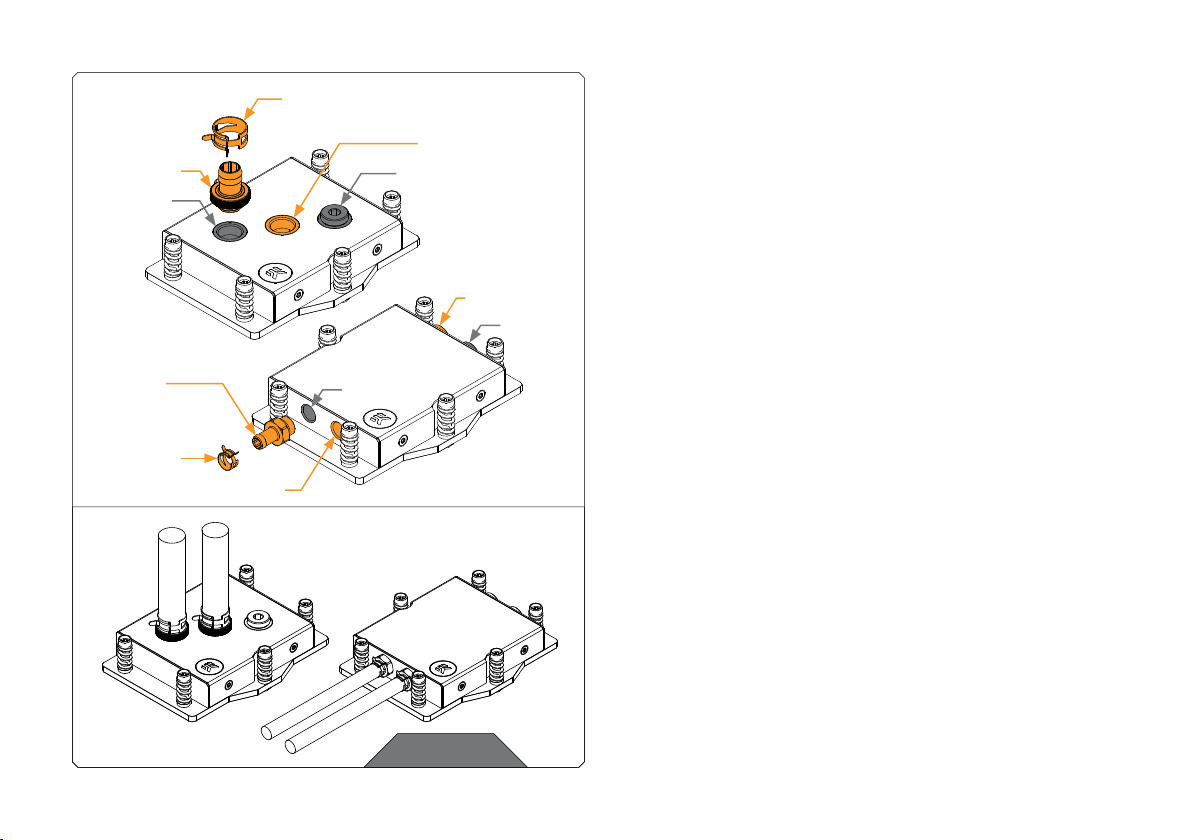

STEP 3

INSTALLING THE FITTINGS

Carefully identify the direction of the ﬂow in your circuit. For the

non-rack version, EK recommends the use of EK-HFB 10 mm barb

ﬁttings and EK-Tube ZMT 10/16 mm Matte Black tubing. For the rack

version, EK-HFB Fitting 6 mm G1/8 and EK-Tube ZMT 6/9mm Matte

Black tubing is recommended.

With EK-Pro CPU non-rack water blocks, it is mandatory to use the

port in the center of the water block as the inlet port. For the rack

version, the inlet port is on the right on both sides. Mixing the ports

may result in lesser thermal performance of the water block.

STEP 3

- 10 -

TESTING THE LOOP

To ensure the installation of EK components was successful, we

recommend you perform a 24-hour leak test.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside your system. Do not connect power to any

of the other components. Turn on the PSU and let the pump run

continuously.

Inspect all parts of the loop, and in case the coolant leaks, ﬁx the issue

and repeat the testing process. To prevent possible damage, please

ensure that all hardware is dry before the system is powered on.
