Ekwb EK-Quantum Magnitude sTRX4 Manuel utilisateur

USER GUIDE

CPU WATER BLOCK

EKQuantum

Magnitude sTRX4

This product is intended for installation by expert users only. Please consult

with a qualiﬁed technician. Improper installation may result in damage to

your equipment. EK assumes no liability whatsoever, expressed or implied,

for the use of this product or its installation. The following instructions are

subject to change without notice. Please, read the manual carefully before

beginning with the installation process. For updates, you can visit our

ofﬁcial website www.ekwb.com.

Before you start using this product please follow these basic guidelines:

Carefully read the manual before beginning with the installation

process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your GPU or

its circuit board (PCB).

EK Fittings require only a small amount of force to screw them

ﬁrmly in place since the liquid seal is ensured with the rubber O-ring

gaskets.

The use of quality market-proven corrosion-inhibiting coolants is

always strongly recommended for any liquid cooling system.

Do not use pure distilled water as a cooling liquid! For best results,

EK recommends the use of EK-CryoFuel Coolants.

Make sure to bleed air out of your water block thoroughly in order to

reach optimal performance.

- 3 -

TABLE OF CONTENT

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

CHANGING THE COLDPLATE 7

CONNECTING THE D-RGB LED STRIP 12

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

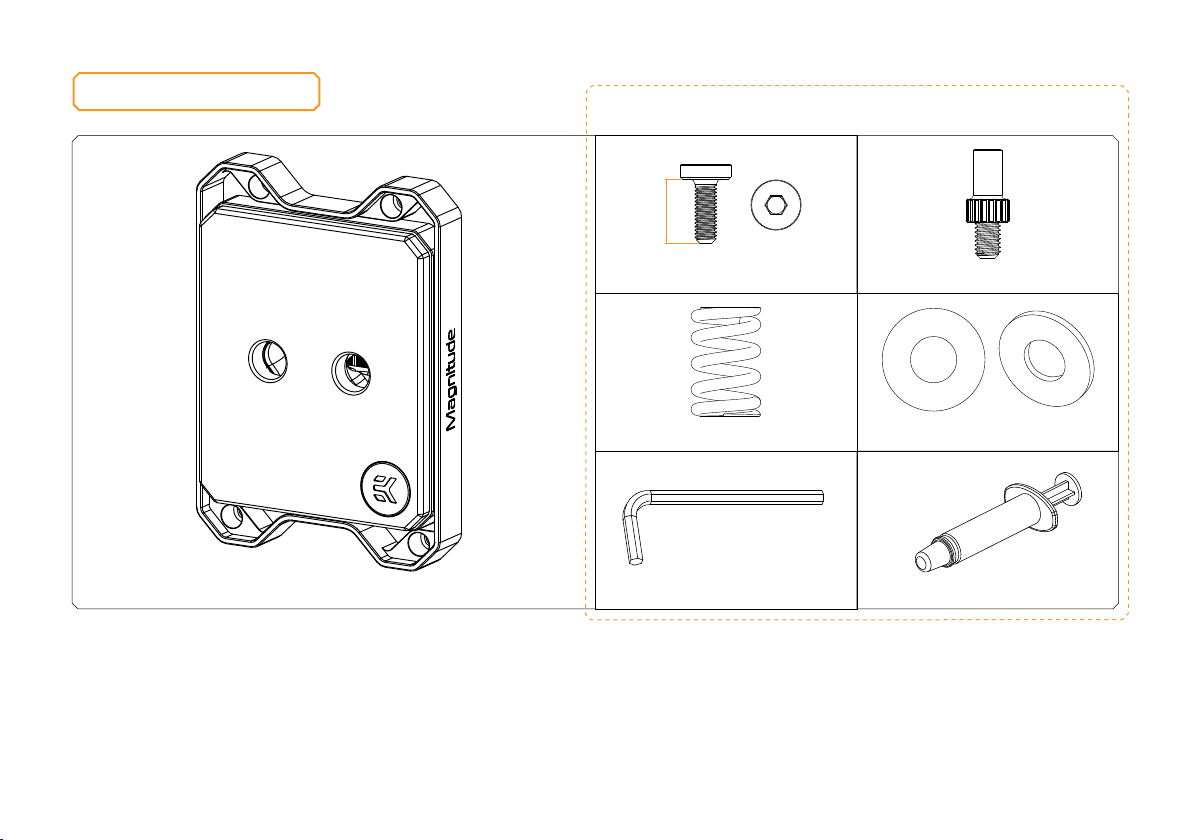

BOX CONTENTS

9 mm

Magnitude sTRX4 Standoff (4 pcs)

Allen Key 2.5 mm (1 pc) Thermal Grease (1 pc)

Magnitude Screw M3 x 9 (4 pcs)

Magnitude Spring M3 x 10 (4 pcs)

EK-Quantum Magnitude sTRX4

PVC Washer M2.5 (5 pcs)

Universal Mounting Mechanism – You may not need every screw

from this package.

- 5 -

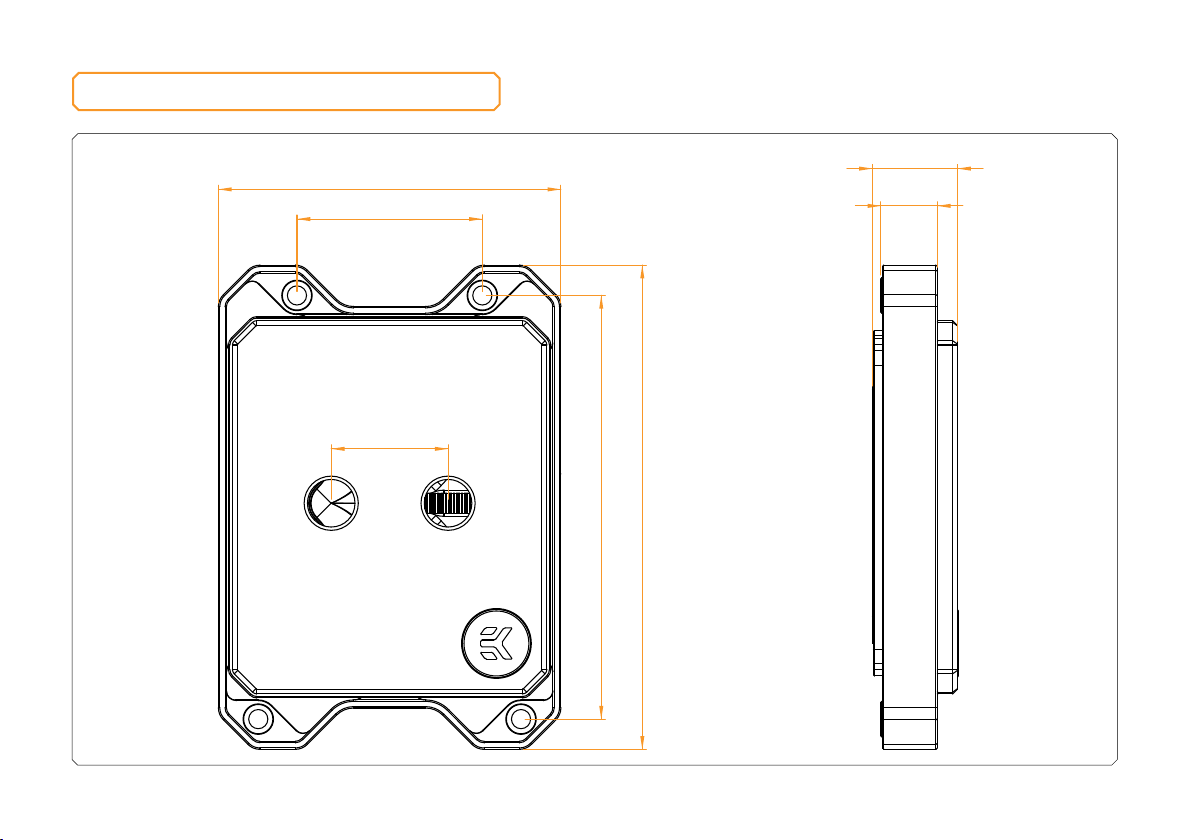

WATER BLOCK DIMENSIONS

85 mm

120 mm

29 mm

105 mm

46 mm

21.10 mm

14 mm

- 6 -

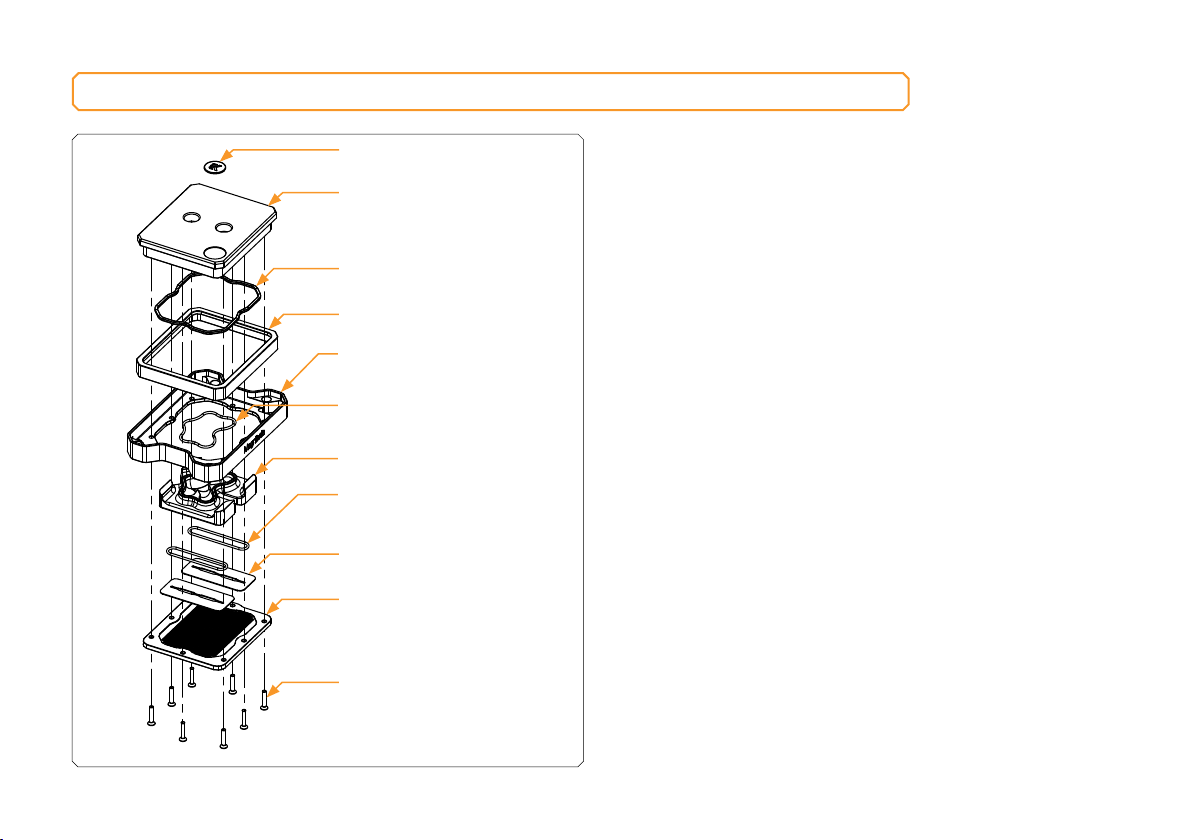

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

EK Badge

Main O-Ring

LED Cover

ALU Frame

Brass Insert

Top Insert O-Ring 47 x 1.5 mm

Top Plate (Plexi/Acetal/Brass)

Copper Coldplate

Jet Plate

Bottom Insert O-Ring 34 x 1.5 mm

Screw M3 x 14 DIN7991

By default (out of the box), this water block supports the

following CPU sockets:

- AMD Socket sTRX4

- AMD Socket TR4 (Socket SP3r2)

- AMD Socket SP3

Technical Speciﬁcations:

- Dimensions (L x H x W): 85 x 120 x 21 mm

- D-RGB (Addressable RGB) Wire Harness Cable Length: 500 mm

- D-RGB LED Count: 43

- D-RGB Connector: Standard 3-pin (+5V, Data, Blocked, Ground)

- 7 -

Non-Abrasive

Cloth

IHS

STEP 1

CHANGING THE COLDPLATE

STEP 1

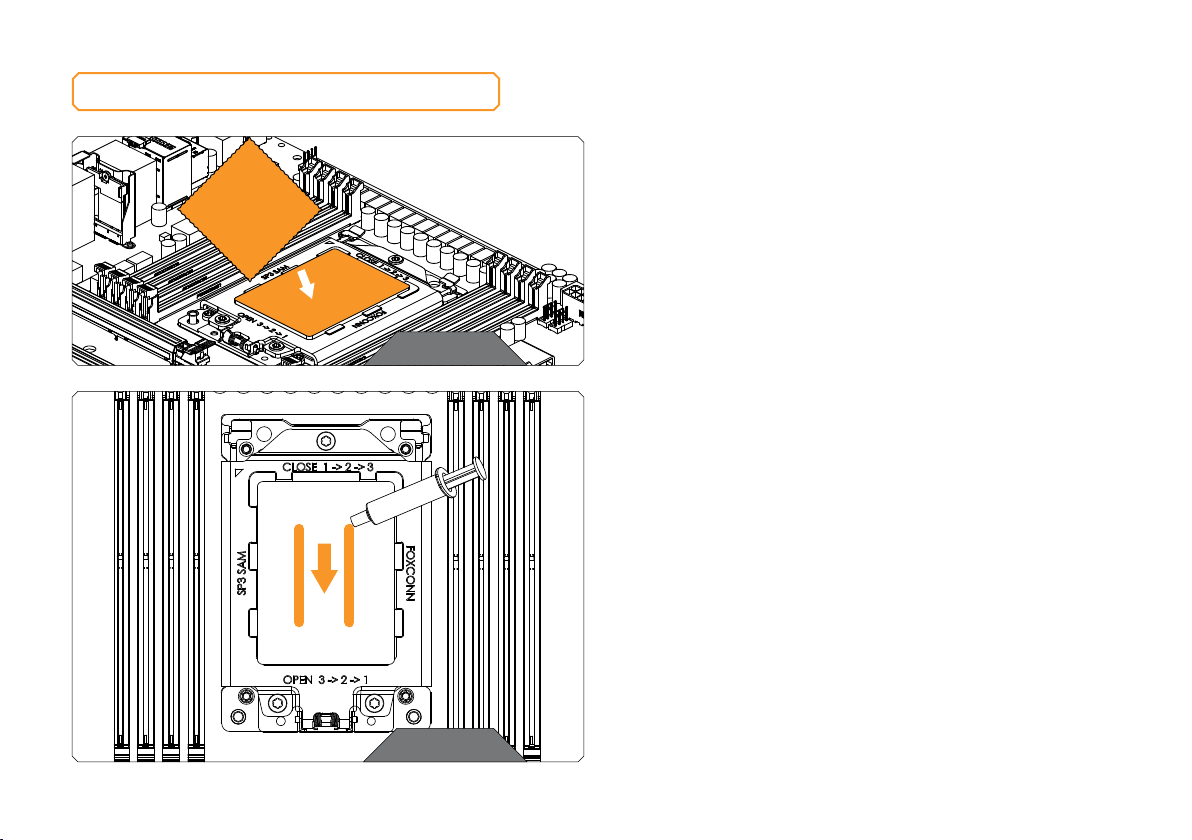

Cleaning the CPU: Wipe the CPU’s contact surface with a non-

abrasive cloth or Q-tip.

STEP 2

Applying Thermal Compound: Apply the enclosed thermal

grease (thermal compound) on the CPU heat spreader (IHS) as

shown in the image.

There is no need to cover the whole IHS – applying too much thermal

grease will have a negative impact on the cooling performance!

STEP 2

- 8 -

STEP 4

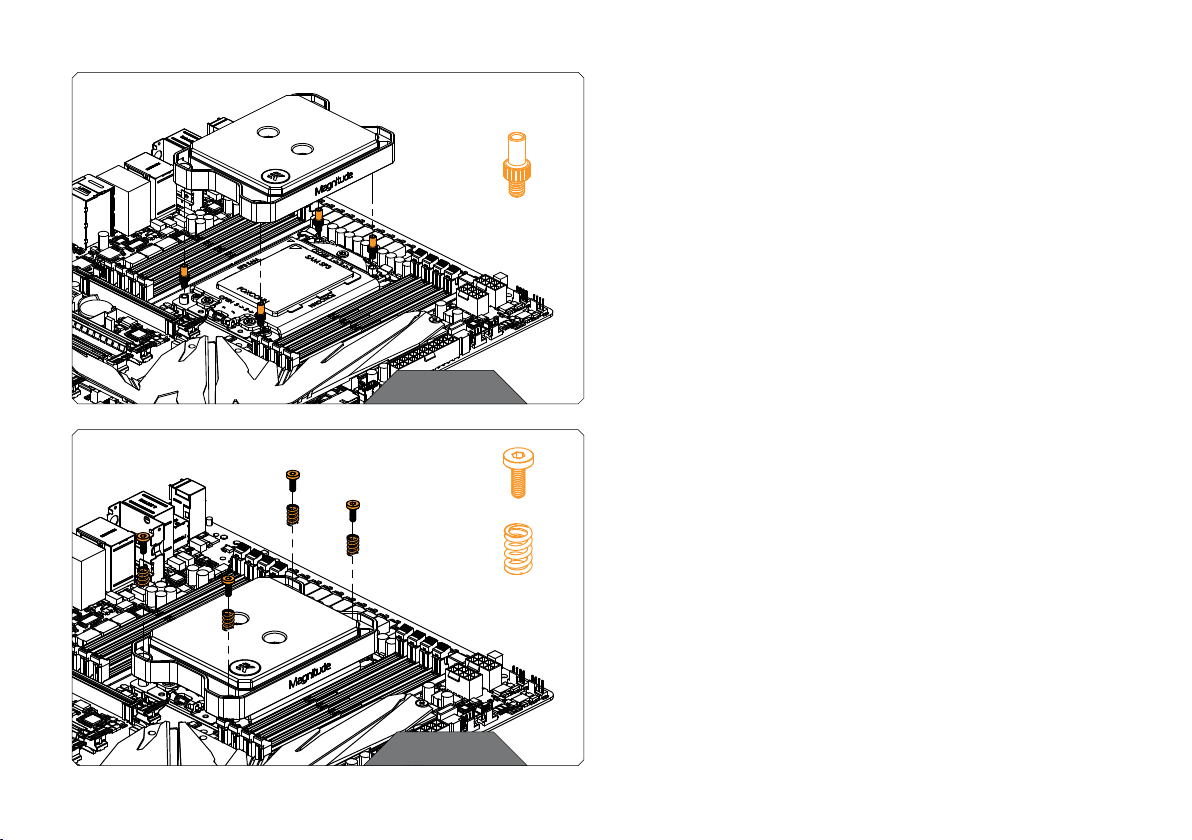

Attaching the Water Block: Once you’ve placed the water block on

the motherboard, insert four (4) mounting springs and M3x9 screws

inside the frame, as shown in the image.

STEP 3

Before proceeding with installation, it is mandatory to remove

the protective foil from the backside of the water block.

Placing the Water Block on the Motherboard: Place your

motherboard on an even surface and remove the Mounting

Mechanism from the plastic bag.

Install four (4) Standoffs tightly into the ILM Heat Sink studs by hand.

Using pliers or similar tools is not recommended. After securing the

Standoffs, position the CPU Water Block onto the Standoffs.

- 9 -

STEP 5

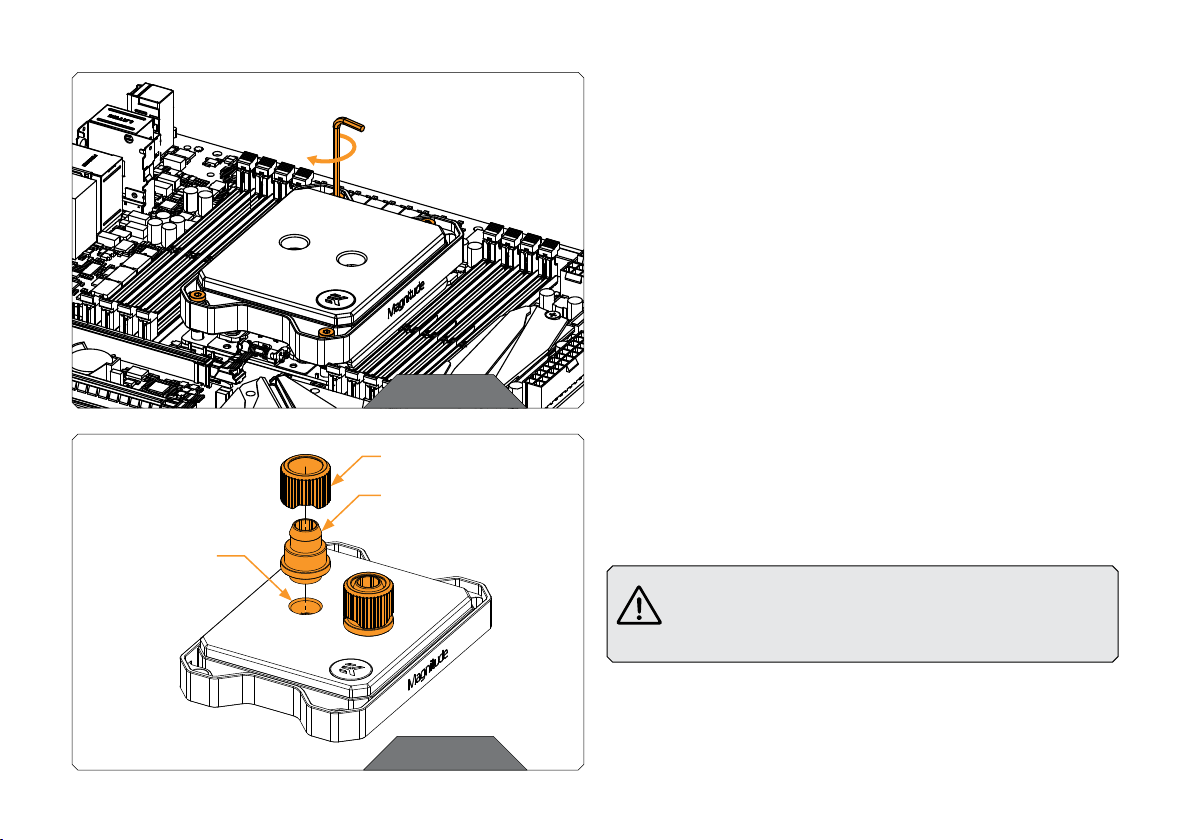

Tighten the screws in a cross pattern using the enclosed Allen

Key. Stop tightening when every screw is flush with its hole inside

the frame!

STEP 6

Installing Fittings and Tubing: Screw-in two (2) G1/4 threaded

male ﬁttings. Attach the tubes and connect the CPU water block to

the liquid cooling loop.

EK recommends using EK ﬁttings with all EK water blocks.

CAUTION: When using connectors other than EK

ﬁttings, pay special attention to the length of the ﬁttings’

male G1/4” thread – 5mm is the maximum G1/4” thread

length allowed!

By default, the inlet port is placed on the left side.

FITTING RING

INLET PORT

FITTING BARB

- 10 -

STEP 2

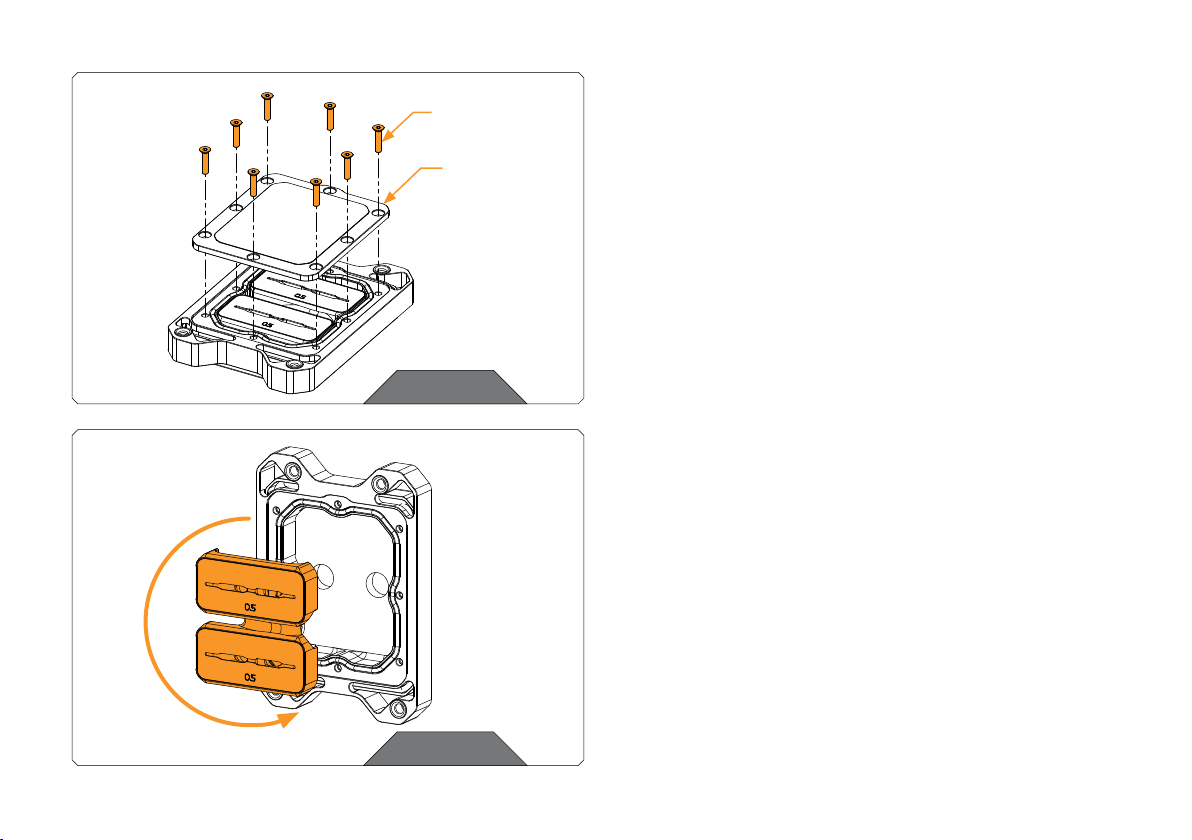

After removing the coldplate, take the brass insert and rotate it by

180° with all the O-Rings and jet plates (as shown on the photo).

STEP 1

You can also rotate the INLET/OUTLET port by following the

further steps.

STEP 1

Unscrew the eight (8) M3X14 DIN7991 screws using the 2mm Allen

Key and remove the colplate from the water block (as shown on the

photo). Save the screws and coldplate for later use.

M3 x 14 7991DIN

COLDPLATE

180°
