Dwyer Instruments DPT series Instructions d'installation et d'utilisation

Bulletin P-DPT

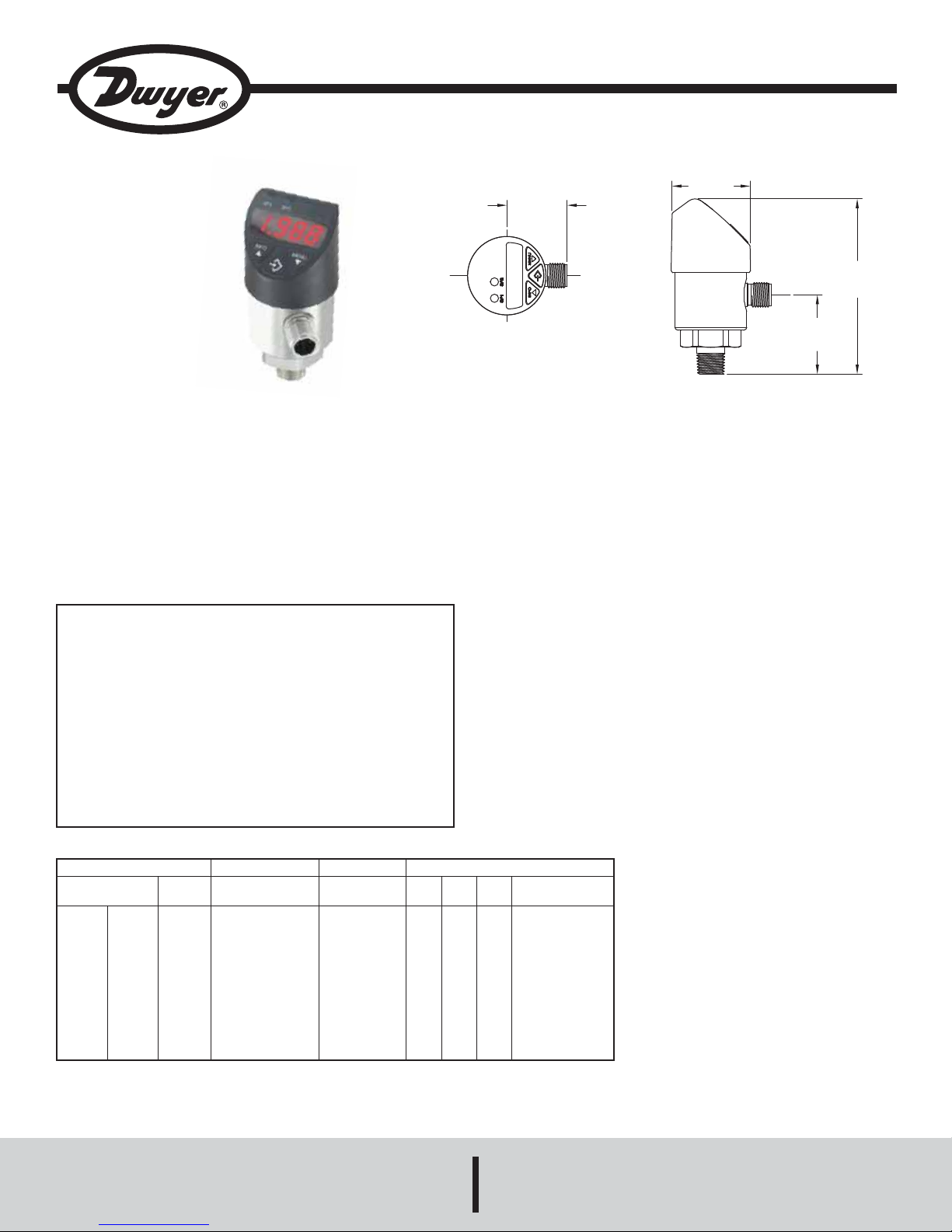

The Series DPT Digital Pressure Transmitter with Switches combines a large,

14-segment LED display with two programmable solid state switches into one

compact unit. A unique, 3-way rotating design allows the DPT to meet specific

installation requirements without any retrofitting. The display and electrical

connection can be rotated independently to maximize visibility while still orienting

the electrical connection in the best position for the cable connector. Large,

ergonomically designed push buttons allow for quick/easy programming and thin-

film piezoresitive sensor technology guarantees long-term reliability and stability.

INSTALLATION

When installing gage always use a hex at the base of the housing to tighten the

gage to a mating fitting. Do not apply wrench to housing.

POWER UP

UNITS CHART

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

SPECIFICATIONS

Service: Compatible gases, liquids or vapors.

Wetted Materials:

Pressure connection: 316 L SS;

Pressure sensor: 316 L SS (13-8 PH for ranges above 150 psi).

Housing: 316 L SS lower body, heat and chemical resistant fiberglass reinforced

plastic (PBT) plastic head, TPE-E keyboard, PC display window.

Accuracy: 1.0% F.S. (includes non-linearity, hysteresis, zero point).

Pressure Limit: See table.

Temperature Limits: 32 to 176°F (0 to 80°C).

Process Connections: 1/4˝ male NPT.

Display: Red LED 4-digit (0.35˝ H digits).

Weight: 7 oz (0.2 kg).

SWITCH SPECIFICATIONS

Switch Type: PNP.

Electrical Rating: 250 mA.

Electrical Connections: M 12x1, 5-pin.

Mounting Orientation: Mount in any position.

TRANSMITTER SPECIFICATIONS

Temperature Limits: 32 to 176°F (0 to 80°C).

Thermal Effect: 0.2% FS / 10k.

Power Requirements: 15 to 35 VDC.

Output Signal: DPT-A: 4 to 20 mA; DPT-V: 0 to 10 VDC.

Loop Resistance: DPT-A: ≤ 0.5k; DPT-V: > 10k.

Power Consumption: ≤ 100 mA.

Electrical Connections: M 12x1, 5-pin.

Enclosure Rating: IP65 and IP67.

Agency Approvals: CE.

Specifications - Installation and Operating Instructions

Series DPT Digital Pressure Transmitter with Switches

1-5/32

[29.50]

1-1/2

[38.00]

1-33/64

[38.60]

3-23/64

[85.40]

Operating Modes

System start - Display is fully activated for 2s

Display Mode

- Normal operation, displays system pressure

Programming Mode

- Setting Parameters

4-digit LED display - Display system pressure

- Display Menu Item

- Display Parameter

1. LED (red) - Status Switch Output 1

2. LED (red) - Status Switch Output 2 (Optional)

-When the pressure switch is powered up within

the range of the hysteresis, the output switch is

set to “not active” by default

kPa

103.4

172.4

206.8

344.7

689.5

1103

1378

2068

3447

6895

Model

DPT-V00

DPT-V01

DPT-V02

DPT-V03

DPT-V04

DPT-V05

DPT-V06

DPT-V07

DPT-V08

DPT-V09

DPT-V10

Range

(psig)

-14.5 to 0

0 to 15

0 to 25

0 to 30

0 to 50

0 to 100

0 to 160

0 to 200

0 to 300

0 to 500

0 to 1000

Maximum Pressure

(psig)

100

200

290

400

600

1000

1740

Burst Pressure

(psig)

150

250

500

1500

2500

7975

Pressure Ranges

*feet of seawater @ 4°C

DPT-A00

DPT-A01

DPT-A02

DPT-A03

DPT-A04

DPT-A05

DPT-A06

DPT-A07

DPT-A08

DPT-A09

DPT-A10

bar

1.034

1.724

2.068

3.447

6.895

11.03

13.79

20.68

34.47

68.95

MPa

.1034

.1724

.2068

.3447

.6895

1.103

1.378

2.068

3.447

6.895

kg/cm2

1.055

1.758

2.109

3.515

7.031

11.25

14.06

21.09

35.15

70.31

P-DPT:TEMPLATE 10/18/10 1:58 PM Page 1

WIRING

PROGRAMMING

Circular connector M12x1, 5-pin

2 switching outputs + 1 analogue output

+ = 1 - = 3 SP1 = 4 SP2 = 2 = 5

0-10 V or 4-20 mA

(Min: LLR + 0.5% Max: ULR) Instrument Nominal Pressure

Menu (Programming and Factory Setting)

value

SP1 / FH1

RP2 / FL2

SP2 / FH2

RP1 / FL1 (Min: LLR Max: SP1 - 0.5%) Instrument Nominal Pressure-10%

(Min: LLR + 0.5% Max: ULR) Instrument Nominal Pressure

(Min: LLR Max: SP2 - 0.5%) Instrument Nominal Pressure-10%

Display-Mode

Programming-Mode

Long press on Menu Key

Factory Setting:

Legend:

LLR = lower limit of range

ULR = upper limit of range

YES/NO

value

PARA

unit

YES/NO

PARA

value

YES/NO

value

EF RES

DS1

DR1

DS2

DR2

OU1

OU2

UNIT

0SET

PAS

RHL

DISU

DISR

DISM

(Return to Factory Settings)

(0 … 50 s) 0 s

(HNO, HNC, FNO, FNC) HNO

(BAR, MPA, KPA, PSI, KG/cm²) Order dependent

(Zero Point Offset adjustment max. 3 %)

(ACT, HIGH, LOW, OFF,

SP1/FH1, RP1/FL1, SP2/FH2, RP2/FL2) ACT

(1/2/5/10 Updates/Second) 5 / s

(Display rotate 180°)

(Reset HIGH, LOW)

(Password) without

END

TAG value (Measuring Point number) without

Display-Mode

END

P-DPT:TEMPLATE 10/18/10 1:58 PM Page 2

BUTTON OPERATION

SWITCH FUNCTION

ERROR

Hysteresis function

If the system pressure ﬂuctuates around the nominal value,

the hysteresis keeps the switch status of the outputs stable.

When the system pressure is rising, the output switches when it

reaches the respective set point (SP); if the pressure falls again,

the output switches back only if the reset point (RP) is reached.

Application example: loading an accumulator.

The shut-off valve loads up to 8o bar and then shuts off. When

70 bar is reached again, it switches on once more.

Window function

The window function allows the monitoring of a deﬁned range.

If the system pressure is between the window high (FH) and the

window low (FL), the output is activated (NO) respective

deactivated (NC).

Delay times (0.00 to 50 s):

By this means unwanted pressure peaks of short duration or high

frequency can be ﬁltered out.

The pressure must remain for at least this time to enable the

switch to operate. The switching output does not immediately

change its status when it reaches the switching event, but only

after the delay time has elapsed. If the switching event no longer

pertains when the delay time has elapsed, the switching output

does not change.

Display-Mode Programming-Mode

short press:

Display units

short press:

- Menu up

- Increase parameter value

long press:

Run-through Parameter Info

1. UNIT + unit

2. SP1 / FH1 + value

3. RP1 / FL1 + value

4. SP2 / FH2 + value (optional)

5. RP2 / FL2 + value (optional)

6. LOW + value

7. HIGH + value

8. TAG + value (Only display when value set)

long press:

- Menu up

- Increase parameter value

short press:

Display units

short press:

- Menu down

- Decrease parameter value

long press:

Switch to Programming Mode

If the password is set to <> 0000, a pass

word will be requested. If authentication is

successful, then it enters the Program Mode,

otherwise it reverts to Display Mode.

long press:

- Menu down

- Decrease parameter value (Increment rate is time dependent)

long press (during Restart, keep pressed)

short press:

Display units

short press:

- Select Menu Item

- Conﬁrmation of the entry (Parameter value)

short press (both keys at the same time):

Return to Display Mode

INFO

Error Display Description

ATT1 On changing the Switch Point the system automatically reduces the Reset Point

ATT2 Zero Point adjustment error, current pressure is outside the limits

ATT3 Password entered for Menu access is incorrect

ERR Internal error

OL Overpressure, measuring range exceeded > approx. 5% (Display blinks)

UL Underpressure, under measuring range < approx. 5% (Display blinks)

Acknowledgement of an Error Display by pressing the ˝Enter˝ key.

P-DPT:TEMPLATE 10/18/10 1:58 PM Page 3

PARAMETERS

TROUBLESHOOTING

WARRANTY

Upon final installation, no routine maintenance is required. A periodic check of the

calibration is recommended. The series DPT is not field serviceable and should be

returned if repair is needed (field repair should not be attempted and may void

warranty). Be sure to include a brief description of the problem plus any relevant

application notes. Contact customer service to receive a returns goods authorization

number before shipping.

Failure Possible cause Procedure

No output signal Cable break Check connections and cable

No output signal No/incorrect voltage supply Adjust the voltage supply to correspond

with the Operating Instructions

No/False output signal Incorrectly wired Follow pin assignment (see Instrument

Label / Operating Instructions)

Output signal unchanged after change in pressure Mechanical overload through over pressure Replace instrument; if failure reoccurs,

consult the manufacturer

Abnormal zero point signal Overload limits exceeded Ensure permissible overload limits are

observed (see Operating Instructions)

Signal span too small Mechanical overload through over pressure Replace instrument; if failure reoccurs,

consult the manufacturer

Signal span too small Power supply too high/too low Correct the power supply in line with

the Operating Instructions

DWYER INSTRUMENTS, INC.

Phone: 219/879-8000 www.dwyer-inst.com

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46361, U.S.A. Fax: 219/872-9057 e-mail: [email protected]

Parameter Description

SP1 / SP2 Hysteresis function: Switch point switch output (1 or 2)

FH1 / FH2 Window function: Window high switch output (1 or 2)

RP1 / RP2 Hysteresis function: Reset point switch output (1 or 2)

FL1 / FL2 Window function: Window low switch output (1 or 2)

EF Enhanced Programming Functions

RES Return the set parameter to the Factory Settings

DS1 Switch Delay Time, which must occur without interruption before any electrical signal change occurs

(SP1 or SP2)

DS2

DR1 Switch Delay Time, which must occur without interruption before any electrical signal change occurs

(RP1 or RP2)

DR2

OU1 Switching Function Switching Output (1 or 2)

OU2 HNO = Hysteresis Function, normally open

HNC = Hysteresis Function, normally closed

FNO = Window Function, normally open

FNC = Window Function, normally closed

UNIT Changing Units

(If the pressure range is higher than the display range, no change of the unit is posssible

and the parameter UNIT is not shown)

0SET Zero Point adjustment (+ 3% of Nominal Pressure)

DISM Display value in Display Mode

ACT = Current System Pressure, LOW, HIGH = Minimum, Maximum System Pressure, OFF = Display off;

SP1/FH1 = Function switch point 1, RP1/FL1 = Function reset point1,

SP2/FH2 = Function switch point 2, RP2/FL2 = Function reset point 2

DISU Display-Update 1, 2, 5, 10 Updates/Second

DISR Display rotate 180°

RHL Clear the Min- and Max-value memory

PAS Password input, 0000 = no password

Password input Digit by Digit

TAG Input of a 16-digit alphanumeric Measuring Point number

11609185.01

10/2010

P-DPT:TEMPLATE 10/18/10 1:58 PM Page 4

Autres manuels Dwyer Instruments Émetteur

Dwyer Instruments

Dwyer Instruments Series CDTV Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments CDTV Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments 648B Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments CDT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments UL series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments PROXIMITY Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments CDT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments Magnesense MS Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 629C series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments LOVE Iso Verter II SC478 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 641RM Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 634ES Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments CDWP Deries Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments RHP-W series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments IEF Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments 641 series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments HT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments ProxiMity UL Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 616W-2 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments AVUL Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments One-Touch 616OT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 616WL-2 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 685 Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments AVLV Series Instructions d'installation et d'utilisation

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
