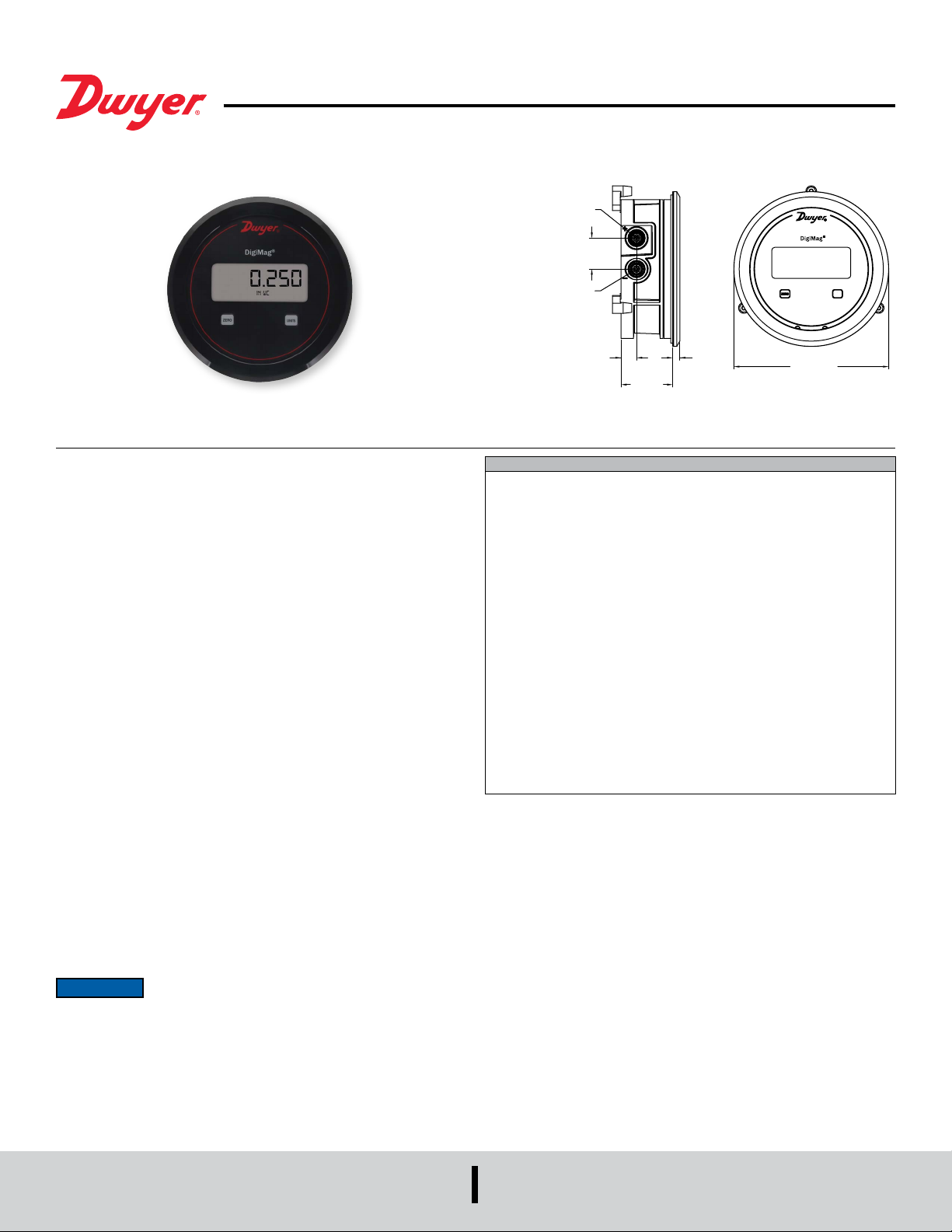

Series DM DigiMag®Differential Pressure Transmitter

Specications - Installation and Operating Instructions

Bulletin P-DMT

The Series DM DigiMag®Differential Pressure Transmitter senses the pressure

of air and compatible gases and sends a standard 4-20 mA output signal. The DM

housing is specically designed to mount in the same diameter cutout as a standard

Magnehelic® gage. A wide range of models are available factory calibrated to specic

ranges. The polycarbonate molded housing features integral pressure connections,

which reduces installation time. Digital push-button zero and span simplify calibration

over typical turn-potentiometers. A single push-button allows eld selection of 4 to 6

engineering units, depending on the range.

BENEFITS/FEATURES

• Reduced installation time through zero and span controls that provides quick and

easy calibration

• Fast and easy setup and calibration with push-button zero and span controls

• Immediate corrective action can be taken by local alerts via the easy-to-read LCD

display

• Reduces upgrade installation costs and simplies eld upgrade from a Magnehelic®

gage, as both use the same diameter cutout

APPLICATIONS

• Differential pressure across lters

• Fan control

• Static pressures in ducts or buildings

• Room pressurization monitoring

INSTALLATION

Location:

Select a clean, dry mounting location free from excess vibration where the temperature

will remain between -4 to 158°F (-20 to 70°C). Distance from the receiver is limited only

by total loop resistance. See Electrical Connections on the next page. The tubing

supplying pressure to the instrument can be practically any length required, but long

lengths will increase the response time slightly.

Position:

Transmitter pressure accuracy is not affected by orientation. If choosing a non-vertical

installation, ZERO the unit to remove any offset due to gravity.

Pressure Connections:

SPECIFICATIONS

Service: Air and non-combustible, compatible gases.

Wetted Materials: Consult factory.

Housing Material: Polycarbonate.

Accuracy: ±1% FSO for all ranges except 0.25 in w.c. @ ±2% FSO, and ranges at

or below ±0.1 in w.c. @ ±4% FSO.

Stability: < ±1% / year FSO.

Pressure Limits: Ranges > 1 in w.c.: 6 psi max operation, 6 psi burst; Ranges ≤ 1

in w.c.: 3.6 psi max operation, 6 psi burst.

Temperature Limits: -4 to 158°F (-20 to 70°C).

Thermal Effect: 0.036% FS/°C (0.02% FS/°F).

Power Requirements: 10-35 VDC (2-wire).

Output Signal: 4-20 mA (2-wire).

Zero and Span Adjustments: Push-button.

Loop Resistance: 0 to 1250 Ω max.

Current Consumption: 21 mA max.

Electrical Connections: Screw-type terminals.

Process Connections: Male ports on side for 1/8˝, 3/16˝, 1/4˝, 5 mm, 6 mm ID

exible tubing.

Enclosure Rating: NEMA 4X (IP66).

Mounting Orientation: Not sensitive to position.

Size: 5˝ OD (127 mm) x 1.9˝ (48 mm) deep.

Weight: 7.04 oz (200 g).

Agency Approvals: CE.

DWYER INSTRUMENTS, INC.

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

Phone: 219-879-8000

Fax: 219-872-9057

www.dwyer-inst.com

e-mail: [email protected]

5 [127.00]

1 [25.40]

HIGH PRESSURE POR

LOW PRESSURE PORT

1/2 [12.70]

1-43/64

[42.34]

15/64

[5.84]

Two integral tubing connections are provided on the side of the

gage. They are sized to t 1/8˝, 3/16˝, 1/4˝, 5 mm, and 6 mm ID

exible tubing. Be sure the pressure rating of the tubing exceeds that of the operating

ranges.

NOTICE

MOUNTING

Panel Mount:

Provide a 4-9/16˝ diameter opening in panel. Insert gage and secure in place with

provided screws and mounting lugs.

Surface Mount:

Provide three 3/16˝ diameter holes in panel on a 4-1/8˝ diameter bolt circle. Cut an

opening for the terminal block as shown in Figure 2.

ELECTRICAL CONNECTIONS

Electrical connections are made to the terminal block located in the back of the

transmitter. Terminals are marked + and COM (see Figure 3 below).

Wire Length

The maximum wire length connecting the transmitter to the receiver depends on the

on the wire gage and the resistance of the receiver. When calculating loop resistance,

wiring should not contribute more than 10% of the receiver resistance. For runs over

1000´, choose a receiver with greater resistance. When wiring length is less than 100´,

22 AWG wire can be used.

2-Wire Operation

An external power supply delivering 10-35 VDC with minimum current capability of

40 mA DC (per transmitter) must be used to power the control loop. See Figure 4 for

connection of the power supply, transmitter, and receiver. The range of appropriate

receiver load resistance (RL) for the DC power supply voltage available is expressed

by the formula and graph in Figure 5. Shielded two wire cable is recommended for

control loop wiring. If grounding is required, use the negative side of the control loop

after the receiver.

SELECT UNIT OF MEASUREMENT

To select a unit of measurement, press and release the UNITS button to cycle through

the available options. The LCD will display the current selected unit.

Figure 1: Panel mount

Figure 4

Figure 5

Figure 2: Surface mount

Figure 3

[3] HOLES FOR #6 SCRE

EQUALLY SPACED ON

4-1/8 [104.78] B.C.

1-1/2 [38.10]

1 [25.40]

Do not exceed specied supply voltage ratings, as doing so will

result in permanent damage not covered by warranty. This unit is

not designed for 120 or 240 V AC line operation.

CAUTION

1500

1400

1300

1200

1100

1000

900

800

700

600

500

400

300

200

100

Total Receiver Resistance Ω

Maximum Value (1250)

R Max. =

0 5 10 13 15 20 25 30 35 40

Vps–10.0

20mA DC

Operating

Region

SERIES DM

PRESSURE

TRANSMITTER

RECEIVER

POWER

SUPPLY

10-35 VDC

CALIBRATION

To calibrate the transmitter you will need three pieces of equipment:

1. A calibrated pressure source capable of generating a stable pressure value for

the maximum range of the unit under test

2. An instrument capable of validating the calibration pressure

3. An ammeter capable of measuring the current mA output from the unit under test

The transmitter is calibrated using the following procedure.

Preparing for Zero Calibration, Span Calibration, Response Time Calibration, or

Restore Factory Calibration Coefcients

To prepare the unit for zero or span calibration, response time calibration, or to restore

factory calibration coefcients, start by preparing the unit as instructed below:

1. Connect the ammeter and power supply, being careful to observe polarities.

2. Press both the ZERO and UNITS buttons simultaneously for 6 or more seconds,

or until “CAL” is displayed. Release both buttons.

3. The units indicator on the LCD should blink on and off. This indicates the gage

is ready for calibration or restoration of coefcients. The unit’s indicator will blink

for approximately 10 minutes, then stop blinking.

Zero Calibration

• Apply zero pressure to both ports.

• Press the zero button for 3 seconds. Release.

• The zero function will be processed 3 seconds after the button is released.

• The display will read “2Er” and then sequence back to the home display.

Span Calibration

The span calibration function allows the pressure value to be adjusted so that the

currently applied pressure is the maximum congured pressure. This will in turn set

the maximum analog output at the set pressure. It is recommended that the ZERO

function be applied before performing a span calibration.

• Apply the maximum desired pressure to the device.

• Press and hold the UNITS button for 3 seconds.

• The span function will be processed 3 seconds after the span button is released.

• The display will read “SPA” and then sequence back to the home display.

Response Time Calibration

Press both the “ZERO” and “UNITS” buttons simultaneously for 3 seconds to toggle

between fast (0 seconds) and dampened (4 seconds) response. The display will read

FST or SLO to indicate which mode is now selected.

Restore Factory Calibration

To restore the gage’s factory calibration coefcient:

• Press both the “ZERO” and “UNITS” buttons simultaneously for 6 seconds or until

“rSt” is displayed.

• The device will reboot after 5 or 6 seconds.

MAINTENANCE

Upon nal installation of the Series DM, no routine maintenance is required. The

Series DM is not eld serviceable and should be returned if repair is needed. Field

repair should not be attempted and may void warranty.

WARRANTY/RETURN

Refer to “Terms and Conditions of Sale” in our catalog and on our website. Contact

customer service to receive a Return Materials Authorization (RMA) number before

shipping the product back for repair. Be sure to include a brief description of the

problem plus any additional application notes.

This symbol indicates waste electrical products should not be disposed

of with household waste. Please recycle where facilities exist. Check with

your Local Authority or retailer for recycling advice.

For a positive span, apply pressure to the positive “+” port.

NOTICE

MODEL CHART

Model Range Model Range

DM-001

DM-002

DM-003

DM-004

DM-005

DM-007

DM-008

DM-019

DM-201

DM-202

DM-203

0.1 in w.c.

0.25 in w.c.

0.5 in w.c.

1 in w.c.

2 in w.c.

3 in w.c.

5 in w.c.

-0.05-0-0.20 in w.c.

±0.1 in w.c.

±0.25 in w.c.

±0.5 in w.c.

DM-052

DM-053

DM-056

DM-059

DM-252

DM-253

DM-256

DM-259

DM-082

DM-282

30 Pa

60 Pa

250 Pa

1250 Pa

±30 Pa

±60 Pa

±250 Pa

±1250 Pa

6 mm w.c.

±6 mm w.c.

NOTES

__________________________________________________________________________________________________________________________________________

DWYER INSTRUMENTS, INC.

P.O. BOX 373 • MICHIGAN CITY, INDIANA 46360, U.S.A.

Phone: 219-879-8000

Fax: 219-872-9057

www.dwyer-inst.com

e-mail: [email protected]

Ce manuel convient aux modèles suivants

Autres manuels Dwyer Instruments Émetteur

Dwyer Instruments

Dwyer Instruments Magnesense II MS2 Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments Series 616 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 685 Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments Dwyer AVUB Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments DM-2000 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 629 Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 641RM Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments CDT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments CMT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments Magnehelic 605-1 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments CDWP Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments CMT200 Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments 605 Manuel utilisateur

Dwyer Instruments

Dwyer Instruments UL series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments ISDP series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments 626 Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments 608 Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments DSGT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments PROXIMITY Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments AVUL Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments One-Touch 616OT Series Manuel utilisateur

Dwyer Instruments

Dwyer Instruments MS Magnesense Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments 650 Series Instructions d'installation et d'utilisation

Dwyer Instruments

Dwyer Instruments CDT Series Manuel utilisateur

Manuels Émetteur populaires d'autres marques

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuel du propriétaire

Honeywell

Honeywell 5816WMBR Manuel utilisateur

Kamstrup

Kamstrup READy MTU Mode d'emploi

Omega

Omega ZW Series Manuel utilisateur

ABB

ABB Field 264H Mode d’emploi

Alinco

Alinco DJ-V17T Manuel utilisateur

Dejero

Dejero EnGo 3x Manuel utilisateur

Rosemount

Rosemount 4600 Manuel utilisateur

Speaka Professional

Speaka Professional 2342740 Manuel utilisateur

trubomat

trubomat GAB 1000 Manuel utilisateur

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuel utilisateur

Rondish

Rondish UT-11 Manuel utilisateur

MG 10JRE Manuel utilisateur

Burkert

Burkert 8177 Manuel utilisateur

Firetide

Firetide HotPort 3203 Manuel

Tele Radio

Tele Radio T9-02 Manuel utilisateur

Rotronic

Rotronic HygroFlex HF3 Series Manuel utilisateur

Jamara

Jamara FCX6 Pro Tel Manuel utilisateur
