Draytek Vigor2600 Manuel utilisateur

Vigor2600 Series introduction

LED Indicators and

Back Panels

Each of the Vigor2600 series router has different front and rear panels. Before you begin to

install, please take a moment to become more familiar with the LED indicators and rear

panels. The following sections describe the models individually.

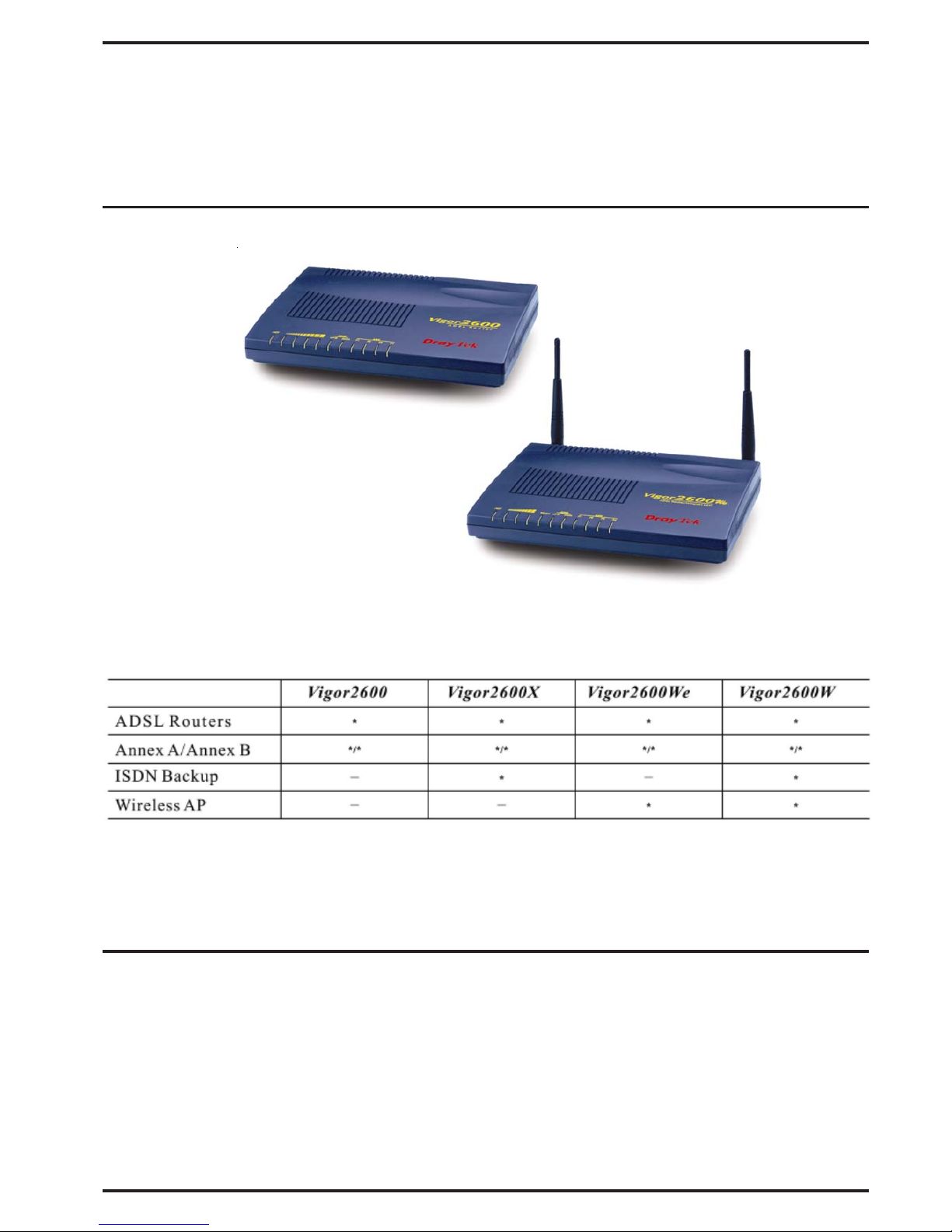

The Vigor2600 series is an Internet access solution for your LAN which not only provides shared web surfing but

countless other value-added features such as security, VPN and multimedia support, all in a reliable one-box

solution.

Vigor2600

Vigor2600X

Vigor2600W

Vigor2600We

Declarations

protected by copyright. No part may be reproduced, transmitted, transcribed, stored

in a retrieval system, or translated into any language without written permission from

the copyright holders.

The following trademarks are used in this document:

. Microsoft is a registered trademark of Microsoft Corp.

. Windows,Windows 95, 98, Me, NT, 2000, XP and Explorer are trademarks of

Microsoft Corp.

. Apple and Mac OS are registered trademarks of Apple Computer Inc.

Other products may be trademarks or registered trademarks of their respective

manufacturers.

Trademarks

Safety Instructions

Warranty

. Read the installation guide thoroughly before you set up the router.

. The router is a complicated electronic unit that may be repaired only be authorized

and qualified personnel. Do not try to open or repair the router yourself.

. Do not place the router in a damp or humid place, e.g. a bathroom.

. The router should be used in a sheltered area, within a temperature range of +5 to +40

Celsius.

. Do not expose the router to direct sunlight or other heat sources. The housing and

electronic components may be damaged by direct sunlight or heat sources.

. Keep the package out of reach of children.

. When you want to dispose of the router, please follow local regulations on

conservation of the environment.

We warrant to the original end user (purchaser) that the router wil be free from any

defects in workmanship or materials for a period of three (3) years from the date of

purchase from the dealer. Please keep your purchase receipt in a safe place as it

serves as proof of date of purchase. During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship

and/or materials, we will, at our discretion, repair or replace the defective products

or components, without charge for either parts or labor, to whatever extent we

deem necessary tore-store the product to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally equivalent product

of equal value, and will be offered solely at our discretion. This warranty will not

apply if the product is modified, misused, tampered with, damaged by an act of God,

or subjected to abnormal working conditions. The warranty does not cover the

bundled or licensed software of other vendors.Defects which do not significantly

affect the usability of the product will not be covered by the warranty.We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

European Community

Be A Registered

Owner

Firmware & Tools

Updates

Hereby, we declare that the router is in compliance with the essential requirements

and other relevant provisions of R&TTE Directive 99/5/EC.

Web registration is preferred. You can register your Vigor router via http://

www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the

address found on the reverse side of the card.

Due to the continuous evolution of DrayTek ADSL & Router technology, all

routers will be regularly upgraded. Please consult theDrayTek web site for more

information on newest firmware, tools and documents.

http://www.draytek.com.tw

Vigor2600 Series Start Guide Quick

Identify your variant

Delivery check

Aim of this

chapter

Quickly connect your router to the Internet

Check your router package for the following items :

The Router

1 printed Quick Start Guide with warranty/ registration card

1 CDincludes detailed User Manual in electronic form, released firmware and

utilities

1 AC/DC power supply adapter (black)

1 Ethernet LAN cable (blue) for connection to a computer or hub

1 ADSL line cable (RJ-11, black)

1 ISDN line cable (RJ-45, black) for Vigor2600X/ Vigor2600W only

2 external antennas for Vigor2600W/ Vigor2600We only

Your router package should contain all these items. If any item is

missing or damaged, contact your dealer or our Customer Service

Department immediately.

The Vigor2600 series all contain Annex A/Annex B models,

please check if the package is suitble for your using.

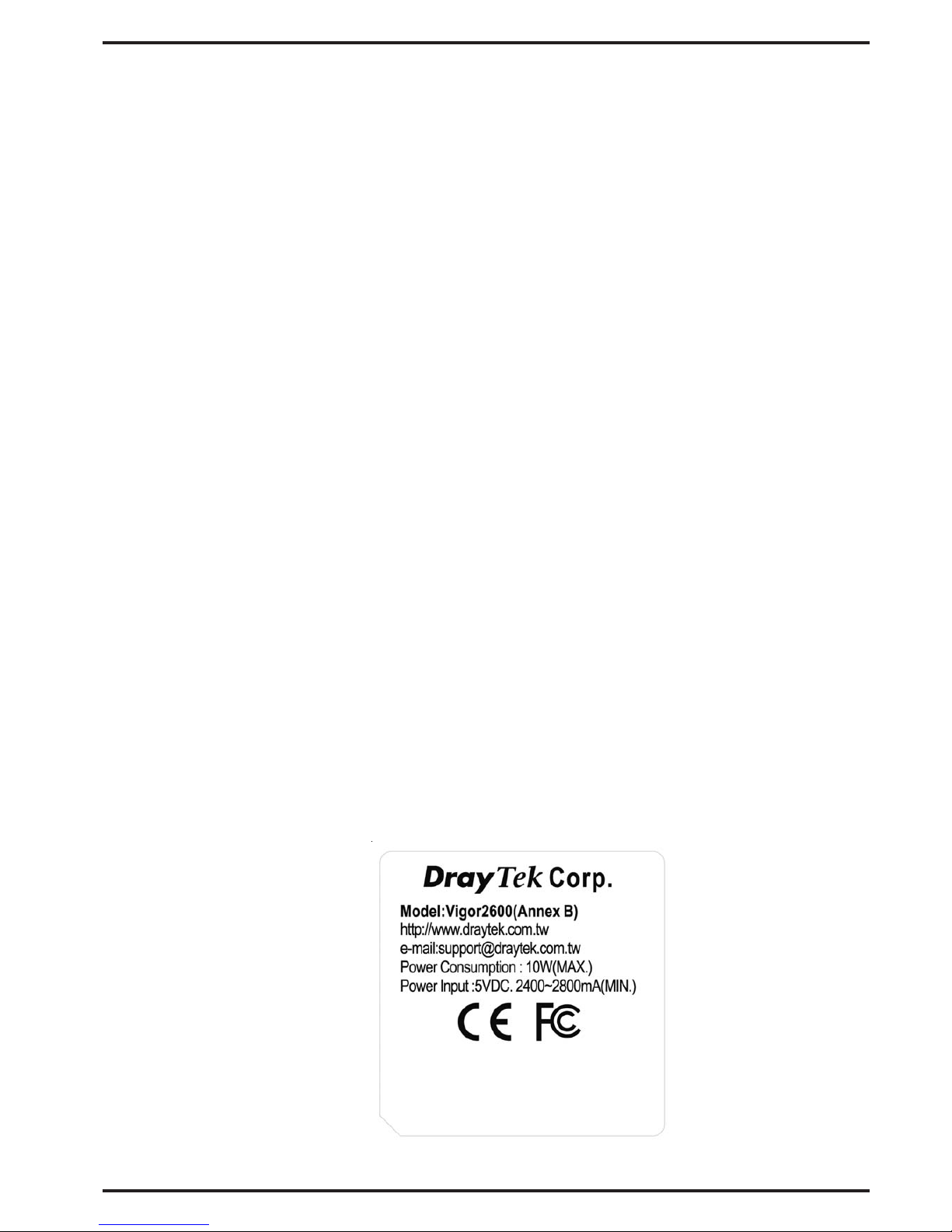

You can get the information from bottom of Vigor2600

series router.

Annex A : connecting to an analog POTS line

Annex B : connecting to a digital ISDN line

What you

need from ISP

DSL Parameters

It should provide at least the following information from ISP :

1. The VPI/VCI of the virtual channel to use on the DSL line

2. Protocol : PPPoE, PPPoA or MPoA (RFC1483/2684)

3. Encapsulation Method : LLC/SNAP or VCMUX

4. Modulation Method : T1.413,G.lite, G.DMT

DSL line

Depending on the variant Vigor2600 series you purchased, the followingDSL

service must be available at your local premisses:

ADSL over POTS [Annex A] :

ADSL service must be enabled on your POTS telephone line.

ADSL over ISDN [Annex B] :

ADSL service must be enabled on your ISDN telephone line.

(Vgior2600 series provides multimode which can automatically detect)

Local networking

To use the Ethernet port(s) you need at least:

One PC with an Ethernet Card installed.

TCP/IP protocol suite

For TCP/IP, your PC can set either static IP or DHCP to ask IP from router. The

default gateway of router is 192.168.1.1. If static IP is chosen, you can set

192.168.1.x for your PC.

A Web browser

Example:

VPI/VCI = 0/33

Protocol = PPPoA

Encapsulation Method = VCMUX

Modulation Method = G.DMT

Username/Password

Only for PPPoE/PPPoA mode users

Fixed IP Address/ Subnet Mask/ Gateway IP Address

Only for MPoAmode users. Some ISP will use DHCP method to provide IP

address for MPoA mode users, then users do not need to know the fixed IP

address.

If you do not know these information in detail, please contact your ISP to get

these informations.

What you need

in your side
