Draytek Vigor2600Ge Manuel de référence

Vigor2600Ge introduction

The Vigor2600Ge WLAN ADSL router is an Internet access solution for your LAN which not only provides you

with shared web surfing but also countless other value-added features such as Firewall / Security, VPN, multimedia

support, and 54Mbps 802.11g Wireless LAN and all in a reliable one-box solution.

Annex A / Annex B

ISDN Backup

Wireless AP

ADSL Router *

* / *

Vigor2600Ge

Brief Overview

LED Indicators Descriptions

Descriptions

Back Panels

ACT (Activity) Blink when power is supplied to the router and the router is running normally.

P1, P2,

P3, P4

PWR Only the power adapter comes with the package can be connected to the PWR.

These switch ports should be connected to your local PCs.

P1, P2, P3, P4

The restore default settings : While the router is running (ACT LED blinking),

press the button and hold for more than five seconds. The ACT LED begins to

blink rapidly, then release the button. The router will restart with the factory

default configuration.

Factory Reset

LAN

These indicators are dual-colour LEDs:

- OFF indicates that no device is connected to the LAN port.

- Yellow indicates that the port is connecting to a 10Mbps device.

- Green indicates that the port is connecting to a 100Mbps.

- BLINKING indicates that Ethernet packets are passing through the port.

ADSL To connect to the ADSL-enabled telephone line.

ON when the wireless LAN is ready.

ADSL LINE

DATA

ON when the ADSL network is showtime.

Blinking indicates the DSL protocols start hankshaking.

The light will remain still when data transmission is available.

WLAN

LED Indicators and

Back Panels

Before you begin to install, please take a moment to become more familiar with the LED

indicators and rear panels. The following section describes the model.

Vigor2600Ge

There are three LEDs below the bandwidth utilization bar. From left to right,

they indicate bandwidth utilization, from low to high.

Declarations

protected by copyright.No part may be reproduced, transmitted, transcribed, stored

in a retrieval system, or translated into any language without written permission from

the copyright holders.

The following trademarks are used in this document:

. Microsoft is a registered trademark of Microsoft Corp.

. Windows,Windows 95, 98, Me, NT, 2000, XP and Explorer are trademarks of

Microsoft Corp.

. Apple and Mac OS are registered trademarks of Apple Computer Inc.

Other products may be trademarks or registered trademarks of their respective

manufacturers.

Trademarks

Safety Instructions

Warranty

. Read the installation guide thoroughly before you set up the router.

. The router is a complicated electronic unit that may be repaired only be authorized

and qualified personnel.Do not try to open or repair the router yourself.

. Do not place the router in a damp or humid place, e.g. a bathroom.

. The router should be used in a sheltered area, within a temperature range of +5 to +40

Celsius.

. Do not expose the router to direct sunlight or other heat sources. The housing and

electronic components may be damaged by direct sunlight or heat sources.

. Keep the package out of reach of children.

. When you want to dispose of the router, please follow local regulations on

conservation of the environment.

We warrant to the original end user (purchaser) that the router wil be free from any

defects in workmanship or materials for a period of three (3) years from the date of

purchase from the dealer. Please keep your purchase receipt in a safe place as it

serves as proof of date of purchase.During the warranty period, and upon proof of

purchase, should the product have indications of failure due to faulty workmanship

and/or materials, we will, at our discretion, repair or replace the defective products

or components, without charge for either parts or labor, to whatever extent we

deem necessary tore-store the product to proper operating condition. Any

replacement will consist of a new or re-manufactured functionally equivalent product

of equal value, and will be offered solely at our discretion. This warranty will not

apply if the product is modified, misused, tampered with, damaged by an act of God,

or subjected to abnormal working conditions. The warranty does not cover the

bundled or licensed software of other vendors. Defects which do not significantly

affect the usability of the product will not be covered by the warranty.We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any person of

such revision or changes.

European Community

Be A Registered

Owner

Firmware & Tools

Updates

Hereby, we declare that the router is in compliance with the essential requirements

and other relevant provisions of R&TTE Directive 99/5/EC. The Vigor 2600Ge is

designed for theWLAN 2.4Ghz network throughout EC region, Switzerland, and

the restrictions of France.

Web registration is preferred. You can register your Vigor router via http://

www.draytek.com.tw . Alternatively, fill in the registration card and mail it to the

address found on the reverse side of the card.

Due to the continuous evolution ofDrayTek ADSL & Router technology, all

routers will be regularly upgraded. Please consult the DrayTek web site for more

information on newest firmware, tools and documents.

http://www.draytek.com.tw

Vigor2600Ge Quick Start Guide

Identify your variant

Delivery check

Aim of this

chapter

Quickly connect your router to the Internet

Check your router package for the following items :

The Router

1 printed Quick StartGuide with warranty/ registration card

1 CDincludes detailed User Manual in electronic form, released firmware and

utilities

1AC power supply adapter (black)

1 Ethernet LAN cable (blue) for connection to a computer or hub

1ADSL line cable (RJ-11 to RJ-45 for Switzerland and theNetherlands only)

(RJ-11 to RJ-11 for other Annex A countries)

(RJ-45 to RJ-45 for Annex B countries)

1Detachable antenna

Please read page 6,7

Your router package should contain all these items. If any item is

missing or damaged, contact your dealer or our Customer Service

Department immediately.

The Vigor2600Ge contain Annex A/Annex B models,

please check if the package is suitble for your use by checking the

information from bottom of Vigor2600Ge router.

AnnexA: is for connecting to an analog POTS line

Annex B : is for connecting to a digital ISDN line

UK-type power adapter

EU-type power adapter

AU/NZ-type power adapter

USA/Taiwan-type power

adapter

Manual

Package Contains

RJ-11 to RJ-11(Annex A)

RJ-11 to RJ-45(Annex B)

Dutch/Swiss User

RJ-45(Enternet)

RJ-45 to RJ-45

(Annex B)

Filter/Splitter(Optional) Antenna

Internet Cofiguration

Requirements

DSL Parameters

The following DSL parameters are required from your ISP :

1. The VPI/VCI of the virtual channel to use on the DSL line

2. Protocol : PPPoE, PPPoA or MPoA (RFC1483/2684)

3. Encapsulation Method : LLC/SNAP or VCMUX

4. Modulation Method : T1.413,G.lite, G.dmt

DSL line

Depending on the variant Vigor2600Ge you purchased, the followingDSL service

must be available at your local premisses:

For Annex A : ADSL service must be enabled on your POTS telephone line.

For Annex B : ADSL service must be enabled on your ISDN telephone line.

(Vgior2600Ge provides Multimode which can automatically detect)

Local networking

To use the Ethernet port(s) you need at least:

One PC with an Ethernet Card installed.

One ethernet cat-5 UTP cable.

To use the Wireless LAN you need at least:

One PC with a Wireless LAN adaptor installed.

TCP/IP protocol suite

For TCP/IP, your PC can either be set to a static IP, or to get an IP automatically

(from a DHCP server).

The default gateway IP address of the router is 192.168.1.1. If static IP is chosen,

set your PCs IP address to 192.168.1.x, where xis any number in the range 2-254

inclusive.

Example:

VPI/VCI = 0/33

Protocol = PPPoA

Encapsulation Method = VCMUX

Modulation Method =G.dmt

Username/Password

Only for PPPoE/PPPoA mode users

Fixed IP Address/ Subnet Mask/ Gateway IP Address

Some ISP will use DHCP method to provide IP address for MPoA mode users,

then users do not need to know the fixed IP address.

If you do not know these information in detail, please contact your ISP to get

these informations.

How to Connect

the Router

Install Router Tools This tool which provides “Smart StartWizard” Firmware Upgrade Program and

TFTP client is in the enclosed CD. It supportsWindows, Mac OS 8/9 and Mac

OS X. Moreover, it provides “Syslog Tool” for Windows system.

Turn on your router Once all previous steps are completed, turn on your router. After Power is on,

theACT LEDwill blink and corresponding LAN port LED will light.

If the LEDs do not light normally, please refer to section A, “Trouble Shooting” for

furthur information.

Connect the blue Ethernet cable between Vigor 2600Ge ports P1/P2/P3/P4 and

any wired PCs.

Connect ADSL port to your ADSL-enabled telephone line. Remember that a

Line Filter should be used for any telephones or fax machines also connected to

theADSL telephone line.

Connect AC Power adaptor to Power socket.

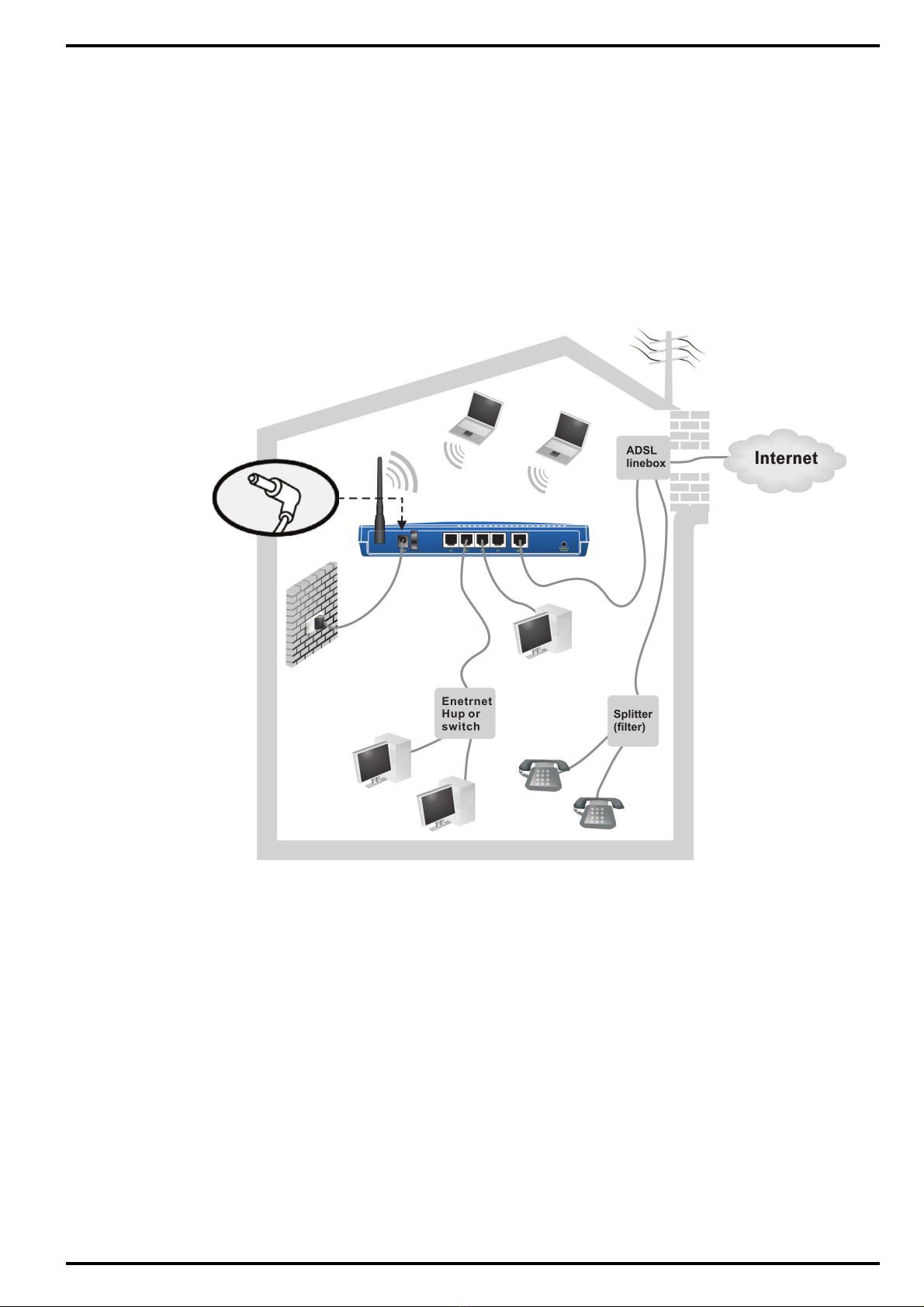

Ethernet port (between router and PC), DSL port, and Power port as below:

The wire installation
