Model 417

Owner’s Guide

Limited Lifetime

Consumer Warranty

Directed Electronics, Inc. ("DEI®") promises to the original purchaser to repair or

replace with a comparable reconditioned model any DEI unit (hereafter the "unit"),

excluding without limitation the siren, the remote transmitters, the associated

sensors and accessories, which proves to be defective in workmanship or material

under reasonable use during the lifetime of the vehicle provided the following con-

ditions are met: the unit was professionally installed and serviced by an authorized

DEI dealer; the unit will be professionally reinstalled in the vehicle in which it was

originally installed by an authorized DEI dealer; and the unit is returned to DEI, ship-

ping prepaid with a legible copy of the bill of sale or other dated proof of purchase

bearing the following information: consumer's name, telephone number and address;

the authorized dealers name, telephone number and address; complete product

description, including accessories; the year, make and model of the vehicle; vehicle

license number and vehicle identification number. All components other than the

unit, including without limitation the siren, the remote transmitters and the associ-

ated sensors and accessories, carry a one-year warranty from the date of purchase of

the same. This warranty is non-transferable and is automatically void if: the original

purchaser has not completed the warranty card and mailed it within ten (10) days of

the date of purchase to the address listed on the card; the unit's date code or serial

number is defaced, missing or altered; the unit has been modified or used in a

manner contrary to its intended purpose; the unit has been damaged by accident,

unreasonable use, neglect, improper service, installation or other causes not arising

out of defects in materials or construction. The warranty does not cover damage to

the unit caused by installation or removal of the unit. DEI, in its sole discretion, will

determine what constitutes excessive damage and may refuse the return of any unit

with excessive damage. TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WAR-

RANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED

WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE

EXPRESSLY EXCLUDED; AND DEI NEITHER ASSUMES NOR AUTHORIZES ANY PERSON

OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY IN CONNEC-

TION WITH ITS PRODUCTS. DEI DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY

FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS

OR INSTALLERS. DEI SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS

AGAINST POSSIBLE THEFT. DEI IS NOT OFFERING A GUARANTEE OR INSURANCE

AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CON-

TENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER,

INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VAN-

DALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE,

REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF

ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUB-

SIDIARY, THE PROPER VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF

CALIFORNIA. CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL

APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM

AGAINST DEI SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DEI DEALER'S PUR-

CHASE PRICE OF THE UNIT. DEI SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES

WHATSOEVER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,

INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF EARNINGS,

COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITH-

STANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO

REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do

not allow limitations on how long an implied warranty will last or the exclusion or

limitation of incidental or consequential damages. This warranty gives you specific

legal rights and you may also have other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your

authorized DEI dealer for details of the plan or call DEI Customer Service at 1-800-

876-0800. DEI security systems, including this unit, are deterrents against possible

theft. DEI is not offering a guarantee or insurance against vandalism, damage or theft

of the automobile, its parts or contents; and hereby expressly disclaims any liability

whatsoever, including without limitation, liability for theft, damage and/or vandalism.

DEI does not and has not authorized any person or entity to create for it any other

obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of alarm installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

Table of Contents

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disarming Without a Transmitter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Panic Mode (Optional). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Trunk Access While the System is Armed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Remote Valet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Nuisance Prevention® Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Arming Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Security and Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Glossary of Terms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

What is Included

■A control module

■A dual-stage shock sensor (on-board the control module)

■A soft chirp, six-tone siren

■A red status LED indicator light

■A push-button Valet switch

■A starter interrupt relay

Important Information

Congratulations on the purchase of your state-of-the-art vehicle

security system. This system has been designed to provide years of

trouble-free operation. This system requires no specific mainte-

nance. By carefully reading this owner's guide, you will maximize

the use of this system and its features.

Your warranty reply card must be returned. If the warranty reply

card is not returned, you do not have a warranty. It is also neces-

sary to keep your receipt, which reflects that the product was

installed by an authorized dealer. Make sure that you receive the

warranty card from your dealer.

Your Warranty

This device complies with Part 15 of FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause

harmful interference, and (2) This device must accept any interfer-

ence received, including interference that may cause undesired

operation.

Caution: Changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to

operate this device.

Using Your System

You can arm the security system by locking the vehicle doors with

your factory keyless entry transmitter. When the system arms, you

will hear a short siren sound (chirp) and the parking lights will

flash once. Once armed, the status LED will flash once per second

to indicate that your vehicle is being actively protected. If you

hear a second chirp after arming and notice that the status LED is

flashing in a grouped pattern, this signals Bypass Notification,

which is described in the Diagnostics section of this manual.

NOTE: If the ignition is turned on within 60 seconds of arming the secu-

rity system, the system will automatically disarm.

Arming

FCC/ID Notice

Arming the security system protects your vehicle in the

following ways:

■Light impacts trigger a Warn Away®Response, causing the

siren to chirp and the parking lights to flash for a few

seconds.

■Heavy impacts trip a triggered sequence, causing the siren to

sound continuously and the parking lights to flash for either

a 30 or 60-second period. (See Programming Options.)

■If a door is opened, the siren immediately starts chirping and

the parking lights instantly start flashing. Three seconds

later, the siren output changes to a continuous blast. This

two-stage progressive response allows you time to disarm the

system with your transmitter if a door is inadvertently

opened while the system is armed. This feature can also be

programmed for delayed response, which allows you 15 sec-

onds to disarm the system before the full trigger activates.

(See Programming Options)

■The starter interrupt relay prevents the vehicle’s starter

from cranking.

You can disarm the security system by unlocking the vehicle doors

with your transmitter. When the system disarms, two chirps are

emitted, the parking lights flash twice, and the LED stops

flashing. The siren chirping either four or five times when

disarming indicates Tamper Alert. (See Diagnostics section for

more details.)

Disarming

If your transmitter is lost or damaged, you can manually disarm

your security system.

To disarm using the Valet switch:

To disarm the security system without a transmitter, you must

have the ignition key and know where the Valet switch is located.

Be sure to check with your installer at the time of installation for

both the location and the preset response (1-5 presses) of the

Valet switch.

Turn the ignition key on and press

the Valet switch the preset number

of times within 15 seconds. If the

system does not disarm, you may

have waited too long to press the

Valet switch; turn the ignition off

and repeat the process.

IMPORTANT! The Valet switch can be programmed to respond to 1-5

presses for the disarm function. You must check with the installer to

verify the programming for your individual unit.

LOCATION OF VALET SWITCH______________________________

To disarm using the vehicle key:

In addition to being able to disarm the security system using the

Valet switch, your system may have been programmed so that it

can be disarmed whenever the vehicle key is used to open the dri-

ver’s or passenger’s door.

DRW-35

Disarming Without a Transmitter

NOTE: This feature is only available if your system has been programmed

with the Level I security setting. (See Glossary section of this manual for

Level I security description.) Consult with your installer to determine if

your vehicle has been programmed for Level I security.

To disarm the security system with the vehicle’s door key:

1. Insert the key into one of the door key cylinders.

2. Turn the key until the vehicle door(s) unlocks. The siren

will chirp to confirm that the security system has been

disarmed.

Panic Mode is a programmable option of your security system. (See

Programming Options section of this guide.) This is because most

original equipment from the manufacturer (OEM) keyless entry

systems already have a remote-activated panic feature. In order for

Panic Mode to be operational, the siren or horn must be connected

to the security system.

If you are threatened in or near your vehicle, you can attract

attention by activating Panic Mode. Press the lock button on your

factory keyless entry transmitter twice within three seconds

to sound the siren and flash the parking lights for 30 seconds. To

stop Panic Mode at any time, press the unlock button on your

transmitter.

NOTE: Panic Mode is not available with all factory keyless entry

systems, due to the fact that the lock button may not be triggered a

second time once the vehicle doors have been locked with the factory

transmitter.

Panic Mode (Optional)

Trunk access with your transmitter:

While the system is armed, you can open the trunk by pressing the

trunk release button on your transmitter without triggering the

alarm. Only the trunk sensors are bypassed while the rest of the

security system remains armed. Normal trunk monitoring will

resume 5 seconds after the trunk has been closed.

Trunk access with your key:

If the system is programmed for Level I security (see Glossary

section of this manual for a description of Level I security), you

may also open the trunk with your vehicle key while the system is

armed, without triggering the alarm. Normal trunk monitoring will

resume 5 seconds after the trunk has been closed. Consult with

your installer to determine if your vehicle has been programmed for

Level I security.

NOTE: This feature is not available for Buick LeSabres, Oldsmobile

Auroras, Pontiac Bonnevilles and Jeep Grand Cherokees. The alarm will

trigger if you open the trunk of one of these vehicles with the key while

the system is armed.

Valet Mode is a feature that prevents your security system from

arming or triggering either automatically or with your factory

keyless entry transmitter. In Valet Mode, the security system will

not arm, even with the remote transmitter, but all convenience

functions, such as door locks, trunk release, etc., will function nor-

mally. Valet Mode is useful when washing or servicing your vehicle.

Valet Mode

Trunk Access While the System Is Armed

Table des matières

Autres manuels Directed Electronics Alarme de voiture

Directed Electronics

Directed Electronics Python 450 ESP Manuel utilisateur

Directed Electronics

Directed Electronics MERLIN 2000 Manuel utilisateur

Directed Electronics

Directed Electronics Avital 3200 Manuel utilisateur

Directed Electronics

Directed Electronics G436S 5220XS Manuel utilisateur

Directed Electronics

Directed Electronics G312R Guide de démarrage rapide

Directed Electronics

Directed Electronics Security System and Convenience 125xv Manuel utilisateur

Directed Electronics

Directed Electronics Auto mate 552 Manuel utilisateur

Directed Electronics

Directed Electronics Valet 561T Manuel utilisateur

Directed Electronics

Directed Electronics 736T Manuel utilisateur

Directed Electronics

Directed Electronics Auto Mate AMX 8.5 Manuel utilisateur

Directed Electronics

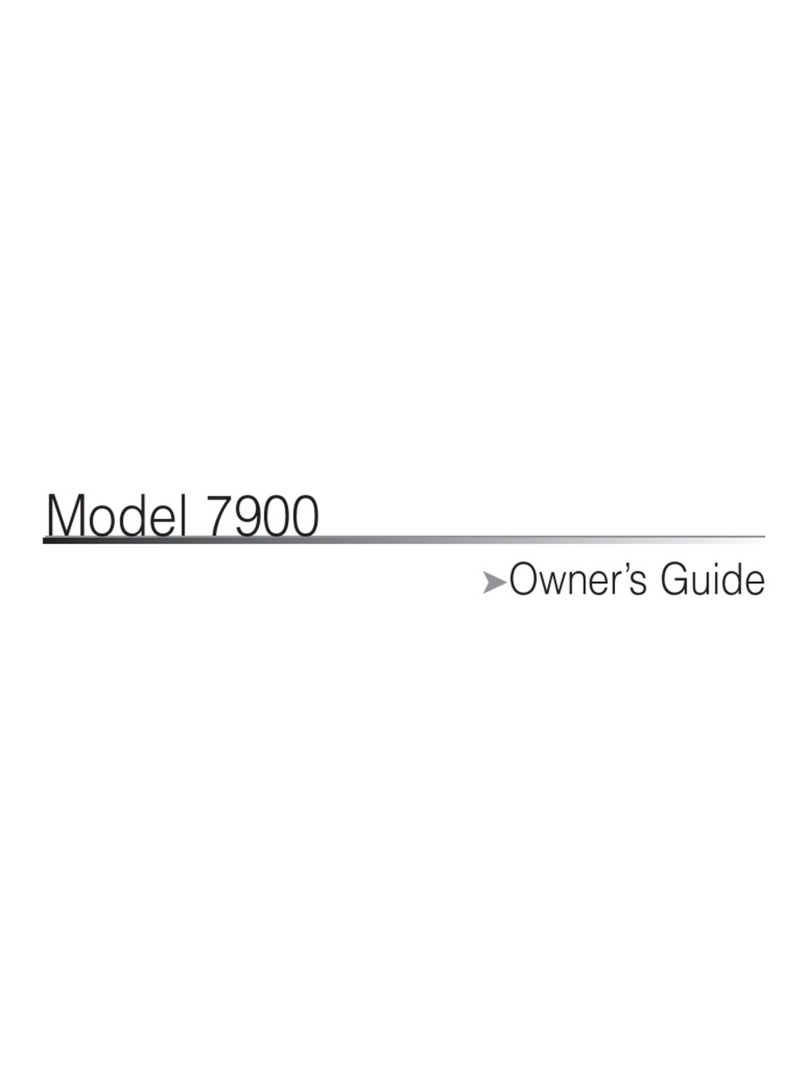

Directed Electronics 7900 Manuel utilisateur

Directed Electronics

Directed Electronics 625 Manuel utilisateur

Directed Electronics

Directed Electronics 730T Manuel utilisateur

Directed Electronics

Directed Electronics 2100 Manuel utilisateur

Directed Electronics

Directed Electronics 690XV Manuel utilisateur

Directed Electronics

Directed Electronics 556U Manuel utilisateur

Directed Electronics

Directed Electronics VIPER 5701 Manuel utilisateur

Directed Electronics

Directed Electronics Python 880XP Manuel utilisateur

Directed Electronics

Directed Electronics Viper 220MAX Manuel utilisateur

Directed Electronics

Directed Electronics Python 3000 ESP Manuel utilisateur

Directed Electronics

Directed Electronics Hurricane 3 Manuel utilisateur

Directed Electronics

Directed Electronics 2000 MAX Manuel utilisateur

Directed Electronics

Directed Electronics Avital 3300 Manuel utilisateur

Directed Electronics

Directed Electronics 436 Series Manuel utilisateur

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
