Avital 3200

Owner's Guide

Limited Lifetime

Consumer Warranty

For a period of one calendar year from the date of purchase of this auto-security

device, Directed Electronics, Inc. promises to the ORIGINAL PURCHASER to repair or

replace (with a comparable reconditioned model), free of cost, any electronic control

module which proves to be defective in workmanship or material under normal use,

SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PROFESSIONAL

AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS ORIGINALLY

INSTALLED. If warranty service is necessary you must have a clear copy of your sales

receipt containing all of the information shown on the following page.

After the first calendar year, from the date of purchase of this auto-security device,

Directed Electronics, Inc., promises to the ORIGINAL PURCHASER to repair or replace

(with a comparable reconditioned model) any electronic control module which proves

to be defective in workmanship or material under normal use FOR A CHARGE OF

$45.00, SO LONG AS THE SYSTEM WAS SOLD, INSTALLED, AND SERVICED BY A PRO-

FESSIONAL AUTO INSTALLER, AND REMAINS IN THE CAR IN WHICH THE SYSTEM WAS

ORIGINALLY INSTALLED. If warranty service is necessary you must have a clear copy

of your sales receipt containing all of the information shown on the following page.

This warranty contains the entire agreement relating to warranty and supersedes all

previous and contemporaneous representations or understandings, whether written or

oral. IN ANY EVENT, DEI IS NOT LIABLE FOR THE THEFT OF THE VEHICLE AND/OR ITS

CONTENTS.

This warranty is void if the product has been damaged by accident, unreasonable use,

neglect, improper service or other causes not arising out of defects in materials or

construction. This warranty is nontransferable and does not apply to any unit that

has been modified or used in a manner contrary to its intended purpose and does not

cover batteries. The unit in question must be returned to the manufacturer, postage

prepaid. This warranty does not cover labor costs for the removal, diagnosis, trou-

bleshooting or reinstallation of the unit. For service on an out-of-warranty product a

flat rate fee by model is charged. Contact your authorized dealer to obtain the ser-

vice charge for your unit.

These systems are a deterrent against possible theft. Directed Electronics, Inc. is not

offering a guarantee or insuring against the theft of the automobile or its contents

and disclaims any liability for the theft of the vehicle and/or its contents. Directed

Electronics does not authorize any person to create for it any other obligation or lia-

bility in connection with this security system.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ANY AND ALL WARRANTIES ARE EXCLUD-

ED BY THE MANUFACTURER AND EACH ENTITY PARTICIPATING IN THE STREAM OF COM-

MERCE THEREWITH. THIS EXCLUSION INCLUDES BUT IS NOT LIMITED TO THE EXCLU-

SION OF ANY AND ALL WARRANTY OF MERCHANTABILITY AND/OR ANY AND ALL WAR-

RANTY OF FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF

NON-INFRINGEMENT OF PATENTS, IN THE UNITED STATES OF AMERICA AND/OR

ABROAD. NEITHER THE MANUFACTURER OR ANY ENTITIES CONNECTED THEREWITH

SHALL BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT

NOT LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING,

REPAIR, REPLACEMENT, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL

LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITHSTANDING THE

ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR

THE CONTROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or

consequential damages. This warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT NOTE:

This product warranty is automatically void if its date code or serial number is

defaced, missing, or altered. This warranty will not be valid unless you have com-

pleted the warranty card and mailed it to Directed Electronics, Inc. within 10 days

after purchase to the address listed on the warranty registration card.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of system installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

Table of Contents

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning! Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Locking/Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Unlocking/Disarming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Disabling the Optional Starter Kill Without a Transmitter . . . . . . . . . . . . . . . . . 9

Valet®Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Remote Start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Valet®Take-Over. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Timer Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Starter Anti-Grind Circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Disabling the Remote Start System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Stealth Coding™Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Rapid Resume Logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Standard Configuration

What is Included

■The control module

■An HF Plus receiver/antenna

■A pair of four-button transmitters

■The red status LED indicator light

■A push-button Valet®switch

■Your warranty registration

■A shut-down toggle switch

Important Information

Congratulations on the purchase of your remote start keyless entry

system. Due to the complexity of this system, it must be installed

by an authorized dealer only. Installation of this product by any-

one other than an authorized dealer voids the warranty. All deal-

ers are provided with a preprinted dealer certificate to verify that

they are authorized.

By carefully reading this Owner's Guide prior to using your system,

you will maximize the use of this system and its features.

The system requires no specific maintenance. Your remote is pow-

ered by a small, lightweight 3-volt lithium battery that will last

approximately one year under normal use. When the battery begins

System Maintenance

G3200 7-01.qxd 8/7/2001 8:28 AM Page 3

to weaken, operating range will be reduced and the LED on the

remote will dim.

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

This device complies with Part 15 of FCC rules. Operation is subject

to the following conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference re-

ceived, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to oper-

ate this device.

This product is designed for fuel injected, automatic transmission

vehicles only. Use of this product in a standard transmission vehi-

cle is dangerous and contrary to the product's intended use.

Caution

FCC/ID Notice

Your Warranty

G3200 7-01.qxd 8/7/2001 8:28 AM Page 4

Transmitter Functions

The receiver uses a computer-based learn routine to learn the

transmitter buttons. This makes it possible to assign any specific

transmitter button, or combination of buttons, to any receiver

function. The transmitter initially comes programmed with the

Standard Configuration, but may also be customized by an autho-

rized dealer. The transmitter buttons indicated in all of the

instructions in this manual correspond to a Standard Configuration

transmitter.

Button

The locking/arming function is controlled by pressing on the

transmitter for one second.

Button

The unlocking/disarming function is controlled by pressing on

the transmitter for one second.

Button

Silent Mode™and an optional auxiliary function are controlled

by pressing . Silent Mode works by pressing for less than

one second. An optional auxiliary function, such as

trunk release, is controlled by pressing and holding for

1.5 seconds.

The auxiliary output controls _____________________________.

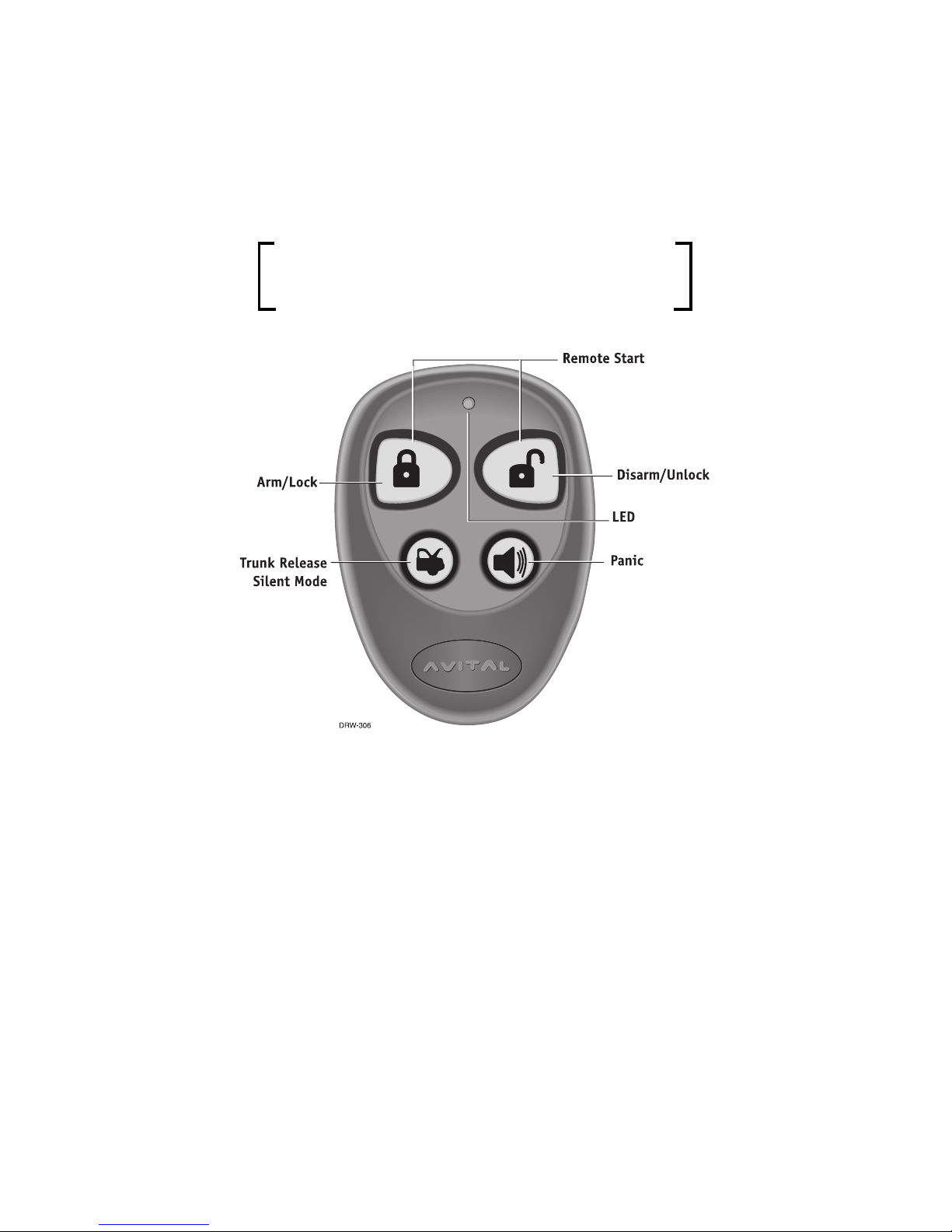

Standard Configuration

Button

The panic function is controlled by pressing and holding for 1

second.

and Buttons

The remote start function of your system is controlled by pressing

these buttons simultaneously.

Using Your System

The following safety warnings must be observed at all times:

■Due to the complexity of this system, installation of this

product must only be performed by an authorized DEI dealer.

■When properly installed, this system can start the vehicle via

a command signal from the remote control transmitter.

Therefore, never operate the system in an enclosed area or

partially enclosed area without ventilation (such as a garage).

When parking in an enclosed or partially enclosed area or

when having the vehicle serviced, the remote start system

must be disabled using the installed toggle switch. It is the

user's sole responsibility to properly handle and keep out of

reach from children all remote control transmitters to assure that

the system does not unintentionally remote start the vehicle.

Warning! Safety First

THE USER MUST INSTALL A CARBON MONOXIDE DETECTOR

IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.

ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE

ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE

AREA MUST AT ALL TIMES REMAIN CLOSED. These precau-

tions are the sole responsibility of the user.

■Use of this product in a manner contrary to its intended mode

of operation may result in property damage, personal injury,

or death. (1) Never remotely start the vehicle with the vehi-

cle in gear, and (2) Never remotely start the vehicle with the

keys in the ignition. The user must also have the neutral safe-

ty feature of the vehicle periodically checked, wherein the

vehicle must not remotely start while the car is in gear. This

testing should be performed by an authorized DEI dealer in

accordance with the Safety Check outlined in the product

installation guide. If the vehicle starts in gear, cease remote

start operation immediately and consult with the authorized

DEI dealer to fix the problem.

■After the remote start module has been installed, contact your

authorized dealer to have him or her test the remote start

module by performing the Safety Check outlined in the prod-

uct installation guide. If the vehicle starts when performing

the Neutral Safety Shutdown Circuit test, the remote start unit

has not been properly installed. The remote start module must

be removed or the installer must properly reinstall the remote

start system so that the vehicle does not start in gear. All

installations must be performed by an authorized DEI dealer.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE

Table des matières

Autres manuels Directed Electronics Alarme de voiture

Directed Electronics

Directed Electronics Python 450 ESP Manuel utilisateur

Directed Electronics

Directed Electronics 592 Manuel utilisateur

Directed Electronics

Directed Electronics Viper 350HV Manuel utilisateur

Directed Electronics

Directed Electronics VIPER 1000 Manuel utilisateur

Directed Electronics

Directed Electronics Security System and Convenience 125xv Manuel utilisateur

Directed Electronics

Directed Electronics WASP 718W Manuel utilisateur

Directed Electronics

Directed Electronics VIPER 3203 Manuel utilisateur

Directed Electronics

Directed Electronics Viper 4704 Manuel utilisateur

Directed Electronics

Directed Electronics Matrix 1 Manuel utilisateur

Directed Electronics

Directed Electronics Python 990 Manuel utilisateur

Directed Electronics

Directed Electronics Concept 650 Manuel utilisateur

Directed Electronics

Directed Electronics 591XV Manuel utilisateur

Directed Electronics

Directed Electronics AdvantGuard 5 Manuel utilisateur

Directed Electronics

Directed Electronics PYTHON N426P Manuel utilisateur

Directed Electronics

Directed Electronics 553S Manuel utilisateur

Directed Electronics

Directed Electronics Viper 5904 Manuel utilisateur

Directed Electronics

Directed Electronics 871XP Manuel utilisateur

Directed Electronics

Directed Electronics PYTHON 333 Manuel utilisateur

Directed Electronics

Directed Electronics Python 323 Manuel utilisateur

Directed Electronics

Directed Electronics Clifford 120XV Manuel utilisateur

Directed Electronics

Directed Electronics 690XV Manuel utilisateur

Directed Electronics

Directed Electronics Avital 2300 Manuel utilisateur

Directed Electronics

Directed Electronics Car Alarm Manuel utilisateur

Directed Electronics

Directed Electronics G322R Guide de démarrage rapide

Manuels Alarme de voiture populaires d'autres marques

Clifford

Clifford 3606X Manuel utilisateur

Ultra Start

Ultra Start 2500M SERIES Manuel utilisateur

Ultra Start

Ultra Start 650 Series Manuel utilisateur

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuel utilisateur

Sparkrite

Sparkrite SRA8 Manuel utilisateur

Viper

Viper 4708V Manuel utilisateur

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuel

Falcon

Falcon Predator XL3 Guide de l'utilisateur

Audiovox

Audiovox Auto Security XR91 Mode d'emploi

Clifford

Clifford Sabre II Manuel utilisateur

CrimeStopper

CrimeStopper CS-8717 Guide de démarrage rapide

Ultra Start

Ultra Start 450 SERIES Manuel utilisateur

Scytek electronic

Scytek electronic Vectra X3 Manuel utilisateur

Excalibur

Excalibur AL-1860-EDPB Manuel utilisateur

Clifford

Clifford CYBER 2 Manuel utilisateur

Gemini

Gemini 7057 Manuel utilisateur

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuel utilisateur

Magicar

Magicar FAI-440 Manuel utilisateur
