Digitus DS-45303 Manuel utilisateur

4K HDMI Switch, 4x1 with PIP

Manual

DS-45303

1.0Introduction

The HDMI Switcher allows you to switch easily from four HDMI-enabled

sources to one HDMI display. The HDMI switch fully supports HDMI device

connections, as well as Dolby Digital True HD, DTS-HD high definition audio

formats, and display resolutions up to 4Kx2K to ensure a high quality audio

and video experience. For the additional benefit, the switches have a feature of

PIP (Picture in Picture) function which enables you to share up to four videos

on the same screen and choose the video source which you want to display

directly via the remote control.

2.0 Feature

Support HDMI Ultra HD

Support 3.0Gbps/300MHz per channel bandwidth

Video resolutions up to:

4Kx2K@30Hz / 1080p@120Hz / 1080p 3D @60Hz

CEC Pass-through

PIP (Picture in Picture) mode for easy source selection.

(This can only be activated under 1080p resolution)

Automatic port selection: Enable the most recently activated video source

to be displayed automatically.

Manual port selection: Enable to select manually to the HDMI source with

easy-to-use panel button.

IR Remote control: Enable to control the HDMI Sources at 5-8m away from

the switch

3.0 Specification

Input DDC Signal 5 volts p-p (TTL)

Maximum Single Link Range 4Kx2K@30Hz

Output Video HDMI1.4b

Vertical Frequency Range 30/50/60/120Hz

Video Amplifier Bandwidth 3.0Gbps/300MHz

Interlaced(50&60Hz) 480i,576i,1080i

Progressive(50&60Hz) 480p,576p,720p,1080p,4Kx2K@30Hz

Size(L-W-H) 81x58x18mm

N.W.(g) 55g

Operating Temperature 0 ℃to +70℃

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10℃to +80℃

Storage Humidity 5% to 90 % RH (no condensation)

Power Consumption (Max) 5W

Note: Specification is subject to change without notice

4.0 Package Content

Main Unit

Remote Control

IR Extender Receiver

Power Adapter

User Manual

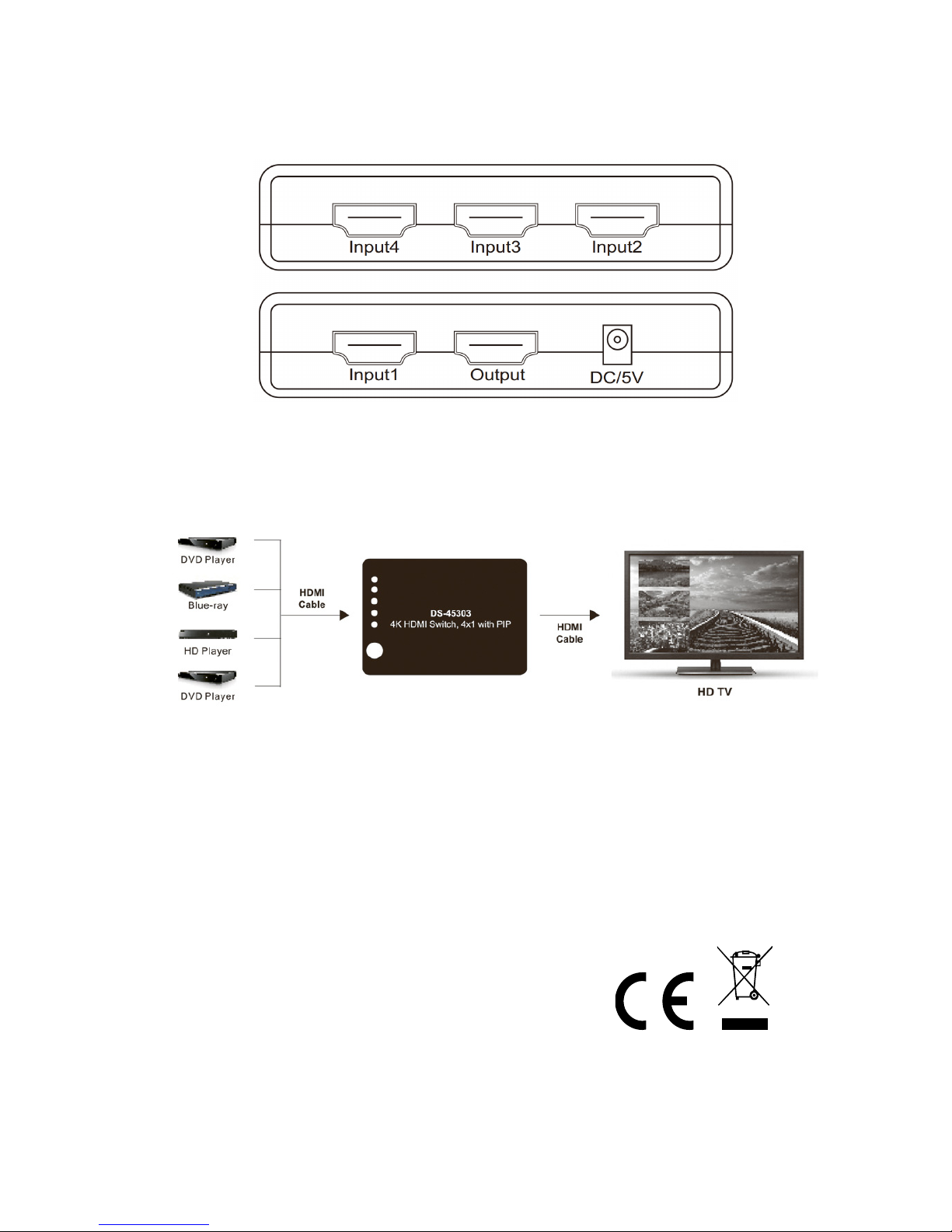

5.0 Panel Description

6.0 Connection and Operation

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of

Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive 2011/65/EU for RoHS

compliance. The complete declaration of conformity can be requested by post under the below

mentioned manufacturer address.

Warning:

This device is a class B product. This equipment may cause some radio interference in living

environment. In this case, the user can be requested to undertake appropriate measures to prevent

interference.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
