Digitus DN-651129 Manuel utilisateur

INDUSTRIAL 16-PORT

GIGABIT SWITCH,

UNMANAGED

Quick Installation Guide

DN-651129

1. Overview

Industrial Ethernet switch with 16-Port 10/100/1000Mbps BASE-TX,

the Product meet CE, FCC, RoHS standards. DN-651129 switch has the

operating temperature of -40℃~ 85℃, has the super firmness can

adapt to all kinds of harsh environment, can also be conveniently

placed in the compact space of the control box. The installation

characteristics of the guide rail, wide temperature operation, IP40

protection class housing and LED indicator light make the DN-651129

a plug and play industrial grade device, providing a reliable and

convenient solution for users to network their Ethernet devices.

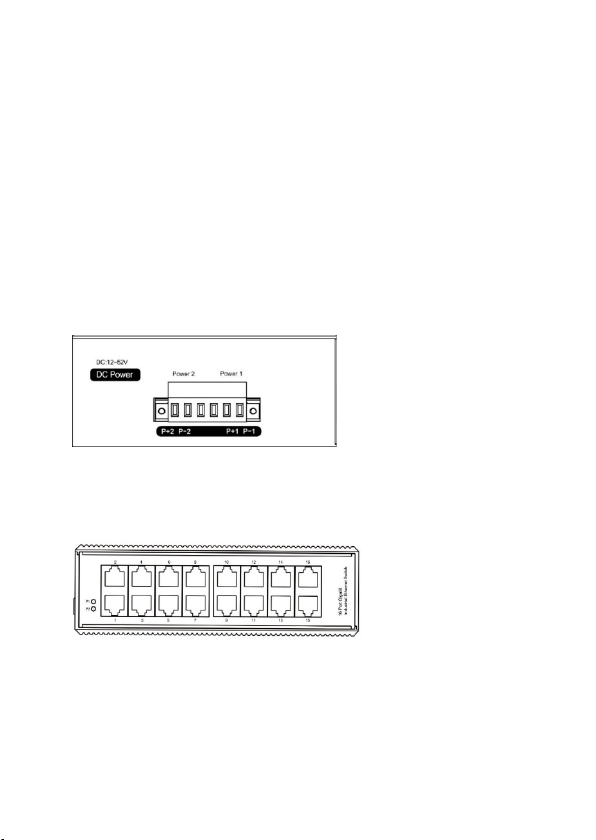

2. Switch Panel

DN-651129 Side panel:

P1 and P2 are the number of connecting terminals. P+1 and P-1 are

respectively to the positive and negative poles to be connected;

Earthing screw, used for earthing equipment.

DN-651129 Front panel:

The Yellow LED on the port is the LINK light, which is on when the

connection is established, and the data transmission is flashing. The

green LED is POE light, which is only on when the switch port is

supplying power to PD device (this model is not to support PoE);

Power indicator light is on when connecting with Power.

3. Features

● The use of high quality photoelectric integration module to provide

good optical and electrical characteristics

● Ensure reliable data transmission and long working life

● Support full duplex or half duplex mode, with automatic negotiation

capability

● Network port support automatic cross identification

● Internal storage and forwarding mechanism, support a variety of

protocols

● In line with industrial operating standards, the average trouble-free

work in more than 300,000 hours

● Working power supply: DC 12-52V to provide reverse protection

● Lightning Surge Protection (Power): 5000A(8/20μs)

4. Specification

4.1 Standard:

IEEE802.310BASE-TIEEE802.3i

10Base-T; IEEE802.3u;100Base-

TX/FX; IEEE802.3ab1000Base-T;

IEEE802.3z1000Base-X; IEEE802.3x

4.2 Interface:

16-Port RJ45

4.3 Work environment:

-40

～

85 °C (-40

～

185 °F)

Storage:

-40

～

85 °C (-40

～

185 °F)

4.4 Switch

Bandwidth:

56Gbps

Packet Buffer Memory:

4.1Mbit

Packet Forwarding Rate:

42Mpps

MAC Address Table:

4.5 Power supply:

input voltage: DC12-52V (two-way

power redundancy backup); Access

terminal: Phoenix terminal,

Support dual power redundancy;

Support built-in over current 4.0A

protection;

Support reverse connection

protection

4.6 Mechanical Characteristic:

IP40 aluminum housing

DIN rail install

Natural colling, no fan

Weight:

0,9Kg

Measurement:

175.6 x 135 x 45.5 mm

4.7 Industrial standard:

FCC CFR47 Part 15,

EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV

(contact), ±12kV (air) IEC61000-4-3

(RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port:

±4kV; Data Port: ±2kVIEC61000-4-5

(Surge): Power Port: ±2kV/DM,

±4kV/CM; Data Port:

±2kVIEC61000-4-6 (CS): 3V (10kHz-

150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode

conduction): 30V (cont.), 300V (1s)

Frequency range

：

150kHz-80MHz

Impact:

IEC 60068-2-27

Free Fall:

IEC 60068-2-32

Vibration:

IEC 60068-2-6

5. Interface Definition

10/100/1000Base-TX ethernet interface:

This switch provides MDI/MDI-X self-identification with cable support

on all 10/100/1000Basc-TX ports. In use, the Ethernet port of the

switch can be connected with other Ethernet terminal devices through

network cables (direct or cross).Please use Class 5 shielded twisted

pair. The Ethernet port pin definition is shown in the following figure:

RJ45 port supports automatic MDI/MDI-X operation, you can use a

straight line to connect to the PC or server, connect to other switches

or hubs. In the through line (MDI), pins 1, 2, 3, 4, 5, 6, 7, 8 correspond

to the connection; For the MDI-X port of a switch or hub, cross lines

are used: 1-3, 2-6, 3-1, 6-2, 4-7, 5-8, 7-4, 8-5.10Base-T/100Base-T (X)

pins are defined as follows:

Pin No.

MDI signal

MDI-X signal

TX+

RX+

TX-

RX-

RX+

TX+

RX-

TX-

4, 5, 7, 8

Note: "Tx ±" refers to sent data ±, "Rx ±" refers to received data ±,

and "-" refers to unused data.

6. LED Indicator

LED indicator

Status

Definition

P1/P2

Red LED on

Power supplying in

normal

Red LED off

Power supply abnormal

or no powering

RJ45 indicator

Yellow LED on

Network connection in

normal

Yellow LED

flashing

Link communication in

normal

Green LED on

PoE feeding in normal

Yellow/Green

LED off

No connection at port

Note: this model is not available with PoE

7. Installation caution

7.1 Installation precautions

In order to avoid damage to equipment and personal injury caused by

improper use, please follow the following precautions:

•In order to avoid damage caused by falling of the equipment,

please put the equipment in a stable environment.

•When supplying power to the equipment, pay attention to confirm

the range of power supply voltage, as well as the positive and

negative poles of the power supply, so as not to damage the

equipment by wrong operation.

•In order to reduce the risk of electric shock, ensure that the

equipment is well grounded in the working environment.

•No matter when, please do not arbitrarily remove the equipment

shell.

•When placing the switch, please avoid the area with dust and

strong electromagnetic interference

7.2 Din rail installation

The first step is to check the grounding and stability of the guide rail:

the guide rail slot of the switch is clamped into the guide rail; The

second step: from the center to both sides of the guide rail positioning

screws in order. Step 3: Use screws to fix the mounting rail card slot

on the fixed guide groove at both ends of the guide rail to ensure that

the guide rail and the switch are fixed on the guide rail vertically and

stably.

7.3 Grounding

Fix the grounding wire to the grounding screw above the switch and

ensure good reliable connection of the grounding system.

7.4 Power Connection

Insert the power cord into the specified position of the 6-core

terminal, and insert the terminal into the standard power supply inlet

(P+1 and P-1 input corresponding to the first power supply P1, and P+2

and P-2 input corresponding to the second power supply P2). The

available voltage standard of the power supply is supported from

12VDC to 52VDC

8. Packages

Content

QTY

Industrial switch

1 PCS

User manual

1 PCS

This is a Class A product. In home environment, this product may

cause radio interference. In this case, the user may be required to

take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of

Conformity is part of the shipping content. If the Declaration of

Conformity is missing, you can request it by post under the below

mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem

Schüffel 3

58513 Lüdenscheid

Germany
