Digitus DN-95358 Manuel utilisateur

16+2 Port 10/100/1000 Mbps

+ 2 Gigabit SFP PoE Switch

Quick Installation Guide

DN-95358

1. Introduction

DN-95358 is a 16-port 10/100/1000Mbps PoE + 2G Gigabit RJ45 +2 Gigabit SFP

PoE switch. The PoE ports can automatically detect IEEE 802.3af/at-compliant

Powered Devices (PDs) and supply them with power. Your network is able to

extend power and data transmission via a single cable to locations where there

are no power lines or outlets that you could use to install devices such as APs, IP

cameras or IP phones and the like. The PoE switch offers a simple, cost-effective

and non-blocking wire-speed performance with 11-inch metal form for rack

installation in office or department networks.

2. Features

16*10/100/1000Mbps PoE RJ45 connections

2*10/100/1000Mbps RJ45 connections

2*1000Mbps SFP connections

Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x

Corresponds to IEEE802.3af/at Power over Ethernet

PSE Power on RJ45: Mode A 1/2(+), 3/6(-), Mode B 4/5(+), 7/8(-)

Supports PoE power up to 32W for each PoE port

PoE power budget: 185W

Energy supply: 200W

Automatic detection of power supply device

Remote supply of power and data up to 100 m

Flow control for full duplex operation and back pressure for half duplex

operation

Supports VLAN and CCTV function

8K MAC address, automatic address learning and address aging

Supports energy-efficient Ethernet (EEE) function EEE802.3az

Supports the PD alive function

LED: PWR, PoE, LINK/ACT, PoE Max

Transmission mode: Store and forward

Switching capacity: 40Gps

Packet forwarding rate: 29.76Mpps

Packet buffer: 4M bit

3. Package Contents

PoE Switch x 1

User Guide x 1

Power Cord x 1

Hanging ears x 2

Rubber Feet x 4

Screw x 8

4. Specifications

Model

16+2 Port 10/100/1000 Mbps + 2 Gigabit SFP

PoE Switch

Standard

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z,

IEEE802.3x, IEEE802.3af, IEEE802.3at

Network Media (Cable)

10BASE-T: UTP category 3,4,5 cable (≤100m)

100BASE-TX: UTP category 5 cable (≤100m)

1000BASE-T: UTP category 5e cable (≤100m)

1000BASE-X: MMF or SMF SFP module

MAC Address Table

8K Auto-learning, Auto-aging

Transfer mode

Store-and-Forward

Frame Forward Rate

10Base-T: 14881pps/Port

100Base-TX: 148810pps/Port

1000Base-T/X: 1488095pps/Port

Switching Capacity

40Gbps

Dimensions (L*W*H)

280*180*44mm

Fan

1*Fan

PoE Power budget

185W

Power Input

AC: 100~240V, 50/60Hz

PoE Port

Port1~16

PoE Power on RJ45

Mode A 1/2(+), 3/6(-) Mode B 4/5(+), 7/8(-)

PoE Power Output

Voltage: 55V DC Power: 32W(Max)

PoE Power budget

185W

Temperature

Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F)

Storage Temperature: -40 °C ~ 70 °C

(-40 °F~158°F )

Humidity

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5% ~ 90% non-condensing

5. Hardware Description

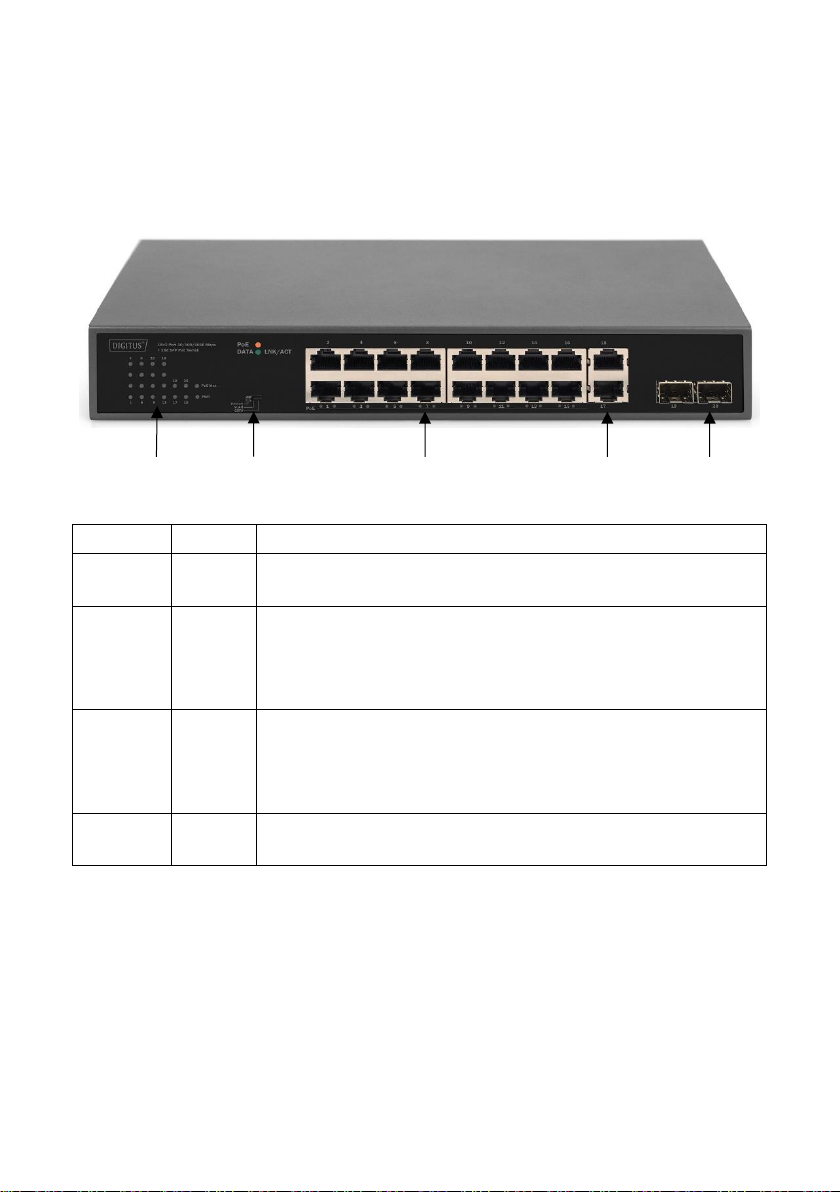

Front Panel

The Front Panel Consists of 16-Port 10/100/1000Mbps Auto-Negotiation Ethernet

RJ45 Ports, 2-Port Gigabit RJ45 Port and 2*1000Mbps SFP port. The LED

indicators also on located on the panel.

LED

indicator

DIP

Switch

16*10/100/1000Mbps

PoE Port

2*10/100/1000

Mbps port

2*1000 Mbps

SFP port

LED indicator

LED

Color

Function

PWR

Green

Off: No Power supply

Light: Indicates the switch has power

LNK/ACT

Green

Off: No device is connected to the corresponding port.

Light: Indicates the link through that port is successfully.

Blink: Indicates that the Switch is actively sending or

Receiving data over that port.

PoE

Orange

Off: No PoE powered device (PD) connected

Light: There is a PoE PD connected to be port, which

supply power successfully.

Blink: Indicates port abnormal power supply

Max

Green

Off: PoE power is less than 80% of total power.

Light: PoE power above 80%.

DIP Switch: The DIP switch located on the left panel.

Default: the factory default mode, can normal communication between port 1~20.

VLAN: 1-16 port can be isolated each other but 1-16 port can connect to 17~20

port after open VLAN to stop broadcast storm to increase forwarding rate of frame.

CCTV: 1-16 port can be isolated each other but 1-16 port can connect to 17~20

port after open CCTV, 10Mbps Up to 250m PoE distance allows you to expand you

network via Ethernet cable but where you want to fix device such as IP Cameras.

Note: After change the mode, there is no need to restart manually to make the

corresponding configuration take effect.

Rear Panel

The rear panel of 16GE(PoE)+2GE+2G SFP PoE Switch indicates an AC inlet power

socket, Grounding Column.

Fan

Power Socket

Grounding Column

Installation the Switch

This part describes how to install your Ethernet Switch and make connections to

it. Please follow the following instructions in avoid of incorrect installation

causing device damage and security threat.

Before cleaning the switch, unplug the power plug of the switch first. Do not

clean the switch with wet cloth or liquid;

Do not place the switch near water or any damp area. Prevent water or

moisture from entering the switch chassis;

Do not place the switch on an unstable case or desk. The switch might be

damaged severely in case of a fall;

Ensure proper ventilation of the equipment room and keep the ventilation

vents of the switch free of obstruction;

Make sure that the operating voltage is the same one labeled on the switch;

Do not open the chassis while the switch is operating or when electrical

hazards are present to avoid electrical shocks.

Desktop Installation

Install the Switch on a desktop, please attach these cushioning rubber feet

provided on the bottom at each corner of the Switch in case of the external

vibration. Allow adequate space for ventilation between the device and the

objects around it. The installation diagram is as follows:

Rack-mountable Installation

The switch is rack-mountable and can be installed on an EIA-11 inch equipment

rack. To do this, first, please install the mounting brackets on the switch’s side

panels (one on each side), secure them with the included screws, and then use

the screws provided with the equipment rack to mount the switch on the 11 inch

rack.

Turn on the switch

Plug in the negative connector of the provided power cord into the power socket

of the device, and the positive connector

into a power outlet. After the device is powered on, it begins the Power-On Self-

Test. The PWR LED indicator will light on all the time

CE Mark Warning: This is a Class A product. In home environment, this product

may cause radio interference. In this case, the user may be required to take

appropriate measures.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is

part of the shipping content. If the Declaration of Conformity is missing, you can

request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
