D55141

Oil Free Portable Air Compressor

Compresseur d’air portatif sans huile

Compresor de aire sin aceite portátil

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA

DE GARANTÍA.ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES

DE USAR EL PRODUCTO.

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-DEWALT • www.dewalt.com

English

A. On/Off Switch

B. Air Tank Pressure Gauge

C. Regulated Pressure Gauge

D. Pressure Regulator

E. Quick Connects

Pump/Motor Speciﬁcations

Oil free universal motor

Bore: 1.875 (47.63 mm)

Stroke: 1.25 (31.75 mm)

Voltage: Single 120V

Minimum branch circuit requirement: 15 A

Fuse Type: Time delay

Speciﬁcations

MODEL D55141

WEIGHT 30 lbs. (13.61 kg)

HEIGHT 10.5" (266.7 mm)

WIDTH 19.125" (485.8 mm)

LENGTH 21.375 (542.9 mm)

AIR TANK CAPACITY (GALLONS) 2.0 (7.6 liters)

APPROX CUT-IN PRESSURE

120 PSI (827.4 kPa)

APPROX. CUT-OUT PRESSURE

150 PSI (1034.2 kPa)

SCFM @ 100 PSI (689.5 kPa) 1.7

D55141 Air Compressor

FIG. 1 NOT A

STEP

F. Check Valve

G. Safety Valve

H. Air Tank Drain Valve

I. Power Cord Wrap

English

Deﬁnitions: Safety Guidelines

The definitions below describe the level of severity

for each signal word. Please read the manual and

pay attention to these symbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death

or serious injury.

CAUTION: Indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION: Used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT

THIS OR ANY D

WALT TOOL, CALL US TOLL FREE AT:

1-800-4-D

WALT (1-800-433-9258)

Important Safety Instructions

WARNING: Do not operate this unit until you read and understand

this instruction manual for safety, operation and maintenance

instructions.

WARNING: Some dust created by power sanding, sawing, grind-

ing, drilling, and other construction activities contains chemicals

known (to the State of California) to cause cancer, birth defects or

other reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry

products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often

you do this type of work. To reduce your exposure to these chemi-

cals: work in a well ventilated area, and work with approved safety

equipment, always wear OSHA/MSHA/NIOSH approved, properly

fitting face mask or respirator when using such tools.

When using air tools, basic safety precautions should always be fol-

lowed to reduce the risk of of personal injury.

SAVE THESE INSTRUCTION

DANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

• It is normal for electrical con-

tacts within the motor and

pressure switch to spark.

• Always operate the compres-

sor in a well ventilated area

free of combustible materials,

gasoline, or solvent vapors.

• If electrical sparks from

compressor come into con-

tact with flammable vapors,

they may ignite, causing fire

or explosion.

• If spraying flammable materi-

als, locate compressor at

least 20 feet (6.1 m) away

from spray area. An addi-

tional length of hose may be

required.

• Store flammable materials in

a secure location away from

compressor.

English

• Restricting any of the com-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

• Never place objects against or

on top of compressor.

• Operate compressor in

an open area at least 12"

(30.5 cm) away from any

wall or obstruction that would

restrict the flow of fresh air to

the ventilation openings.

• Operate compressor in a

clean, dry well ventilated area.

Do not operate unit indoors or

in any confined area.

• Unattended operation of

this product could result in

personal injury or property

damage. To reduce the risk

of fire, do not allow the

compressor to operate unat-

tended.

• Always remain in attendance

with the product when it is

operating.

• Always disconnect electrical

power by moving the On/Off

switch in the OFF position

and drain tank daily or after

each use.

DANGER: RISK TO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• The compressed air directly

from your compressor is not

safe for breathing.The air

stream may contain carbon

monoxide, toxic vapors,

or solid particles from the

air tank. Breathing these

contaminant's can cause

serious injury or death.

• Air obtained directly from the

compressor should never be

used to supply air for human

consumption. In order to use air

produced by this compressor

for breathing, suitable filters

and in-line safety equipment

must be properly installed. In-

line filters and safety equipment

used in conjunction with the

compressor must be capable

of treating air to all applicable

local and federal codes prior to

human consumption.

• Sprayed materials such as

paint, paint solvents, paint

remover, insecticides, weed

killers, may contain harmful

vapors and poisons.

• Work in an area with good

cross ventilation. Read and

follow the safety instructions

provided on the label or safety

data sheets for the materials

you are spraying. Always use

certified safety equipment:

OSHA/MSHA/NIOSH

respiratory protection designed

for use with your specific

application.

English

WARNING: RISK OF BURSTING

Air Tank: The air tank on your Air Compressor is designed and may

be UM coded (for units with air tanks greater than 6 inch diameter)

according to ASME Section VIII, Div. 1 rules. All pressure vessels

should be inspected once every two years. To find your state pressure

vessels inspector, look under the Division of Labor and Industries in

the government section of a phone book or call 1-800-4-DEWALT for

assistance.

The following conditions could lead to a weakening of the air tank, and

result in a violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENT IT

• Failure to properly drain

condensed water from

air tank, causing rust and

thinning of the steel air tank.

• Drain air tank daily or after

each use. If air tank develops

a leak, replace it immediately

with a new air tank or replace

the entire compressor.

• Modifications or attempted

repairs to the air tank. • Never drill into, weld, or make

any modifications to the air

tank or its attachments. Never

attempt to repair a damaged or

leaking air tank. Replace with a

new air tank.

• Unauthorized modifications to

the safety valve or any other

components which control air

tank pressure.

• The air tank is designed

to withstand specific

operating pressures. Never

make adjustments or parts

substitutions to alter the factory

set operating pressures.

Attachments & accessories:

• Exceeding the pressure

rating of air tools, spray guns,

air operated accessories,

tires, and other inflatables

can cause them to explode or

fly apart, and could result in

serious injury.

• Follow the equipment

manufacturers

recommendation and never

exceed the maximum allowable

pressure rating of attachments.

Never use compressor to

inflate small low pressure

objects such as children’s toys,

footballs, basketballs, etc.

WARNING: RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOW TO PREVENT IT

• Your air compressor is

Like any other electrically

powered device, If it is not

used properly it may cause

electric shock.

• Never operate the compressor

outdoors when it is raining or

in wet conditions.

• Never operate compressor

with protective covers

removed or damaged.

• Repairs attempted by

unqualified personnel can

result in serious injury or

death by electrocution.

• Any electrical wiring or

repairs required on this

product should be performed

by a DEWALT factory

service center or a DEWALT

authorized service center in

accordance with national and

local electrical codes.

English

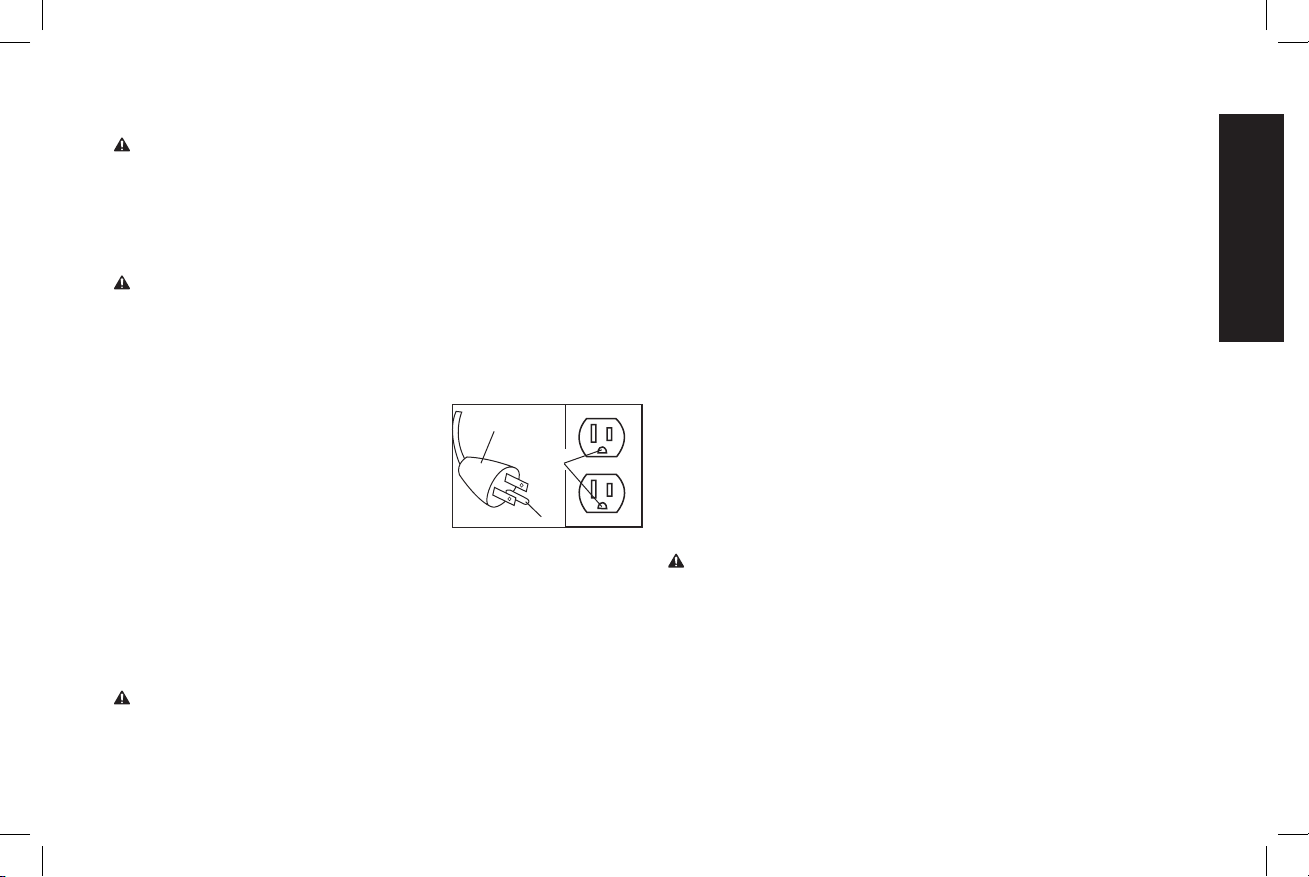

• Electrical Grounding:

Failure to provide adequate

grounding to this product

could result in serious injury

or death from electrocution.

See Grounding

Instructions under

Installation.

• Make certain that the

electrical circuit to which the

compressor is connected

provides proper electrical

grounding, correct voltage and

adequate fuse protection.

WARNING: RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• The compressed air stream

can cause soft tissue

damage to exposed skin and

can propel dirt, chips, loose

particles, and small objects

at high speed, resulting in

property damage or personal

injury.

• Always wear certified safety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using

the compressor.

• Never point any nozzle or

sprayer toward any part of

the body or at other people or

animals.

• Always turn the compressor off

and bleed pressure from the

air hose and air tank before

attempting maintenance,

attaching tools or accessories.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touching exposed metal such

as the compressor head,

engine head, engine exhaust

or outlet tubes, can result in

serious burns.

• Never touch any exposed

metal parts on compressor

during or immediately after

operation. Compressor will

remain hot for several minutes

after operation.

• Do not reach around

protective shrouds or attempt

maintenance until unit has

been allowed to cool.

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• Moving parts such as the

pulley, flywheel, and belt can

cause serious injury if they

come into contact with you or

your clothing.

• Never operate the compressor

with guards or covers which

are damaged or removed.

• Keep your hair, clothing, and

gloves away from moving parts.

Loose clothes, jewelry, or long

hair can be caught in moving

parts.

• Air vents may cover moving

parts and should be avoided as

well.

English

• Attempting to operate

compressor with damaged or

missing parts or attempting

to repair compressor with

protective shrouds removed

can expose you to moving

parts and can result in

serious injury.

• Any repairs required on this

product should be performed

by a DEWALT factory service

center or a DEWALT authorized

service center.

WARNING: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOW TO PREVENT IT

• Unsafe operation of your air

compressor could lead to seri-

ous injury or death to you or

others.

• Review and understand all

instructions and warnings in

this manual.

• Become familiar with the

operation and controls of the

air compressor.

• Keep operating area clear of all

persons, pets, and obstacles.

• Keep children away from the air

compressor at all times.

• Do not operate the product

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Never defeat the safety fea-

tures of this product.

• Equip area of operation with a

fire extinguisher.

• Do not operate machine with

missing, broken, or unautho-

rized parts.

CAUTION: RISK FROM NOISE

WHAT CAN HAPPEN HOW TO PREVENT IT

• Under some conditions and

duration of use, noise from

this product may contribute

to hearing loss.

• Always wear certified safety

equipment: ANSI S12.6

(S3.19) hearing protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

FEATURES

ON(I)/OFF SWITCH (I/O)

Place this switch (A) in the ON position to provide

automatic power to the pressure switch and

OFF to remove power at the end of each use.

PRESSURE SWITCH

The pressure switch automatically starts the motor when the air

tank pressure drops below the factory set cut-in pressure. It stops

the motor when the air tank pressure reaches the factory set

cut-out pressure.

English

SAFETY VALVE

If the pressure switch does not shut off the air

compressor at its cut-out pressure setting, the

safety valve (G) will protect against high pres-

sure by popping out at its factory set pressure

(slightly higher than the pressure switch cut-out

setting).

CHECK VALVE

When the air compressor is operating, the

check valve (F) is open, allowing compressed air to enter the air

tank. When the air compressor reaches cut-out pressure, the check

valve closes, allowing air pressure to remain inside the air tank.

TANK PRESSURE GAUGE

The tank pressure gauge (B) indicates C

the reserve air pressure in the tank.

OUTLET PRESSURE GAUGE

The outlet pressure gauge (C) indi-

cates the air pressure available at the

outlet side of the regulator. This pres-

sure is controlled by the regulator and

is always less than or equal to the tank pressure.

REGULATOR

The regulator (D) controls the air pressure shown on the outlet

pressure gauge. Turn regulator knob clockwise to increase pres-

sure and counterclockwise to decrease pressure.

UNIVERSAL QUICK CONNECT BODIES

The universal Quick Connect body (E) accepts the three most

popular styles of Quick Connect plugs: Industrial, automotive, and

ARO. The two quick connect bodies allow the use of two tools at the

same time.

DRAIN VALVE

The drain valve (H) is located at the base of the air H

tank and is used to drain condensation at the end of

each use.

See Draining Air Tank under

Maintenance.

COOLING SYSTEM

This compressor contains an advanced design cooling system.

It is normal for this fan to blow air through the vent holes in large

amounts. The cooling system is working when air is expelled.

AIR COMPRESSOR PUMP

The pump compresses air into the air tank. Working air is not

available until the compressor has raised the air tank pressure

above that required at the air outlet.

MOTOR OVERLOAD PROTECTOR

The motor has an automatic reset thermal overload protector. If the

motor overheats for any reason, the overload protector will shut

off the motor. The motor must be allowed to cool down before

restarting. The compressor will automatically restart after the motor

cools.

INSTALLATION

Assembly

INSTALLING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Grasp the hose at the Quick Connect plug and push the plug

into the Quick Connect body (E). Coupler will snap into place.

3. Grasp the hose and pull to ensure coupler is seated.

English

DISCONNECTING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Pull coupler on Quick Connect body back to release Quick

Connect plug on hose.

Grounding Instructions

WARNING: Risk of Electrical Shock. In the event of a short

circuit, grounding reduces the risk of shock by providing an escape

wire for the electric current. This air compressor must be properly

grounded.

The portable air compressor is equipped with a cord having a

grounding wire with an appropriate grounding plug.

1. The cord set and plug (J) with this unit

contains a grounding pin (L). This plug

MUST be used with a grounded outlet

(K).

IMPORTANT: The outlet being used must

be installed and grounded in accordance

with all local codes and ordinances.

2. Ensure the outlet being used has the same configuration as the

grounded plug. DO NOT USE AN ADAPTER.

3. Inspect the plug and cord before each use. Do not use if there

are signs of damage.

4. If these grounding instructions are not completely understood, or

if in doubt as to whether the compressor is properly grounded,

have the installation checked by a qualified electrician.

DANGER: Risk of Electrical Shock. IMPROPER GROUNDING

CAN RESULT IN ELECTRICAL SHOCK.

Do not modify the plug provided. If it does not fit the available out-

let, a correct outlet should be installed by a qualified electrician.

Repairs to the cord set or plug MUST be made by a qualified

electrician.

Extension Cords

Using extension cords is not recommended. The use of extension

cords will cause voltage to drop resulting in power loss to the motor

and overheating.

Instead of using an extension cord, increase the working reach of

the air hose by attaching another length of hose to its end. Attach

additional lengths of hose as needed.

If an extension cord must be used, be sure it is:

• a 3-wire extension cord that has a 3-blade grounding plug, and

a 3-slot receptacle that will accept the plug on the product

• in good condition

• no longer than 50 feet (15,2 m)

• 14 gauge (AWG) or larger. (Wire size increases as gauge num-

ber decreases. 12 AWG and 10 AWG may also be used. DO

NOT USE 16 OR 18 AWG.)

Voltage and Circuit Protection

Refer to the Voltage and Minimum Branch Circuit Requirements under

Pump/Motor Specifications.

CAUTION: Certain air compressors can be operated on a

15 amp circuit if the following conditions are met.

• Voltage supply to circuit must comply with the National Electrical

Code.

• Circuit is not used to supply any other electrical needs.

• Extension cords comply with specifications.

• Circuit is equipped with a 15 amp circuit breaker or 15 amp

time delay fuse. NOTE: If compressor is connected to a circuit

protected by fuses, use only time delay fuses. Time delay fuses

should be marked “D” in Canada and “T” in the US.

English

If any of the above conditions cannot be met, or if operation of the

compressor repeatedly causes interruption of the power, it may be

necessary to operate it from a 20 amp circuit. It is not necessary

to change the cord set.

Compatibility

Air tools and accessories that are run off the compressor must be

compatible with petroleum-based products. If you suspect that a

material is not compatible with petroleum products, an air line filter

for removal of moisture and oil vapor in compressed air is required.

NOTE: Always use an air line filter to remove moisture and oil vapor

when spraying paint.

Location

Place the air compressor in a clean, dry and well ventilated area at

least 12" (304.8 mm) away from the wall or other obstructions that

will interfere with the flow of air. Keep the compressor away from

areas that have dirt and/or volatile fumes in the atmosphere. These

impurities may clog the intake filter and valves, causing inefficient

operation.

The air compressor pump and shroud are designed to allow for

proper cooling. The ventilation openings on the compressor are

necessary to maintain proper operating temperature. Do not place

rags or other containers on or near these openings.

Place the air compressor on a flat surface resting on the rubber

feet.

NOISE CONSIDERATIONS

Consult local officials for information regarding acceptable noise

levels in your area. To reduce excessive noise, use vibration mounts

or silencers, relocate the unit or construct total enclosures or baffle

walls. Contact a D

WALT service center or call 1-800-4-D

WALT for

assistance.

ELECTRICAL

Refer to all safety instructions before using unit. Observe extension

cord safety instructions if necessary. Always move the On/Off

switch (A) to the OFF position before removing the plug from the

outlet.

TRANSPORTING

When transporting the compressor in a vehicle, trailer, etc., ensure

that the tank is drained and the unit is secured. Use care when driv-

ing to avoid tipping the unit over in the vehicle. Damage can occur to

the compressor or surrounding items if the compressor is tipped.

MOVING

When moving the compressor, grasp the handle and carry the com-

pressor as close to the body as possible.

WARNING: Ensure proper footing and use caution when carrying

compressor to avoid a loss of balance.

PREPARATION FOR USE

Pre-Start Checklist (Fig. 1)

Ensure the On/Off switch (A) is in the OFF position.

Plug the power cord into the correct branch circuit receptacle.

See

Voltage and Circuit Protection under Installation.

3. Ensure air tank is drained, see Draining Air Tank under

Maintenance.

4. Ensure the drain valve (H) is closed.

5. Ensure safety valve (G) is functioning properly, see Checking

Safety Valve under Maintenance.

6. Turn regulator knob (D) counterclockwise until fully closed. Ensure

regulated pressure gauge reads 0 PSI (0 kPa).

7. Attach hose and accessories.

Autres manuels pour D55141

Table des matières

Langues :

Autres manuels DeWalt Compresseur d'air

DeWalt

DeWalt Emglo D55150 Manuel utilisateur

DeWalt

DeWalt DXCM603 Manuel utilisateur

DeWalt

DeWalt DWFP55130 Manuel utilisateur

DeWalt

DeWalt D55154 Manuel utilisateur

DeWalt

DeWalt D55171 Manuel utilisateur

DeWalt

DeWalt XR FLEXVOLT LI-ION DCC1054 Manuel utilisateur

DeWalt

DeWalt DWFP55126 Manuel utilisateur

DeWalt

DeWalt D55166 Manuel utilisateur

DeWalt

DeWalt D55270 Manuel utilisateur

DeWalt

DeWalt DPC6MRC-QS Manuel utilisateur

DeWalt

DeWalt DXCMH1608WB-CA Manuel utilisateur

DeWalt

DeWalt Emglo D55150 Manuel utilisateur

DeWalt

DeWalt DXCMTA1980854 Manuel utilisateur

DeWalt

DeWalt DXCMSAC260 Manuel utilisateur

DeWalt

DeWalt DXCMV5248069 Manuel utilisateur

DeWalt

DeWalt DWFP55130 Manuel utilisateur

DeWalt

DeWalt DXCMTB5590856 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt D55270-1 Manuel utilisateur

DeWalt

DeWalt D2002M Manuel utilisateur

DeWalt

DeWalt DXCMTA5590412 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt DXCMH1608WB Manuel utilisateur

DeWalt

DeWalt DWFP55120 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
