DeWalt DXCMH1608WB Manuel utilisateur

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contactenos.

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACION, CENTROS DE SERVICIO Y POLIZA

DE GARANTiA. ADVERTENCIA: LI2ASE ESTE INSTRUCTIVO

ANTES DE USAR EL PRODUCTO.

DXCMH1608WB

160cc, Gas Wheeled Portable Air Compressor

160cc, gaz roues de compresseur portatif

160cc, gas ruedas de compresor portatil

Air Compressor

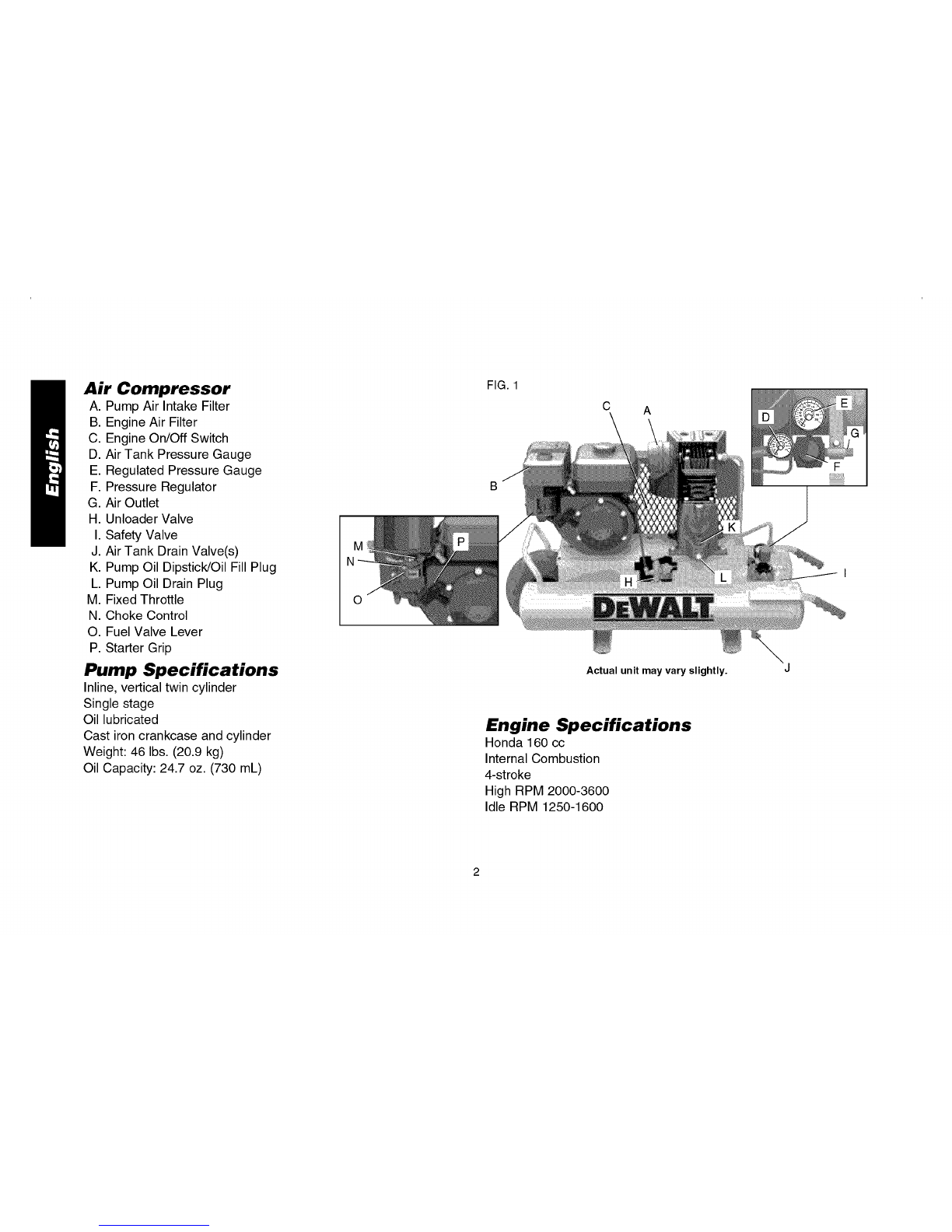

A. Pump Air Intake Filter

B. Engine Air Filter

C. Engine On/Off Switch

D. Air Tank Pressure Gauge

E. Regulated Pressure Gauge

F. Pressure Regulator

G. Air Outlet

H. Unloader Valve

I. Safety Valve

J. Air Tank Drain Valve(s)

K. Pump Oil Dipstick/Oil Fill Plug

L. Pump Oil Drain Plug

M. Fixed Throttle

N. Choke Control

O. Fuel Valve Lever

P. Starter Grip

Pump Specifications

Inline, vertical twin cylinder

Single stage

Oil lubricated

Cast iron crankcase and cylinder

Weight: 46 Ibs. (20.9 kg)

Oil Capacity: 24.7 oz. (730 mL)

FIG, 1

Actual unit may vary slightly.

Engine Specifications

Honda 160 cc

Internal Combustion

4-stroke

High RPM 2000-3600

Idle RPM 1250-1600

Specifications

MODEL

WEIGHT

HEIGHT

WIDTH

LENGTH

AIRTANK CAPACITY

APPROX.BLOWOFF PRESSURE

SCFM @ 100 PSI

* Tested per ISO 1217

DXCMH1608WB

171 Ibs. (77.6 kg)

25.25" (641.4 mm)

18.25" (463.6 mm)

43" (1092.2 mm)

8 gallons (30.3 liters)

150 psi

9.0*

Hot Surfaces

FIG.2

ENGINE

MUFFLER

COMPRESSOR

CYLINDER & HEAD

OUTLET TUBE

GASOLINE

ENGINE PUMP

CRANKCASE

Definitions: Safety Guidelines

The definitions below describe the level of severity

for each signal word. Please read the manual and pay

attention to these symbols.

ADANGER: Indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

injury.

_WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death or

serious injury.

ACAUTION: Indicates a potentially hazardous

situation which, if not avoided, may result in minor or

moderate injury.

NOTICE: Indicates apractice not related to personal injury

which, if not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT

THIS OR ANY DEWALT TOOL, CALL US TOLL FREE AT:

1-888-895-4549

Important Safety Instructions

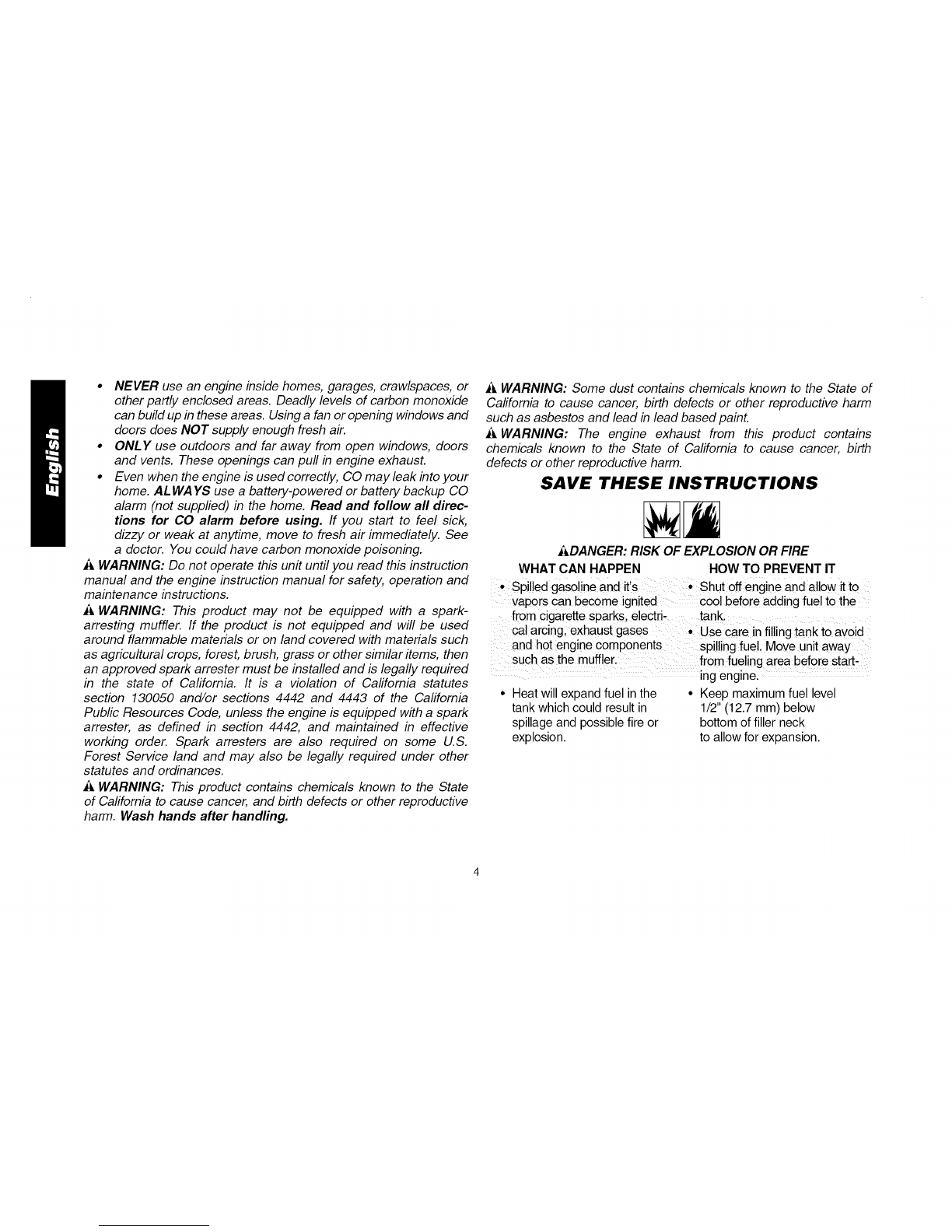

ADANGER: Carbon Monoxide. Using an engine indoors can

kill you in minutes. Engine exhaust contains high levels of

carbon monoxide (CO), a poisonous gas you cannot see or

smell. You may be breathing CO even if you DO NOT smell

engine exhaust.

•NEVER use an engine inside homes, garages, crawlspaces, or

other partly enclosed areas. Deadly levels of carbon monoxide

can build up in these areas. Using a fan oropening windows and

doors does NOT supply enough fresh air.

• ONLY use outdoors and far away from open windows, doors

and vents. These openings can pull in engine exhaust.

• Even when the engine is used correctly, CO may leak into your

home. AL WAYS use a battery-powered or battery backup CO

alarm (not supplied) in the home. Read and follow all direc-

tions for CO alarm before using, ff you start to feel sick,

dizzy or weak at anytime, move to fresh air immediately. See

a doctor. You could have carbon monoxide poisoning.

AWARNING: Do not operate this unit until you read this instruction

manual and the engine instruction manual for safety, operation and

maintenance instructions.

AWARNING: This product may not be equipped with a spark-

arresting muffler. If the product is not equipped and will be used

around flammable materials or on land covered with materials such

as agricultural crops, forest, brush, grass or other similar items, then

an approved spark arrester must be installed and is legally required

in the state of California. It is a violation of California statutes

section 130050 and/or sections 4442 and 4443 of the California

Public Resources Code, unless the engine is equipped with a spark

arrester, as defined in section 4442, and maintained in effective

working order. Spark arresters are also required on some U.S.

Forest Service land and may also be legally required under other

statutes and ordinances.

AWARNING: This product contains chemicals known to the State

of California to cause cancer, and birth defects or other reproductive

harm. Wash hands after handling.

AWARNING: Some dust contains chemicals known to the State of

California to cause cancer, birth defects or other reproductive harm

such as asbestos and lead in lead based paint.

AWARNING: The engine exhaust from this product contains

chemicals known to the State of California to cause cancer, birth

defects or other reproductive harm.

SAVE THESE INSTRUCTIONS

ADANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOW TO PREVENT IT

Spilled gasoline and itls 'Shut off engine and allow it to

vapors can become ignited cool before adding fue! to the

from cigarette sparks, e!ectri, tank.

ca! arcing, exhaust gases Use care in filling tank to avoid

and hot engine components spilling fuel. Move unit away

such as the muffler, from fueling area before Start'

ing engine.

• Heat will expand fuel in the • Keep maximum fuel level

tank which could result in 1/2" (12.7 mm) below

spillage and possible fire or bottom of filler neck

explosion, to allow for expansion.

•Combustible materials

which come into contact

with hot engine parts can

become ignited.

• Add fuel outdoors in a well

ventilated area. Make sure

there are no sources of igni-

tion. such as cigarettes near

refueling location.

• Operate compressor in a

clean, dry. well ventilated area

a minimum of 48" (1.22 m)

from any building, object

or wall. Do not operate unit

indoors or in any confined

area.

•Operate compressor in an

open area away from dry

brush, weeds or other com-

bustible materials.

• Improperly stored fuel could • Store fuel inan OSHA-ap-

lead to accidental ignition proved container, in a secure

Fuel improperly secured location away from work area.

could get into the hands of

children or other unqualified

persons.

• Unattended operation of • Always remain in attendance

this product could result in with the product when it is

personal injury or property operating.

damage. To reduce the

risk of fire, do not allow

the compressor to operate

unattended.

_, DANGER: RISK TO BREATHING (ASPHYXIA TION)

WHAT CAN HAPPEN HOW TO PREVENT IT

• Breathing exhaust fumes

will cause serious injury

or death! Engine exhaust

contains carbon monoxide,

an odorless and deadly gas.

• Always operate air compressor

outside in a clean, well

ventilated area. Avoid enclosed

areas such as garages,

basements, storage sheds,

which lack a steady exchange

or air. Keep children, pets

and others away from area of

operation.

• The compressed air directly • Never use air obtained directly

from your compressor is not from the compressor to supply

safe for breathing. The air air for human consumption.

stream may contain carbon The compressor is not

monoxide, toxic vapors, equipped with suitable filters

or solid particles from the and in-line safety equipment

air tank. Breathing these for human consumption.

contaminants can cause

serious injury or death.

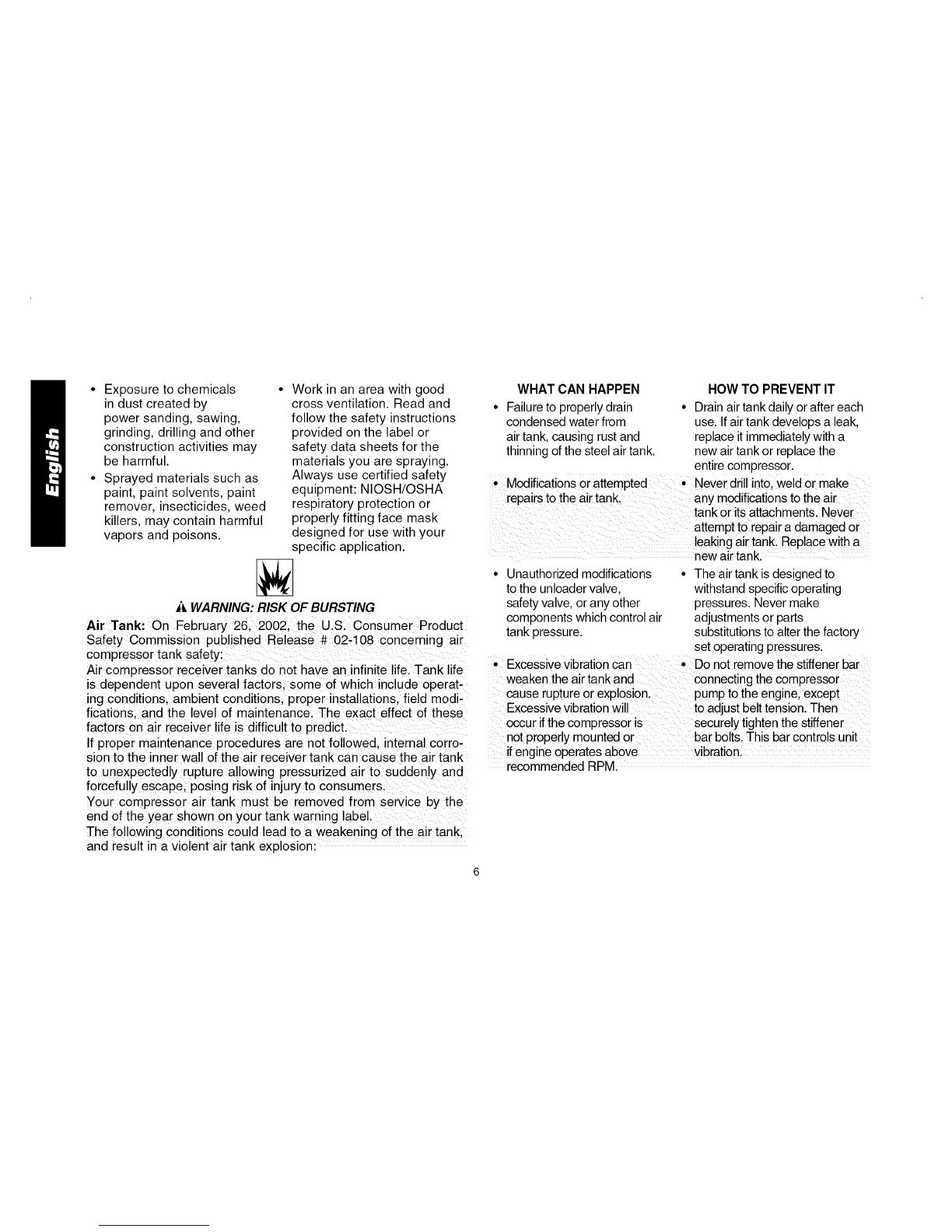

• Exposuretochemicals

industcreatedby

powersanding,sawing,

grinding,drillingandother

constructionactivitiesmay

beharmful.

• Sprayedmaterialssuchas

paint,paintsolvents,paint

remover,insecticides,weed

killers,maycontainharmful

vaporsandpoisons.

Workinanareawithgood

crossventilation.Readand

followthesafetyinstructions

providedonthelabelor

safetydatasheetsforthe

materialsyouarespraying.

Alwaysusecertifiedsafety

equipment:NIOSH/OSHA

respiratoryprotectionor

properlyfittingfacemask

designedforusewithyour

specificapplication.

J_ WARNING: RISK OF BURSTING

Air Tank: On February 26, 2002, the U.S. Consumer Product

Safety Commission published Release # 02-108 concerning air

compressor tank safety':

Air compressor receiver tanks do not have an infinite life. Tank life

is dependent upon several factors, some of which include operat-

ing conditions, ambient conditions, proper installations, field modi-

fications, and the level of maintenance. The exact effect of these

factors on air receiver life is difficult to predict.

If proper maintenance procedures are not followed, internal co rro-

sion to the inner wall of the air receiver tank can cause the air tank

to unexpectedly rupture allowing pressurized air to suddenly and

forcefully escape, posing risk of injury to consumers.

Your compressor air tank must be removed from service by the

end of the year shown on your tank warning label.

The following conditions could lead to a weakening of the air tank.

and result in a violent air tank explosion:

WHAT CAN HAPPEN HOW TO PREVENTIT

•Failureto properly drain • Drain air tank daily or after each

condensed water from use. Ifair tank develops a leak,

air tank, causing rust and replace it immediately with a

thinning of the steel air tank. new air tank or replace the

entire compressor.

•Modifications or attempted •Never drill into, weld or make

repairsto the air tank. any modifications to the air

tank or its attachments. Never

attempt to rePaira damaged or

leaking air tank. Replace with a

new air tank.

• Unauthorized modifications

to the unloader valve,

safetyvalve, or any other

components which control air

tank pressure.

• Excessive vibration can

weaken the airtank and

cause rupture or explosion.

Excessive vibration will

occur ifthe compressor is

not properly mounted or

ifengine operates above

recommended RPM.

• The air tank is designed to

withstand specific operating

pressures. Never make

adjustments or parts

substitutions to alter the factory

set operating pressures.

• Do not remove the stiffener bar

connecting the compressor

pump to the engine, except

to adjust belttension. Then

securely tighten the stiffener

bar bolts. This bar controls unit

vibration.

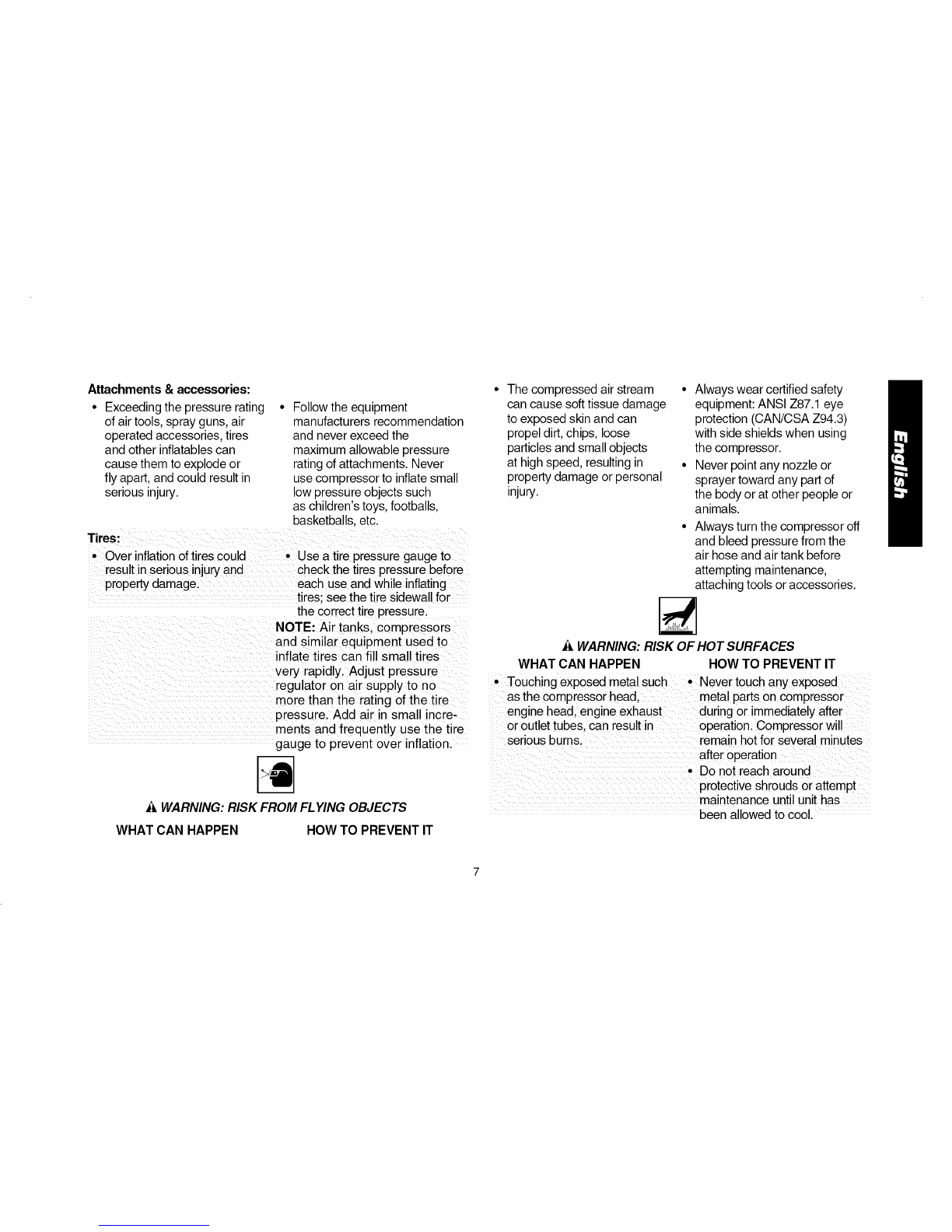

Attachments & accessories:

•Exceeding the pressure rating

of air tools, spray guns, air

operated accessories, tires

and other inflatables can

cause them to explode or

fly apart, and could result in

serious injury.

Tires:

Follow the equipment

manufacturers recommendation

and never exceed the

maximum allowable pressure

rating of attachments. Never

use compressor to inflate small

low pressure objects such

as children's toys, footballs,

basketballs, etc.

•Over inflation of tires could • Use a tire pressure gauge to

result in serious injury and check the tires pressure before

property damage, each use and while inflating

tires: see the tire sidewall for

the correct tire pressure.

NOTE: Air tanks, compressors

and similar equipment used to

inflate tires can fill small tires

very rapidly. Adjust pressure

regulator on air supply to no

more than the rating of the tire

pressure. Add air in small incre-

ments and frequently use the tire

gauge to prevent over inflation.

_'_WARNING: RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• The compressed air stream

can cause soft tissue damage

to exposed skin and can

propel dirt,chips, loose

particles and small objects

at high speed, resulting in

property damage or personal

injury.

• Always wear certified safety

equipment: ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using

the compressor.

• Never point any nozzle or

sprayer toward any part of

the bodyor at other people or

animals.

• Always turn the compressor off

and bleed pressure from the

air hose and air tank before

attempting maintenance.

attaching tools or accessories.

-& WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOW TO PREVENT IT

• Touching exposed metal such • Never touch any exposed

asthe compressor head. metal parts on compressor

engine head. engine exhaust during or immediately after

or outlet tubes, can result in operation. Compressor will

serious burns, remain hot for several minutes

after operation

° Do not reach around

protective shrouds or attempt

maintenance until unit has

been allowed to cool.

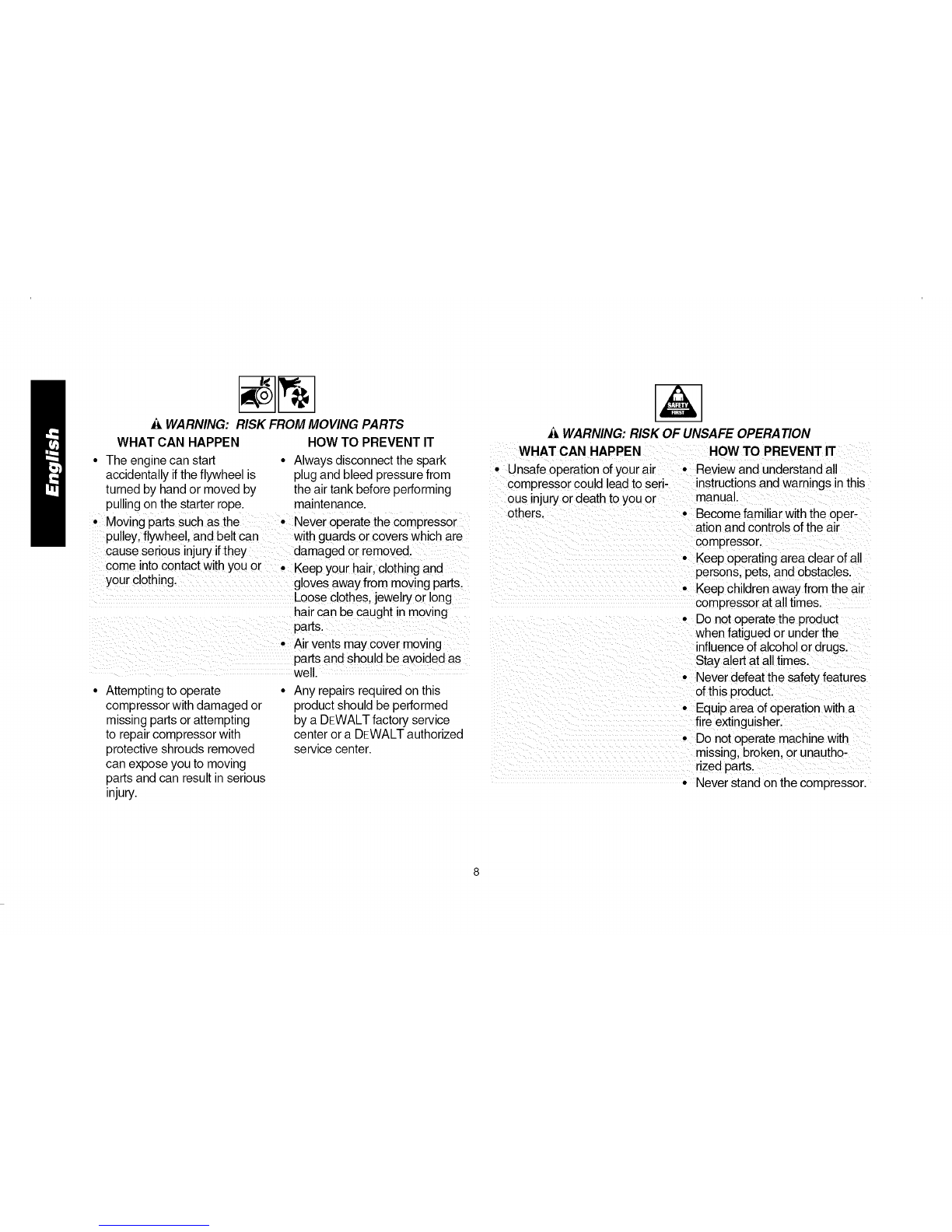

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOW TO PREVENT IT

• The engine can start • Always disconnect the spark

accidentally if the flywheel is plug and bleed pressure from

turned by hand or moved by the air tank before performing

pulling on the starter rope. maintenance.

•Moving parts such asthe • Never operate the compressor

pulley, flywheel, and belt can with guards or covers which are

cause senous injury if they damaged or removed.

come intocontact with you or •Keep your hair.clothing and

your clothing, gloves away from moving parts.

Loose clothes, jewelry or long

hair can be caught in moving

parts.

• Air vents may cover moving

parts and should be avoided as

well

Attempting to operate

compressor with damaged or

m_ssingparts or attempting

to repaircompressor with

protective shrouds removed

can expose you to moving

parts and can result in serious

injury.

Any repairs required on this

product should be performed

bya DEWALT factory service

center or a DEWALT authorized

service center.

ij, WARNING: RISK OF UNSAFE OPERA TION

WHATCAN HAPPEN HOW TO PREVENT IT

•Unsafe operation of your air • Review and understand all

compressor could lead to sen- instructions and warnings in this

ous injury or death to you or manual.

others. • Become familiar with the oper-

ation and controls of the air

compressor.

• Keep operating area clear of all

persons, pets. and obstacles.

• Keep children away from the air

compressor at all times.

• Do not operate the product

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Never defeat the safety features

of this product.

• Equiparea of operation with a

fire extinguisher.

• Do not operate machine with

missing, broken, or unautho-

rizedparts.

• Never stand on the compressor.

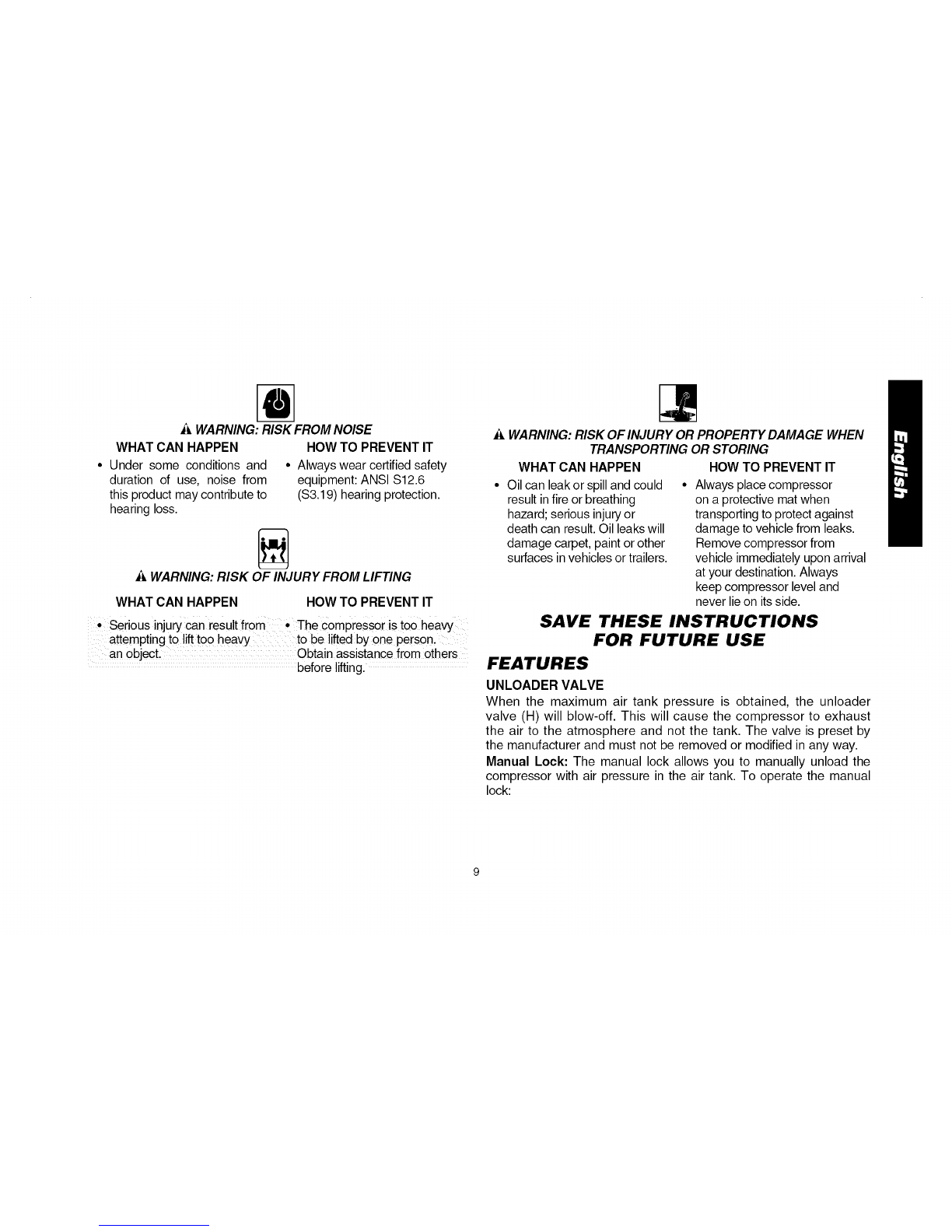

i_,WARNING: RISK FROM NOISE

WHAT CAN HAPPEN

•Under some conditions and

duration of use, noise from

this product may contribute to

hearing loss.

HOW TO PREVENT IT

• Always wear certified safety

equipment: ANSI $12.6

($3.19) hearing protection.

i_ WARNING: RISK OF INJURY FROM LIFTING

WHATCAN HAPPEN HOW TO PREVENT IT

*serious injury can resultfrom. The Compressor is too heavy

attempting to lift tOOheavy to be lifted by one person,

an object. Obtain assistance from others

before lifting.

AWARNING: RISK OF INJURY OR PROPERTY DAMAGE WHEN

TRANSPORTING OR STORING

WHAT CAN HAPPEN

• Oil can leak or spill and could

result infire or breathing

hazard; serious injury or

death can result. Oil leaks will

damage carpet, paint or other

surfaces in vehicles or trailers.

HOW TO PREVENT IT

Always place compressor

on a protective matwhen

transporting to protect against

damage to vehicle from leaks.

Remove compressor from

vehicle immediately upon arrival

at your destination. Always

keep compressor level and

never lie on its side.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

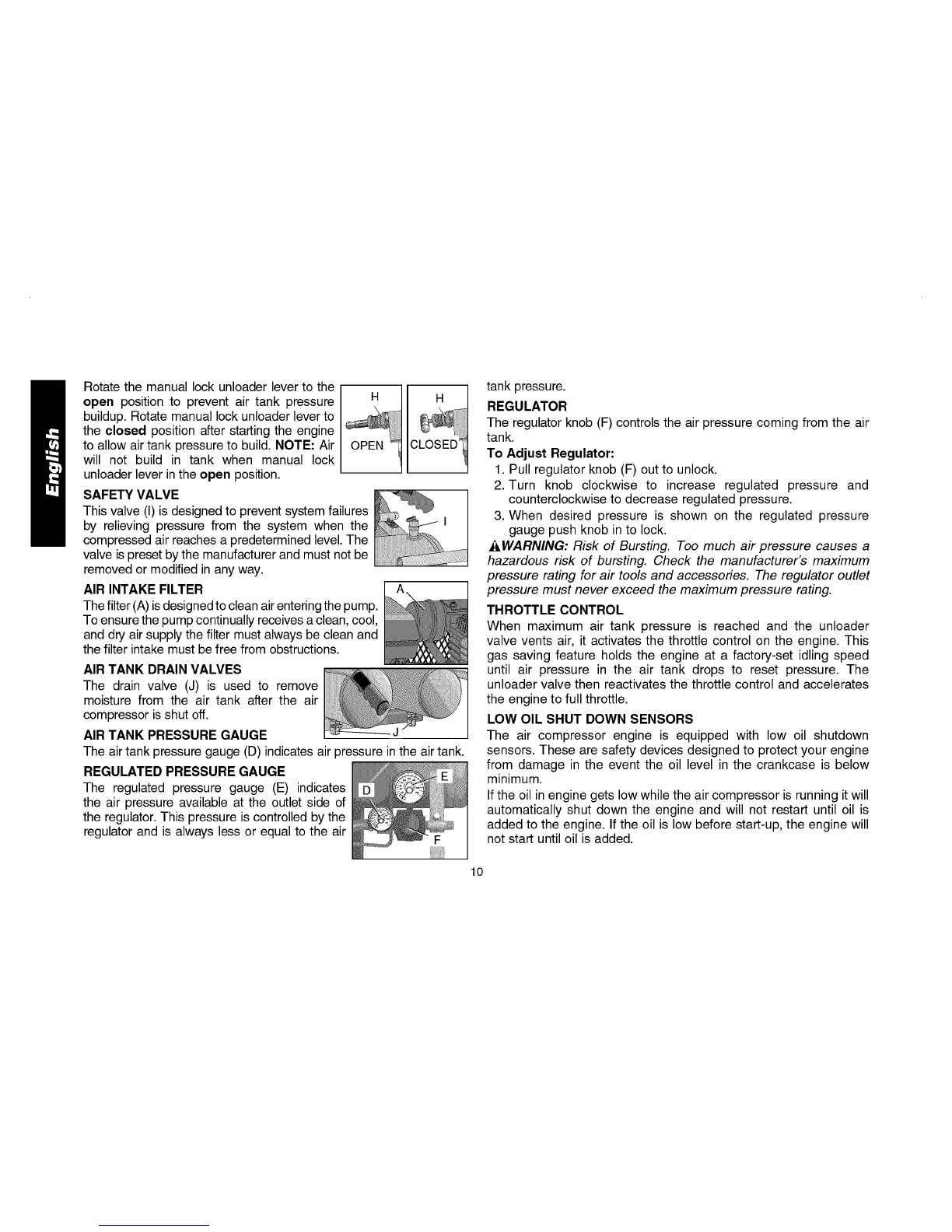

FEATURES

UNLOADER VALVE

When the maximum air tank pressure is obtained, the unloader

valve (H) will blow-off. This will cause the compressor to exhaust

the air to the atmosphere and not the tank. The valve is preset by

the manufacturer and must not be removed or modified in any way.

Manual Lock: The manual lock allows you to manually unload the

compressor with air pressure in the air tank. To operate the manual

lock:

Rotatethemanuallockunloaderlevertothe

openpositiontopreventairtankpressure

buildup.Rotatemanuallockunloaderleverto

theclosedpositionafterstartingtheengine

toallowairtankpressuretobuild.NOTE:Air

willnotbuildin tankwhenmanuallock

unloaderleverintheopenposition.

SAFETYVALVE

Thisvalve(I)isdesignedtopreventsystemfailures

byrelievingpressurefromthesystemwhenthe

compressedairreachesapredeterminedlevel.The

valveispresetbythemanufacturerandmustnotbe

removedormodifiedinanyway.

AIRINTAKEFILTER

Thefilter(A)isdesignedtocleanairenteringthepump.

Toensurethepumpcontinuallyreceivesaclean,cool,

anddryairsupplythefiltermustalwaysbecleanand

thefilterintakemustbefreefromobstructions.

AIR TANK DRAIN VALVES

The drain valve (J) is used to remove

moisture from the air tank after the air

compressor is shut off.

AIR TANK PRESSURE GAUGE

The air tank pressure gauge (D) indicates air pressure

REGULATED PRESSURE GAUGE

The regulated pressure gauge (E) indicates

the air pressure available at the outlet side of

the regulator. This pressure is controlled by the

regulator and is always less or equal to the air

in the air tank.

tank pressure.

REGULATOR

The regulator knob (F) controls the air pressure coming from the air

tank.

To Adjust Regulator:

1. Pull regulator knob (F) out to unlock.

2. Turn knob clockwise to increase regulated pressure and

counterclockwise to decrease regulated pressure.

3. When desired pressure is shown on the regulated pressure

gauge push knob in to lock.

_,WARNING: Risk of Bursting. Too much air pressure causes a

hazardous risk of bursting. Check the manufacturer's maximum

pressure rating for air tools and accessories. The regulator outlet

pressure must never exceed the maximum pressure rating.

THROTTLE CONTROL

When maximum air tank pressure is reached and the unloader

valve vents air, it activates the throttle control on the engine. This

gas saving feature holds the engine at a factory-set idling speed

until air pressure in the air tank drops to reset pressure. The

unloader valve then reactivates the throttle control and accelerates

the engine to full throttle.

LOW OIL SHUT DOWN SENSORS

The air compressor engine is equipped with low oil shutdown

sensors. These are safety devices designed to protect your engine

from damage in the event the oil level in the crankcase is below

minimum.

If the oil in engine gets low while the air compressor is running it will

automatically shut down the engine and will not restart until oil is

added to the engine. If the oil is low before start-up, the engine will

not start until oil is added.

Autres manuels pour DXCMH1608WB

Table des matières

Langues :

Autres manuels DeWalt Compresseur d'air

DeWalt

DeWalt D2002M Manuel utilisateur

DeWalt

DeWalt U3A2008X Manuel utilisateur

DeWalt

DeWalt D55168 Manuel utilisateur

DeWalt

DeWalt DXCMH9919910-CA Manuel utilisateur

DeWalt

DeWalt DXCM271 Manuel utilisateur

DeWalt

DeWalt DXCMTA5590412 Manuel utilisateur

DeWalt

DeWalt DCC1054N-XJ Manuel utilisateur

DeWalt

DeWalt DXCMH1608WB Manuel utilisateur

DeWalt

DeWalt DWFP55126 Manuel utilisateur

DeWalt

DeWalt DXCMLA1983054 Manuel utilisateur

DeWalt

DeWalt D55154 Manuel utilisateur

DeWalt

DeWalt DXCMTA5090412 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt D55145 Manuel utilisateur

DeWalt

DeWalt D55140 Manuel utilisateur

DeWalt

DeWalt Emglo D55151 Manuel utilisateur

DeWalt

DeWalt DXCM201 Manuel utilisateur

DeWalt

DeWalt DXCMSAC260 Manuel utilisateur

DeWalt

DeWalt Contractor's Electric Wheeled Portable Air Compressor... Manuel utilisateur

DeWalt

DeWalt D55394 Manuel utilisateur

DeWalt

DeWalt D55166 Manuel utilisateur

DeWalt

DeWalt DCC2560T1 Manuel utilisateur

DeWalt

DeWalt DXCMV7518075 Manuel utilisateur

DeWalt

DeWalt Emglo D55150 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
