DeLonghi HSX4324E Manuel utilisateur

DESCRIPTION

A Power indicator light

B ON/STAND-BY button

C +/- adjustment buttons

D MODE button (selects the operating mode)

E “ECO plus”button

F Timer button

G handle

H air outlet grill

General instructions

Remove the heater from the packaging. Check that neither

the heater nor the power cable has been damaged during

transport. Do not operate the heater if damaged. Remove all

publicity material present on the appliance.

Electrical connection

- Before connecting the appliance to the current outlet,

check that the voltage indicated on the appliance rating

plate is the same as your electric plant and that it can

stand the power consumption (Watt) indicated by the

labelling.

- If more than one appliance is used at once, it is

important to ensure that the electric plant is able to

support the power required.

Mounting the feet

Required tool: Screwdriver PH 2 x 100 (Phillips type)

Turn the appliance upside down on a rug or soft surface in

order to prevent damaging the paint nish.

Fix the feet to the appliance with the nr. 2 screws

supplied

(see g. 1 and 2), 1 screws for each foot. See gure 3

for the minimum distances from the walls.

USE

Operation and use

- Plug into the mains socket.

- The appliance emits a beep. The power indicator light

(A) comes on and remains lit while the appliance is

powered.

- The appliance switches to stand-by.

- Press the ON/STAND-BY (B) to turn the appliance on.

It begins heating the room according to the current

settings.

- Press the MODE (D) button to select one of the following

operating modes:

- Freeze prevention

In this mode, the appliance keeps the room at a

temperature of 7°C to avoid freezing.

- Heating 1, 2, 3 and Heating 3 + Fan

In this mode, the desired temperature can be selected by

pressing the adjustment buttons + and –. By pushing

the + or - button once, the temperature (shown on the

display) will increase or decrease by 1°C.

Heating 1

The appliance operates at low power.

Heating 2

The appliance operates at medium power.

Heating 3

The appliance operates at high power.

Heating 3 + Fan

The appliance operates at the maximum power with

the fan. The setting temperature range available is from

16°C to 32°C.

“ECO plus” function

The “ECO plus” function is available in Heating 1, 2 3 and 3

+ fan modes only. To activate the function, press the “ECO

plus” (E) button. When this function is active the appliance

automatically sets the most appropriate power level

to guarantee optimum comfort while reducing energy

consumption.

While the “ECO plus” function is active, the appliance may

switch automatically to a lower heating power than the one

displayed.

Working indicator

The symbol indicates the heating status by means of its

colors.

RED: the unit is heating at the maximum power.

YELLOW: the unit is heating at the medium power.

GREEN: the unit is heating at the minimum power.

absent: the unit is not heating.

Brightness of the display

The appliance allows two dierent brightness settings for the

display. The highest is active when any key button is pressed.

After a few seconds of keyboard inactivity, the brightness will

decrease to the operating brightness level.

Key lock

In order to avoid accidental operation, you can lock the

keyboard using the keylock function. To activate this function

press buttons + and - (C) together for at least 3 seconds. The

display shows the symbol and a double acoustic signal

will be emitted. To deactivate the function proceed in the

same way.

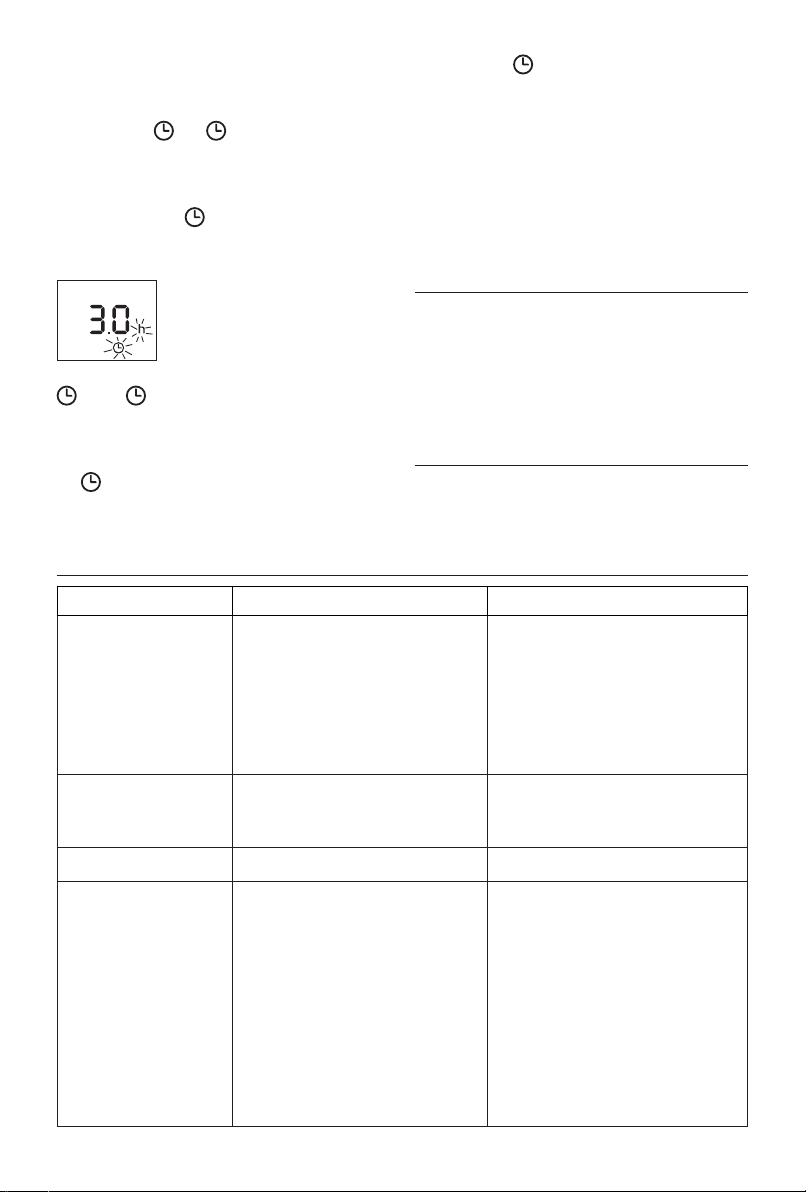

Timer function

This function can be activated in two dierent ways.

Delayed start: With the appliance on-standby, press the

timer button (F) . The symbol is displayed ashing

together with the hours left before the appliance comes on.

Change the hours using the + and - (C) buttons, then wait

a few seconds for the program to be stored. The display will

return to o and the symbols remains on. When the

programmed time has elapsed, the appliance will come on

with the previous settings.

Delayed stop: with the appliance on, press the timer button

(F). The symbol is displayed ashing together with

the hours left before the appliance goes on-standby. Change

the hours using the + and - (C) buttons, then wait a few

seconds for the program to be stored. The current settings

and symbol are displayed. At the end of the set time the

appliance switches on-standby automatically. To go back to

operating without the timer, press the timer button twice.

The timer symbol disappears from the display.

Note: the time is settable from 0.5 to 24 hours.

Changing of the temperature scale

The display can show the temperature in both °F (Fahrenheit)

and °C (Celsius). To select the desired temperature scale,

when the unit is in standby position, press and hold the "+"

key for at least 10 seconds, then release.

The change of scale will be indicated by two short beeps.

MAINTENANCE

Before carrying out any maintenance, unplug the heater from

the mains and wait for it to cool o completely. This heater

requires no particular maintenance. It is sucient to remove

the dust with a soft, dry cloth. Never use abrasive powders or

solvents. If necessary remove concentrated areas of dirt with

a vacuum cleaner.

TECHNICAL CHARACTERISTICS

Supply voltage See rating label

Absorbed power “

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work Be sure it is plugged in and that the

electrical outlet is working

The temperature may be set too low

The Key lock may be activated

Plug into the power outlet

Set the temperature to a higher position

See the section "Key lock"

The display shows a blinking

dot and you could hear a

"beep"

The appliance could be tipped over or is

positioned in an improper way

Make sure the appliance is standing upright

on a at surface. Position the appliance

correctly

The display shows "PF"The temperature sensor is malfunctioning Contact the De' Longhi costumer experience.

The display shows "Ht"

blinking

The internal temperature is too high. Remove the plug from the mains. Check the

appliance is not covered or obstructed. In

case remove the obstructions.

Check the appliance is correctly positioned

respecting the minimum distance from

the wall, or objects, as indicated on the

instruction manual, if not, position the

appliance correctly. Let the appliance cool

down and plug the appliance again. If it

doesn't work, please contact the De' Longhi

Costumer Experience.
