TRD4 Series

DRAGON 4 OIL FILLED RADIATOR

Instructions for use

IMPORTANT WARNINGS

Read all the Instruction for Use carefully before using

the appliance. Keep this Instructions for Use.

Danger!

Failure to observe the warning may result in life threatening

injury by electric shock.

- Do not use the heater in the vicinity of

bathtubs, wash basins, showers, sinks

and swimming pools.

- Never use the heater to dry laundry.

- If the power cable has been damaged,

it must be replaced by the manufactur-

er or the technical service centre or by a

qualied person so as to avoid all risks.

Important!

Failure to observe the warning could result in injury or dam-

age to the appliance.

-This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory

or mental capabilities or lack of ex-

perience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved.

Children shall not play with the appli-

ance. Cleaning and user maintenance

shall not be made by children without

supervision.

- Children of less than 3 years should be

kept away unless continuously super-

vised.

- Children aged from 3 years and less

than 8 years shall only switch on/o

the appliance provided that it has been

placed or installed in its intended nor-

mal operating position and they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children aged from 3 years

and less than 8 years shall not plug

in, regulate and clean the appliance or

perform user maintenance.

CAUTION — Some parts of this

product can become very hot and

cause burns. Particular attention

has to be given where children and

vulnerable people are present.

- WARNING: Do not use this heater in

small rooms when they are occupied

by persons not capable of leaving the

room on their own, unless constant su-

pervision is provided.

- The body of this radiator is lled with

a precise quantity of special oil, so that

repairs requiring the opening of the oil

body must only be made by the service

agent. Any oil leakage must be report-

ed to the Customer Experience, see en-

closed guarantee for details.

- When scrapping the heater, follow the

regulations concerning the disposal of

oil.

- The appliance must not be located im-

mediately below a xed socket-outlet.

- CAUTION: in order to avoid any danger

caused by an accidental resetting of

the safety system, this appliance must

not be powered through an external

timer.

- Do not obstruct the air intake and out-

let area (danger of overheating).

Danger of burns!!

Failure to observe the warning could result in burns or scalds.

- WARNING: In order to avoid

overheating, never under any

circumstances cover the appli-

ances during operation, as this would

lead to dangerous overheating.

- The use of an extension lead is not

recommended, as overheating of the

extension lead may occur during the

operation of the heater.

- Never place the power cable on top of

the heater while it is hot.

- Do not rest anything on the appliance.

- WARNING: To reduce the risk of re,

keep textiles, curtains, or any other

ammable material a minimum dis-

tance of 1 m from the air outlet.

Please note:

This symbol indicates recommendations and important infor-

mation for the user.

- We recommend that you not place the

heater in a draught, because strong

draughts of air may adversely aect

the equipment’s operational eciency.

Only

use this heater on a horizontal

and stable surface.

- Always use the appliance in an upright

position.

- Do not use this heater if it has been

dropped.

- Do not use if there are visible signs of

damage to the heater.

- In order to eliminate the radiator's

“new”smell , set it to maximum power

for at least two hours when used for the

rst time. During this operation, the

room in which the radiator is located

must be ventilated. A little smoke due

to the protective substances applied to

the heating element before transport

may be given o.

- Position the appliance so that the plug

and the outlet can be easily reached.

- Do not use the appliance in rooms less

than 4 m2in area.

- The appliance is tted with a safety de-

vice which will switch o it in case of

accidental overheating.

To reset, please contact Customer Expe-

rience, see enclosed guarantee.

- Before putting the appliance away,

make sure it is completely cooled and

unplugged from the mains socket.

Do not store in dusty atmospheres.

- The appliance must not be hung.

Fundamental safety warnings

Dear customer - the plug on the appliance

heats up during use. This is completely

normal.This HIGH POWER HEATING

APPLIANCE complies with our usual high

standards. You should, however, make

sure that your power socket is in good

condition and that the plug on the

appliance is plugged into the socket

correctly to avoid accidental overheating.

If the appliance is used for long periods of

time, we recommend checking the plug

and mains socket regularly. If in doubt,

consult an electrician.

For non-EU countries only:

This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or in-

struction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure

that they do not play with the appliance.

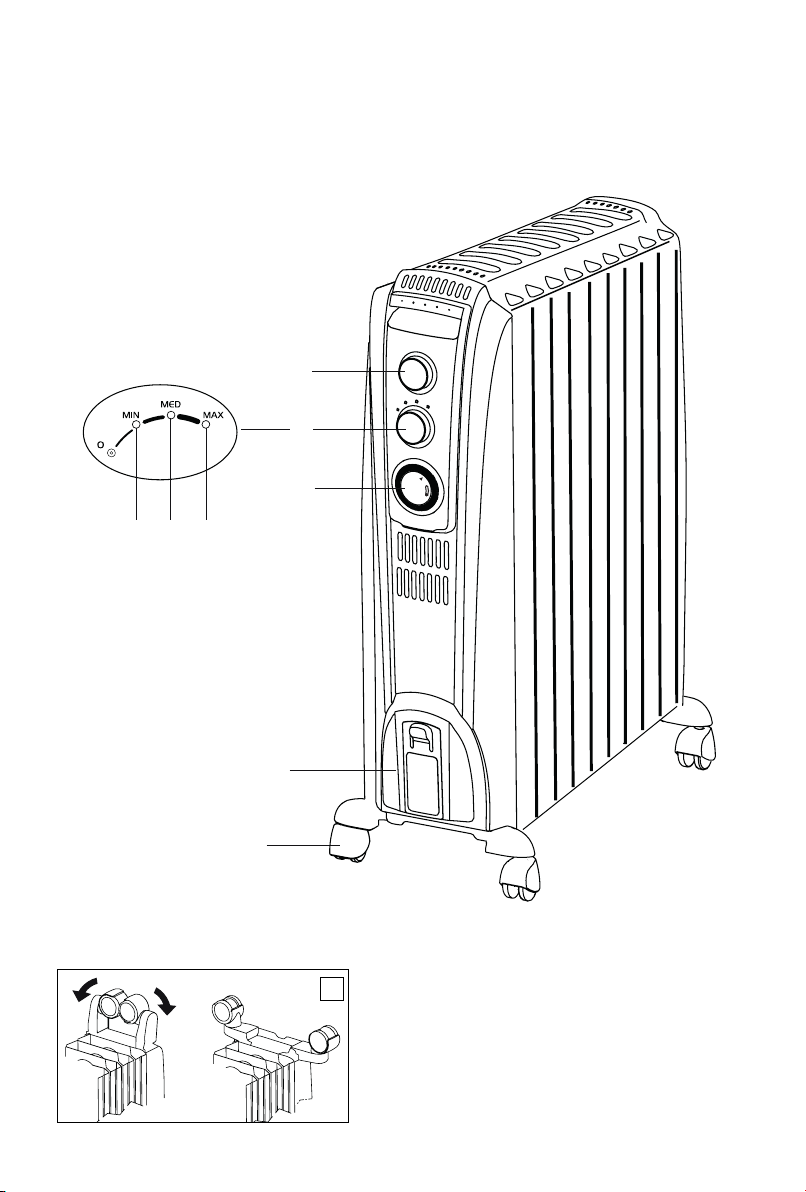

DESCRIPTION

A Thermostat

B Power selector

C/D/E Power indicator lights (MIN, MED, MAX)

F Timer

G Cord holder

H Wheel

USE

"Easy wheel" system

Turn the radiator upside down on a rug or soft surface to prevent

damaging the paint nish. Fully unfold the wheels by turning

them outwards (Fig. 1). Turn the radiator back to its upright

position.

Caution

Always operate the heater in upright position only (wheels on

the bottom, controls on top).

Any other position could create a hazardous situation.

Connection

- Before using the appliance check that your supply voltage

is the same of that shown on the rating label of the

unit and that the power socket and power supply line

correspond to the load specied.

- Check also the current capacity of your fuses. CONNECT

YOUR HEATER TO EARTH PROVIDED SOCKET ONLY.

Keep loose clothing or bedding, furniture and ammable

material away from the heater's wall outlet.

Turning on

Insert the plug into an electrical outlet, rotate the thermostat

knob to maximum and turn the unit on as follows using the

power selector:

- Turn the power selector to position MIN to select minimum

output (the min light will be on).

- Turn the power selector to position MED to select medium

output (the min/med light will be on).

- Turn the power selector to position MAX to select maximum

output (the lights will be on).

Adjusting the thermostat

When the room has reached the desired temperature, turn the

thermostat knob slowly in an anti-clockwise direction until you

hear a "click" and not beyond it.The thermostat will then adjust

the set temperature automatically and keep it constant.

If your unit is a three-output version, in intermediate seasons

or on days when temperatures are not particularly cold, select

minimum output to optimize savings and consumption.

Antifreeze function

Turn the thermostat dial to the position and the power

selector to position MAX.The appliance will maintain a minimum

room temperature of approximately 5°C, thus preventing

freezing while conserving energy. In models that come with a

timer, tabs must be set in the inward position.

Reminder

To completely shut the appliance o, turn the power selector to

the "0" position and then unplug the appliance from the outlet.

UNITS WITH TIMER

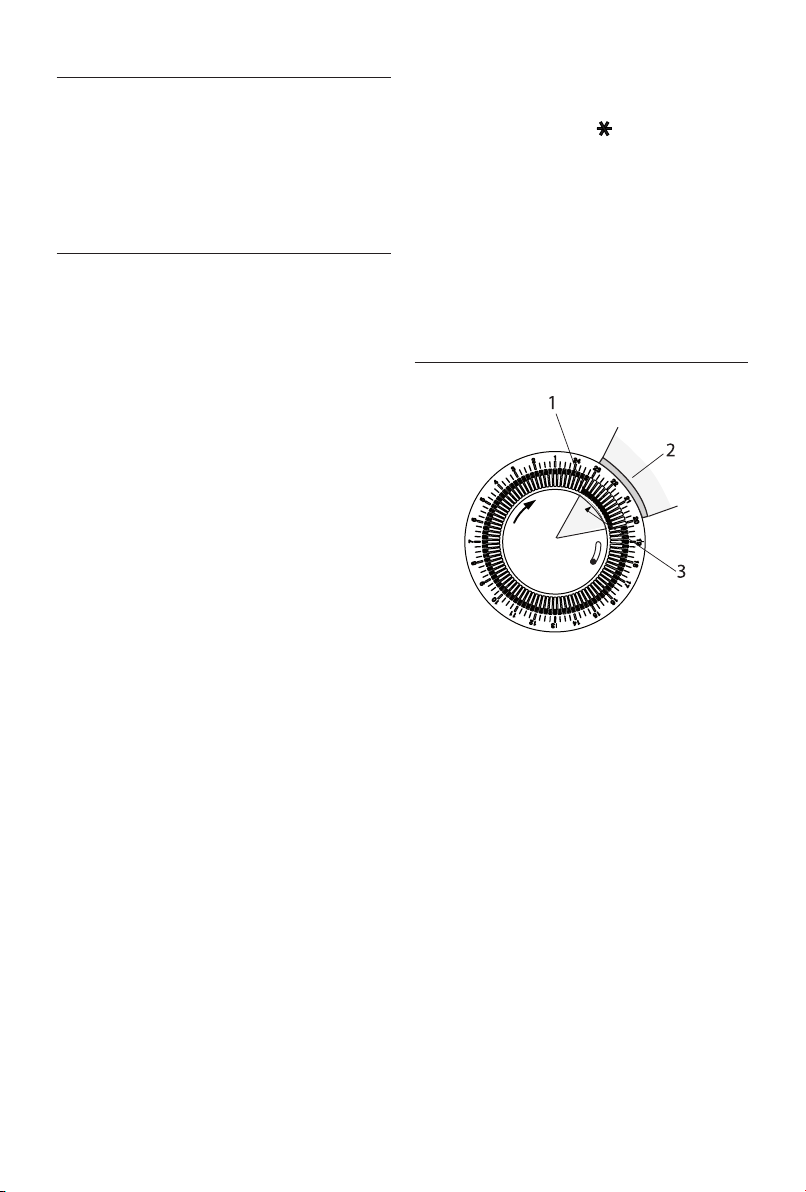

How to use the timer

To program heating, proceed as follows:

- Look at the time on your clock or watch. If it is 10 p.m.,

turn the numbered timer disk clockwise until the number

22 (10 p.m.) on the disk coincides with the pointer s(3)

on the timer. Set the periods of time when you want the

appliance to work by pushing the teeth (1) inward. Each

tooth (1) corresponds to a period of 15 minutes.

This will leave visible sectors which correspond to the

periods of operation (2).When set, the radiator will operate

automatically each day during the times programmed

(important: the radiator must always be plugged into the

socket).

- To change the programming, move the teeth back into the

initial position and set the new periods of operation.

- To turn the appliance o completely, as well as turning the

knob to the o position, you must also unplug it from the

power outlet to avoid continued operation of the timer.

IMPORTANT: DO NOT ROTATE CLOCK DIAL COUNTER-

CLOCKWISE.

The timer is like an electric clock, and will only work when

6TM

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work Be sure it is plugged in and that the

electrical outlet is working.

Check for any obstruction.

The temperature may be set too low.

Plug into the power outlet.

Remove the obstruction and let the

appliance cool down. If the appliance

doesn't work please contact Customer

Experience.

Set the temperature to a higher position.

plugged into a power supply. When unplugged, the timer stops

and must be later re-set.

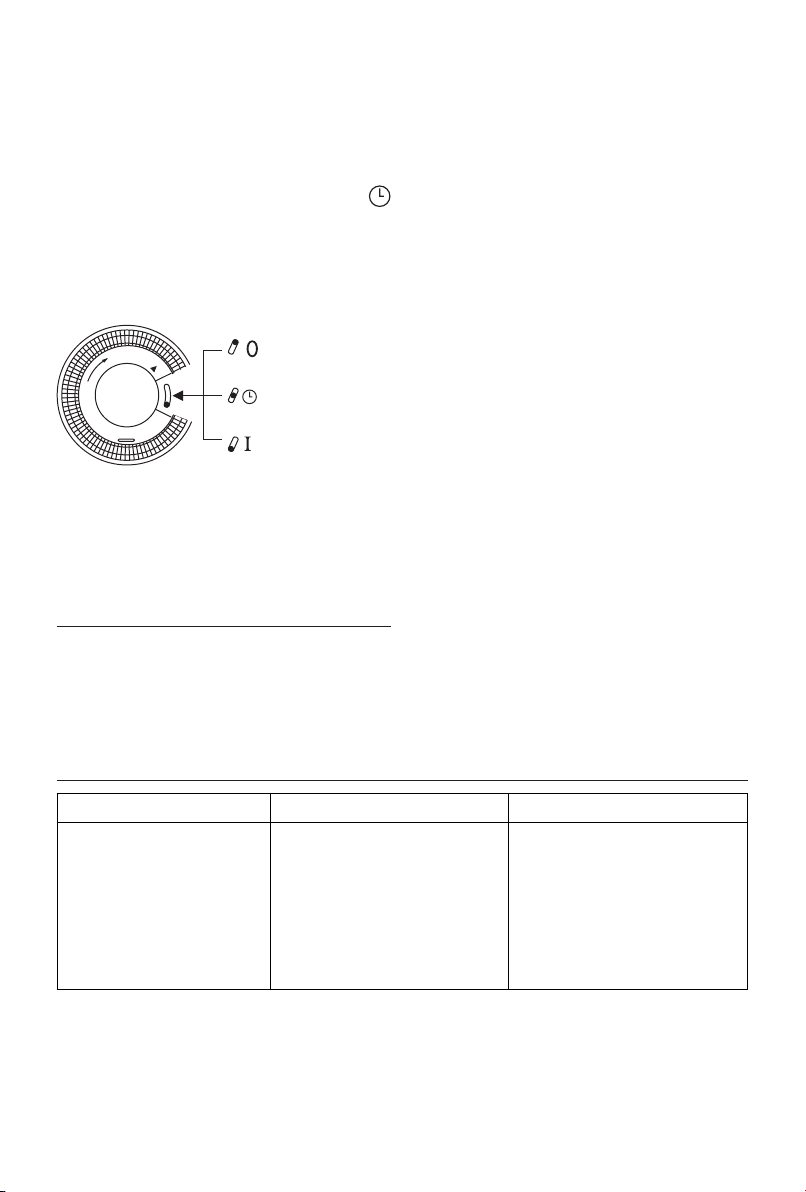

Timer override

If you wish to override the timer settings, push the timer switch

to position I(g.2) manual (timer override). To return to timed

operation push the switch back to the middle position

(g.2).

NOTE: if the timer switch is at the 0 position (g. 2), the

heater is o and will not operate).

Heater o

Timer operation

Manual (timer

override)

Safety device

A safety device shuts the radiator down in the case of

overheating. To start the radiator up again, contact Customer

Experience. See enclosed guarantee leaet.

MAINTENANCE AND SERVICE

Always unplug the heater from the power outlet and allow the

radiator to cool. Wipe radiator with a soft damp cloth; do not

use detergents or abrasives. Should the radiator not be in use

over a certain length of time, wind the cord around the holder

and store it in a dry place. This appliance has been built to last

for many years of trouble-free service. In case of malfunction

or doubt, do not try to repair the heater by yourself: this might

increase the risk of re and electric shock. Please refer to the

enclosed guarantee leaet for service and assistance details.

Autres manuels pour DRAGON 4

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels DeLonghi Chauffage

DeLonghi

DeLonghi DRAGON 4 Manuel utilisateur

DeLonghi

DeLonghi DRAGON 4 Manuel utilisateur

DeLonghi

DeLonghi HFX66V15C Manuel utilisateur

DeLonghi

DeLonghi RADIANT HEATER Mise à jour du firmware

DeLonghi

DeLonghi TRD40615EBKCA Manuel utilisateur

DeLonghi

DeLonghi Radia R 030715 Manuel utilisateur

DeLonghi

DeLonghi TRD50615E Manuel utilisateur

DeLonghi

DeLonghi HSX4324E Manuel utilisateur

DeLonghi

DeLonghi TRD40615ECA Manuel utilisateur

DeLonghi

DeLonghi KH390715CB-6A Manuel utilisateur

DeLonghi

DeLonghi TRDX4 Manuel utilisateur

DeLonghi

DeLonghi HFX30 Series Manuel utilisateur

DeLonghi

DeLonghi TCH Series Manuel utilisateur

DeLonghi

DeLonghi HTN Series Manuel utilisateur

DeLonghi

DeLonghi DFH550R Manuel utilisateur

DeLonghi

DeLonghi HVS Series Manuel utilisateur

DeLonghi

DeLonghi CATALYTIC HEATER Manuel utilisateur

DeLonghi

DeLonghi Electric radiator Manuel d'instructions d'installation

DeLonghi

DeLonghi TRD40615T-6A Manuel utilisateur

DeLonghi

DeLonghi HFX25S20 Manuel utilisateur

DeLonghi

DeLonghi STRETTO Manuel utilisateur

DeLonghi

DeLonghi Dragon4 Pro Fiche technique

DeLonghi

DeLonghi Electric oil Filled Radiator Manuel utilisateur

DeLonghi

DeLonghi Electric oil Filled Radiator Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
