PowerStore Quick Start Guide

Quick Start

trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

P/N 300-015-650 Rev 01

Before you begin

□Plan your installation: Read the

PowerStore Planning Guide

https://dell.com/powerstoredocs.

□

Create a support account at

https://dell.com/support.You

need this account later in the

configuration process to activate

software licenses and configure

Dell EMC SupportAssist.

□

Download the

PowerStore

Discovery Tool for Windows

and/ or Linux

from the

Drivers &

Downloads Tab

on the

PowerStore Product Support

Page

https://dell.com/support. This

tool helps you discover your

appliances within your network if

you are remote.

□

Get lift assistance:

Obtain the help of a second

person to install the enclosure

into the rack or use a mechanical

lift.

□Install hardware: if installing

PowerStore with expansion

enclosures, read the

Installation and

Service Guide for PowerStore 1000,

1200, 3000, 3200, 5000, 5200,

7000, 9000, and 9200

or the

Installation and Service Guide for

PowerStore 500T

https://dell.com/powerstoredocs

□Configure network: Depending on

the model of your system, read the

PowerStore Networking Guide for

PowerStore X Models

or the

PowerStore Networking Guide for

PowerStore T Models

https://dell.com/powerstoredocs

□Record network addresses:

Download the networking guide for

your model from

https://dell.com/powerstoredocs,

and work with your network

administrator to complete the

Initial

Configuration Worksheet

section.

Note: If your appliance arrived pre-racked, begin installation at Step 5 of this guide.

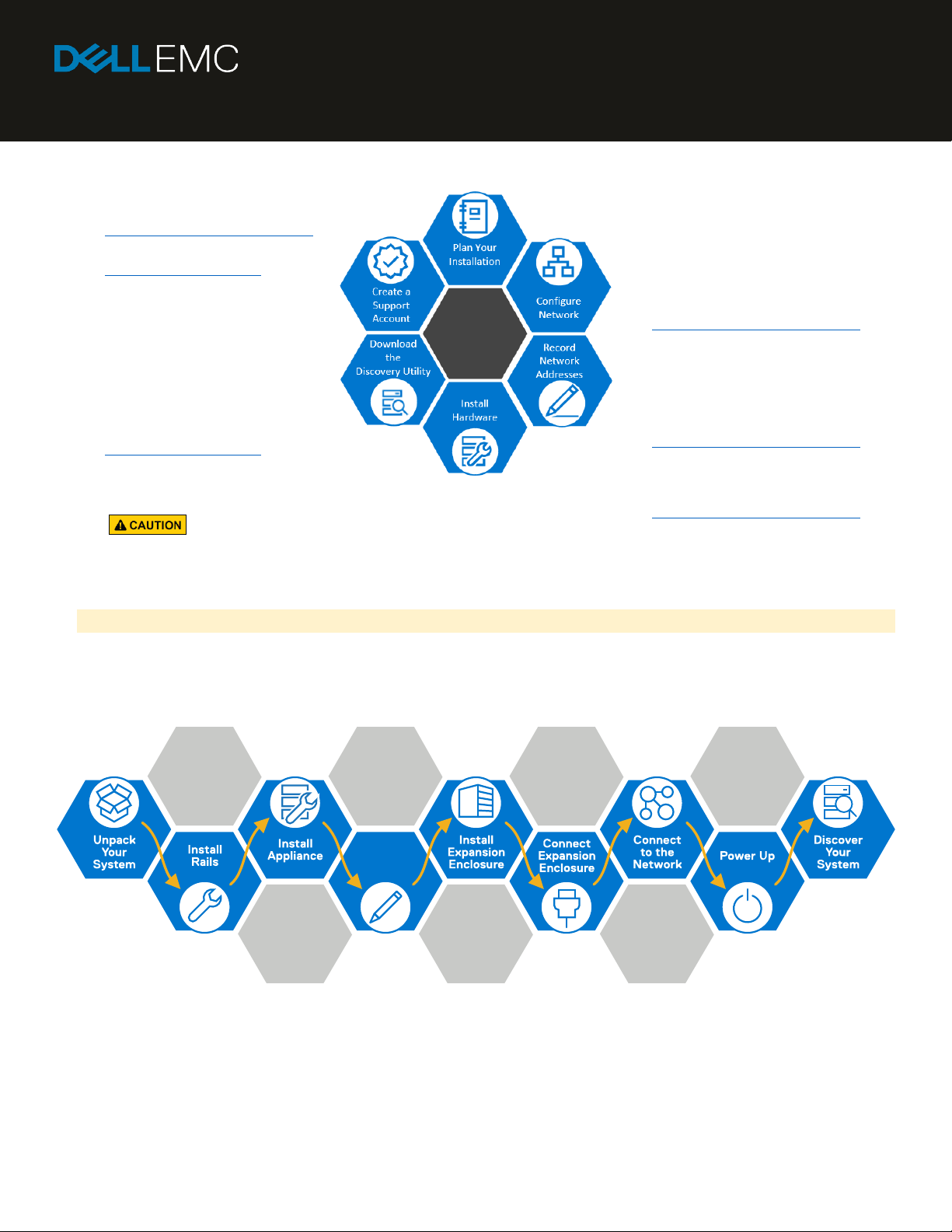

Installation workflow

Record

Dell Serv ice

Ta g

Dell EMC PowerStore Quick Start Guide Page 2of 8

1. Unpack your system

Verify that you have the following:

Base enclosure:

2U base enclosure (1)

Network cables (4)

Rails (2)

Electrostatic discharge clip (1)

Power cables (6, only 2 required per enclosure)

Bezel, with key (1)

1Only 4 included for PowerStore 500T

Decide where to install the base enclosure

- Install your base enclosure in the lowest possible space, leaving 2U of space open at the bottom of your cabinet for

serviceability.

- If installing an expansion enclosure, install the expansion enclosure in the next available 2U space, directly above the base

enclosure or the last expansion enclosure in the system.

- Leave 4U at the top of the rack for network switches.

- It is recommended that you also leave 36 inches of clearance in front of and behind the rack for serviceability.

2. Install the rails into your cabinet

When installing the rails, ensure that the rail pins are lined up correctly:

•For the front end of the rail, the bottom pin of the rail goes through the middle hole of the lower U, and the top pin goes through

the top hole of the upper U.

•For the rear end of the rail, the bottom pin of the rail goes through the bottom hole of the lower U, and the top pin goes through

the top hole of the upper U.

1. Position the rail so the label FRONT is located at the front of the rack and facing towards the inside of the rack, while

orienting the rear of the rail to align level with the holes on the rear of the rack.

2. From the rear of the rack, pull the rail straight back until the latch is locked.

3. To install the front-end piece of the rail, press the blue latch release button until the latch rotates open.

Note: The pins on the back of the rails are in different locations than the front of the rails.

4. Pull the rail forward until the pins slide into the holes on the front of the rack, then release the latch to secure the rail in

place.

5. Repeat for the other rail.

Note: Racks are shown with square holes. The installation instructions are the same for racks with round holes. For

racks with threaded holes, remove the guide pin on the rails before installation.

Dell EMC PowerStore Quick Start Guide Page 3of 8

3. Install the base enclosure onto the rails

The base enclosure is heavy and should be installed into or removed from a rack by two people. To avoid personal injury

and/or damage to the equipment, do not attempt to lift and install the base enclosure into a rack without a mechanical

lift and/or help from another person.

1. From the front of the rack, slide the base enclosure onto the rails.

Ensure that the base enclosure is flush with the front of the rack, fully seated in the cabinet, and does not easily slide out.

2. (Optional) If securing the system for shipment in the cabinet or for other unstable environments:

Locate the captive screw under each latch and tighten to the front of the cabinet using a #1 Phillips screwdriver.

Dell EMC PowerStore Quick Start Guide Page 4of 8

4. Record the Dell Service Tag

Locate and record the number from the black Dell Service Tag on the front of the base enclosure.

5. Install optional expansion enclosures

If you are not installing an expansion enclosure, continue to step 7.

If installing an expansion enclosure, determine which type of expansion enclosure you are installing:

25 Drive 2.5 Inch SAS (ESS25) Expansion Enclosure

For each additional expansion enclosure, repeat steps 2 and 3 to install the rails and expansion enclosure onto the rails.

24 Drive 2.5 Inch NVMe (ENS24) Expansion Enclosure

See the

Installation and Service Guide for PowerStore 500T

or the

Installation and Service Guide for PowerStore 1000, 1200,

3000, 3200,5000, 5200, 7000, 9000, and 9200

at https://dell.com/powerstoredocs to install the expansion enclosure into the

cabinet.

6. Connect the expansion enclosure to the base enclosure

See the

Label Sheets

included with the expansion enclosure for cabling details.

7. Connect the base enclosure to your switches

1. Identify which type of PowerStore model you are deploying: either a PowerStore T model appliance or a PowerStore X

model appliance

2. Choose the cabling instructions for the PowerStore model you are deploying:

Dell Service Tag

Dell EMC PowerStore Quick Start Guide Page 5of 8

Option A

If you are using the PowerStore T Model appliance:

Cable the management interface on both nodes to a management switch or network.

Note: You will require two additional network cables to complete this step.

Note: For more detailed instructions on recommended networking configurations, including how to

configure PowerStore T with top-of-rack switches, see the

PowerStore Networking Guide for

PowerStore T Models

at https://dell.com/powerstoredocs. Check with your network administrator to

determine which ports on your switches to use.

Option B

If you are using the PowerStore X Model appliance:

Using the supplied cables:

Connect the network cables on node A:

a. Port 0 of the embedded module connects to switch 1.

b. Port 1 of the embedded module connects to switch 2.

Connect the network cables on node B:

a. Port 0 of the embedded module connects to switch 2.

b. Port 1 of the embedded module connects to switch 1.

Note: These instructions show a minimum cabling configuration. For more detailed instructions on

recommended networking configurations, see the

PowerStore Networking Guide for PowerStore X Models

at https://dell.com/powerstoredocs. Check with your network administrator to determine which ports on

your switches to use.

Dell EMC PowerStore Quick Start Guide Page 6of 8

8. Power up

a. Expansion enclosure

If installing PowerStore with an expansion enclosure, the order in which you power up the enclosures may differ. See

Installation and Service Guide for PowerStore 500T

or the

Installation and Service Guide for PowerStore 1000, 1200,

3000, 3200,5000, 5200, 7000, 9000, and 9200

at https://dell.com/powerstoredocs for power up details.

b. Base enclosure

Plug each power cable into the base enclosure power supply unit and close the retention bail over the base of the

power cable. Connect the other end of each power cable to PDU A and PDU B. After you connect the power cables,

the base enclosure automatically starts up.

9. Attach the bezel

1. Align the bezel with the expansion enclosure.

2. Gently push the bezel into place on the cabinet until it latches.

3. Lock the bezel with the provided key.

a. Base enclosure

b. Expansion enclosure

If installing PowerStore with an expansion enclosure, see the

Installation and Service Guide for PowerStore 500T

the

Installation and Service Guide for PowerStore 1000, 1200, 3000, 3200,5000, 5200, 7000, 9000, and 9200

https://dell.com/powerstoredocs for instructions.

Dell EMC PowerStore Quick Start Guide Page 7of 8

10. Discover your system

Next, discover your newly installed base enclosure, and then create a cluster.

Note: The procedure in this section only applies if you are physically present within the datacenter. If you do not have access

to the base enclosure, download and run the PowerStore Discovery Utility on a remote system or virtual machine to discover

your system. Refer to the networking guide for your model for more information on setting up your workstation and using the

PowerStore Discovery Utility.

Before you begin:

•(Optional) Download and run the PowerStore Network Validation Tool (NVT) to validate that your networks are

correctly configured. The NVT can be downloaded from Dell EMC Central Solutions at

https://central.dell.com/central/home.

•Ensure that your workstation’s network adapter is configured as follows:

oConnected directly to the PowerStore service port on Node B

oConfigured with a static IP address on the service LAN network (128.221.1.0/24) with no gateway address

defined (128.221.1.249; 255.255.255.0; no gateway)

oAble to ping the IP address of Node B’s service LAN port (128.221.1.251)

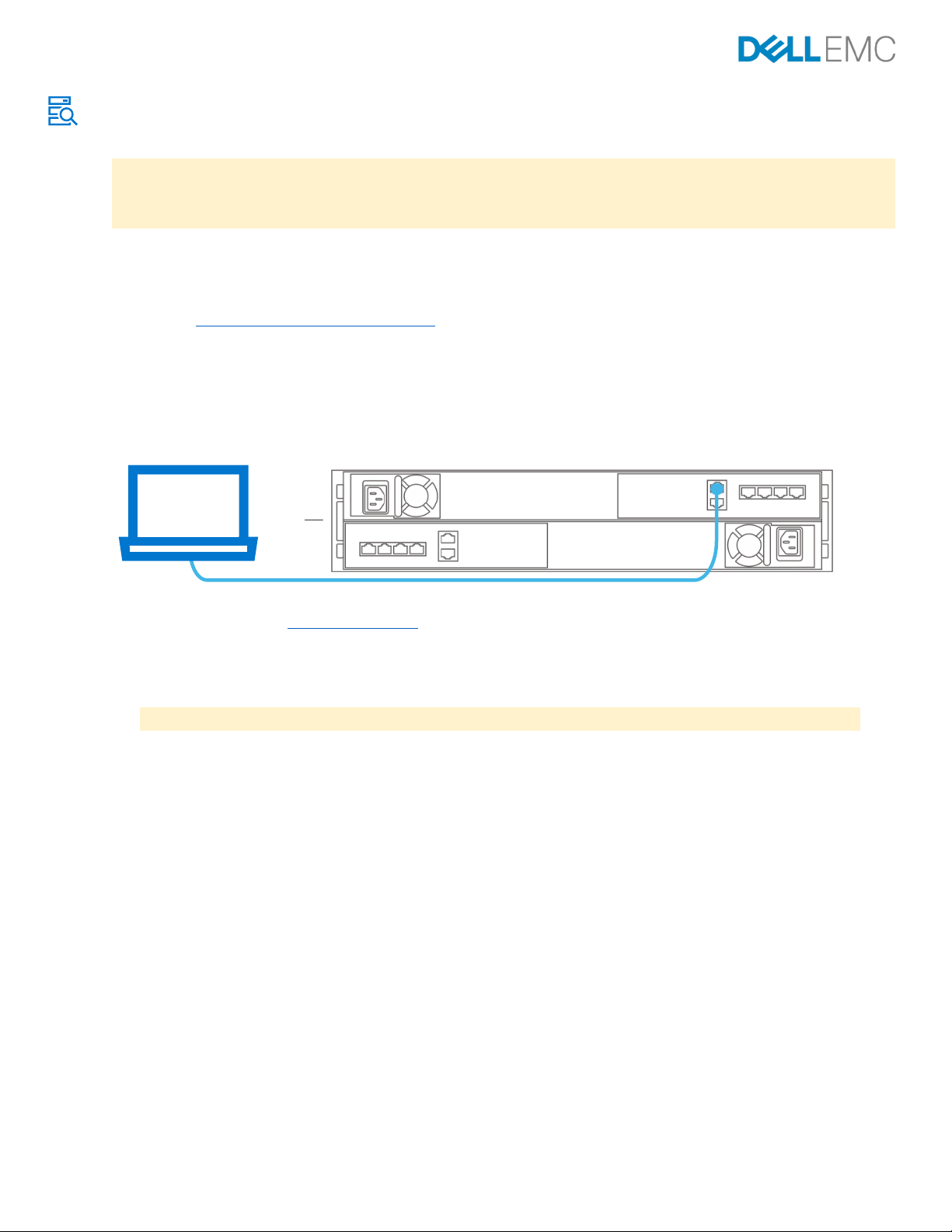

1. Connect your workstation or laptop to the service port on Node B of the base enclosure.

2. In a web browser, go to https://128.221.1.251.

Log on to PowerStore Manager and begin the initial configuration process using the following default credentials:

Username: admin

Default password: Password123#

Note: You must change this default password during initial configuration.

You can disconnect the workstation or laptop from the service port after the initial configuration process is complete.

What’s next?

Use the information from the Initial Configuration Worksheet in the networking guide to configure your cluster for use.

Dell EMC PowerStore Quick Start Guide Page 8of 8

Other languages

You can access localized versions of this and other documents at https://dell.com/support.

您可以在 https://dell.com/support 上访问本文及其他文档的本地化版本。

Локализованные версии этого идругих документов можно найти на веб-сайте https://dell.com/support.

Você pode acessar versões localizadas deste e de outros documentos em https://dell.com/support.

본문서 및기타 문서의 한국어 버전은 https://dell.com/support 에서 이용할 수있습니다.

このドキュメントおよびその他のドキュメントの日本語版は、https://dell.com/support からご覧いただけます。

Des versions traduites du présent document et d’autres documents sont disponibles sur le site Web https://dell.com/support.

Puede obtener acceso a versiones traducidas de este y otros documentos en https://dell.com/support.

Lokalisierte Versionen dieses Dokuments und anderer Dokumente finden Sie unter https://dell.com/support.

Scan the following QR code for troubleshooting, How-To information and setup videos.
