Dell SC5020 Storage System

Getting Started Guide

Regulatory Model: E03T

Regulatory Type: E03T001

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or

loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be

trademarks of their respective owners.

2016 - 12

Rev. A00

Setting Up the Storage System

Consider the following best practices when setting up an SC5020 storage system.

• Dell recommends that you use a dedicated SAN network for data transmission

when using a Fibre Channel or iSCSI storage system.

• Always congure redundant data paths to provide alternate paths to and from the

host server should one of the data paths become disabled.

• Before connecting any cables between the storage system and host server or

expansion enclosure, physically label each port and connector.

• Always follow proper power-up and power-down procedures when cycling power

across the network. Verify that critical network components are on separate

power circuits.

NOTE: This product is intended for restricted access locations, such as a

dedicated equipment room or equipment closet.

WARNING: If installed in a closed or multi-unit rack assembly, the operating

ambient temperature of the rack environment may be greater than room

ambient temperature. Therefore, consideration should be given to installing

the equipment in an environment compatible with the maximum ambient

temperature (Tma) specied by the manufacturer.

Safety Warnings

Two person lift required

A fully congured SC5020 storage system weighs

approximately 43 kg (95 lb). Use appropriate lifting

methods when installing the storage system.

Laser Radiation for Fibre Channel Storage Systems

CAUTION: Class I laser radiation when open, avoid exposure

to beam.

WARNING: Laser radiation, avoid direct exposure to beam.

The unit is certied in the U.S. to conform to the requirements of DHHS 21 CFR,

chapter 1 Subchapter J for Class I (1) laser products, and elsewhere is certied as a

Class I laser product conforming to the requirements of IEC 60825-1:2007.

Class I laser products are not considered to be hazardous. The laser system and unit

are designed so there is never any human access to laser radiation above a Class I

level during normal operation, user maintenance or prescribed service condition.

Locating Your Service Tag

Your storage system is identied by a unique service tag and Express Service Code.

The service tag and Express Service Code are found on the front of the system by

pulling out the information tag. Alternatively, the information might be on a sticker on

the back of the storage system chassis. This information is used by Dell to route

support calls to the appropriate personnel.

NOTE: The Quick Resource Locator (QRL) code on the information tag is

unique to your system. Scan the QRL to get immediate access to your

system information using your smart phone or tablet.

Other Information You May Need

To install the storage system, you may need the following additional information.

NOTE: See the safety and regulatory information that shipped with your

Storage Center components. Warranty information is included as a separate

document.

• The Dell Storage Center SC5020 Storage System Deployment Guide provides

information about cabling storage system hardware components and conguring a

new storage system using the Dell Storage Manager Client.

• The Dell Storage Manager Storage Center Administrator's Guide describes how

to use the Dell Storage Manager Client to manage a Storage Center.

• The Dell Storage Manager Administrator’s Guide describes how to use Dell

Storage Manager to manage multiple Storage Center systems.

Installation and Conguration

Before you begin installation, make sure that the site where you plan to install the

storage system has standard power from an independent source or a rack power

distribution unit with a UPS.

In addition, verify that there is a 3U space in the lower 20U of the rack to install the

storage system. If you plan to install the storage system above the lower 20U of a

rack, a customer-provided mechanical lift must be used to avoid injury.

Unpacking Storage Center Equipment

Unpack the storage system and identify the items in your shipment.

Figure 1. SC5020 Storage System Components

1. Documentation 2. Storage system

3. Rack rails 4. USB cables (2)

5. Power cables (2) 6. Front bezel

Install the Storage System in a Rack

Install the storage system and other Storage Center system components in a rack.

About this task

Mount the storage system and expansion enclosures in a manner that allows for

expansion in the rack and prevents the rack from becoming top‐heavy.

The SC5020 storage system ships with a ReadyRails II kit. The rails come in two

dierent styles: tool-less and tooled. Follow the detailed installation instructions

located in the rail kit box for your particular style of rails.

NOTE: Dell recommends using two people to install the rails, one at the

front of the rack and one at the back.

Steps

1. Position the left and right rail end pieces labeled FRONT facing inward.

2. Align each end piece with the top and bottom holes of the appropriate U space.

Figure 2. Attach the Rails to the Rack

3. Engage the back end of the rail until it fully seats and the latch locks into place.

4. Engage the front end of the rail until it fully seats and the latch locks into place.

5. Align the system with the rails and slide the storage system into the rack

Figure 3. Slide the Storage System Onto the Rails

6. Lift the latches on each side of the front panel and tighten the screws to the

rack.

Figure 4. Tighten the Screws

If the Storage Center system includes expansion enclosures, mount the expansion

enclosures in the rack. See the instructions included with the expansion enclosure for

detailed steps.

Installing the Front Bezel

Install the bezel on the front of the storage system.

1. Hook the right end of the bezel onto the storage system.

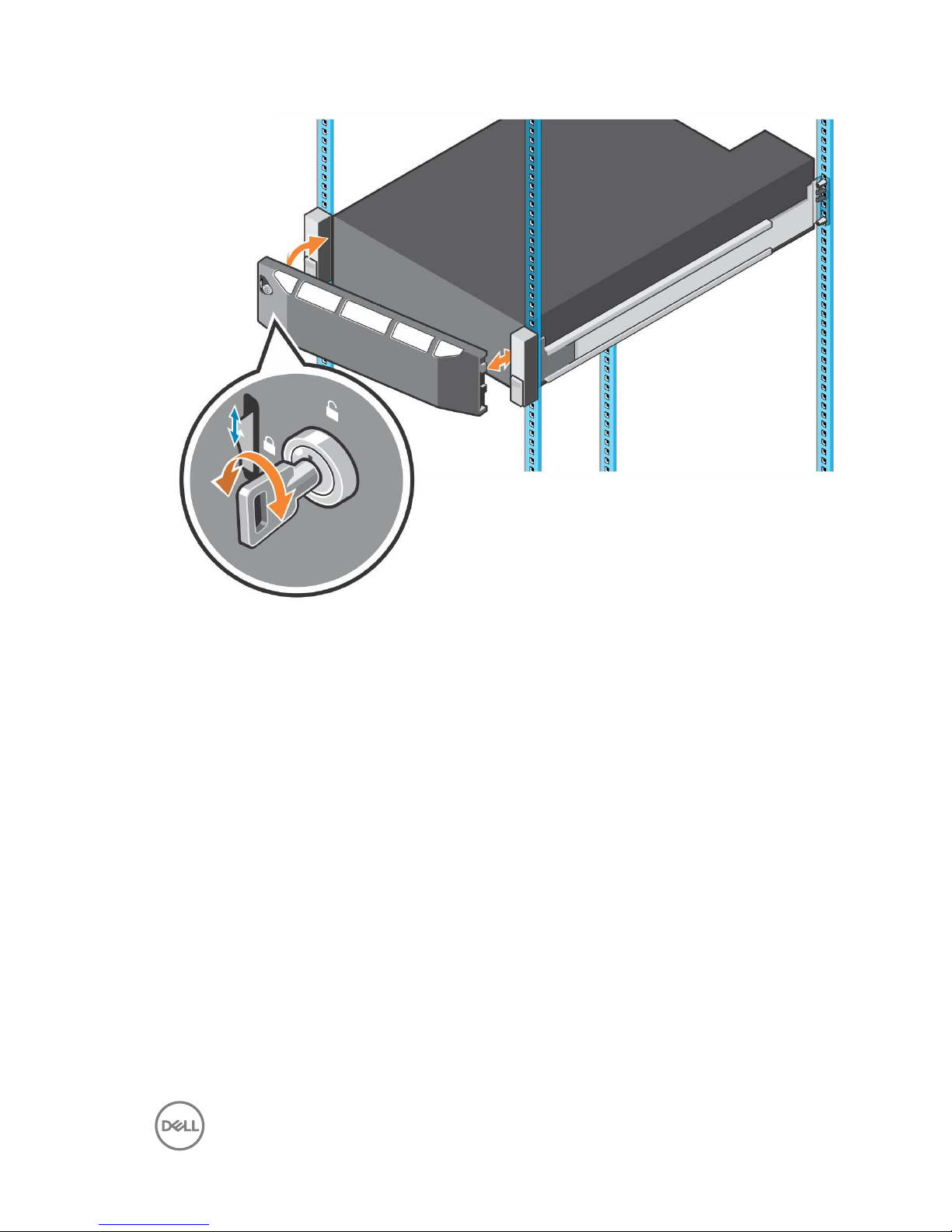

Figure 5. Front Bezel

2. Insert the left end of the bezel into the securing slot until the release latch snaps

into place.

3. Secure the bezel with the keylock.

Connect the Power Cables

Connect power cables to the storage system.

1. Make sure that the power switches are in the OFF position before connecting

the power cables.

2. Connect the power cables securely to both power supply/cooling fan modules in

the storage system chassis.

Figure 6. Connect the Power Cables

3. Use the velcro straps to secure the power cables to the storage system chassis.

Figure 7. Secure the Power Cables

4. Plug the other end of the power cables into a grounded electrical outlet or a

separate power source such as an uninterrupted power supply (UPS) or a power

distribution unit (PDU).
