Installation Guide

DEVIreg™ 330 (+60 °С to +160 °C)

Electronic Thermostat

DEVIreg™ 330 (+60 °C to +160 °C)

3Installation Guide

1 Introduction

DEVIreg™ 330 is an electronic thermostat to be installed in

electric cabinets with DIN rail attachment. The thermostat

must be installed via an all-pole disconnection switch.

Either a wire sensor or an external air sensor must be used

to measure and control the desired temperature.

The thermostat has a button to adjust the temperature set-

ting, with a scale from +60 °C to +160 °C. An LED indicator

shows standby periods (green light) and heating periods

(red light).

More information on this product can also be found at:

devi.com

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Technical Speciﬁcations . . . . . . . . . . . . . . . . . . . . 4

1.2 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Mounting Instructions . . . . . . . . . . . . . . . . . . . . . . . . 6

3 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 Disposal Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table of Contents

DEVIreg™ 330 (+60 °C to +160 °C)

Installation Guide4

1.1 Technical Speciﬁcations

Operation voltage 220-240 V~, 50-60 Hz

Standby power consumption Max 0,25 W

Relay:

Resistive load

Inductive load

Max 16 A / 3680 W @ 230 V

cos φ= 0,3 max1A

Sensing units NTC 16,7 kOhm at 100 °C

Sensing values:

25 °C

50 °C

100 °C

120 °C

170 °C

300 kOhm

99,4 kOhm

16,7 kOhm

8,8 kOhm

2,35 kOhm

Hysteresis ± 0,4 °C

Ambient temperature 10 °C to +50 °C

Temperature range +60 °C to +160 °C

Cable speciﬁcation max 1x4 mm2or 2x2,5 mm2

Ball pressure temperature 75 °C

Pollution degree 2 (domestic use)

Type 1C

Storage temperature -20 °C to +65 °C

DEVIreg™ 330 (+60 °C to +160 °C)

5Installation Guide

IP class 20

Protection class Class II

Dimensions 86 x 36 x 58 mm

Weight 83 g

The product complies with the EN/IEC Standard“Automatic

electrical controls for household and similar use”:

• EN/IEC 60730-1 (general)

• EN/IEC 60730-2-9 (thermostat)

1.2 Safety Instructions

Make sure the mains supply to the thermostat is turned oﬀ

before installation.

Please also note the following:

• The installation of the thermostat must be done by an

authorized and qualiﬁed installer according to local

regulations.

• The thermostat must be connected to a power supply

via an all-pole disconnection switch.

• The sensor is to be considered as live voltage. Have this

in mind if the sensor must be extended.

• Always connect the thermostat to continuous power

supply.

• Do not expose the thermostat to moisture, water,

dust, and excessive heat.

DEVIreg™ 330 (+60 °C to +160 °C)

Installation Guide6

• If temperature wire sensor is applied on conductive

surface it must be installed with additional electrical

insulation.

• Caution: temperature sensor, heated surface and heat-

ing cable could have really high temperature.

• Sensor, conduit, ﬁxing materials, etc. should be speci-

ﬁed to be able to withstand temperatures applied by

application.

• Caution: Temperature sensor with silicon cable should

not be installed in concrete, aggressive and corrosive

environment, etc.

2 Mounting Instructions

Please observe the following placement guidelines:

• Install the thermostat in an electric cabinet with DIN

rail attachment or a separate DIN attachment accord-

ing to local regulation on IP classes.

• Do not place the thermostat in a way that it will be

exposed to direct sunlight.

Follow the steps below to mount the thermostat:

1. Click the thermostat on to the DIN rail attachment.

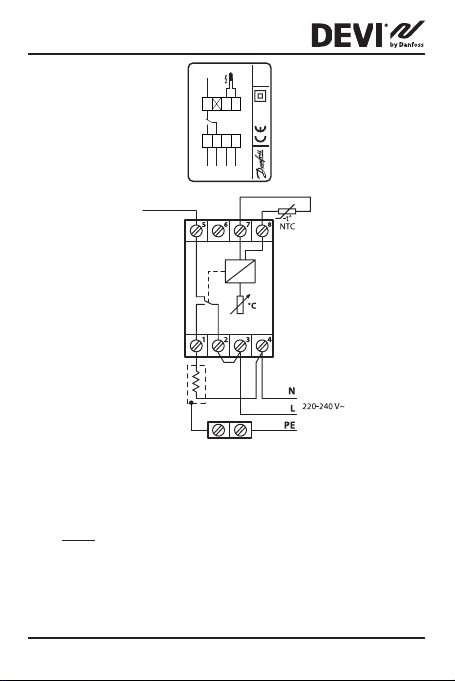

2. Connect the thermostat according to the connection

diagram.

DEVIreg™ 330 (+60 °C to +160 °C)

7Installation Guide

IP20

10T50 D330

+60°C to

+160°C

8765

4321 L

Mains

220-240V~

250V~

16 (1) A

Sensor

Load

max. 16 A

(heating)

Max. 10 A

(cooling)

The screen of the heating cable must be connected

to the earth conductor of the power supply cable by

using a separate connector.

Note: When you use the wire sensor for ﬂoor heating,

always install the sensor in a conduit.

3. Turn on the power supply.

DEVIreg™ 330 (+60 °C to +160 °C)

Installation Guide8

3 Warranty

4 Disposal Instruction

DEVIreg™ 330 (+60 °C to +160 °C)

9Installation Guide

DEVIreg™ 330 (+60 °C to +160 °C)

Installation Guide10
