Daikin BRC7EA628 Manuel utilisateur

MODELS

BRC7EA628

BRC7EA629

BRC7EA630

Wireless Remote Controller Kit

INSTALLATION MANUAL

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

1English

BRC7EA628

BRC7EA629

BRC7EA630

Wireless Remote Controller Kit Installation manual

CONTENTS

SAFETY PRECAUTIONS............................................................... 1

BEFORE INSTALLATION .............................................................. 2

REMOTE CONTROLLER INSTALLATION .................................... 2

RECEIVER INSTALLATION........................................................... 3

FIELD SETTING ............................................................................. 8

TEST OPERATION ........................................................................ 9

Read these instructions carefully before installation. Keep this manual in a handy place for future reference.

The English text is the original instruction. Other languages are translations of the original instructions.

1. SAFETY PRECAUTIONS

Please read these “SAFETY PRECAUTIONS” carefully before installing air conditioning equipment and be

sure to install it correctly. After completing the installation, make sure at start up operation that the unit oper-

ates properly. Please instruct the customer how to operate the unit and keep maintenance.

Meaning of caution symbols

CAUTION .............. If the caution is not observed, it may cause injury or damage to equipment.

NOTE ............. These instructions will ensure proper use of the equipment.

CAUTION

•Refer also to the installation manual attached to the indoor unit.

•Confirm that following conditions are satisfied prior to installation.

•Ensure that nothing interrupts the operation of the wireless remote controller. (Ensure that there is nei-

ther a source of light nor fluorescent lamp near the receiver. Also, ensure that the receiver is not

exposed to direct sun light.)

•Ensure that the operation display lamp and other indicators are easy to see.

ION

ING

le settings A/b

AUTIONS

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

English 2

2. BEFORE INSTALLATION

2-1 ACCESSORIES

Check if the following accessories are included with your option kit.

2-2 NOTE TO THE INSTALLER

•Be sure to instruct the customer how to properly operate the system showing him/her the attached opera-

tion manual.

3. REMOTE CONTROLLER INSTALLATION

¢Installing wireless remote controller²

•Do not throw the remote controller or impose large shocks. Also, do not store where it may be exposed to

moisture or direct sunlight.

•When operating, point the transmitting part of the remote controller in the direction of the receiver.

•

The direct transmitting distance of the remote controller is approximately 7 meters.

•

The signal cannot be transmitted if something (e.g. curtains) blocks the receiver and the remote controller.

Name

Receiver

(3) Relay

harness - long

(4) Relay

harness - short

Wireless

remote

controller

Screw

(1) Light receiver

assembly

(2) Transmission

PC-board

Quantity

1 pc. 1 pc. 1 pc. 1 pc. 1 pc. 2 pcs.

Shape

Name

Remote controller

holder

(5) Unit No.

nameplate

(6) Control panel

(with label)

Dry cell battery

LR03 (AM4) (7) Clamp

Quantity

1 pc. 1 pc. 1 pc. 2 pcs. 1 pc.

Shape

Name Sealing material (8)

Operation manual

Installation manual

Quantity

1pc. 1 pc. 1 pc.

Shape



3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

3English

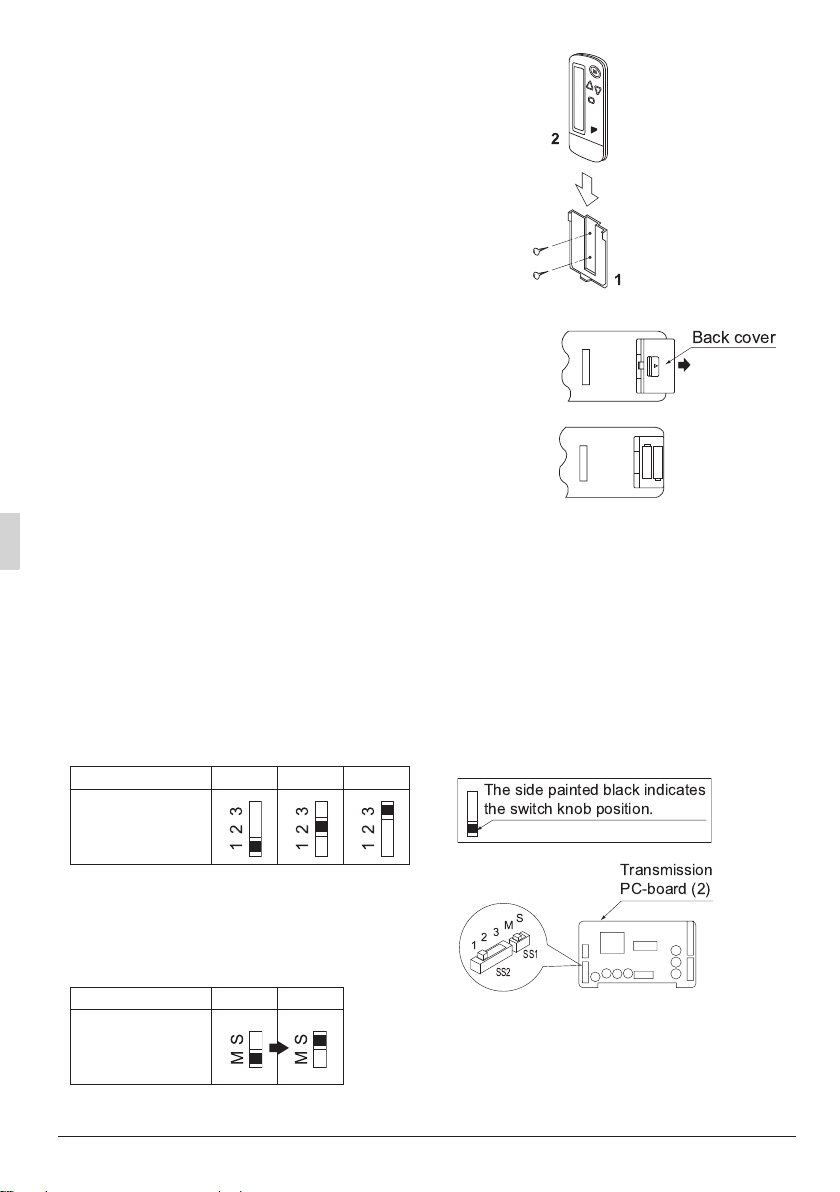

• Installing to a wall or a pillar

1. Fix the remote controller holder with the screws.

2. Slide the remote controller into the remote controller holder

from the top.

• How to insert the batteries

1. Open the back cover of the remote controller by sliding it in the

direction of the arrow.

2. Insert the attached dry cell batteries. Properly insert, set the bat-

teries by matching the (+) and (–) polarity marks as indicated.

Then close the back cover as before.

4. RECEIVER INSTALLATION

(1) Preparations before installation

Remove the service cover and the front grill. See the installation manual that came with the main indoor

unit for details on removal.

(2) Determination of address and MAIN/SUB remote controller.

If setting multiple wireless remote controllers to operate in one room, perform address setting for the

receiver and the wireless remote controller.

If setting multiple wired remote controllers in one room, change the MAIN/SUB switch of the receiver.

SETTING PROCEDURE

1. Setting the receiver

Set the wireless address switch (SS2) on the transmission PC-board (2) according to the table below.

When using both a wired and a wireless remote

controller for 1 indoor unit, the wired controller

should be set to MAIN. Therefore, set the MAIN/

SUB switch (SS1) of the receiver to SUB.

(The wired remote controller will be “MAIN”.)

Unit No. No. 1 No. 2 No. 3

Wireless address

switch (SS2)

MAIN SUB

MAIN/SUB

switch (SS1)



Back cover

The side painted black indicates

the switch knob position.

123MS

SS2

SS1

Transmission

PC-board (2)

 !

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

English 4

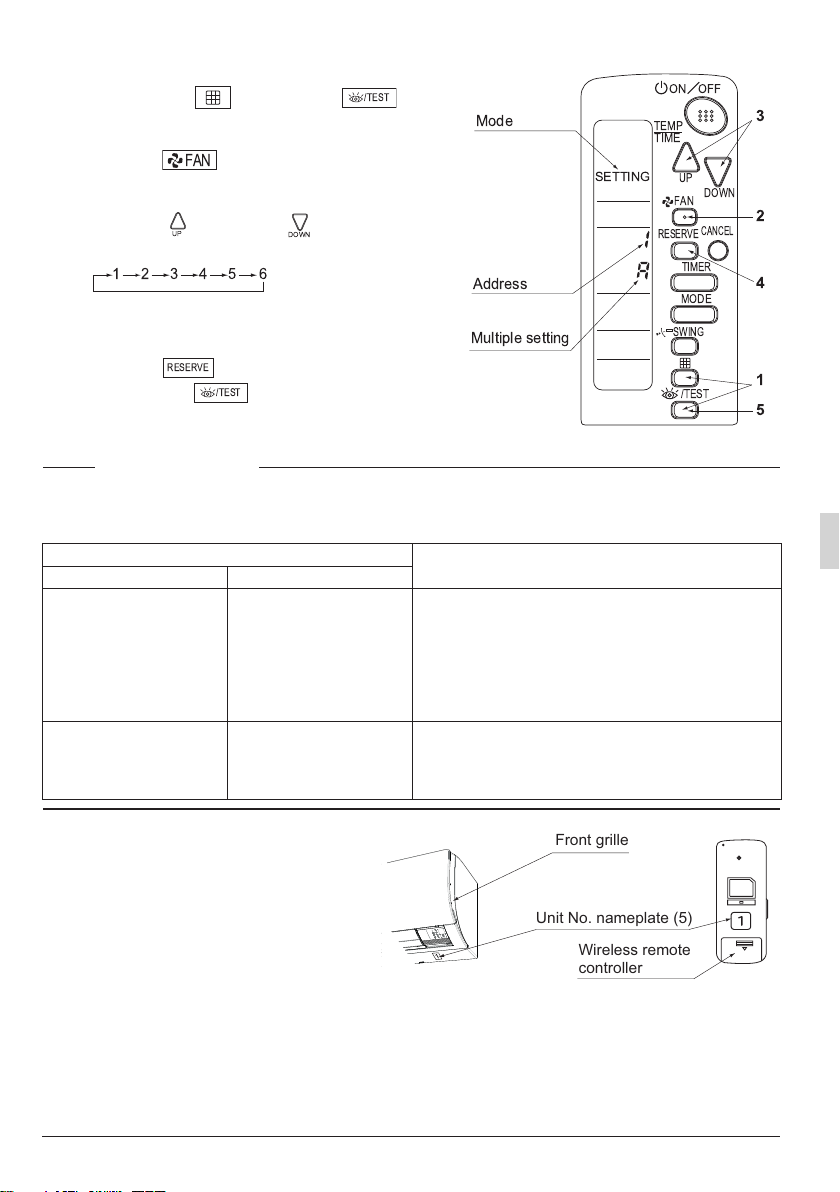

2. Setting the address of wireless remote controller (It is factory set to “1”)

¢Setting from the remote controller²

1. Hold down the button and the button

for at least 4 seconds to get the Field Set mode.

(Indicated in the display area in the figure at right.)

2. Press the button and select a multiple

setting (A/b). Each time the button is pressed the dis-

play switches between “A” and “b”.

3. Press the “ ” button and “ ” button to set the

address.

Address can be set from 1 to 6, but set it to 1 ~ 3 and

to same address as the receiver. (The receiver does

not work with address 4 ~ 6.)

4. Press the button to enter the setting.

5. Hold down the button for at least 1 second to

quit the Field Set mode and return to the normal

display.

Multiple settings A/b

When the indoor unit is being operated by outside control (central remote controller, etc.), it sometimes does

not respond to ON/OFF and temperature setting commands from this remote controller. Check what setting

the customer wants and make the multiple setting as shown below.

Attach the included unit number nameplate (5)

to the front grill on the indoor unit and the back

of the wireless remote controller

[PRECAUTIONS]

Set the unit number of the receiver and the wire-

less remote controller to be equal. If the setting

differs, the signal from the remote controller

cannot be transmitted.

Remote controller Movement when the operation is controlled by the

other air conditioners and equipment

Multiple setting Remote controller display

A: Standard All items displayed.

When operation changeover, temperature setting or

the like is carried out from the remote controller, the

indoor unit rejects the instruction.

(Signal receiving sound “peeh” or “pick-pick-pick”)

As a result, a discrepancy between the operation

state of the indoor unit and the indication of the

remote controller display occurs.

b: Multi System

Operations remain dis-

played shortly after exe-

cution.

All commands accepted.

(Signal receiving sound “pick-pick”)

Since the indication of the remote controller is turned

off, no discrepancy such as mentioned above occurs.

MODE

TIMER

RESERVE

CANCEL

DOWN

/TEST

SWING

FAN

TIME

TEMP

ON OFF

SETTING

Mode



Address

Multiple setting

/TEST

FAN

DOWN

 !"#$

4-5-48-

/TEST

Front grille

Unit No. nameplate (5)

Wireless remote

controller

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

5English

(3) Attaching the receiver

1. Connect the included relay harness – long (3) and relay harness – short (4) to the connector

on the transmission PC-board (2).

2. Following the figure, insert transmission PC-board (2) into tab 1, then insert into tab 2while pushing

tab 1in the direction of the arrow.

Attach the included light receiver assembly (1) to the 2 tabs on the indoor unit, according to following figure.

CN1/X1A

CN2/X2A

Transmission PC-board (2) Connect firmly to

the connector.

Relay harness  short ( )

Relay harness  long (3)

Tab



Tab



Transmission

PC-board (2)

Transmission

PC-board (2)

When attaching transmission

PC-board (2), be sure not to

bend the PC-board.

When attaching transmission

PC-board (2), be careful not

to change any of the settings

of the set switches.

Tab

Tab Light receiver assembly (1)

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

English 6

4. Connect the relay harnesses which were connected to the transmission PC-board (2) in step 1. as follows.

•Relay harness – long (3) to connector X24A on the indoor

unit PC-board

•Relay harness – short (4) to connector CN1/X1A on the light receiver assembly (1)

After making these connection, clamp down relay harness – long (3) and relay harness – short (4) using

the included clamp (7).

Connect firmly to

the connector.

Connect firmly to

the connector.

Connector (X24A) (Black)

Indoor unit PC-board

Relay harness – long (3)

Clamp (7)

Cut off any excess

material after tightening.

Relay harness

– short (4)

Connector (CN1/X1A)

Light receiver assembly (1)

BRC7EA628/29

BRC7EA630

Use clamp (7) to fix the wires if necessary.

Cut off any excess material after tightening.

Connect firmly to the connector X24A (black)

Relay harness - long (3)

Connect firmly to

the connector.

Relay harness - short (4)

Connector (CN1/X1A)

Light receiver assembly (1)

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

7English

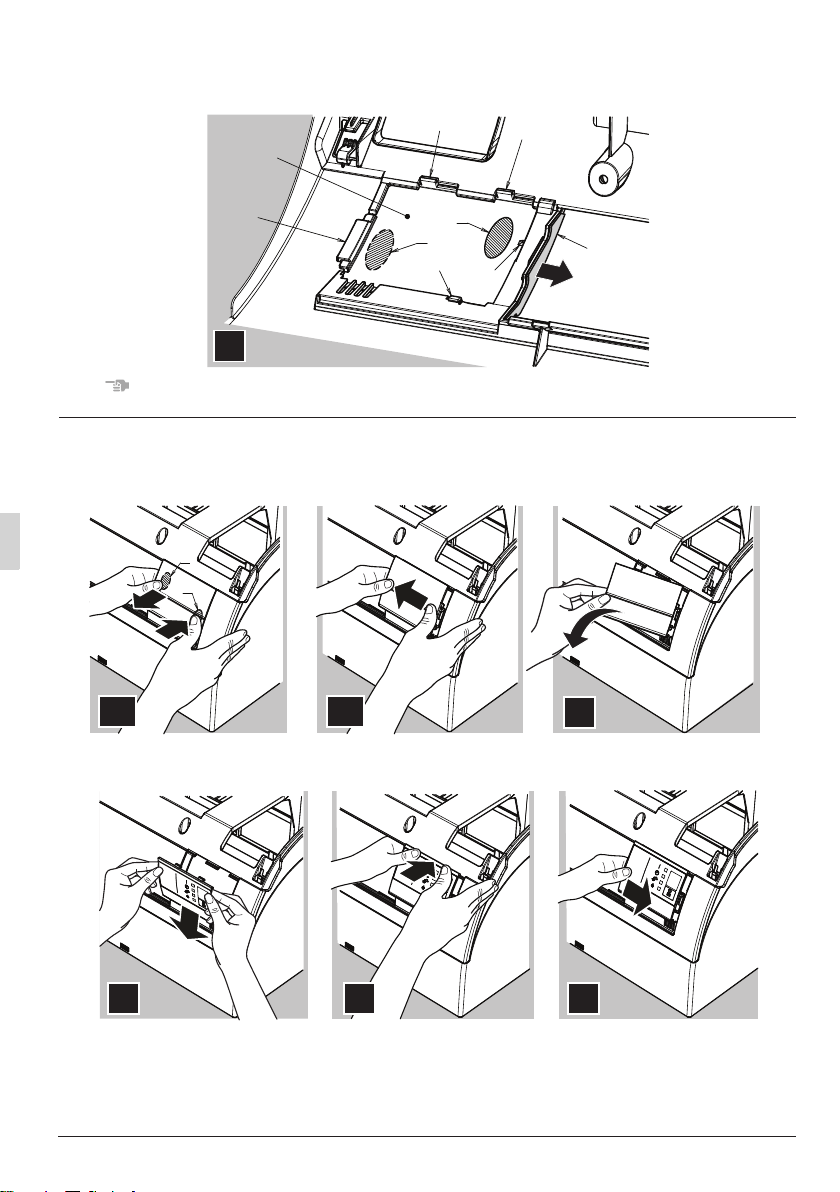

(4) Attaching the control panel

1. Remove the sealing material and prepare new replacement sealing material (accessory).

Inside view of the front grill

NOTE

•The hook positions are the same for both pre-installed cover and control panel.

2. Slide the cover to side while pushing the cover on A position from the back side and on B position from

the front side. Hooks 1 and 2 will be removed from their positions.

3. Take the cover away by pulling the left side of the cover away from the front grill, removing hooks 3a,

3b and 4 from their position.

4. Position the hook 4 on the control panel to the correct location on the front grill.

5. Attach the hooks 3a and 3b by pushing them against the front grill.

6. Slide the control panel as indicated to attach hooks 1 and 2 to their correct position.

Sealing

material

Cover

(pre-installed)

Hook 2

Hook 3a

Hook 3b

Hook 4 Hook 1

2a 2b

4 65

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

English 8

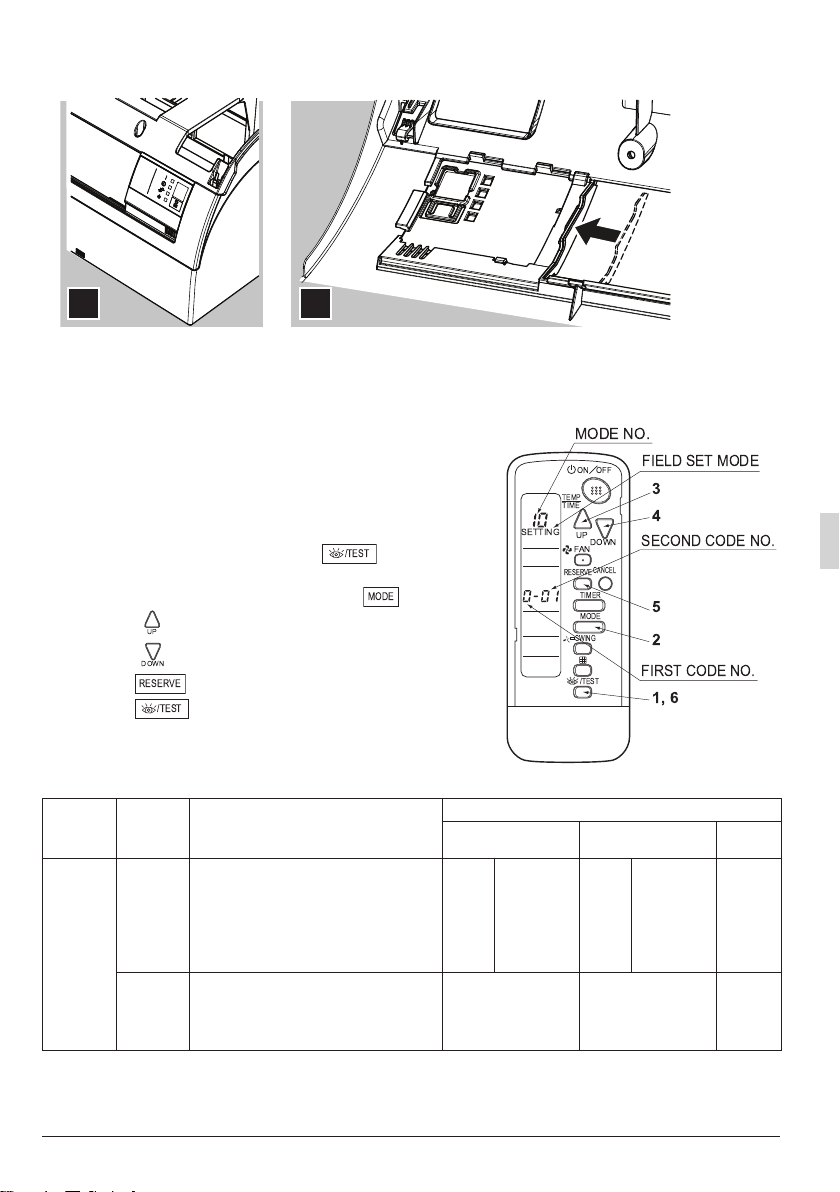

7. The control panel should be placed in the front grill as in the following figure.

8. Attach new sealing material in the original position (accessory (8)).

9. Attach the front grill and service cover to the indoor unit according to installation manual of the indoor

unit.

5. FIELD SETTING

If optional accessories are mounted on the indoor unit, the indoor

unit setting may have to be changed. Refer to the instruction man-

ual (optional hand book) for each optional accessory.

Procedure

1. When in the normal mode, press the button for a min-

imum of four seconds, and the FIELD SET MODE is entered.

2. Select the desired MODE number with the button.

3. Push the “”button and select the FIRST CODE number.

Push the

“”

button and select the SECOND CODE number.

5. Push the button and the present settings are SET.

6. Push the button to return to the NORMAL MODE.

(Example)

If the time to clean air filter is set to “Filter Contamination-Heavy”,

set MODE number to “10”, FIRST CODE number to “0”, and SECOND CODE number to “02”.

MODE

number

FIRST

CODE

number

DESCRIPTION OF SETTING

SECOND CODE number NOTE)

01 02 03

Filter Contamination-Heavy/Light

(Setting for spacing time of display

time to clean air filter) (Setting for

when filter contamination is heavy,

and spacing time of display time to

clean air filter is to be halved)

Light Approx.

200 hrs. Heavy Approx.

100 hrs. –

Spacing time of display time to

clean air filter count

(Setting for when the filter sign is

not to be displayed)

Display Do not display –

DOWN

FAN

MODE

TIMER

RESERVE

CANCEL

/TEST

SWING

ON OFF

SETTING

TIME

TEMP

MODE NO.

1, 6

FIELD SET MODE

FIRST CODE NO.

SECOND CODE NO.

/TEST

MODE

DOWN

4-5-48-

/TEST

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

9English

NOTE

•The SECOND CODE number is factory set to “01”.

Do not use any settings not listed in the table.

For group control with a wireless remote controller, initial settings for all the indoor units of the group are

equal. (For group control, refer to the installation manual attached to the indoor unit for group control.)

6. TEST OPERATION

•Perform test operation according to the instructions in the installation manual attached to the outdoor unit.

[PRECAUTIONS]

1. Refer to the installation manual attached to the outdoor unit for individual operation system types.

12 (VRV

system)

ON/OFF input from outside

(Set to enable starting/stopping

from remote.)

Forced OFF input ON/OFF –

Thermostat differential changeover

(Set when using remote controller

thermostat sensor.)

1°C 0.5°C –

13 0 Air flow rate increase mode (to be

set upon user’s request) Standard A little increase Increase

3(1%ERRN3DJH:HGQHVGD\-DQXDU\30

Autres manuels pour BRC7EA628

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Daikin Télécommande

Daikin

Daikin BRC7E63W Manuel utilisateur

Daikin

Daikin BRC1D527 Manuel utilisateur

Daikin

Daikin ARC447A3 Manuel d'instructions

Daikin

Daikin OH08-1 Manuel utilisateur

Daikin

Daikin BRC1H82W Manuel utilisateur

Daikin

Daikin BRC1H81W7 Guide de l'utilisateur

Daikin

Daikin BRC7F532F Manuel utilisateur

Daikin

Daikin ARC433A Series Manuel utilisateur

Daikin

Daikin BRC7E818 Manuel utilisateur

Daikin

Daikin BRC1E73 Manuel utilisateur

Daikin

Daikin BRC1H63W Manuel utilisateur

Daikin

Daikin BRC1D517 Manuel utilisateur

Daikin

Daikin 3P419248-1-KA Manuel utilisateur

Daikin

Daikin BRC7C51W Manuel utilisateur

Daikin

Daikin BRC52B61 Manuel utilisateur

Daikin

Daikin OM-5RTBR-0709(0)-DENV Manuel utilisateur

Daikin

Daikin Madoka BRC1H82K Guide de l'utilisateur

Daikin

Daikin ARC447A Manuel utilisateur

Daikin

Daikin DCS302C71 Manuel utilisateur

Daikin

Daikin BRC7C510W Manuel utilisateur

Daikin

Daikin BRC1H51W Guide de l'utilisateur

Daikin

Daikin BRC7EA530W Manuel utilisateur

Daikin

Daikin G8 Manuel d'installation

Daikin

Daikin BRC7M634F Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
