Daikin ARC433B46 Manuel utilisateur

ARC433 Series Si10-416_B

212 Remote Controllers

ARC433B46, B47

TEMP

ON/OFF

POWERFUL

MODE FAN

SWING

QUIET SENSOR

ECONO

MOLD PROOF

TIMER

CANCEL

OFF

Si10-416_B ARC433 Series

Remote Controllers 213

1. Signal transmitter

2. Display

It displays the current settings.

(In this illustration, each section is shown with all its

displays ON for the purpose of explanation.)

3. ECONO button

4. POWERFUL button

5. TEMPERATURE adjustment buttons

6. ON/OFF button

Press this button once to start operation.

Press once again to stop it.

7. MODE selector button

It selects the operation mode.

(AUTO/DRY/COOL/HEAT/FAN)

8. QUIET button

OUTDOOR UNIT QUIET operation

9. FAN setting button

It selects the airflow rate setting.

10. SWING button

11. MOLD PROOF button

MOLD PROOF operation

12. SENSOR button

INTELLIGENT EYE operation

13. ON TIMER button

14. OFF TIMER button

15. TIMER setting button

16. TIMER CANCEL button

17. CLOCK button

18. RESET button

Restart the unit if it freezes.

Use a thin object to push.

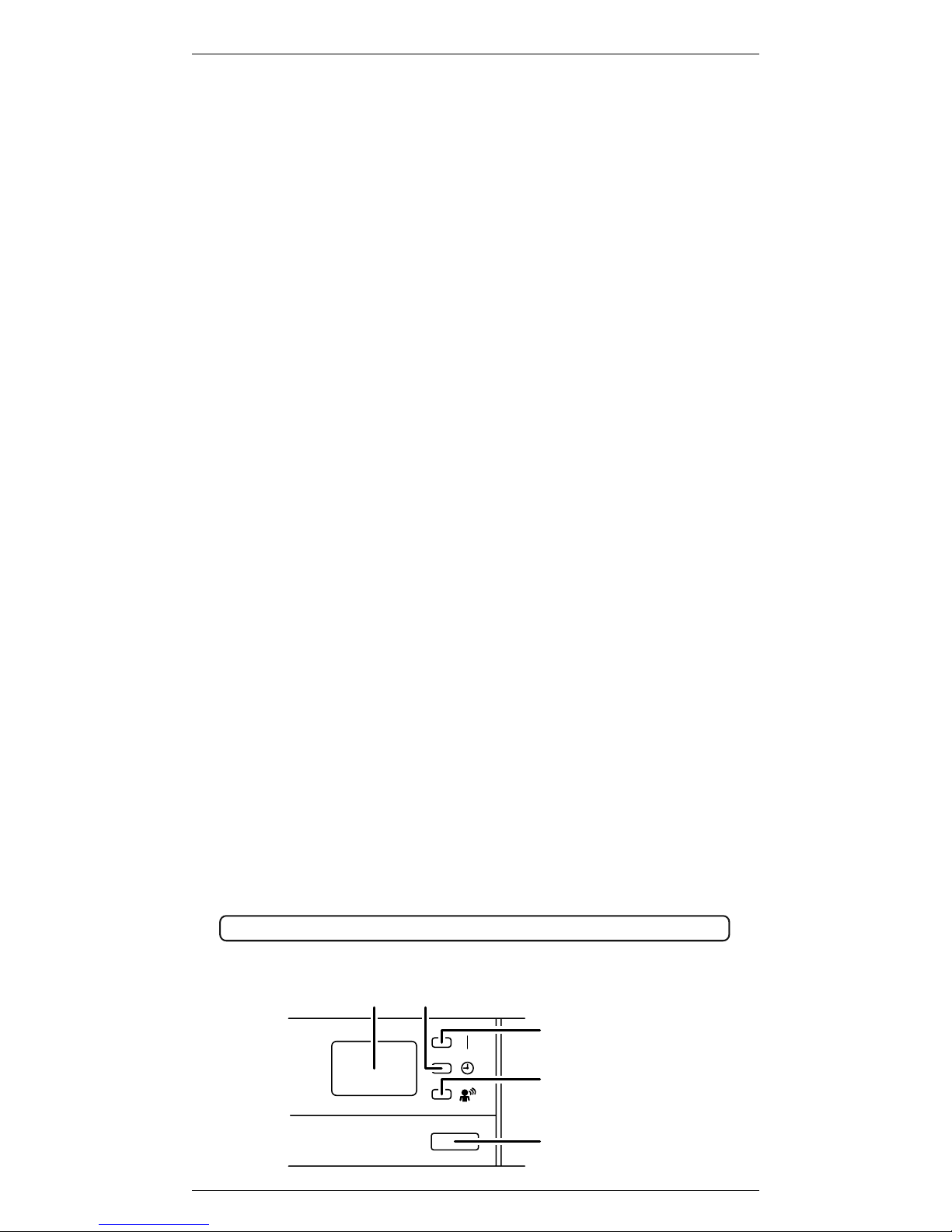

Unit operation panel and display panel

Indoor Unit

ON/OFF switch

Operation lamp

(green)

TIMER lamp

(yellow)

Signal

receiver

INTELLIGENT

EYE lamp (green)

Si10-416_B ARC433 Series

Operation 353

5. ARC433 Series

5.1 Preparation Before Operation

To set the batteries

1. Slide the front cover to take it off.

2. Set two dry batteries (AAA).

3. Set the front cover as before.

ATTENTION



About batteries

+–

–+

Position + and

– correctly!

•

When replacing the batteries, use batteries of the

same type, and replace the two old batteries together.

•

When the system is not used for a long time, take the

batteries out.

•

We recommend replacing once a year, although if the

remote controller display begins to fade or if reception

deteriorates, please replace with new alkali batteries.

Using manganese batteries reduces the lifespan.

•

The attached batteries are provided for the initial use

of the system.

The usable period of the batteries may be short

depending on the manufactured date of the air

conditioner.

ARC433 Series Si10-416_B

354 Operation

Receiver

To operate the remote

controller

•

To use the remote controller, aim the transmitter at

the indoor unit. If there is anything to block signals

between the unit and the remote controller, such

as a curtain, the unit will not operate.

•

Do not drop the remote controller. Do not get it wet.

• The maximum distance for communication is

about 7m.

To fix the remote controller

holder on the wall

1. Choose a place from where the

signals reach the unit.

Fix the holder to a wall, a pillar, etc.

with the screws supplied with the

holder.

3. Place the remote controller in the

remote controller holder.

Remote controller

holder

Set.

To remove, pull it upwards.

Si10-416_B ARC433 Series

Operation 355

ATTENTION



About remote controller

•

Never expose the remote controller to direct sunlight.

•

Dust on the signal transmitter or receiver will reduce the

sensitivity. Wipe off dust with soft cloth.

•

Signal communication may be disabled if an electronic-

starter-type fluorescent lamp (such as inverter-type

lamps) is in the room. Consult the shop if that is the case.

•

If the remote controller signals happen to operate another

appliance, move that appliance to somewhere else, or

consult the shop.

ARC433 Series Si10-416_B

356 Operation

To set the clock

1. Press “CLOCK button”.

is displayed.

blinks.

Press “TIMER setting button” to

set the clock to the present time.

Holding down “ ” or “ ” button

rapidly increases or decreases the time

display.

3. Press “CLOCK button”.

blinks.

Turn the breaker ON

•

Turning ON the breaker opens the flap, then

closes it again. (This is a normal procedure.)

NOTE



Tips for saving energy



Please note

Recommended temperature setting

For cooling:26

C – 28

For heating:20

C – 24

•

Be careful not to cool (heat) the room too much.

Keeping the temperature setting at a moderate level helps

save energy.

•

Cover windows with a blind or a curtain.

Blocking sunlight and air from outdoors increases the cooling

(heating) effect.

•

Clogged air filters cause inefficient operation and waste

energy. Clean them once in about every two weeks.

•

The air conditioner always consumes 15-35 watts of electricity

even while it is not operating.

•

If you are not going to use the air conditioner for a long period,

for example in spring or autumn, turn the breaker OFF.

Si10-416_B ARC433 Series

Operation 357

5.2 AUTO • DRY • COOL • HEAT • FAN

Operation

The air conditioner operates with the operation mode of your

choice.

From the next time on, the air conditioner will operate with the

same operation mode.

To start operation

1. Press “MODE selector button”

and select a operation mode.

• Each pressing of the button advances the

mode setting in sequence.

: AUTO

: DRY

: COOL

: HEAT

: FAN

2. Press “ON/OFF button”.

• The OPERATION lamp lights up.

To stop operation

3. Press “ON/OFF button” again.

• Then OPERATION lamp goes off.

ARC433 Series Si10-416_B

358 Operation

To change the temperature

4. Press “TEMPERATURE adjustment

DRY or FAN mode AUTO or COOL or HEAT mode

The temperature setting is

Press “ ” to raise the

Set to the temperature you like.

“ ”

setting

button”.

not variable.

temperature and press

to lower the temperature.

To change the air flow rate

5. Press “FAN setting button”.

• Indoor unit quiet operation

When the airflow is set to “ ”, the noise from

the indoor unit will become quieter.

Use this when making the noise quieter.

The unit might lose capacity when the airflow rate

rate is set to a weak level.

DRY mode AUTO or HEAT or COOL or

FAN mode

The airflow rate setting is

Five levels of airflow rate setting

from “ ” to “ ”

“ ” are available.

plus “ ”

not variable.

setting

Si10-416_B ARC433 Series

Operation 359

NOTE



Note on HEAT operation



Note on COOL operation



Note on DRY operation



Note on AUTO operation



Note on airflow rate setting

•

Since this air conditioner heats the room by taking heat from

outdoor air to indoors, the heating capacity becomes smaller

in lower outdoor temperatures. If the heating effect is

insufficient, it is recommended to use another heating

appliance in combination with the air conditioner.

•

The heat pump system heats the room by circulating hot air

around all parts of the room. After the start of heating

operation, it takes some time before the room gets warmer.

•

In heating operation, frost may occur on the outdoor unit and

lower the heating capacity. In that case, the system switches

into defrosting operation to take away the frost.

•

During defrosting operation, hot air does not flow out of

indoor unit.

• This air conditioner cools the room by blowing the hot

air in the room outside, so if the outside temperature is

high, performance drops.

•

At smaller airflow rates, the cooling (heating) effect is also

smaller.

•

In AUTO operation, the system selects a temperature setting

and an appropriate operation mode (COOL or HEAT) based

on the room temperature at the start of the operation.

•

The system automatically reselects setting at a regular

interval to bring the room temperature to user-setting level.

•

If you do not like AUTO operation, you can manually

select the operation mode and setting you like.

• The computer chip works to rid the room of humidity

while maintaining the temperature as much as

possible. It automatically controls temperature and fan

strength, so manual adjustment of these functions is

unavailable.

ARC433 Series Si10-416_B

360 Operation

5.3 Adjusting the Airflow Direction

You can adjust the airflow direction to increase your

comfort.

To adjust the horizontal

blade (flap)

1. Press “SWING button ”.

• “ ” is displayed on the LCD and the

flaps will begin to swing.

2. When the flap has reached the

desired position,

press “SWING button ” once

more.

• The flap will stop moving.

• “ ” disappears from the LCD.

To adjust the vertical blades

3. Press “SWING button ”.

• “ ” is displayed on the LCD.

4. When the louvers have reached the

desired position, press the

“SWING

• The louvers will stop moving.

• “ ” disappears from the LCD.

button ” once more.

(louvers)
