Dahua Technology 49925TNI Manuel utilisateur

2 MP Network PTZ Camera

49925TNI

Quick Start Guide

Version 001.002

Dahua Technology USA Inc.

Table of Contents

1Welcome........................................................................................................................1

1.1 Important Safeguards and Warnings.................................................................1

Electrical safety.................................................................................................1

Environmental Precautions...............................................................................2

Operation and Daily Maintenance.....................................................................3

Lifting Appliance Requirement..........................................................................3

Warnings...........................................................................................................3

1.2 FCC Information................................................................................................4

FCC compliance：............................................................................................4

1.3 Legal Notices ....................................................................................................4

Trademarks.......................................................................................................4

1.4 Disclaimer .........................................................................................................5

2Unpacking......................................................................................................................6

2.1 Parts List...........................................................................................................6

2.2 User-supplied Tools and Hardware...................................................................6

3Installation and Configuration........................................................................................7

3.1 Framework and Dimensions .............................................................................7

3.2 Wiring................................................................................................................7

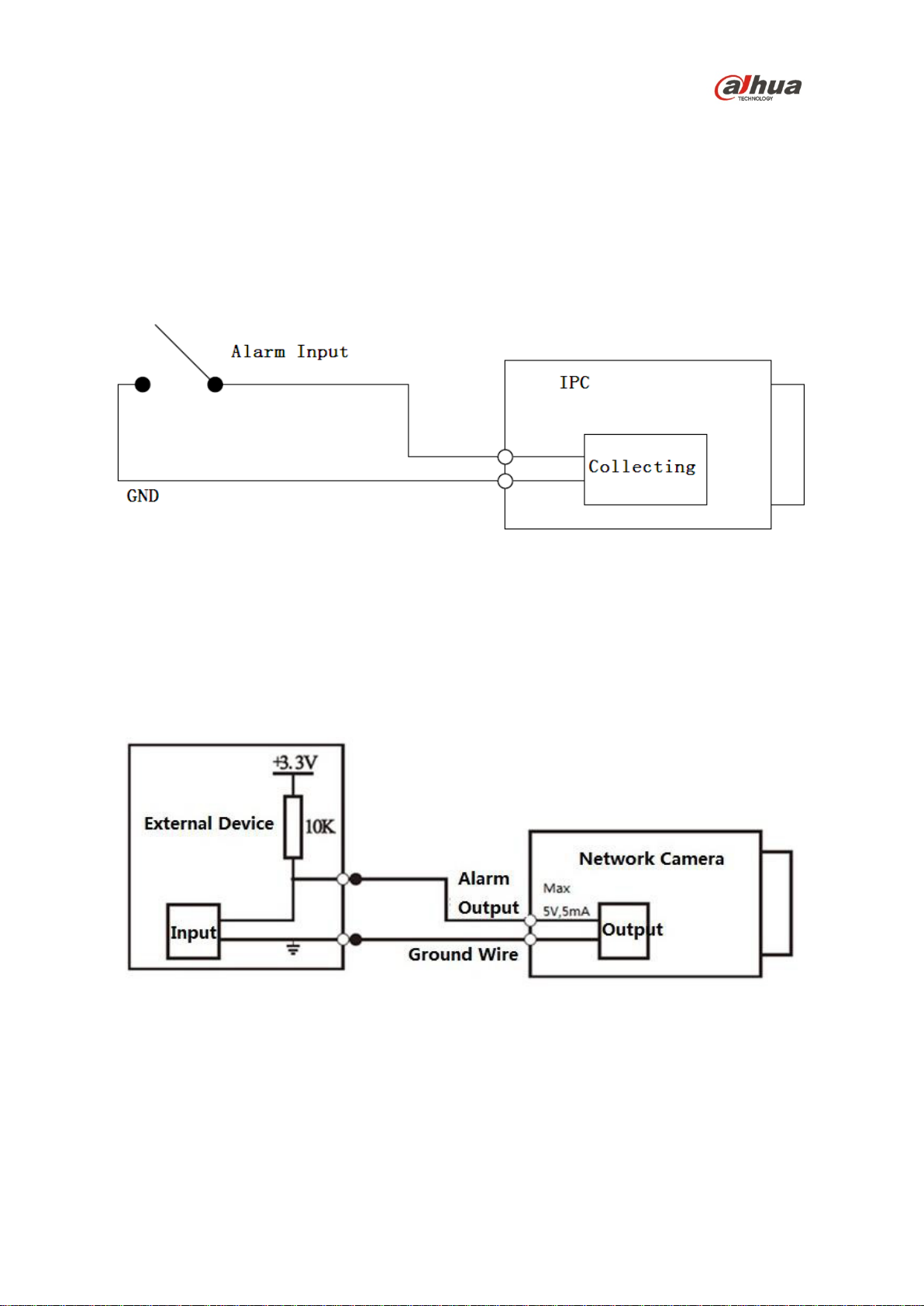

3.3 Alarm Setup ......................................................................................................8

Alarm Input........................................................................................................8

Alarm Output – Level Application......................................................................8

Alarm Output – Switch Application....................................................................9

4Device Installation .......................................................................................................10

4.1 Preparing the Camera.....................................................................................11

Unpacking the Camera ...................................................................................11

4.2 Insert a Micro SD Card....................................................................................11

4.3 Mounting the Camera to a Wall.......................................................................12

5Network Configuration.................................................................................................13

5.1 Network Protocols...........................................................................................13

5.2 Modifying the IP Address................................................................................14

5.3 Using the ConfigTool.......................................................................................14

5.4 Accessing the Web Interface ..........................................................................15

5.5 Configuring Alarms..........................................................................................16

5.6 Configuring Local SD Card Recording............................................................16

1 Welcome

This manual offers reference material and general information about the basic operation,

maintenance, and troubleshooting of a Dahua Network PTZ Camera. Read, follow, and retain the

following safety instructions. Heed all warning on the unit and in the operating instructions before

operating the unit. Keep this guide for future reference.

1.1 Important Safeguards and Warnings

Electrical safety

•Install the unit in accordance with the manufacturer’s instructions and in accordance with

applicable local codes.

•All installation and operation must conform to your local electrical safety codes.

•Do not overload outlets and extension cords, which may cause fire or electrical shock.

•Do not place the camera near or in a place where the camera may contact overhead power lines,

power circuits, or electrical lights.

•Ensure power conforms to SELV (Safety Extra Low Voltage) and that the limited power source is

rated AC 24V as specified in IEC60950-1. (Power supply requirement is subject to the device

label).

•All input/output ports are SELV circuits. Ensure that SELV circuits are connected only to other

SELV circuits.

•Ground the unit using the ground connection of the power supply to protect the unit from damage,

especially in damp environments.

•Protect the plug and power cord from foot traffic, being pinched, and its exit from the unit.

•Units with or without an ON/OFF switch have power supplied to the unit whenever the power

cord is inserted into the power source; however, the unit is operational only when the ON/OFF

switch is in the ON position. The power cord is the main power disconnect device for switching

off the voltage for all units.

•Operate the unit only from the type of power source indicated on the label. Before proceeding,

disconnect the power from the cable to be installed into the unit.

•For external power supplied units, use only the recommended or approved power supplies.

•Limited power sources must comply with EN 60950. Substitutions may damage the unit or

cause fire or shock.

•For 24 VAC units, voltage applied to the unit’s input power should not exceed ±25%. User-

supplied wiring must comply with local codes (Class 2 power levels). Do not ground the

supply at the terminals or at the unit’s power supply terminal.

•Contact the local dealer or the power company to verify the correct power supply.

•Do not supply power via the Ethernet connection (PoE) when power is already supplied via the

power connector.

•Do not attempt to service the unit. Opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified personnel.

•If the unit is damaged and requires service, unplug the unit from the main AC power supply and

from the PoE supply and refer to qualified service personnel. Damage may include, but is not

limited to:

•The power supply cord or plug is damaged.

•Liquid has spilled in or on the unit.

•An object has fallen on the unit.

•The unit has been dropped and the housing is damaged.

•The unit displays a marked change in performance.

•The unit does not operate in the expected manner when the user correctly follows the proper

operating procedures.

•Ensure a service technician uses replacement parts specified by the manufacturer, or that have

the same characteristics as the original parts. Unauthorized parts may cause fire, electrical

shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized

modifications or repairs.

•Perform safety checks after completion of service or repairs to the unit.

•Use attachments and accessories only specified by the manufacturer. Any change or

modification of the equipment, not expressly approved by Dahua, could void the warranty.

•Incorporate a readily accessible disconnect device in the building installation wiring for quick

power disconnect to the camera.

•Dahua assumes no liability or responsibility for any fire or electrical shock caused by improper

handling or installation.

Environmental Precautions

•Do not aim the unit at a strong light source or into direct sunlight to focus. A strong light source

may cause overexposure and may affect the longevity of the CCD or the CMOS sensor.

•Transport, use, and store the unit within the specified temperature and humidity range.

•Do not place the unit in a wet, dusty, extremely hot or an extremely cold environment; and avoid

environments with strong electromagnetic radiation or unstable lighting.

•Never push objects of any kind into this unit through openings as they may touch dangerous

voltage points or cause a short circuit that may result in fire or electrical shock. Take care to not

spill any liquid on the unit.

•Do not use units intended for indoor applications near water, in damp or wet environments, or in

any area classified as a wet location. Do not expose an indoor unit to rain or moisture to reduce

the risk of fire or electric shock.

•Do not block or cover any openings in the unit enclosure. These openings are provided for

ventilation to prevent overheating and to ensure reliable operation. Ensure the unit is placed in

an area with adequate ventilation.

•Do not place the unit near a heat source such as heaters, stoves, radiators or other equipment

that produces heat.

•Pack the unit with standard factory packaging or material of the same quality when transporting

the unit.

•Take care to avoid heavy stress, violent vibration, or water spills to the camera unit during

transportation, storage, and installation.

Operation and Daily Maintenance

•Do not touch the heat dissipation component of the unit. This part of the unit is hot and may

cause a burn.

•Do not open or dismantle the device; there are no components that a user can fix or replace.

Opening the unit may cause water leakage or expose components to direct light. Contact the

manufacturer or a qualified service representative to service the camera or to replace a

component, including the desiccant.

•Dahua recommends the use of a thunder-proof device in concert with the unit.

•Do not touch the CCD or the CMOS optic sensor. Use a blower to clean dust or dirt on the lens

surface. Use a dry cloth dampened with alcohol and gently wipe away any dust on the lens.

•Use a dry soft cloth to clean the unit’s housing. If the unit is particularly dusty, use water to dilute

a mild detergent, apply the diluted detergent to a soft cloth, then gently clean the device. Finally,

use a dry cloth to wipe the unit dry. Do not use a volatile solvent like alcohol, benzene, or thinner;

or use a strong detergent with abrasives, which may damage the surface coating or reduce the

working performance of the unit.

•Do not touch or wipe a dome cover during installation, this cover is an optical device. Refer to

the following methods clean the dome cover:

•Stained with dirt: Use an oil-free soft brush or blower to gently remove the dirt.

•Stained with grease or fingerprints: Use a soft cloth to wipe gently the water droplet or the oil

from the dome cover. Then, use an oil-free cotton cloth or paper soaked with alcohol or

detergent to clean the lens from the center of the dome to outside. Change the cloth several

times to ensure the dome cover is clean.

Lifting Appliance Requirement

•Select the proper PTZ dome installation mode and use the proper lifting device to safely lift the

camera at the installation site.

•Ensure that the lifting device has the proper capacity to reach the installation height.

•Use the lifting device in accordance with its operating instructions and abide by the device’s

safety precautions.

Warnings

•Change the default password after the initial login to protect the integrity of the network.

•Use the standard accessories provided by the manufacturer and ensure the unit is installed and

commissioned by qualified professionals.

•Protect the lens area from laser radiation when using a laser device to aid in installation and

leveling of the unit.

•Do not supply power via the Ethernet connection (PoE) when power is already supplied via the

power connector.

1.2 FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

•This device may not cause harmful interference;

•This device must accept any interference received, including interference that may cause

undesired operation.

FCC compliance

：

This equipment has been tested and found to comply with the limits for a digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference. This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

1.3 Legal Notices

This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

1.4 Disclaimer

•This user guide has been compiled with great care and the information it contains has been

thoroughly reviewed and verified. The text was complete and correct at the time of printing. This

guide may be periodically updated to reflect changes to the product or to correct previous

information and the content of this guide can change without notice. If you encounter an error or

have any questions regarding the contents of this guide, contact customer service for the latest

documentation and supplementary information. Dahua accepts no liability for damage resulting

directly or indirectly from faults, incompleteness, or discrepancies between this guide and the

product described. Dahua is not liable for any loss caused by installation, operation, or

maintenance inconsistent with the information in this guide.

•Video loss is inherent to all digital surveillance and recording devices; therefore Dahua cannot be

held liable for any damage that results from missing video information. To minimize the

occurrence of lost digital information, Dahua recommends multiple, redundant recording systems,

and adoption of backup procedure for all data.

•Contact the supplier or customer service if you encounter any issue while using this unit.

2 Unpacking

This equipment should be unpacked and handled with care. If an item appears to have sustained

damage during shipping, notify the shipper immediately.

Verify that all the parts listed below are included. If an item is missing, contact customer support or

your local representative.

The original packing carton is the safest container to transport the unit, in the event the unit must be

returned for service. Retain the carton and all shipping material for future use.

Please refer to the enclosed CD for more details, to view the detailed User’s Manual, and for

configuration software.

2.1 Parts List

Package Item

Quantity

Network Camera

DC12V/3A Power Supply

PFB305W Wall Mount

Roll of Teflon Tape

PTZ Manual

Quick Start Guide

Documentation CD

Pair of Gloves

2.2 User-supplied Tools and Hardware

Item

Quantity

Screwdriver

Bolts

Washers

3 Installation and Configuration

3.1 Framework and Dimensions

The following figures show the dimensions of the device in mm (in.). These images are intended

as a reference only.

Figure 3-1: Dimensions for 49925TNI

3.2 Wiring

The dome camera includes the following wiring bundles:

Wire Color

Connection

Power

12 VDC

Video/Control

Black

RJ-45 Ethernet

Alarm

Red

Alarm IN 1

Brown

Alarm IN 2

Yellow/Green

Alarm GND

Blue

Alarm OUT 1

Green

Alarm COM 1

Audio

Red

Audio OUT

White

Alarm IN

Black

Alarm GND

3.3 Alarm Setup

Certain devices support alarm inputs and outputs, check your specific device for alarm capability.

Alarm Input

Refer to Figure 3-3 for alarm input configuration. The device collects that status of the alarm input port

when the input signal is idle or grounded. If the input signal is connected to the 3.3 V or it is idle then

the device receives the alarm input signal. If input signal is grounded, then no alarm input signal is

detected.

Figure 3-2

Alarm Output – Level Application

Use this alarm output configuration if the output triggers an external device by increasing the voltage.

The alarm must increase the external pull-up resistance to trigger (high level) the device. The

maximum external pull-up level is 5 V and the maximum port current is 5 mA. Once the output

increases the pull-up resistance, the alarm decreases the output voltage to the normal state (low level)

at less than 0.8 V.

Figure 3-3

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manuel utilisateur

Dahua Technology

Dahua Technology A21BM0V Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW4X-W Manuel utilisateur

Dahua Technology

Dahua Technology IR Eyeball Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2431T-ZS Manuel utilisateur

Dahua Technology

Dahua Technology 50230UNI Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-PDB4830-B360 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5231R-Z Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDBW1531E-S-0280B Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-PDW3849-A180-AS-PV-ANZ Manuel utilisateur

Dahua Technology

Dahua Technology HD IR Mini Bullet Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology 50430IC Manuel utilisateur

Dahua Technology

Dahua Technology D-SDZ4032-HNR-ZB Manuel utilisateur

Dahua Technology

Dahua Technology N42BD32 Manuel utilisateur

Dahua Technology

Dahua Technology DH-PSDW8842ML-A180-D237 Manuel utilisateur

Dahua Technology

Dahua Technology DSS4004-S2 Instructions générales

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2849S-S-IL-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1239DQ-PV-STW Manuel utilisateur

Dahua Technology

Dahua Technology IPC-MBW4231-AS/M12 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
