Dahua Technology N28BL7Z Manuel utilisateur

2 MP Network Dome Camera

N28BL7Z

Quick Start Guide

Version 001.001

Dahua Technology USA Inc.

Table of Contents

1Welcome........................................................................................................................1

1.1 Important Safeguards and Warnings.................................................................1

Electrical safety.................................................................................................1

Environmental Precautions...............................................................................2

Operation and Daily Maintenance.....................................................................3

Warnings...........................................................................................................3

1.2 FCC Information................................................................................................4

FCC compliance：............................................................................................4

1.3 Legal Notices....................................................................................................4

Trademarks.......................................................................................................4

1.4 Disclaimer.........................................................................................................4

2Unpacking......................................................................................................................5

3Installation and Configuration........................................................................................6

3.1 Cable Connections............................................................................................6

3.2 Alarm I/O Connections......................................................................................7

3.3 Framework and Dimensions .............................................................................8

3.4 Locally Storing Data..........................................................................................8

3.5 Bi-directional Talk..............................................................................................8

3.6 Alarm Setup......................................................................................................9

Alarm Input........................................................................................................9

Alarm Output.....................................................................................................9

Alarm Connections............................................................................................9

4Device Installation .......................................................................................................11

4.1 Installing the Camera......................................................................................12

5Network Configuration.................................................................................................14

5.1 Network Protocols...........................................................................................14

5.2 Modifying the IP Address................................................................................15

5.3 Using the ConfigTool.......................................................................................15

5.4 Accessing the Web Interface ..........................................................................16

5.5 Configuring Local SD Card Recording............................................................17

1 Welcome

This manual offers reference material and general information about the basic operation,

maintenance, and troubleshooting of this Dahua camera. Read, follow, and retain the following safety

instructions. Heed all warning on the unit and in the operating instructions before operating the unit.

Keep this guide for future reference.

1.1 Important Safeguards and Warnings

Electrical safety

•Install the unit in accordance with the manufacturer’s instructions and in accordance with

applicable local codes.

•All installation and operation must conform to your local electrical safety codes.

•Do not overload outlets and extension cords, which may cause fire or electrical shock.

•Do not place the camera near or in a place where the camera may contact overhead power lines,

power circuits, or electrical lights.

•Ensure power conforms to SELV (Safety Extra Low Voltage) and that the limited power source is

rated AC 24V as specified in IEC60950-1. (Power supply requirement is subject to the device

label).

•All input/output ports are SELV circuits. Ensure that SELV circuits are connected only to other

SELV circuits.

•Ground the unit using the ground connection of the power supply to protect the unit from damage,

especially in damp environments.

•Protect the plug and power cord from foot traffic, being pinched, and its exit from the unit.

•Units with or without an ON/OFF switch have power supplied to the unit whenever the power

cord is inserted into the power source; however, the unit is operational only when the ON/OFF

switch is in the ON position. The power cord is the main power disconnect device for switching

off the voltage for all units.

•Operate the unit only from the type of power source indicated on the label. Before proceeding,

disconnect the power from the cable to be installed into the unit.

•For external power supplied units, use only the recommended or approved power supplies.

•Limited power sources must comply with EN 60950. Substitutions may damage the unit or

cause fire or shock.

•For 24 VAC units, voltage applied to the unit’s input power should not exceed ±25%. User-

supplied wiring must comply with local codes (Class 2 power levels). Do not ground the

supply at the terminals or at the unit’s power supply terminal.

•Contact the local dealer or the power company to verify the correct power supply.

•Do not supply power via the Ethernet connection (PoE) when power is already supplied via the

power connector.

•Do not attempt to service the unit. Opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified personnel.

•If the unit is damaged and requires service, unplug the unit from the main AC power supply and

from the PoE supply and refer to qualified service personnel. Damage may include, but is not

limited to:

•The power supply cord or plug is damaged.

•Liquid has spilled in or on the unit.

•An object has fallen on the unit.

•The unit has been dropped and the housing is damaged.

•The unit displays a marked change in performance.

•The unit does not operate in the expected manner when the user correctly follows the proper

operating procedures.

•Ensure a service technician uses replacement parts specified by the manufacturer, or that have

the same characteristics as the original parts. Unauthorized parts may cause fire, electrical

shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized

modifications or repairs.

•Perform safety checks after completion of service or repairs to the unit.

•Use attachments and accessories only specified by the manufacturer. Any change or

modification of the equipment, not expressly approved by Dahua, could void the warranty.

•Incorporate a readily accessible disconnect device in the building installation wiring for quick

power disconnect to the camera.

•Dahua assumes no liability or responsibility for any fire or electrical shock caused by improper

handling or installation.

Environmental Precautions

•Do not aim the unit at a strong light source or into direct sunlight to focus. A strong light source

may cause overexposure and may affect the longevity of the CCD or the CMOS sensor.

•Transport, use, and store the unit within the specified temperature and humidity range.

•Do not place the unit in a wet, dusty, extremely hot or an extremely cold environment; and avoid

environments with strong electromagnetic radiation or unstable lighting.

•Never push objects of any kind into this unit through openings as they may touch dangerous

voltage points or cause a short circuit that may result in fire or electrical shock. Take care to not

spill any liquid on the unit.

•Do not use units intended for indoor applications near water, in damp or wet environments, or in

any area classified as a wet location. Do not expose an indoor unit to rain or moisture to reduce

the risk of fire or electric shock.

•Do not block or cover any openings in the unit enclosure. These openings are provided for

ventilation to prevent overheating and to ensure reliable operation. Ensure the unit is placed in

an area with adequate ventilation.

•Do not place the unit near a heat source such as heaters, stoves, radiators or other equipment

that produces heat.

•Pack the unit with standard factory packaging or material of the same quality when transporting

the unit.

•Take care to avoid heavy stress, violent vibration, or water spills to the camera unit during

transportation, storage, and installation.

Operation and Daily Maintenance

•Do not touch the heat dissipation component of the unit. This part of the unit is hot and may

cause a burn.

•Do not open or dismantle the device; there are no components that a user can fix or replace.

Opening the unit may cause water leakage or expose components to direct light. Contact the

manufacturer or a qualified service representative to service the camera or to replace a

component, including the desiccant.

•Dahua recommends the use of a thunder-proof device in concert with the unit.

•Do not touch the CCD or the CMOS optic sensor. Use a blower to clean dust or dirt on the lens

surface. Use a dry cloth dampened with alcohol and gently wipe away any dust on the lens.

•Use a dry soft cloth to clean the unit’s housing. If the unit is particularly dusty, use water to dilute

a mild detergent, apply the diluted detergent to a soft cloth, then gently clean the device. Finally,

use a dry cloth to wipe the unit dry. Do not use a volatile solvent like alcohol, benzene, or thinner;

or use a strong detergent with abrasives, which may damage the surface coating or reduce the

working performance of the unit.

•Do not touch or wipe a dome cover during installation, this cover is an optical device. Refer to

the following methods clean the dome cover:

•Stained with dirt: Use an oil-free soft brush or blower to gently remove the dirt.

•Stained with grease or fingerprints: Use a soft cloth to wipe gently the water droplet or the oil

from the dome cover. Then, use an oil-free cotton cloth or paper soaked with alcohol or

detergent to clean the lens from the center of the dome to outside. Change the cloth several

times to ensure the dome cover is clean.

Warnings

•Change the default password after the initial login to protect the integrity of the network.

•Use the standard accessories provided by the manufacturer and ensure the unit is installed and

commissioned by qualified professionals.

•Protect the lens area from laser radiation when using a laser device to aid in installation and

leveling of the unit.

•Do not supply power via the Ethernet connection (PoE) when power is already supplied via the

power connector.

1.2 FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

•This device may not cause harmful interference;

•This device must accept any interference received, including interference that may cause

undesired operation.

FCC compliance：

This equipment has been tested and found to comply with the limits for a digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference. This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

1.3 Legal Notices

This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by

Trademarks

All hardware and software product names used in this document are likely to be registered

trademarks and must be treated accordingly.

1.4 Disclaimer

•This user guide has been compiled with great care and the information it contains has been

thoroughly reviewed and verified. The text was complete and correct at the time of printing. This

guide may be periodically updated to reflect changes to the product or to correct previous

information and the content of this guide can change without notice. If you encounter an error or

have any questions regarding the contents of this guide, contact customer service for the latest

documentation and supplementary information. Dahua accepts no liability for damage resulting

directly or indirectly from faults, incompleteness, or discrepancies between this guide and the

product described. Dahua is not liable for any loss caused by installation, operation, or

maintenance inconsistent with the information in this guide.

•Video loss is inherent to all digital surveillance and recording devices; therefore, Dahua cannot

be held liable for any damage that results from missing video information. To minimize the

occurrence of lost digital information, Dahua recommends multiple, redundant recording systems,

and adoption of backup procedure for all data.

•Contact the supplier or customer service if you encounter any issue while using this unit.

2 Unpacking

This equipment should be unpacked and handled with care. If an item appears to have sustained

damage during shipping, notify the shipper immediately.

Verify that all the parts listed below are included. If an item is missing, contact customer support or

your local representative.

The original packing carton is the safest container to transport the unit, in the event the unit must be

returned for service. Retain the carton and all shipping material for future use.

Please refer to the enclosed CD for more details, to view the detailed User’s Manual, and for

configuration software.

Package Item

Quantity

Network Camera

PFA138 Junction Box

Hardware Package

Expansion Bolts

Screws

Torx Wrench

Waterproof Network Connector

Quick Start Guide

Documentation CD

3 Connections and Configuration

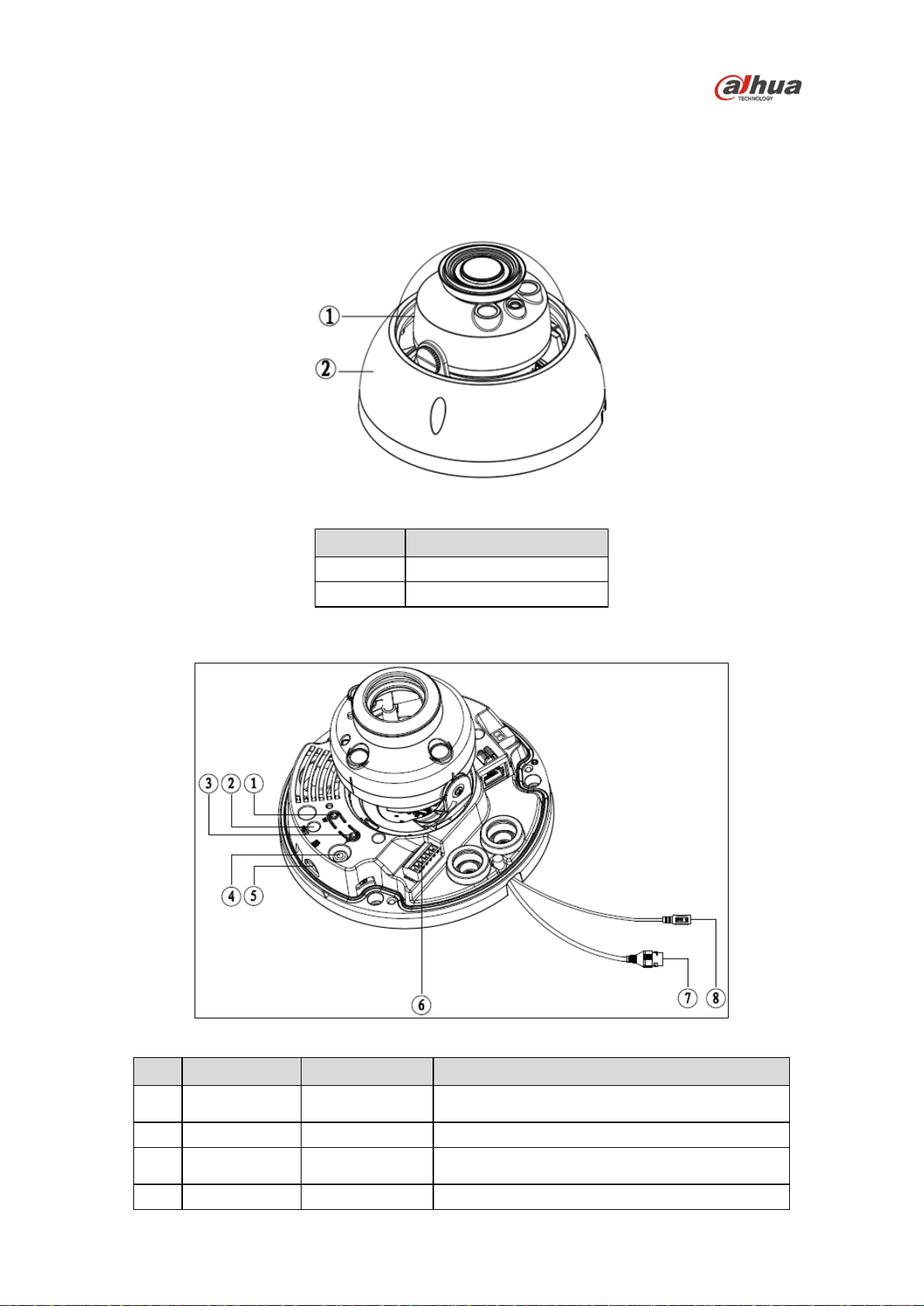

3.1 Camera Components

Figure 3-1

Ref

Description

1 Vandal-resistant Dome

2 Dome Body

3.2 Cable Connections

Figure 3-2

Ref

Port Name

Function

Notes

1 Zoom W Wide-angle

Adjust the lens to the wide-angle end (minimum

zoom).

RESET

Reset button

Restores device to factory default settings.

3 Zoom T Telephoto

Adjust the lens to the telephoto end (maximum

zoom).

4 VIDEO_OUT Video output Output analog video signal to a TV monitor.

Ref

Port Name

Function

Notes

Micro SD

Micro SD slot

Insert a Micro SD card for local storage.

6 I/O I/O port

Alarm signal input/output and Audio input/output

connections.

7 Power Power Input Port

Power port, input 12 VDC or 24 VAC.

Note:

•Connect the default DC5.5 round port to 2-

pin converter cable when using 24 VAC

power.

•Use in accordance with device label

instructions.

8 LAN Network Port

Connect to standard Ethernet cable.

Note: Certain devices support Power over

Ethernet. Check the specific device to determine

if the device accepts PoE and use an appropriate

Ethernet cable and network to supply power.

3.3 Alarm I/O Connections

Refer to the following table for detailed Alarm I/O pin information:

Pin Name Note

OUT

Alarm output port. Outputs the alarm signal to the alarm device.

NO: normal open alarm output port.

It must be used with ALARM_COM.

Alarm input port 1. Receives the on-off signal from the external alarm

source.

ALARM_GND Ground port

3.4 Framework and Dimensions

The following figures show the dimensions of the device in mm [in.]. These images are intended

as a reference only.

Figure 3-3

3.5 Locally Storing Data

Certain cameras include a SDHC card slot for onboard storage that support a 128 GB Micro SD card.

Dahua recommends using a SanDisk Extreme Micro SD card (or an equivalent substitute) as these

cards have been fully tested without issue and the SanDisk Extreme line is better suited for constant

recording. Lower-grade SD cards meant for multimedia applications will, at times, have questionable

quality and reliability. 

Recording to the SD card is first in first out (FIFO). The camera deletes the oldest (first) entry as new

storage requirements arise. The camera does not signal nor make an indication when data is deleted.

Storage time is dependent on a variety of factors such as SD card size, image resolution and video

frames per second. 

SD Recording supports video only. Audio is not supported. 

3.6 Bi-directional Talk

1. Connect the speaker or the microphone to the Audio Input on the camera and to the input port on

the computer.

2. Connect the earphone to the Audio Output on the camera and to the output port on the computer.

3. Launch Internet Explorer and type the camera IP address in the address bar. Internet Explorer

opens the Login page.

4. Type the Username and Password for the camera. (The default Username and Password is

“admin”). Then, click Login.

5. Click the Talk button to enable bi-directional talk. The button turns orange to indicate the bi-

directional talk is enabled. Click the Talk button a second time to disable the bi-directional talk.
