Dahua Technology IPC-HDW2249TM-S-IL-0280B Manuel utilisateur

Eyeball Network Camera

Quick Start Guide

V1.0.3

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the functions, configuration, general operation, and system maintenance of

network camera.

Safety Instructions

The following signal words might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result in property

damage, data loss, reductions in performance, or unpredictable result.

Provides additional information as a supplement to the text.

Revision History

Version Revision Content Release Time

V1.0.3 Updated the cable information. November 2022

V1.0.2 Updated the description of device detaching and SD card

installation. November 2021

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. August 2019

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy protection

laws and regulations to protect the legitimate rights and interests of other people by implementing

measures which include but are not limited: Providing clear and visible identification to inform people

of the existence of the surveillance area and provide required contact information.

About the Manual

The manual is for reference only. Slight differences might be found between the manual and the

product.

We are not liable for any loss caused by the operations that do not comply with the manual.

The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

Quick Start Guide

the electronic version and the paper version.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or errors in

print. If there is any doubt or dispute, please refer to our final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Please visit our website, contact the supplier or customer service if there is any problem occurred

when using the device.

If there is any uncertainty or controversy, please refer to our final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

This section introduces content covering the proper handling of the device, hazard prevention, and

prevention of property damage. Read carefully before using the device, comply with the guidelines

when using it.

Transportation Requirements

Transport the device under allowed humidity and temperature conditions.

Pack the device with packaging provided by its manufacturer or packaging of the same quality

before transporting it.

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during

transportation.

Storage Requirements

Store the device under allowed humidity and temperature conditions.

Do not place the device in a humid, dusty, extremely hot or cold site that has strong

electromagnetic radiation or unstable illumination.

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during storage.

Installation Requirements

Strictly comply with the local electrical safety code and standards, and check whether the power

supply is correct before operating the device.

Please follow the electrical requirements to power the device.

When selecting the power adapter, the power supply must conform to the requirements of

ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply

requirements are subject to the device label.

We recommend using the power adapter provided with the device.

Do not connect the device to two or more kinds of power supplies, unless otherwise specified, to

avoid damage to the device.

The device must be installed in a location that only professionals can access, to avoid the risk of

non-professionals becoming injured from accessing the area while the device is working.

Professionals must have full knowledge of the safeguards and warnings of using the device.

Do not place heavy stress on the device, violently vibrate or immerse it in liquid during installation.

Quick Start Guide

An emergency disconnect device must be installed during installation and wiring at a readily

accessible location for emergency power cut-off.

We recommend you use the device with a lightning protection device for stronger protection

against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations.

Ground the function earthing portion of the device to improve its reliability (certain models

are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that

the power supply of the device is connected to a power socket with protective earthing.

The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

during installation.

Operation Requirements

The cover must not be opened while the device is powered on.

Do not touch the heat dissipation component of the device to avoid the risk of getting burnt.

Use the device under allowed humidity and temperature conditions.

Do not aim the device at strong light sources (such as lamplight, and sunlight) when focusing it,

to avoid reducing the lifespan of the CMOS sensor, and causing overbrightness and flickering.

When using a laser beam device, avoid exposing the device surface to laser beam radiation.

Prevent liquid from flowing into the device to avoid damage to its internal components.

Protect indoor devices from rain and dampness to avoid electric shocks and fires breaking out.

Do not block the ventilation opening near the device to avoid heat accumulation.

Protect the line cord and wires from being walked on or squeezed particularly at plugs, power

sockets, and the point where they exit from the device.

Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens.

The dome cover is an optical component. Do not directly touch or wipe the surface of the cover

when using it.

There might be a risk of electrostatic discharge on the dome cover. Power off the device when

installing the cover after the camera finishes adjustment. Do not directly touch the cover and

make sure the cover is not exposed to other equipment or human bodies

Strengthen the protection of the network, device data and personal information. All necessary

safety measures to ensure the network security of the device must be taken, such as using strong

passwords, regularly changing your password, updating firmware to the latest version, and

isolating computer networks. For the IPC firmware of some previous versions, the ONVIF

password will not be automatically synchronized after the main password of the system has been

changed. You need to update the firmware or change the password manually.

Quick Start Guide

Maintenance Requirements

Strictly follow the instructions to disassemble the device. Non-professionals dismantling the

device can result in it leaking water or producing poor quality images. For a device that is required

to be disassembled before use, make sure the seal ring is flat and in the seal groove when putting

the cover back on. When you find condensed water forming on the lens or the desiccant becomes

green after you disassembled the device, contact after-sales service to replace the desiccant.

Desiccants might not be provided depending on the actual model.

Use the accessories suggested by the manufacturer. Installation and maintenance must be

performed by qualified professionals.

Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the

lens. When it is necessary to clean the device, slightly wet a soft cloth with alcohol, and gently

wipe away the dirt.

Clean the device body with a soft dry cloth. If there are any stubborn stains, clean them away with

a soft cloth dipped in a neutral detergent, and then wipe the surface dry. Do not use volatile

solvents such as ethyl alcohol, benzene, diluent, or abrasive detergents on the device to avoid

damaging the coating and degrading the performance of the device.

The dome cover is an optical component. When it is contaminated with dust, grease, or

fingerprints, use degreasing cotton moistened with a little ether or a clean soft cloth dipped in

water to gently wipe it clean. An air gun is useful for blowing dust away.

It is normal for a camera made of stainless steel to develop rust on its surface after being used in

a strong corrosive environment (such as the seaside, and chemical plants). Use an abrasive soft

cloth moistened with a little acid solution (vinegar is recommended) to gently wipe it away.

Afterwards, wipe it dry.

Quick Start Guide

Table of Contents

Foreword............................................................................................................................................................ I

Important Safeguards and Warnings............................................................................................................. III

1 Introduction................................................................................................................................................... 1

Cable............................................................................................................................................................................................... 1

Connecting Alarm Input/Output ......................................................................................................................................... 1

2 Network Configuration ................................................................................................................................. 3

Initializing the Camera ............................................................................................................................................................. 3

Changing the Device IP Address .......................................................................................................................................... 4

Logging in to the Webpage.................................................................................................................................................... 4

3 Installation..................................................................................................................................................... 5

Packing List................................................................................................................................................................................... 5

Dimensions................................................................................................................................................................................... 5

Installing the Camera................................................................................................................................................................ 6

3.3.1 Installation Direction ................................................................................................................................................... 6

3.3.2 Installation Methods.................................................................................................................................................... 6

3.3.3 Detaching the Device.................................................................................................................................................. 7

3.3.4 (Optional) Installing the SD Card ............................................................................................................................ 7

3.3.5 Attaching the Camera................................................................................................................................................. 7

3.3.6 (Optional) Installing the Waterproof Connector ............................................................................................... 9

3.3.7 Adjusting the Lens Angle........................................................................................................................................... 9

Quick Start Guide

1Introduction

Cable

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and

water damage. For the detailed operation, see FAQ manual.

Cables

Table 1-1 Cable information

No. Port Name Description

1 Ethernet port

Inputs 12 VDC power. Please be sure to supply power as instructed in the

Guide.

Device abnormity or damage could occur if power is not supplied correctly.

2 Ethernet port

Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select models.

3 Alarm I/O Includes alarm signal input and output ports. For detailed information,

see Table 1-2.

4 Audio input Connects to sound-pick-up device to receive audio signal.

5 Audio output Connects to speaker to output audio signal.

Table 1-2 Alarm information

Port Name Description

ALARM_OUT Outputs alarm signal to alarm device.

ALARM_IN Receives the switch signal of external alarm source.

ALARM_GND Ground connection.

Connecting Alarm Input/Output

The camera can connect to external alarm input/output devices through the digital input/output port.

Alarm input/output is available on select models.

Quick Start Guide

Connect the alarm input device to the alarm input end of the I/O port.

The device collects different statuses of the alarm input port while the input signal is idling

and being grounded.

Device collects logic "1" when the input signal is connected to +3 V to +5 V or idling.

Device collects logic "0" when the input signal is grounded.

Alarm input

Connect the alarm output device to the alarm output end of the I/O port. The alarm output is

an open-drain output, which works in the following modes.

Mode A: level application. The alarm outputs high and low level signals, and the alarm

outlet is OD, which requires external pull-up resistance (10 K Ohm typical) to work. The

maximum external pull-up level is 12 V, maximum port current is 300 mA, and the default

output signal is high-level (external pull-up voltage). The default output signal switches

to low- level when an alarm is triggered (As long as the operating current is below 300

mA, the output low-level voltage is lower than 0.8 V).

Mode B: switch application. Alarm output is used to drive the external circuit, the

maximum voltage is 12 V and the maximum current is 300 mA. If the voltage is higher

than 12 V, use an additional electric relay.

Alarm output

The alarm input on the webpage corresponds to the alarm input end of the I/O port.

There will be high level and low level alarm signals generated by the alarm input device

when an alarm occurs. Set the input mode to "NO" (default) if the alarm input signal is

logic "0", and to "NC" if the alarm input signal is logic "1".

The alarm output on the webpage corresponds to the alarm output end of the device,

which is also the alarm output end of the I/O port.

Quick Start Guide

2Network Configuration

Device initialization and IP setting can be finished with the ConfigTool or on webpage. For more

information, see web operation manual.

Device initialization is available on select models, and it is required at first-time use and after

device is being reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stay on the same network segment.

Plan usable network segment properly to connect the device to the network.

The following figures are for reference only.

Initializing the Camera

Search for the device that needs to be initialized through ConfigTool.

1) Double-click ConfigTool.exe to open the tool.

2) Click Modify IP.

3) Select the searching way, and then click OK.

4) Select one or several cameras in uninitialized status, and then click Initialize.

Select the devices to be initialized, and then click Initialize.

If you do not provide the email address for password reset, you can reset the password only

through XML file.

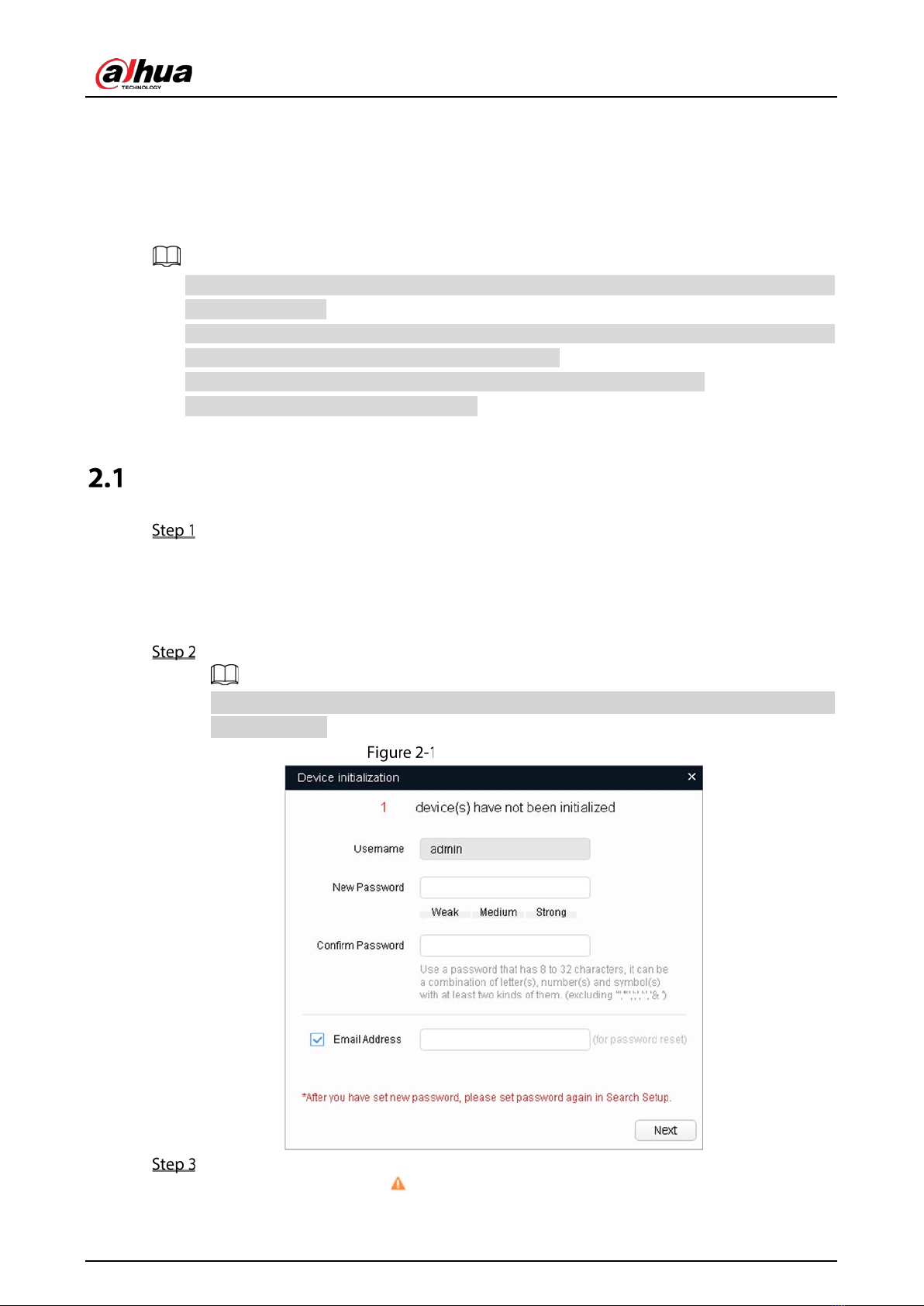

Password setting

Select Auto-check for updates as needed, and then click OK to initialize the device.

If initialization failed, click to see more information.

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology IPC-MBW4231-AS/M12 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW3849T1P-AS-PV-S3-BLK Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HUM4431S-L4 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW11A0SN-W Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manuel utilisateur

Dahua Technology

Dahua Technology N68BR4 Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HUM8441-E1-L1 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW1430DEP-SW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manuel utilisateur

Dahua Technology

Dahua Technology Lite IPCHFW2231T-ZAS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5842T-ZE Manuel utilisateur

Dahua Technology

Dahua Technology D-SD6C3432XB-HNR-AGQ-PV Manuel utilisateur

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manuel utilisateur

Dahua Technology

Dahua Technology A21BM0V Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1531S-0360B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5231R-Z Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-PFW83242-A180-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HUM8441-E1-L4 Manuel utilisateur

Dahua Technology

Dahua Technology IR Eyeball Manuel utilisateur

Dahua Technology

Dahua Technology IPC-PDW5849-A180-E2-ASTE Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW5449T1-ASE-D2-0360B Manuel utilisateur

Dahua Technology

Dahua Technology N52BM5Z Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
