Dahua Technology DH-PSDW8842ML-A180-D237 Manuel utilisateur

Multi-Sensor Panoramic Network + PTZ

Camera

Quick Start Guide

V1.0.1

Quick Start Guide

Foreword

General

This manual introduces the functions and operations of the camera.

Safety Instructions

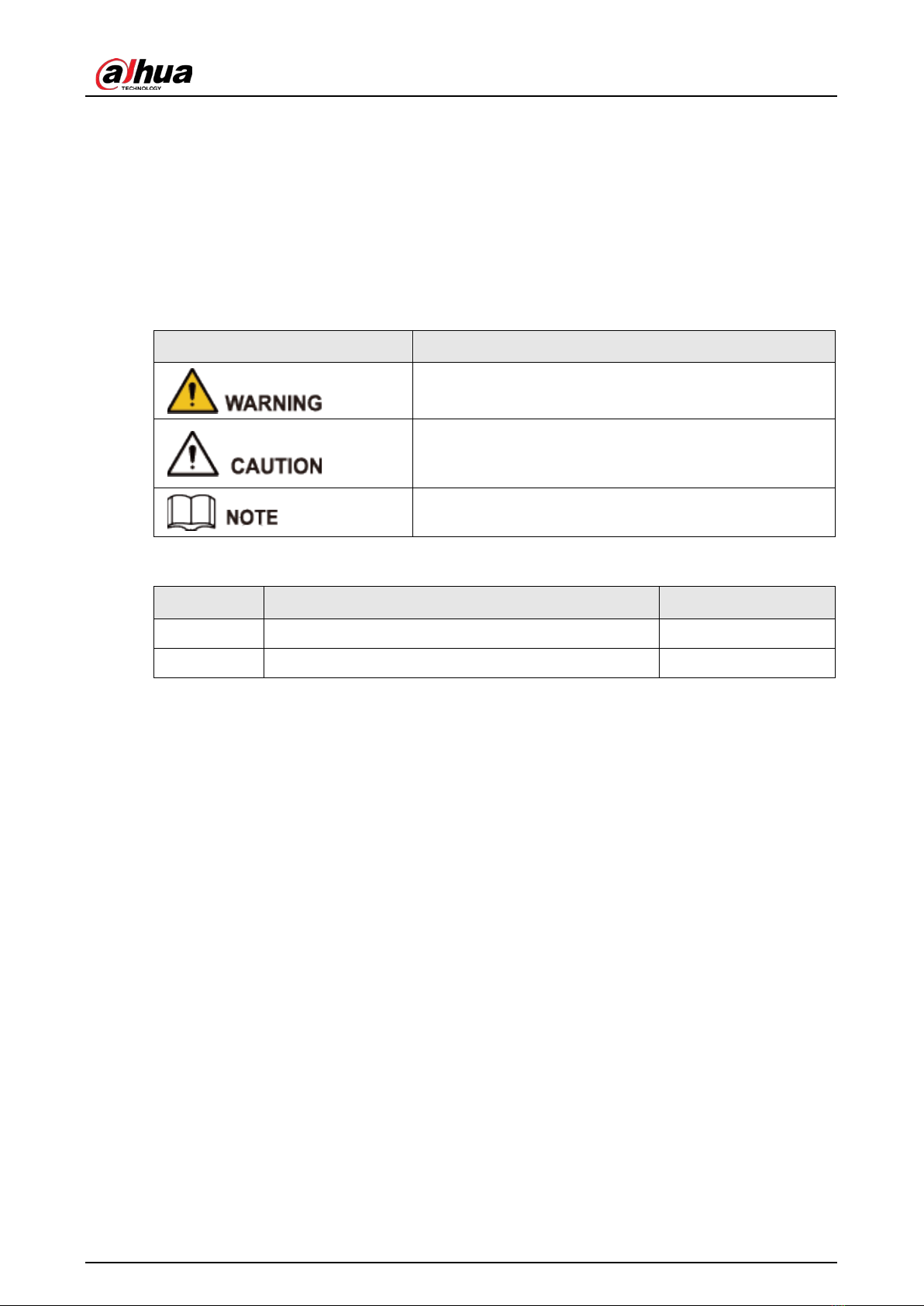

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not

avoided, could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result

in property damage, data loss, lower performance, or

unpredictable result.

Provides additional information as the emphasis and

supplement to the text.

Revision History

Version Revision Content Release Date

V1.0.1 Updated "Important Safeguards and Warnings". April 2021

V1.0.0 First release. July 2020

About the Manual

●The manual is for reference only. If there is inconsistency between the manual and the actual

product, the actual product shall prevail.

●We are not liable for any loss caused by the operations that do not comply with the manual.

●The manual would be updated according to the latest laws and regulations of related

jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our official

website. If there is inconsistency between paper manual and the electronic version, the

electronic version shall prevail.

●All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

●There still might be deviation in technical data, functions and operations description, or errors in

print. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

●Please visit our website, contact the supplier or customer service if there is any problem

occurring when using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

Important Safeguards and Warnings

Electrical Safety

●All installation and operation shall conform to your local electrical safety codes.

●The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply

power with rated voltage which conforms to Limited Power Source requirement according to

IEC60950-1. Note that the power supply requirement is subject to the device label.

●Make sure that the power supply is correct before operating the device.

●A readily accessible disconnecting device shall be incorporated in the building installation wiring.

●Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

●Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might

cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

●Do not place the device in a damp, dusty extremely hot or cold environment, or the locations

with strong electromagnetic radiation or unstable lighting.

●Keep the device away from any liquid to avoid damage to the internal components.

●Keep the indoor device away from rain or damp to avoid fire or lightning.

●Keep sound ventilation to avoid heat accumulation.

●Transport, use and store the device within the range of allowed humidity and temperature.

●Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

●Pack the device with standard factory packaging or the equivalent material when transporting

the device.

●Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

●Do not touch the heat dissipation component of the device to avoid scald.

●Carefully follow the instructions in the manual when performing any disassembly operation

about the device; otherwise, it might cause water leakage or poor image quality due to

unprofessional disassembly. Please make sure that the gasket ring is flat and properly installed in

the groove before installing the cover. Please contact after-sale service for desiccant replacement

if there is condensed fog on the lens after unpacking or when the desiccant turns green (Not all

models are included with the desiccant).

●It is recommended to use the device together with lightning arrester to improve lightning

protection effect.

●It is recommended to ground the device to enhance reliability.

●Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that is moistened with alcohol.

Quick Start Guide

III

●You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with

mild detergent. To avoid possible damage on device body coating which could cause

performance decrease, do not use volatile solvent such as alcohol, benzene, diluent and so on to

clean the device body, nor can strong, abrasive detergent be used.

●Dome cover is an optical component. Do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moistened oil-free cotton with diethyl or moisten soft cloth. You can also remove dust with an air

blower.

●Strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password regularly,

upgrading firmware to the latest version, and isolating computer network. For some device with

old firmware versions, the ONVIF password will not be modified automatically along with the

modification of the system password, and you need to upgrade the firmware or manually update

the ONVIF password.

●Use standard components or accessories provided by manufacturer and make sure that the

device is installed and maintained by professional engineers.

●The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

●Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword ..................................................................................................................................................... I

Important Safeguards and Warnings.........................................................................................................II

1 Introduction.............................................................................................................................................1

2 Cable........................................................................................................................................................2

3 Network Configuration............................................................................................................................4

3.1 Initializing Device............................................................................................................................ 4

3.2 Modifying Device IP Address........................................................................................................... 6

3.3 Logging in to Web Interface ............................................................................................................6

4 Smart Track Configuration ......................................................................................................................8

4.1 Enabling Alarm Track ......................................................................................................................8

4.2 Configuring calibration parameter .................................................................................................8

5 Installation.............................................................................................................................................11

5.1 Packing List ...................................................................................................................................11

5.2 Dimensions....................................................................................................................................11

5.3 Installing Camera .......................................................................................................................... 12

5.3.1 Installation Method...............................................................................................................12

5.3.2 Installing SD Card (Optional) ................................................................................................ 12

5.3.3 Attaching Camera .................................................................................................................13

5.3.4 Installing Waterproof Connector (Optional)......................................................................... 15

5.3.5 Adjusting Lens Angle ............................................................................................................15

Quick Start Guide

1 Introduction

This series product is a type of integrated camera which consists of panoramic camera and tracking

PTZ camera. It provides monitoring effect of both panoramic and partial details. Panoramic camera

can provide real-time HD surveillance of 180°/270°/360° view coverage. Besides, it is convenient to

recognize and exclude abnormity via quick positioning and zoom in of tracking PTZ camera when

abnormity happens.

The cameras are applicable to cover the high definition panoramic monitoring needs, such as public

security, traffic, building, museum, hospital, school, and more.

Quick Start Guide

2 Cable

●Cable type might vary with different devices, and the actual product shall prevail.

●Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and

water damage. For the detailed operation, see the FAQ Manual.

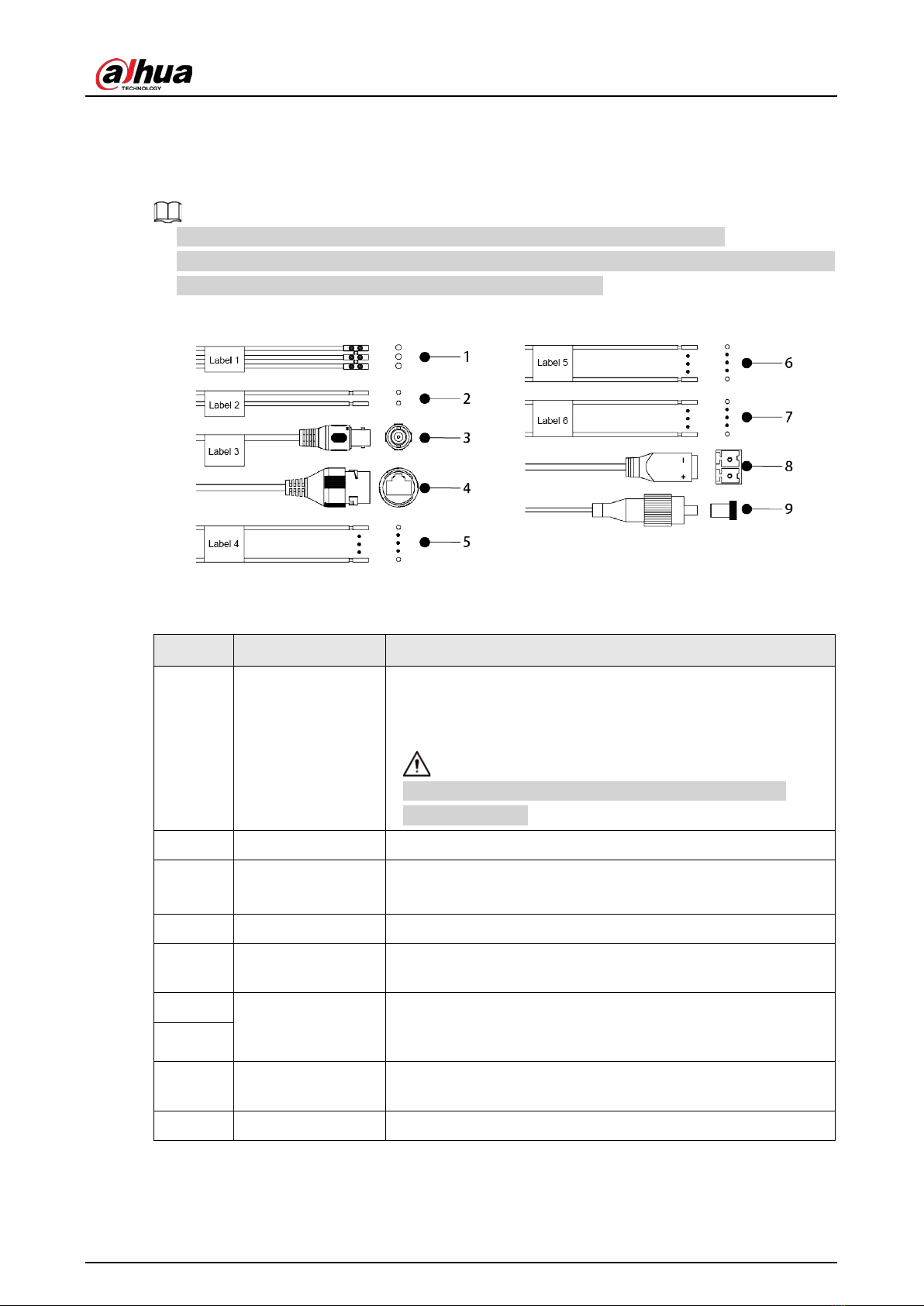

Figure 2-1 Cables

For more information about cable ports, see Table 2-1.

Table 2-1 Cable information

No. Port name Description

1 Power input

●Red: 36V DC power input.

●Black: Ground connection.

●Yellow and green: Ground connection.

Device abnormity or damage could occur if power is not

supplied correctly.

2 RS-485 port Reserved port.

3 Video output BNC port. Connects to TV monitor to check image when

outputting analog video signal.

4 Ethernet port Connects to network with network cable.

5 Audio Includes audio input and output ports. For detailed

information, see Table 2-2.

I/O

Includes alarm signal input and output ports, the number of

I/O ports might vary on different devices. For detailed

information, see Table 2-3.

8 12V DC power

output Supplies 12V DC (2W) power for external devices.

9 OPT Connects to network with optical fiber.

Quick Start Guide

Table 2-2 Audio I/O

Port Port Name Description

Audio

AUDIO_OUT 1 Connects to speaker to

output audio signal.

AUDIO_OUT 2

AUDIO_IN 1 Connects to sound-pick-up

device to receive audio signal.

AUDIO_IN 2

AUDIO_GND Ground connection.

For more information about I/O port, see Table 2-3.

Table 2-3 Alarm information

Port Port Name Description

Alarm I/O

ALARM_OUT Outputs alarm signal to alarm device.

When connecting to alarm device, only the

ALARM_OUT port and ALARM_OUT_GND port with the

same number can be used together.

ALARM_COM

ALARM_IN Receives the switch signal of external alarm source.

Connect different alarm input devices to the same

ALARM_IN_GND port.

ALARM_GND

Quick Start Guide

3 Network Configuration

Device initialization and IP setting can be finished with the "ConfigTool" or on web interface. For

more information, see the Web Operation Manual.

●Device initialization is available on select models, and it is required at first-time use and after

device is being reset.

●Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stays in the same network segment.

●Plan usable network segment properly to connect the device to the network.

●The following figures and interfaces are for reference only, and the actual product shall prevail.

3.1 Initializing Device

Step 1 Double-click "ConfigTool.exe" to open the tool.

Step 2 Click .

The Modify IP interface is displayed.

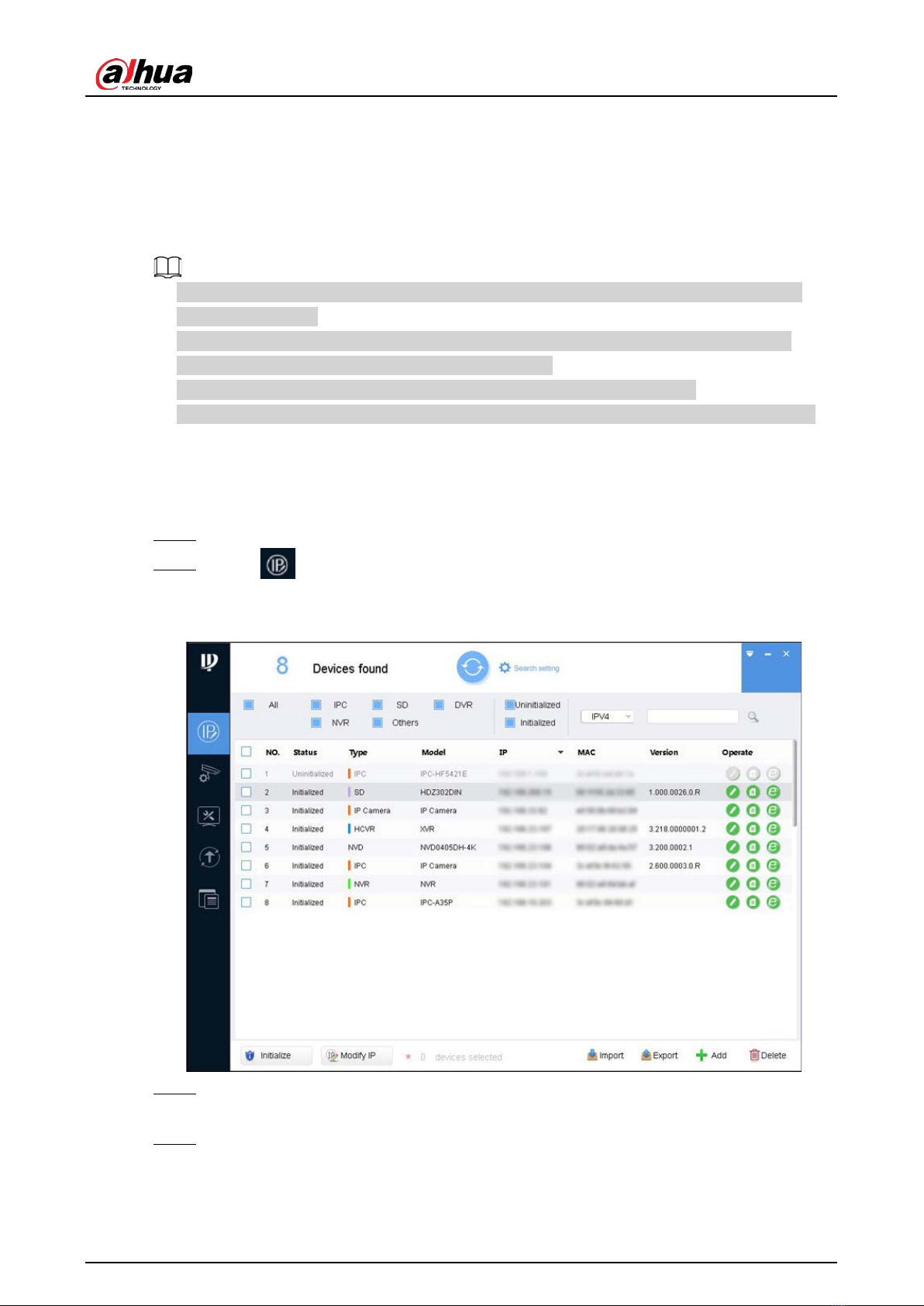

Figure 3-1 Modify IP

Step 3 Click Search setting.

The Setting interface is displayed.

Step 4 Enter the start IP address and end IP address of the network segment in which you want to

search devices, and then click OK.

All the devices found in the network segment are listed.

Quick Start Guide

Step 5 Select one or several devices in uninitialized status, and then click Initialize.

The Device initialization interface is displayed.

Step 6 Select the devices that need initialization, and then click Initialize.

The password setting interface is displayed.

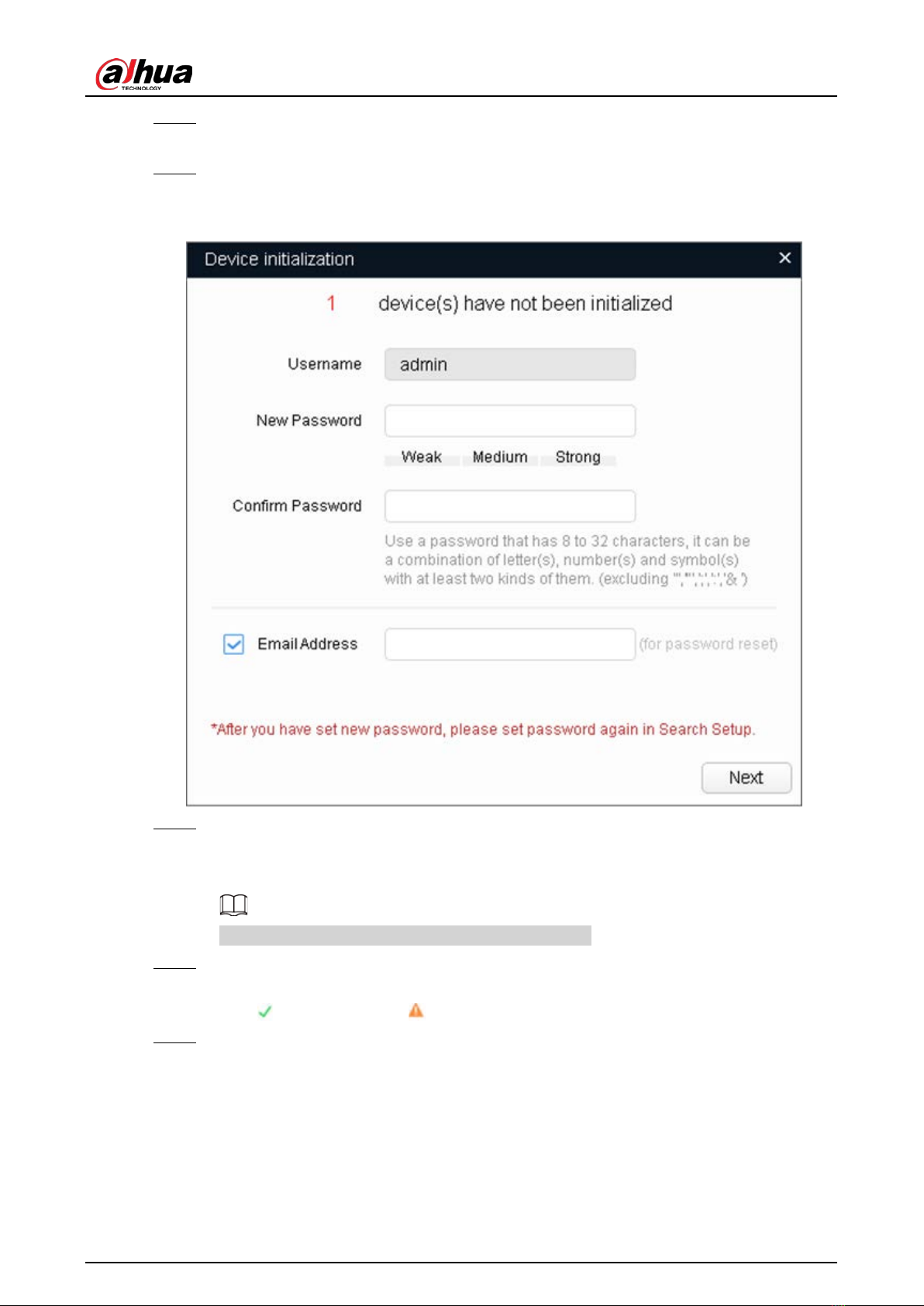

Figure 3-2 Password setting

Step 7 Set and confirm the password of the devices, then enter a valid email address, and then

click Next.

The final setting interface is displayed.

Password can be modified or reset in System Settings.

Step 8 Select the options according to your needs, and then click OK.

The Initialization interface is displayed after initialization is completed. Click the success

icon ( ) or the failure icon ( ) for the details.

Step 9 Click Finish.

The device status on the Modify IP interface (Figure 3-1) turns to Initialized.

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology D-SD6C3432XB-HNR-AGQ-PV Manuel utilisateur

Dahua Technology

Dahua Technology Lite IPCHFW2231T-ZAS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IR Eyeball Manuel utilisateur

Dahua Technology

Dahua Technology IPC-PDB4830-B360 Manuel utilisateur

Dahua Technology

Dahua Technology DSS4004-S2 Instructions générales

Dahua Technology

Dahua Technology 50230UNI Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW2241T-S-0280B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manuel utilisateur

Dahua Technology

Dahua Technology 6CE230UNI Manuel utilisateur

Dahua Technology

Dahua Technology N52BF5Z Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1230S1-0280B-S5 Manuel utilisateur

Dahua Technology

Dahua Technology A21BC0V Manuel utilisateur

Dahua Technology

Dahua Technology WizMind IPC-PDBW82041-B360 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2849S-S-IL-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW2249TM-S-IL-0280B Manuel utilisateur

Dahua Technology

Dahua Technology HD IR Mini Bullet Manuel utilisateur

Dahua Technology

Dahua Technology HFW5241E-ZE Manuel utilisateur

Dahua Technology

Dahua Technology Ultra IPC-HFW7442H-Z Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2531T-ZS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW1239DT-PV-STW Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
