Dahua HD Mobile Network Camera Quick Start Guide

Version 1.0.0

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Dahua HD Mobile Network Camera Quick Start Guide

Welcome

Thank you for purchasing our network cameras.

This user’s manual is designed to be a reference tool for using your product.

Please read the following safeguards and warnings carefully before you use this series product.

Please keep this user’s manual well for future reference.

Important Safeguards and Warnings

Electrical safety

All installation and operation should conform to your local electrical safety codes.

The power source shall conform to the requirement of the Safety Extra Low Voltage (SELV)

standard, and supply power with voltage rated by DC 12 V orAC 24 V according to the Limited

Power Source requirement of IEC60950-1. Please note that the power supply requirement is

subject to the device label.

Make sure the power supply is correct before operating the device.

A readily accessible disconnect device shall be incorporated in the building installation wiring

Prevent the power cable from being trampled or pressed, especially the plug, power socket and the

junction extruded from the device.

We assume no liability or responsibility for all the fires or electrical shock caused by improper

handling or installation.

Environment

Do not aim the device at strong light to focus, such as lamp light and sun light, otherwise it might

cause over brightness or light marks, which are not the device malfunction, and affect the longevity

of Charge Coupled Device (CCD) or Complementary Metal-Oxide Semiconductor (CMOS).

Do not place the device in a damp or dusty environment, extremely hot or cold temperatures, or the

locations with strong electromagnetic radiation or unstable lighting.

Keep the camera away from water or other liquid to avoid damages to the internal components.

Keep the indoor device away from rain or damp to avoid fire or lightning.

Keep sound ventilation to avoid heat accumulation.

Transport, use and store the device within the range of allowed humidity and temperature.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

Pack the device with standard factory packaging or the equivalent material when transporting the

device.

Operation and Daily Maintenance

Do not directly touch the heat dissipation component of the device to avoid scald.

Dahua HD Mobile Network Camera Quick Start Guide

Do not dismantle the device because there is no component that can be fixed by users themselves.

Otherwise, it might cause water leakage or bad image due to unprofessional dismantling.

Please contact after-sale service to replace desiccant when it becomes green.

It is recommended to use the device together with lightning arrester to improve lightning protection

effect.

It is recommended to get the grounding holes to be grounded to enhance the reliability of the

device.

Do not directly touch the optic component CCD or CMOS. You can use the air blower to blow away

the dust or dirt on the lens surface. Please use a dry cloth wetted by alcohol to wipe away the dust

gently if necessary.

Use the dry soft cloth to clean the device. If the dust is difficult to be removed, please wipe it away

with a clean cloth wetted slightly by the mild detergent, and then use the dry cloth to clean the

device. Do not use volatile solvents like alcohol, benzene, thinner, or strong detergent with

abrasiveness, otherwise it will damage the surface coating or reduce the working performance of

the device.

When installing or using the device, do not directly touch or wipe the surface of the dome cover

because it is an optical device. If stained with dirt, use oil-free soft brush or air blower to gently

wipe it away. If stained with grease or fingerprint, use soft cloth to gently wipe the water drop or oil

and wait till it is dry, and then use oil-free cotton cloth or lens cleaning paper soaked with alcohol or

detergent to wipe from the lens center outward till it is clean.

We are not liable for any problems caused by unauthorized modification or attempted repair.

Warnings

Please modify the default password after login to avoid being stolen.

Use the standard components provided by manufacturer and make sure the device is installed and

fixed by professional engineers.

The surface of the image sensor should not be exposed to laser beam radiation in an environment

where a laser beam device is used.

Do not provide two or more power supply sources for the device, otherwise it might damage the

device.

Disclaimer

This manual is for reference only. Please refer to the actual product for more details.

Minor differences might be found in user interface, and there might be deviation between the actual

value of some data and the value provided in the manual due to the reasons such as the real

environment is not stable. Please refer to the final explanation of the company if there is any doubt

or dispute.

All the designs and software are subject to change without prior written notice. The manual will be

regularly updated according to the product upgrade without prior announcement.

Please contact the supplier or customer service if there is any problem occurred when using the

device.

Please contact the customer service for the latest procedure and supplementary documentation.

Please visit our website or contact your local service engineer for more information.

Dahua HD Mobile Network Camera Quick Start Guide

iii

The company is not liable for any loss caused by the operation that does not comply with the

manual.

If there is any uncertainty or controversy, please refer to our final explanation.

Regulatory Information

FCC Information

1.1 FCC conditions：

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference

This device must accept any interference received, including interference that may cause

undesired operation.

1.2 FCC compliance：

This equipment has been tested and found to comply with the limits for a digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference. This equipment generate, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

Note

Please refer to the disk for more details, check and download the corresponding user’s manual and

tool.

Before installation, please open the package and check all the components are included.

Contact your local retailer as soon as possible if something is broken in your package.

Component list

Quantity

Network Camera Unit

Quick Start Guide

Installation Accessories Bag

Dahua HD Mobile Network Camera Quick Start Guide

Table of Contents

1 Device Framework................................................................................................................................. 1

1.1 Structure and dimension............................................................................................................... 1

1.2 Dimension..................................................................................................................................... 2

1.3 Alarm Setup................................................................................................................................... 3

2 Device Installation................................................................................................................................. 6

3 Network Configuration........................................................................................................................ 10

3.1 Modify IPAddress....................................................................................................................... 10

3.2 Login WEB Interface....................................................................................................................11

Dahua HD Mobile Network Camera Quick Start Guide

1 Device Framework

1.1 Structure and dimension

Note

The following structure figures are for reference only. They are only used to know

the functions of structure components and cable ports.

There might be some minor differences between different devices, so please refer

to the actual products you purchased.

Figure 1-1

Figure 1-2

The following tables show more information about port function.

No.

Port name

Function description

AUDIO OUT

Output audio signal to the speakers and other

devices.

AUDIO IN

Input audio signal, receive analog audio signal

from pickup and other devices.

M12

Network port for mobile device, support PoE power

supply.

Note

Interface type is D-Coded.

Network port

Connect to standard Ethernet cable, provide PoE power

supply function.

Note

Some devices support two network ports.

Some devices don’t support PoE power supply.

Dahua HD Mobile Network Camera Quick Start Guide

No.

Port name

Function description

I/O port

It includes alarm input and output. Different devices have

different I/O ports. Actual use shall be in accordance with

device label, refer to Table 1-2 for more details.

Power input

port

Input power, connect to DC 12V power.

Note

Power supply requirement shall be subject to device label.

Table 1-1

Port name

Cable color

Cable port name

Function description

I/O port

Blue

ALARM_IN1

Alarm input port 1, receive on-off

signal from external alarm source.

Brown

ALARM_OUT1

Alarm output port 1, output alarm

signal to alarm device.

Green

ALARM_OUT_GND1

GND 1

White

ALARM_IN2

Alarm input port 2, receive on-off

signal from external alarm source.

Red

ALARM_OUT2

Alarm output port 2, output alarm

signal to alarm device.

Black

ALARM_OUT_GND2

GND 2

Table 1-2

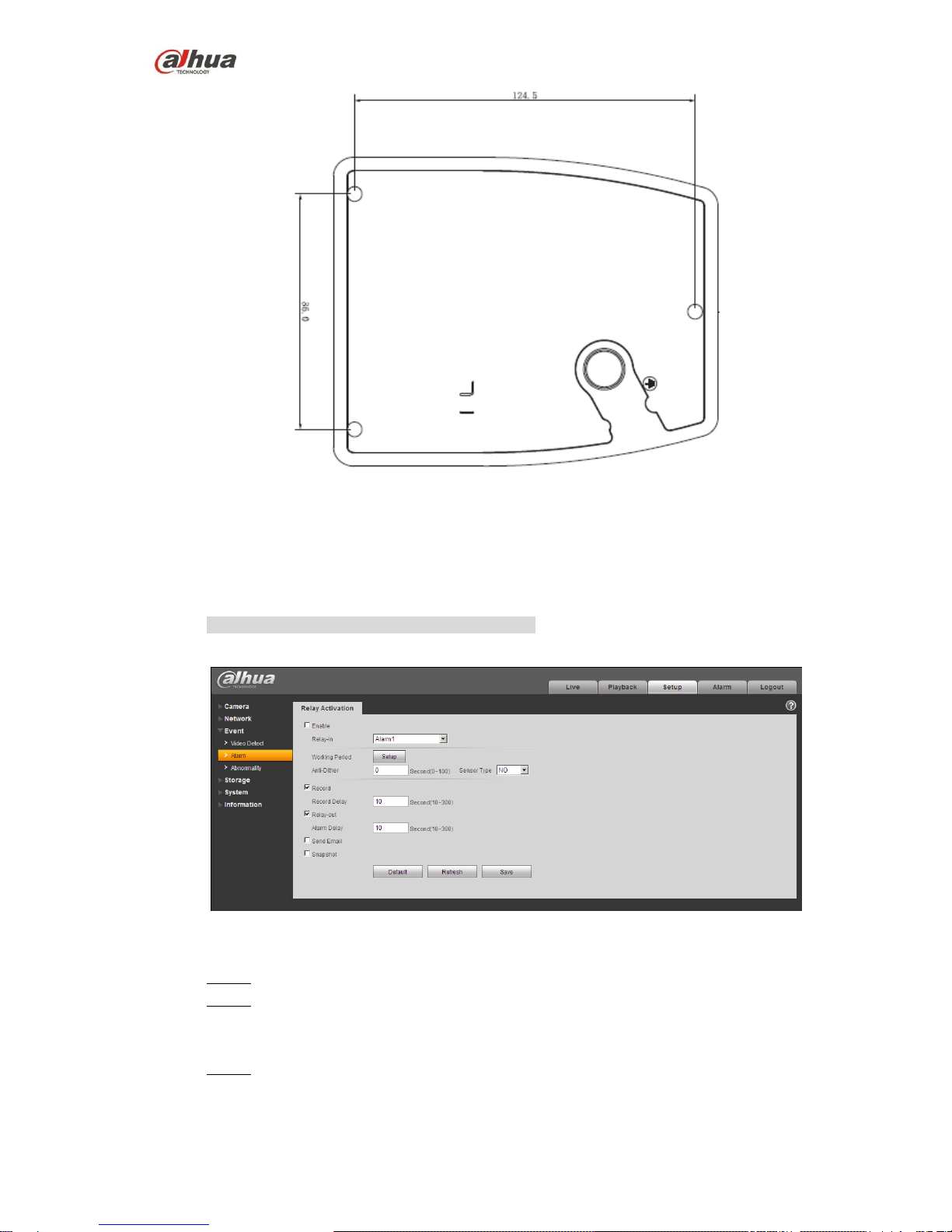

1.2 Dimension

Refer to Figure 1-3 and Figure 1-4 for the device dimension. The unit is mm.

Figure 1-3

Dahua HD Mobile Network Camera Quick Start Guide

Figure 1-4

1.3 Alarm Setup

Note

This function is only supported by some models.

The following figure shows the Alarm setup screen.

Figure 1-5

To set up the Alarm input and output, do the following:

Step 1 Connect alarm input device to the alarm input port of I/O cable.

Step 2 Connect alarm output device to the alarm output port of I/O cable. Alarm output

is open-collector output, which needs the alarm device to pull up 10K resistance

to +3V~+5V.

Step 3 Open the WEB, and make corresponding settings for alarm input and output in

Alarm Setup.Alarm input on WEB corresponds to the Alarm input of I/O cable.

Because the alarm input device will generate high or low level signal when there

is alarm, the configurations are corresponding NO and NC inputs.

Dahua HD Mobile Network Camera Quick Start Guide

Step 4 Set alarm output on the WEB, alarm output corresponds to the alarm output

port of the device, which is the alarm output port of I/O port cable.

Refer to Figure 1-6 for alarm input and output.

Figure 1-6

Alarm input: When the input signal is idle or grounded, the device can collect different

statuses of the alarm input port. When the input signal is connected to +3.3V~5V or it is

idle, the device collects the logic “1”. When the input signal is grounded, the device

collects the logic “0”.

Refer to Figure 1-7 and Figure 1-8 for alarm output.

Figure 1-7

Figure 1-8

Mode A:

Level application. The alarm outputs high and low level, and alarm output is OC. It

needs to increase pull-up resistance externally to work normally. The Max external pull-

up level is 5V, Max port current is 5mA. After external pull-up resistance is increased,

the output signal is high level by default (external pull-up voltage). When there is alarm

output, it switches to low level (when the working current is 5mA, output voltage is less

than 0.8V).

Dahua HD Mobile Network Camera Quick Start Guide

Mode B:

Switch application. Alarm output is used to drive external circuit. The Max current is

30mA and Max voltage is 5V, and it is advised to add a relay when it is beyond the value.

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW5431E-Z Manuel utilisateur

Dahua Technology

Dahua Technology ANPR Manuel utilisateur

Dahua Technology

Dahua Technology IPC-EBW81242-AS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-PFW83242-A180-S2 Manuel utilisateur

Dahua Technology

Dahua Technology N42BD32 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW1239DT-PV-STW Manuel utilisateur

Dahua Technology

Dahua Technology WizMind IPC-PDBW82041-B360 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW3841E-AS-0280B-S2 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW5449H-ASE-D2-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2531T-ZS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology Pro IPC-HDW5241TM-AS Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manuel utilisateur

Dahua Technology

Dahua Technology 22204TNI Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3466FP-AS-AUS Manuel utilisateur

Dahua Technology

Dahua Technology DH-PSDW8842ML-A180-D237 Manuel utilisateur

Dahua Technology

Dahua Technology PC-EBW81242 Manuel utilisateur

Dahua Technology

Dahua Technology N65CB5Z Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDBW1531E-S-0280B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manuel utilisateur

Dahua Technology

Dahua Technology HFW5241E-ZE Manuel utilisateur

Dahua Technology

Dahua Technology N43AJ52 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
