Dahua Technology Eyeball Manuel utilisateur

Eyeball Network Camera

Quick Start Guide

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.3

Quick Start Guide

Foreword

General

This manual introduces the functions, configuration, general operation, and system maintenance of

network camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a medium or low potential hazard which, if not

avoided, could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, could result

in property damage, data loss, lower performance, or

unpredictable result.

Provides additional information as a supplement to the

text.

Revision History

Version Revision Content Release Date

V1.0.3 Updated SD card installation. November 2021

V1.0.2 Updated "Important Safeguards and

Warnings" April 2021

V1.0.1 Modify the pictures in "3.3.3 Attaching

Camera". September 2020

V1.0.0 First release. May 2020

Privacy Protection Notice

As the device user or data controller, you might collect the personal data of others such as their face,

fingerprints, and license plate number. You need to be in compliance with your local privacy

protection laws and regulations to protect the legitimate rights and interests of other people by

implementing measures which include but are not limited: Providing clear and visible identification

to inform people of the existence of the surveillance area and provide required contact information.

About the Manual

●The manual is for reference only. Slight differences might be found between the manual and the

product.

●We are not liable for losses incurred due to operating of the product in ways that are not in

compliance with the manual.

●The manual will be updated according to the latest laws and regulations of related jurisdictions.

For detailed information, see the paper User Manual, use our CD-ROM, scan the QR code or visit

our official website. The manual is for reference only. Slight differences might be found between

Quick Start Guide

the electronic version and the paper version.

●All the designs and software are subject to change without prior written notice. Product updates

might result in some differences appearing between the actual product and the manual. Please

contact customer service for the latest program and supplementary documentation.

●There might be deviations in the description of the technical data, functions and operations, or

errors in the print. If there is any doubt or dispute, we reserve the right of final explanation.

●Upgrade the reader software or try other mainstream reader software if the manual (in PDF

format) cannot be opened.

●All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

●Please visit our website, contact the supplier or customer service if any problems occur while

using the device.

●If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

Electrical Safety

●All installation and operation shall conform to your local electrical safety codes.

●The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no

higher than PS2. Note that the power supply requirements are subject to the device label.

●Make sure that the power supply is correct before operating the device.

●A readily accessible disconnecting device shall be incorporated in the building installation wiring.

●Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

●Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it might

cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

●Do not place the device in a damp, dusty extremely hot or cold environment, or the locations

with strong electromagnetic radiation or unstable lighting.

●Keep the device away from any liquid to avoid damage to the internal components.

●Keep the indoor device away from rain or damp to avoid fire or lightning.

●Keep sound ventilation to avoid heat accumulation.

●Transport, use and store the device within the range of allowed humidity and temperature.

●Heavy stress, violent vibration or water splash are not allowed during transportation, storage and

installation.

●Pack the device with standard factory packaging or the equivalent material when transporting

the device.

●Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

●Do not touch the heat dissipation component of the device to avoid scald.

●Carefully follow the instructions in the manual when disassembling operation about the device;

otherwise, it might cause water leakage or poor image quality due to unprofessional operations.

Make sure that the gasket ring is flat and properly installed in the groove before installing the

cover. Contact after-sales service for desiccant replacement if there is condensed fog on the lens

after unpacking or when the desiccant turns green (Not all models are included with the

desiccant).

●We recommend using the device together with lightning arrester to improve lightning

protection effect.

●We recommend grounding the device to enhance reliability.

●Do not touch the image sensor (CMOS) directly. Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that is moistened with alcohol.

●You can clean the device body with soft dry cloth, and for stubborn stains, use the cloth with

Quick Start Guide

mild detergent. To avoid possible damage on device body coating which could cause

performance decrease, do not use volatile solvent such as alcohol, benzene, diluent to clean the

device body, nor can strong, abrasive detergent be used.

●Dome cover is an optical component. Do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moistened oil-free cotton with diethyl or moistened soft cloth. You can also remove dust with an

air blower.

●Strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password regularly,

upgrading firmware to the latest version, and isolating computer network. For some device with

old firmware versions, the ONVIF password will not be modified automatically along with the

modification of the system password, and you need to upgrade the firmware or manually update

the ONVIF password.

●Use standard components or accessories provided by manufacturer and make sure that the

device is installed and maintained by professional engineers.

●The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

●Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword ........................................................................................................................................................................................................I

Important Safeguards and Warnings............................................................................................................................................ III

1 Introduction ............................................................................................................................................................................................ 1

1.1 Cable ................................................................................................................................................................................................ 1

1.2 Connecting Alarm Input/Output........................................................................................................................................ 2

2 Network Configuration...................................................................................................................................................................... 4

2.1 Initializing Device...................................................................................................................................................................... 4

2.2 Changing Device IP Address ................................................................................................................................................ 6

2.3 Logging in to Web Page ......................................................................................................................................................... 7

3 Installation............................................................................................................................................................................................... 8

3.1 Packing List................................................................................................................................................................................... 8

3.2 Dimensions ................................................................................................................................................................................... 8

3.3 Installing Camera....................................................................................................................................................................... 9

3.3.1 Installation Method....................................................................................................................................................... 9

3.3.2 Installing SD Card (Optional) .................................................................................................................................... 9

3.3.3 Attaching Camera.........................................................................................................................................................10

3.3.4 Installing Waterproof Connector (Optional)...................................................................................................12

3.3.5 Adjusting Lens Angle..................................................................................................................................................12

Quick Start Guide

1 Introduction

1.1 Cable

Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and

water damage. For the detailed operation, see FAQ manual.

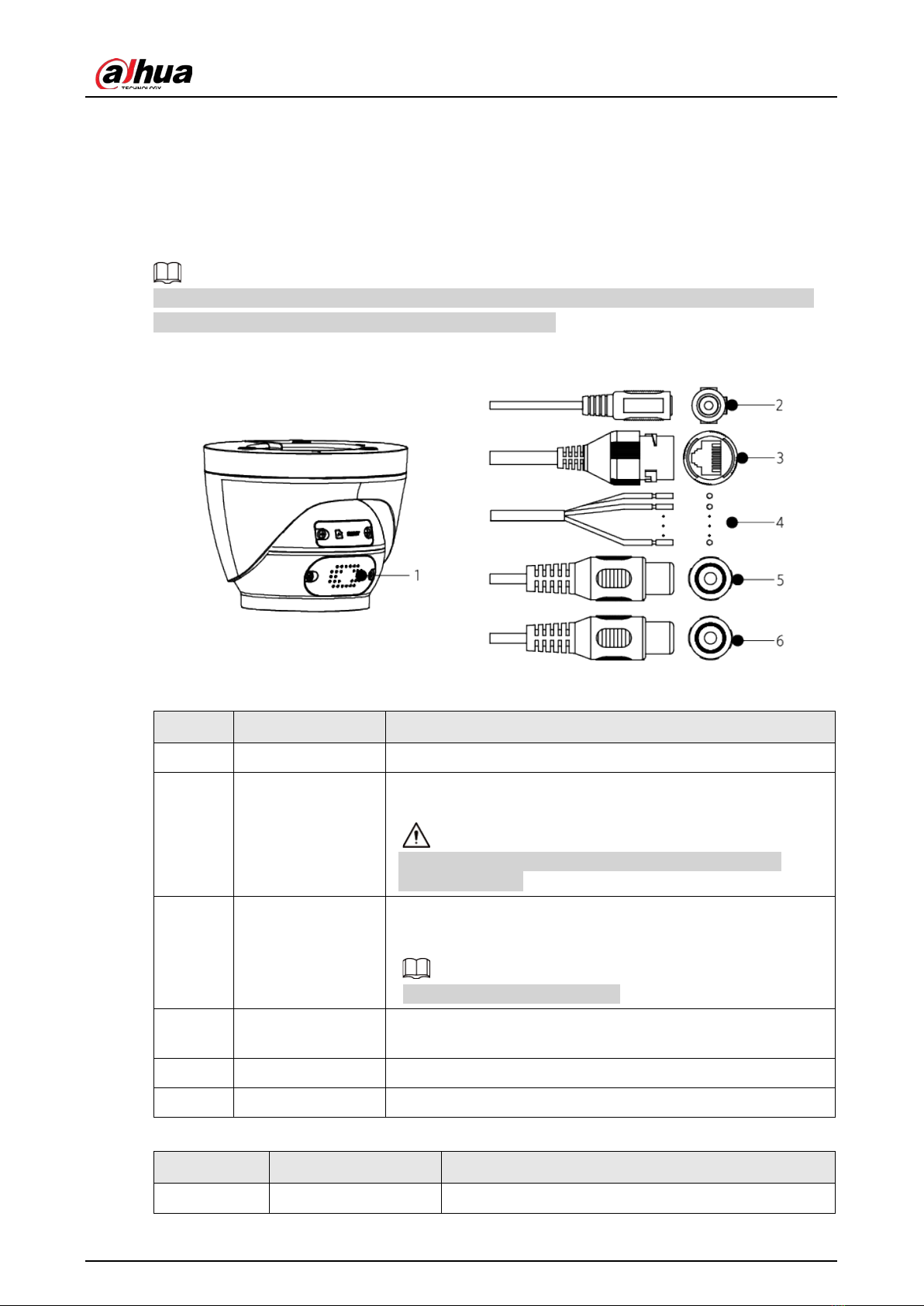

Figure 1-1 Structure components

Table 1-1 Structure components

No. Port name Description

1 Speaker Outputs audio.

2 Power input

Inputs 12 VDC power. Be sure to supply power as instructed in

the manual.

Device abnormity or damage could occur if power is not

supplied correctly.

3 Ethernet

●Connects to network with network cable.

●Provides power to the device with PoE.

PoE is available on select model.

4 Alarm I/O Includes alarm signal input and output ports. For detailed

information, see Table 1-2.

5 Audio input Connects to sound pickup to receive audio signal.

6 Audio output Connects to speaker to output audio signal.

Table 1-2 Alarm information

Port Port Name Description

Alarm I/O ALARM_OUT Outputs alarm signal to alarm device.

Quick Start Guide

Port Port Name Description

ALARM_OUT_GND

When connecting to alarm device, only the

ALARM_OUT port and ALARM_OUT_GND port with the

same number can be used together.

ALARM_IN Receives the switch signal of external alarm source.

Connect different alarm input devices to the same

ALARM_IN_GND port.

ALARM_IN_GND

1.2 Connecting Alarm Input/Output

The camera can connect to external alarm input/output device through digital input/output.

Alarm input/output is available on select models.

Step 1 Connect alarm input device to the alarm input end of the I/O port.

Device collects different states of alarm input port when the input signal is idling and

being grounded.

●Device collects logic "1" when input signal is connected to +3 V to +5 V or idling.

●Device collects logic "0" when input signal is grounded.

Quick Start Guide

Figure 1-2 Alarm input

Step 2 Connect alarm output device to the alarm output end of the I/O port. The alarm output is

open-drain output, which works in the following modes.

●Mode A: Level application. Alarm outputs high and low level, and the alarm outlet is OD,

which requires external pull-up resistance (10K Ohm typical) to work. The maximum

external pull-up level is 12 V, maximum port current is 300 mA and the default output

signal is high-level (external pull-up voltage). The default output signal switches to low-

level when there is alarm output (As long as the operating current is below 300 mA, the

output low-level voltage is lower than 0.8 V).

●Mode B: Switch application. Alarm output is used to drive external circuit, the

maximum voltage is 12 V and the maximum current is 300 mA. If the voltage is higher

than 12 V, please use an additional electric relay.

Figure 1-3 Alarm output

Step 3 Log in to web page, and configure alarm input and alarm output in alarm setting.

●The alarm input on the web page is corresponding to the alarm input end of the I/O

port. There will be high level and low level alarm signal generated by the alarm input

device when alarm occurs, set the input mode to "NO" (default) if the alarm input signal

is logic "0" and to "NC" if the alarm input signal is logic "1".

●The alarm output on the web page is corresponding to the alarm output end of the

device, which is also alarm output end of the I/O port.

Quick Start Guide

2 Network Configuration

Device initialization and IP setting can be finished with the ConfigTool or on web page. For more

information, see web operation manual.

●Device initialization is available on select models, and it is required at first-time use and after

device is being reset.

●Device initialization is available only when the camera (whose IP address is 192.168.1.108 by

default) and the PC stays on the same network segment.

●Plan usable network segment properly to connect the device to the network.

●The following figures and interfaces are for reference only.

2.1 Initializing Device

Step 1 Double-click ConfigTool.exe to open the tool.

Step 2 Click .

Step 3 Click Search Setting.

Figure 2-1 Setting

Step 4 Select the searching way.

●Current Segment Search (default)

Select the Current Segment Search checkbox. Enter the username in the Username

box and the password in the Password box. The system will search devices

accordingly.

●Other Segment Search

Select the Other Segment Search checkbox. Enter IP address in the Start IP box and

End IP box respectively. Enter user name and password. The system will search for the

devices accordingly.

●If you select the Current Segment Search checkbox and the Other Segment Search

checkbox together, the system searches for devices under both conditions.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology IPC-HUM4231S-L4-0280B-S3 Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3441F-AS-M-0360B Manuel utilisateur

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HUM8441-E1-L1 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW1531SP Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW5431E-Z Manuel utilisateur

Dahua Technology

Dahua Technology IPC-PDW5849-A180-E2-ASTE Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3541FP-AS-M-0280B Manuel utilisateur

Dahua Technology

Dahua Technology 59230UNI Manuel utilisateur

Dahua Technology

Dahua Technology N82AL32 Manuel utilisateur

Dahua Technology

Dahua Technology HDW2831TM-AS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology Ultra IPC-HFW7442H-Z Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology N68BR4 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2431T-ZS Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2831T-ZS-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DSS4004-S2 Instructions générales

Dahua Technology

Dahua Technology IPC-HDW5231R-Z Manuel utilisateur

Dahua Technology

Dahua Technology A21BM0V Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1531S-0360B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW1320S-W Manuel utilisateur

Dahua Technology

Dahua Technology D-SD6C3432XB-HNR-AGQ-PV Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW1430DEP-SW-0280B Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
