D-Link DGS-3000-28SC Manuel utilisateur

DGS-3000-28SC

20-port 100/1000Base-X SFP, 4-port 100/1000Base-T/SFP combo and

4-port 10GBase-X SFP+ Stackable Mana ed L2 Switch /

Управляемый L2 стекируемый коммутатор с 20 портами

100/1000Base-X SFP, 4 комбо-портами 100/1000Base-T/SFP и

4 портами 10GBase-X SFP+

Quick Installation Guide

Краткое р ководство по становке

Introduction

This Quick Installation Guide ives instructions for settin up the D-Link DGS-3000-28SC switch. The

model you have purchased may appear sli htly different from those shown in the illustrations.

Package Contents

Open the shippin carton of the Switch and carefully unpack its contents. Please consult the packin list

located to make sure all items are present and undama ed.

• One DGS-3000-28SC Switch

• AC power cord(s)

• One DC power source connector

• One RJ-45 to RS-232 console cable

• One set of Power Cord Retainer

• 2 Mountin Brackets

• Mountin kit

• Four rubber feet with adhesive backin

• One Quick Installation Guide

• Warranty Certificate

If any of the above items are dama ed or missin , please contact your local reseller for replacement.

Hardware Overview

LED Indicators

LED Colour Status Description

Power Green Solid Green Power on.

Li ht Off Power off.

Console Green Blinkin Green Durin the Power-On Self Test (POST).

Li ht Off The Power-On Self Test (POST) is finished.

Solid Green A user is lo ed in throu h the console port.

RPS Green Solid Green RPS is connected.

Li ht Off RPS is not connected / RPS switch is turned off.

Fan Err Red Blinkin Red Any of the fans has failed.

Li ht Off All fans are workin normally.

Link/Act LEDs The Switch has LED indicators for Link and Activity.

Stackin ID 1-6 For standalone Switches, this will display number “1”. For

stacked Switches, this indicates the position in the stackin

box ID, which can be assi ned manually by the user or

automatically by the system.

H Indicates this switch is the master switch in the stack.

h Indicates this switch is the backup master switch in the

stack.

G Indicates the Safe uard en ine entered the exhausted

mode.

Installation Guidelines

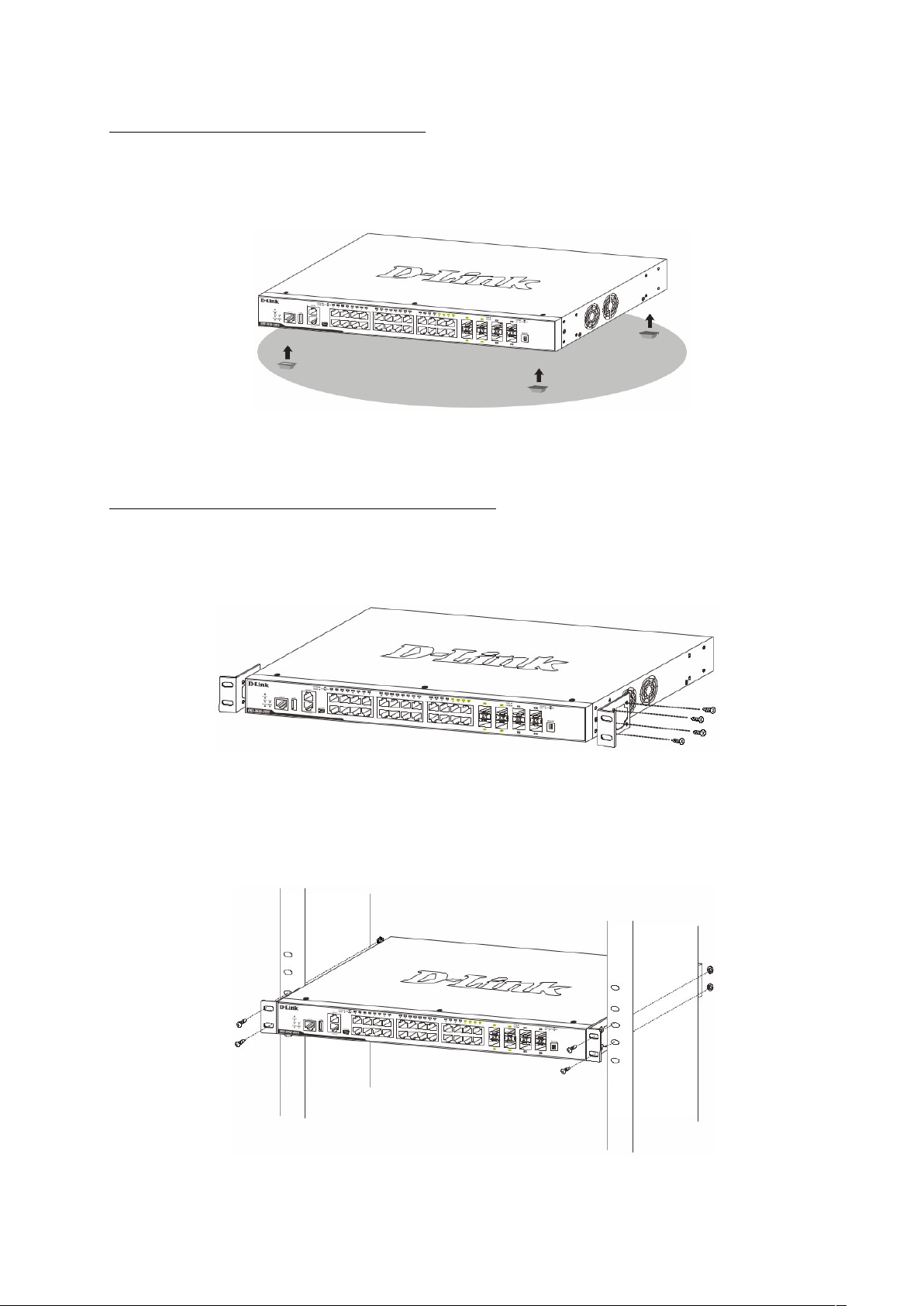

Installing the Switch without a Rack

When installin the switch on a desktop or shelf, the rubber feet included with the device must be

attached on the bottom at each corner of the device’s base. Allow enou h ventilation space between the

device and the objects around it.

Installing the Switch in a Standard 19'' Rack

The Switch can be mounted in a standard 19"(1U) rack usin the provided mountin brackets. Fasten the

mountin brackets to the sides of the Switch usin the screws provided.

Fasten the mountin brackets in any available open space in the rack usin the screws provided.

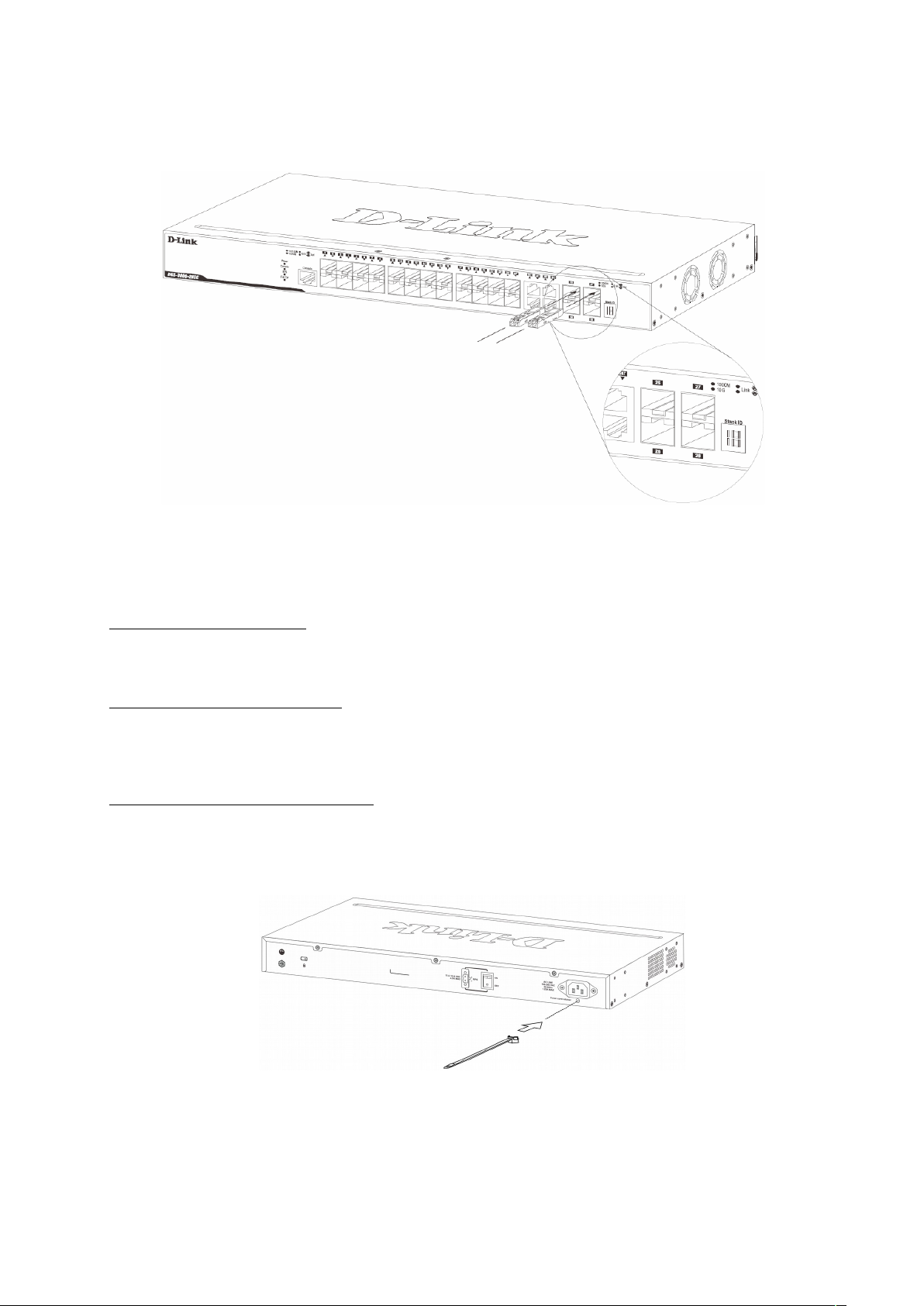

Installing Transceivers into the Transceiver Ports

The Switch is equipped with Small Form-factor Plu able (SFP) and Small Form-factor Plu able plus

(SFP+) ports, which supply connectin SFP, WDM SFP and SFP+ transceivers.

Connecting to Power

Power On (AC Power)

Plu one end of the AC power cord into the power socket of the Switch and the other end into the local

power source outlet.

Power Failure (AC Power)

For AC power supply units, as a precaution, in the event of a power failure, unplu the Switch. When

power has resumed, plu the Switch back in.

Installing the Power Cord Clip

А) With the rou h side facin down, insert the Tie Wrap into the hole below the power socket.

B) Plu the AC power cord into the power socket of the Switch.

C) Slide the Retainer throu h the Tie Wrap until the end of the cord.

D) Circle the tie of the Retainer around the power cord and into the locker of the Retainer.

E) Fasten the tie of the Retainer until the power cord is secured.

Connecting a DC Power Supply

The Switch provides a DC power source connector to connect to any DC power source. The DC power

source that will be activated when the AC power is not workin .The DC power source must meet the fol-

lowin requirements:

• The DC power source's output volta e must be between 11.4V and 12.6V.

• The DC power source's output current rate must be hi her or equal to 2.5A.

• Volta e protection must be apllied when the volta e is hi her or equal to 15V.

• Current protection must be apllied when the current is hi her or equal to 6A.

1. Make sure that the ON/OFF to le switch on the rear panel of the Switch is turned off.

2. Connect one end of the DC power cords supplied to a DC power source. Make sure that connection

polarity (positive and ne ative) is correct at both sides before usin this feature to avoid any dama ed.

Connect the other end of the DC power cords to the DC power source connector.

3. Connect the DC power source connector to the switch.

4. Turn the ON/OFF to le switch on.

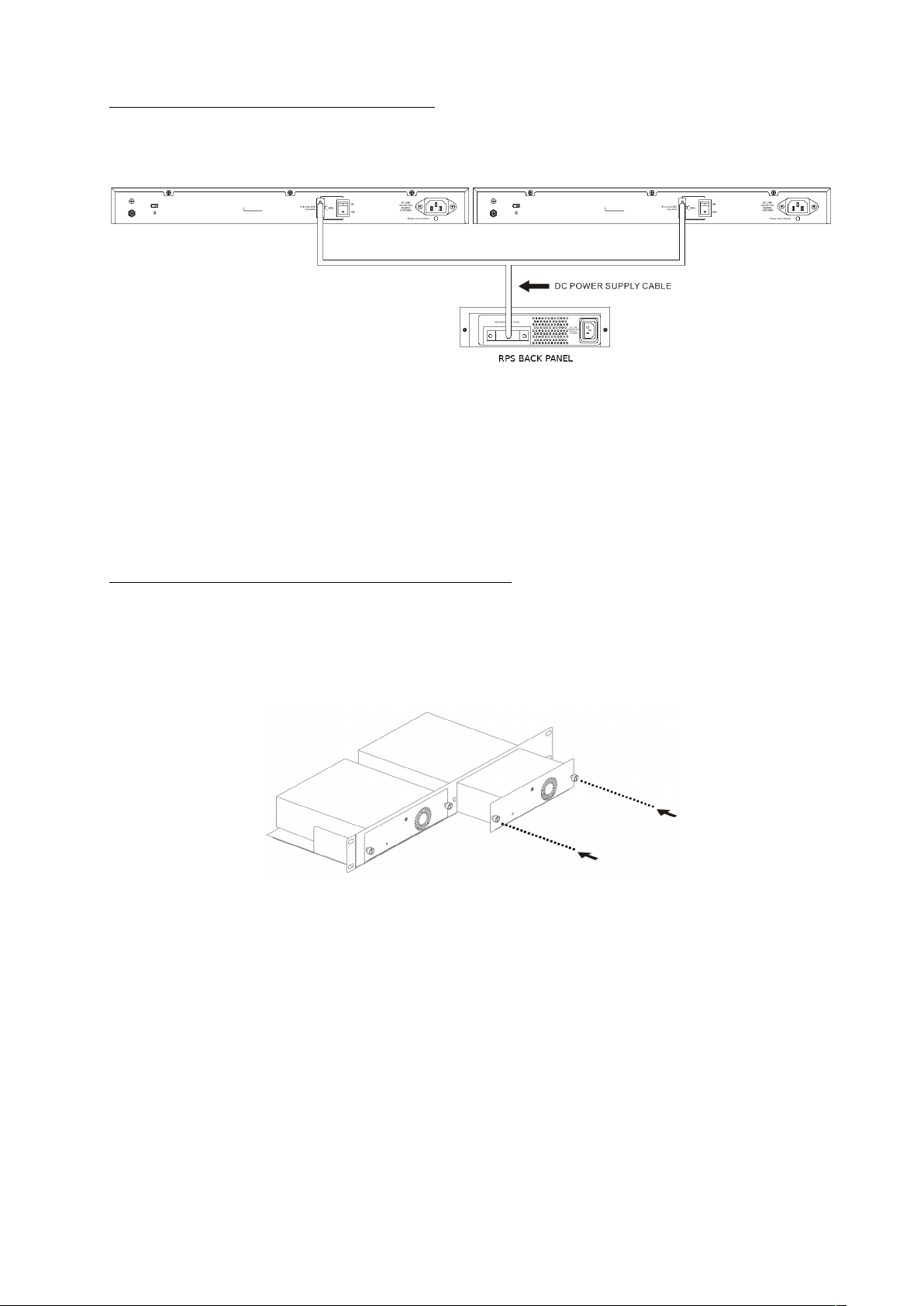

Connecting the RPS to the RPS Port

The DPS-200A, DPS-500A, and DPS-500DC/В Redundant Power Supply (RPS) can be connected to the

RPS port of the Switch usin the DC power supply cord, called the DPS-CB150-2PS/В. It is important to

notice that the RPS can supply power to one or two DGS-3000-28SC Switches at the same time.

1. Disconnect the Switch from the main AC power source.

2. Insert the 14-pin end of the DC power supply cord into the RPS and the 2-pin end into the receptacle

of the RPS port on the Switch.

3. Usin a standard AC power cord, connect the RPS to the main AC power source. A reen LED on the

front panel of RPS will illuminate to indicate a successful connection.

4. Make sure that the ON/OFF to le switch on the rear panel of the Switch is turned on.

5. Re-connect the Switch to the AC power source and power on the RPS.

No confi uration is needed in the Switch software for this installation.

Installing the RPS into a Rack-mount Chassis

The RPS can be installed into an RPS rack-mount chassis unit, called the DPS-800. The DPS-800 is a

standard-size rack-mount (1 standard unit in hei ht) desi ned to hold up to two RPS’s.

1. Install the DPS-200A/DPS-500A/DPS-500DC/В in the DPS-800 as shown below.

2. Install the DPS-800 in an Equipment Rack as shown below.

Switch Connections

Switch to End Node

End nodes include PCs outfitted with a 10, 100 or 1000 Mbps RJ-45 Ethernet Network Interface Card

(NIC) and routers. An end node connects to the Switch via a twisted-pair UTP/STP cable. Connect the

end node to any of the 1000Base-T ports of the Switch. The Link/Act LEDs for each Ethernet port will li ht

reen or amber when the link is valid.

Switch to Another Switch

The Switch can be used to connect to any other switch or hub in the network. This network topolo y is

used when the Switch does not have enou h ports to cater for all the end nodes in the network.

There is a reat deal of flexibility on how connections are made usin the appropriate cablin .

• Connect a 10Base-T switch port to the Switch via a twisted-pair Cate ory 3, 4 or 5 UTP/STP cable.

• Connect a 100Base-TX switch port to the Switch via a twisted-pair Cate ory 5 UTP/STP cable.

• Connect 1000Base-T switch port to the Switch via a twisted pair Cate ory 5e UTP/STP cable.

• Connect switch supportin a fiber-optic uplink to the Switch’s SFP/SFP+ ports via fiber-optic cablin .

Connecting to Network Backbone or Server

The combo SFP ports and the 1000Base-T ports are ideal for uplinkin to a network backbone, server or

server farm. The copper ports operate at a speed of 10, 100 or 1000Mbps. Connections to the Gi abit

Ethernet ports are made usin a fiber-optic cable or Cate ory 5e copper cable, dependin on the type of

port. A valid connection is indicated when the Link LED is lit.

Management Options

Web-based Management Interface

After successfully installin the Switch, the user can confi ure the Switch, monitor the LED panel, and

display statistics raphically usin one of the Web browser iven below:

• Microsoft® Internet Explorer (version 5.5 and later)

• Netscape (version 8 and later)

• Mozilla Firefox (version 2.0 and later)

• Safari (version 4.0 and later)

• Goo le Chrome (version 6.0 and later).

SNMP-based Management

The Switch can be mana ed with an SNMP-compatible console pro ram. The Switch supports SNMP

version 1.0, version 2.0 and version 3.0.

Command Line Interface

The user can also connect a computer or terminal to the serial console port to access the Switch. The

command line interface provides complete access to all Switch mana ement features.

Connecting the Console Port

To use the console port, the followin equipment is needed:

• A terminal or a computer with both an RS-232 serial port and the ability to emulate a terminal (it is

possible to use Hyperterminal, Putty, Minicom etc);

• A console cable with a male DB-9 connector on one end and an RJ-45 connection on the other. This

cable should be included with the Switch.

To connect a terminal to the console port:

1. Connect the male DB-9 connector on the console cable to the RS-232 serial port on the computer.

2. Insert the RJ-45 connector into the RJ-45 console port on the front of the Switch. Set the terminal

emulation software as follows:

• Serial port: COM port 1 or COM port 2

• Baud rate: 115200

• Data bits: 8

• Parity: none

• Stop bits: 1

• Flow control: none

• Under Properties, select VT100 for Emulation mode.

• Select Terminal keys for Function, Arrow and Ctrl keys. Make sure to use Terminal keys (not Windows

keys) are selected.

3. After you have correctly set up the terminal, plu the power cord into the power receptacle on the back

of the Switch. The boot sequence appears in the terminal. After the boot sequence completes, the

console lo in screen will be displayed.

First Time Connecting to the Switch

Upon initial connection to the Switch, the lo in screen appears (see example below).

There is no initial username or password. Press Enter in both the Username and Password fields. Then

access will be iven to enter commands after the command prompt DGS-3000-28SC: admin#.

Logging onto the Web Manager

To be in mana in the Switch, simply run the browser installed on your computer and point it to the IP

address you have defined for the device. The URL in the address bar should read somethin like:

http://123.123.123.123, where the numbers 123 represent the IP address of the Switch.

NOTE: The factory default IP address is 10.90.90.90/8.
