D-Link XStack DGS-3620-28SC Manuel utilisateur

D-Link

DGS-3620-28SC

20 SFP ports + 4 Combo SFP/10/100/1000Base-T ports + 4 10GE SFP+ ports

L3 Stackable Managed Switch/

Управляемый L3 стекируемый коммутатор с 20 портами SFP,

4 комбо-портами 100/1000Base-T/SFP и 4 портами 10GBase-X SFP+

Quick Installation Guide

Краткое руководство по установке

Package Contents

Open the shipping carton of the Switch and carefully unpack its contents. The carton

should contain the following items:

One DGS-3620-28SC switch

One AC power cord

One console cable (RJ-45 to RS-232)

Mounting kit

Four rubber feet with adhesive backing

One Quick Installation Guide

Introduction

This Quick Installation Guide gives instructions for setting up the D-Link DGS-3620-28SC

switch. The model you have purchased may appear slightly different from those shown in

the illustrations. For more detailed information about the device, its components, making

network connections and technical specifications, please refer to the D-Link website

http://www.dlink.com/

If any of the above items are damaged or missing, please contact your local reseller for

replacement.

Two rack mounting brackets

Hardware Overview

LED Indicators

LED Indicative Colour Status Description

Power Green Solid Green Power on.

Light off Power off.

RPS Green Solid Green Redundant Power Supply is in use.

Light off RPS is not in use.

Blinking Green RPS is connected.

SD Green / Red Solid Green If a Secure Digital (SD) card is plugged in.

Blinking Green The Switch is reading or writing data to and from the SD card.

Light off No SD card is plugged into the SD port.

An SD card failure has been detected.

Link/Act Green /

Orange

Solid Green

Solid Orange When there is a secure connection to a 10/100Mbps Ethernet

device at any of the ports.

Blinking Green When a 1000Mbps port is active.

Blinking Orange When a 10/100Mbps port is active.

No link or activity.Light off

Console Green Blinking Green

Solid Green When a user is logged in through the console port.

Solid Red

When there is a secure connection to a 1000Mbps Ethernet

device at any of the ports.

Light off When the POST is finished.

During the Power-On Self Test (POST).

1 – 12

H The device was assigned as the stacking Master.

The device was selected to be the Backup Master.

The Safeguard Engine feature enters the exhausted mode.

Stack ID The box ID is assigned either by the user (static mode) or by

the system (automatic mode). For standalone Switches, this

will display number “1”.

MGM Green Solid Green

Blinking Green Secure connection established.

Light off Console off.

Console on.

Installation Guidelines

Desktop or Shelf Installation

When installing the switch on a desktop or shelf, the rubber feet included with the device

must be attached on the bottom at each corner of the device’s base. Allow enough

ventilation space between the device and the objects around it.

Installing the Switch in a Standard 19'' Rack

The Switch can be mounted in a standard 19"(1U) rack using the provided mounting

brackets. Fasten the mounting brackets to the sides of the Switch using the screws

provided.

Fasten the mounting brackets in any available open space in the rack using the screws

provided.

Installing Transceivers into the Transceiver Ports

The Switch is equipped with Small Form-factor Pluggable (SFP) and SFP+ ports, which

supply connecting SFP, WDM SFP and SFP+ transceivers.

Power On (AC Power)

Plug one end of the AC power cord into the power socket of the Switch and the other end

into the local power source outlet.

Power Failure (AC Power)

In the event of a power failure, just as a precaution, unplug the power cord from the

Switch. After the power returns, plug the power cord back into the power socket of the

Switch.

Connecting to Power

Connecting to a Redundant Power Supply

The DPS-500 connects to the Switch using a 14-pin DC power cable. A standard,

three-pronged AC power cable connects the redundant power supply to the main power

source.

1. Insert one end of the 14-pin DC power cable into the port on the switch and the other

end into the redundant power supply.

2. Using a standard AC power cable, connect the redundant power supply to the main AC

power source. A green LED on the front of the DPS-500 will glow to indicate a successful

connection.

3. Re-connect the switch to the AC power source. The LED indicator will show that a

redundant power supply is now in operation.

4. Do not make any changes on the switch.

CAUTION:

do not connect the RPS to AC power before the DC power cable is

connected. This might damage the internal power supply.

Switch Connections

Switch to End Node

End node is a generic name for edge networking devices that will be connected to

this switch. Typical examples of end nodes are Personal Computers (PCs), Notebooks,

Access Points, Print Servers, VoIP Phones and more. An end node connects to the

Switch via a twisted-pair UTP/STP cable. Connect the end node to any of the 1000Base-T

ports of the Switch. The Link/Act LEDs for each Ethernet port turns green or orange when

the link is active. A blinking LED indicates packet activity on that port.

NO E: all high-performance N-Way Ethernet ports can support both MDI-II and

Switch to Switch

There is a great deal of flexibility on how connections are made using the appropriate

cabling.

• Connect a 10Base-T switch port to the Switch via a twisted-pair Category 3, 4 or 5 UTP/

STP cable.

• Connect a 100Base-TX switch port to the Switch via a twisted-pair Category 5 UTP/STP

cable.

• Connect 1000Base-T switch port to the Switch via a twisted pair Category 5e UTP/STP

cable.

• Connect switch supporting a fiber-optic uplink to the Switch’s SFP ports via fiber-optic

cabling.

MDI-X connections.

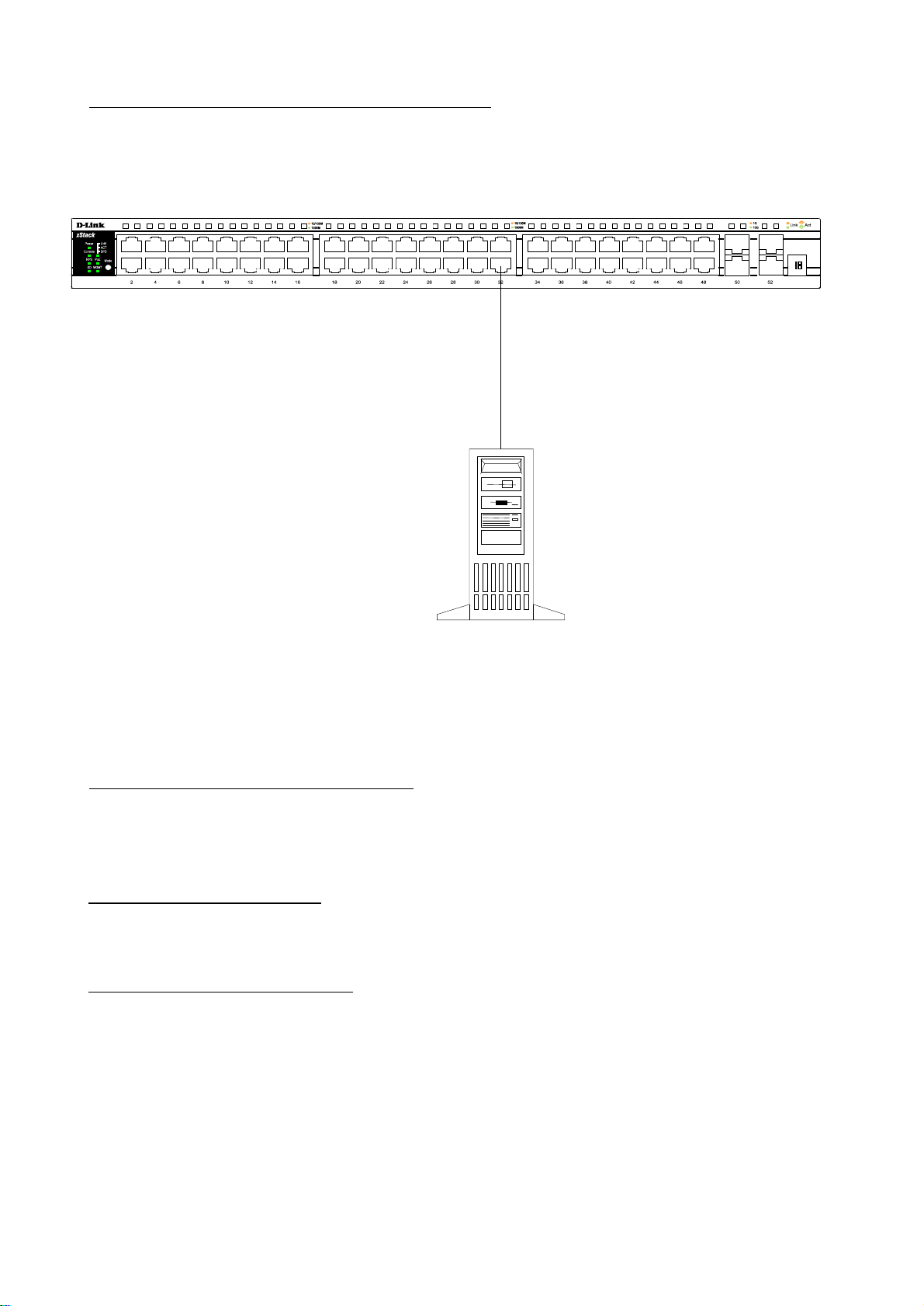

Connect to a Network Backbone or Server

The 1000Base-T SFP ports are ideal for uplinking to a network backbone, server or server

farm.

Management Options

Web-based Management Interface

After successfully installing the Switch, the user can configure the Switch, monitor the LED

panel, and display statistics graphically using a web browser, such as FireFox (version 3.0

and higher) or Microsoft® Internet Explorer (version 5.0 and higher).

SNMP-based Manage ent

The Switch can be managed with an SNMP-compatible console program. The Switch

supports SNMP version 1.0, version 2.0 and version 3.0.

Co and Line Interface (CLI)

The user can also connect a computer to the serial console port to access the Switch. The

command line interface provides complete access to all Switch management features.

Alternatively, the Switch can also be managed, in-band, by using a Telnet connection.

Connecting the Console Port

To use the console port, the following equipment is needed:

A terminal or a computer with both an RS-232 serial port the ability to emulate a

terminal.



A console cable with a male DB-9 connector on one end and an RJ-45 connection on

the other. This cable should be included with the Switch.

To configure the terminal emulation software as follows:

Select the appropriate serial port (COM port 1 or COM port 2).

Set the data rate to 1152 baud.

Set the data format to 8 data bits, 1 stop bit, and no parity.

Set flow control to none.

Then, under Properties, select VT100 for Emulation mode. Select Terminal keys for Function,

Arrow and Ctrl keys. Make sure to use Terminal keys (not Windows keys) are selected. After

you have correctly set up the terminal, plug the power cord into the power receptacle on the

back of the Switch. The boot sequence appears in the terminal. After the boot sequence

completes, the console login screen displays.

Connecting to the Switch for the First Time

Upon initial connection to the Switch, the login screen appears (see example below).

DGS-3620-28SC Gigabit Ethernet Switch

Command Line Interface

Firmware: Build 2.60.016

UserName:

NOTE: the first user automatically gets Administrator level privileges. At least one

Administrator-level user account must be created for the Switch.

Press Enter in both the Username and Password fields. Then access will be given to enter

commands after the command prompt: DGS-3620-28SC:admin#

There is no initial username or password. Leave the Username and Password fields blank.

The front panel of the Switch features a Management portwhich can be used to connect to

a computer using a standard Ethernet cable. A web browser or Telnet client can be used to

connect to the Switch using the MGMT port.

The default IP address of the Management port is 192.168.0.1, and a subnet mask of

255.255.255.0. Make sure that the computer being used for Switch management has a

nonconflicting IP address in the 192.168.0.x subnet.

The IP settings or enabled status of the Management port can be changed through the

console port. To change the configuration of the Management port, use the command:

To view the status or IP settings, use the command:

To change settings for the out-of-band Management port in the web interface, use the

following path:

Connecting to the Management Port

config out_band_ipif {ipaddress <network_address> | state [enable | disable] | gateway <ipaddr>}

show out_band_ipif

Management > Out of Band Management Settings

Logging onto the Web Manager

To access the Web User Interface the user simply runs the standard web browser and enter

the Switch’s IP address into the address bar of the browser and press the Enter key. To

access the Web UI from normal LAN ports, the user needs to configure an IP address for

this interface first before it can be accessed via the Web User Interface.

The PC must have an IP address in the same subnet as the switch. For example, if the switch

has an IP address of 10.90.90.90, the PC should have an IP-address of 10.x.y.z (where

x/y is a number between 0 ~ 254 and z is a number between 1 ~ 254), and a subnet mask

of 255.0.0.0. Open the web browser and enter 10.90.90.90 (the factory-default IP address

in the address bar. Then press

Enter.

Additional Information

For more detailed information on how to set up and configure the DGS-3620-28SC,

please refer to the D-Link Website .

http://www.dlink.com/
