D-Link DGS-1008P Manuel utilisateur

8-PORT GIGABIT UNMANAGED

DESKTOP SWITCH

DGS -1008P

QUICK

INSTALLATION

GUIDE

DGS-1008P

ENGLISH

PACKAGE

CONTENTS

If any of these items are missing from your packaging, contact your reseller.

Warning: Using a power adapter with a different voltage rating will damage and void the

warranty of this product.

• DGS-1008P 8-Port Gigabit Unmanaged Desktop Switch

• Power Adapter (54 V, 1.67 A)

• Power Cable

• Mounting Kit

• 4 Rubber Feet

• Quick Install Guide

INTRODUCTION

The D-Link DGS-1008P Gigabit Unmanaged Desktop Switch is capable of feeding power to

Power over Ethernet (PoE) devices such as network cameras. The DGS-1008P has 8 ports

operating at 10/100/1000 Mbps with 4 PoE+ ports (Ports 1 to 4) with a total PoE budget of 68W,

making it ideal for home and small ofce use.

DGS-1008P 3

ENGLISH

PRODUCT

SETUP

BEFORE SETTING UP THE DGS-1008P

Please follow the steps below to set up the switch:

1. Install the DGS-1008P in a cool and dry place. Refer to the Technical Specications for the

acceptable operating temperature and humidity ranges.

2. Install the switch in a site free from strong electromagnetic source, vibration, dust, and direct

sunlight.

3. Leave at least 10 cm of space at the left and right-hand side of the switch for ventilation.

4. Visually inspect the power jack and make sure that it is fully secured to the power adapter.

Do not stack any device on top of the switch.

MOUNTING

• You may mount the switch on a wall with the included mounting kit. Two mounting slots are

provided on the bottom of the switch for this purpose.

• Magnet mounting is an optional method to mounting the switch on a wall, and is not included with

the package contents.

DGS-1008P

ENGLISH

CONNECTING THE DGS-1008P TO YOUR NETWORK

A. POWER

Plug the AC power cord into a free outlet or surge protector, then plug the other end of the DC

power jack into the power port of the DGS-1008P. The Power LED will illuminate conrming that

the device has powered up successfully.

B. PoE PORTS (PORTS 1 - 4)

PoE Ports 1 to 4 support 802.3at for up to 30W per port for individual usage.

C. GIGABIT PORTS (PORTS 1 - 8)

These ports offer network speeds of either 10 Mbps, 100 Mbps or 1000 Mbps and can operate

in half or full-duplex transfer modes. These ports also support automatic MDI/MDIX crossover,

eliminating the need for crossover cables or uplink ports. Each port can be connected directly to

a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

4 PoE Ports

8 10/100/1000 Mbps

Ports

DGS-1008P 5

ENGLISH

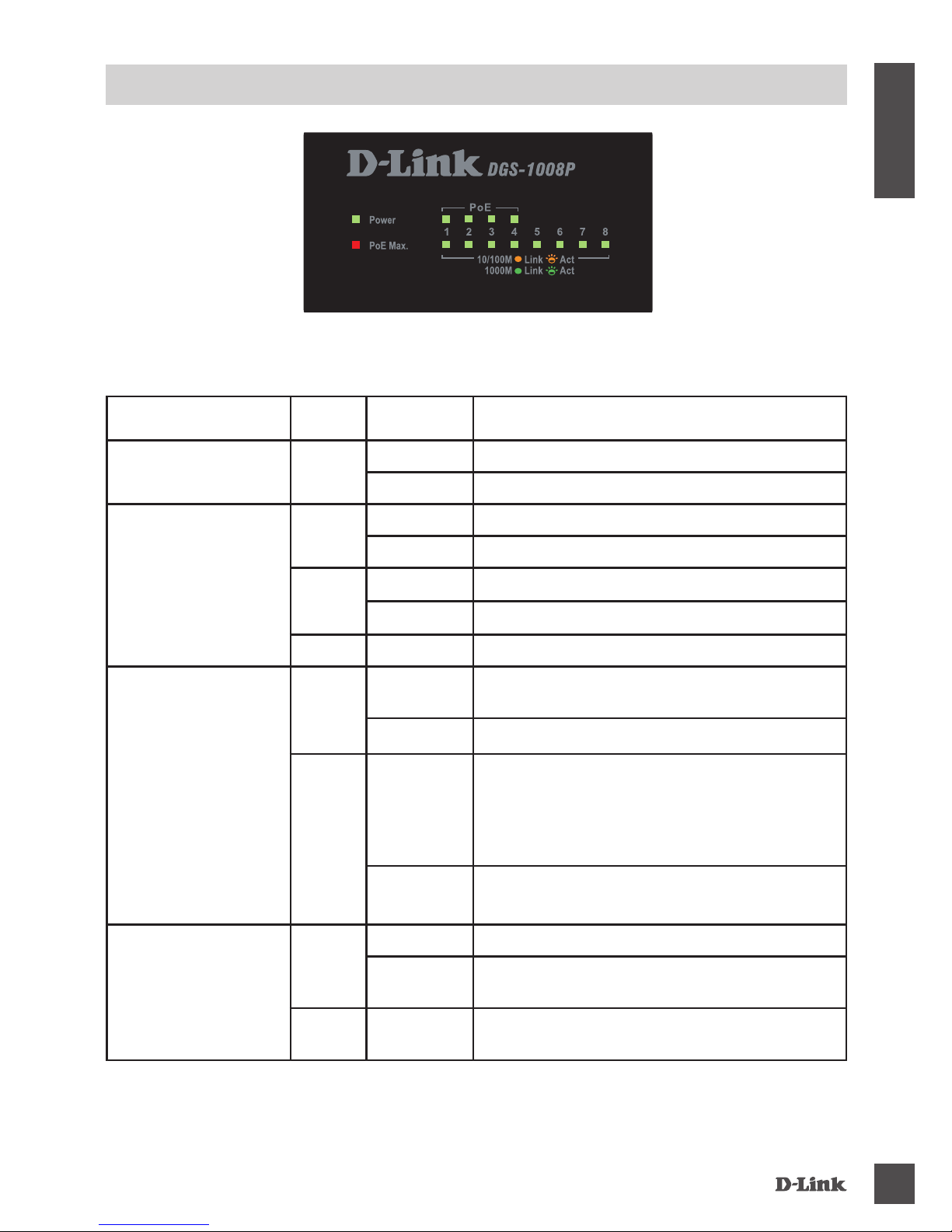

LED INDICATORS

The LED indicators allow you to monitor, diagnose, and troubleshoot any potential problem within the

switch, connection, or attached devices.

LED Color Status Description

Power Green Solid light Power on

Off Power off

Link/Act/Speed Green Solid light Connection to a 1000 Mbps Ethernet device.

Blinking The port is receiving or transmitting data.

Amber Solid light Connection to a 10/100 Mbps Ethernet device.

Blinking The port is receiving or transmitting data.

Off Light off No link

PoE ( Ports1 to 4 ) Green Solid light The port is successfully connected to a PoE

device and is powering the device properly.

Off No connection to a PoE device

Red Blinking Power management mode:

A valid PoE load is connected to port output

lines, but the switch does not have sufcient

power for supplying the required load power.

Port power is not activated

Solid Light Overload or short circuit is detected on port

output lines. Port power is not activated

PoE Max. Red Solid light Total power consumption is above 66W.

Blinking Output power to PoE devices has exceeded the

maximum power budget (68W).

Off Light off Total power consumption is below Power Guard

Band (66W).

DGS-1008P

ENGLISH

TROUBLESHOOTING

SETUP AND CONFIGURATION PROBLEMS

1. WHAT SHOULD I DO IF THE POWER LED DOES NOT LIGHT UP?

- Check if the power adapter is connected properly to the outlet or surge protector and the back of

the device.

- Ensure that the on/off switch is in the "on" position.

2. WHAT SHOULD I DO IF A CONNECTED DEVICE IS NOT DETECTED?

- Ensure the Port LED is illuminated or ashing. If not, try using a new Ethernet cable.

3. WHAT SHOULD I DO IF A POE DEVICE IS NOT POWERED BY THE DGS-1008P?

- Ensure that the PoE device is connected to one of the four PoE enabled ports (1 to 4) and the

connected PoE devices do not exceed the maximum power budget of 68 W.

DGS-1008P 7

ENGLISH

NOTES

Version 4.00(US)_130x183

October 27, 2016

subsidiaries. Other trademarks are the property of their respective owners. Product specications, size and shape are subject to

change without notice, and actual product appearance may dier from that depicted on the packaging. Visit dlink.com (US) or

dlink.ca (Canada) for more details.

Technical Support

Having trouble installing your new product? D-Link’s website contains the latest

user documentation and software updates for D-Link products. U.S. and Canadian

customers can contact D-Link Technical Support through our website.

United States

Internet: http://support.dlink.com

Canada

Internet: http://support.dlink.ca
