DES-7200 Series Quick Installation Guide

Product Overview

D-Link Corporation introduces high-density multi-service IPv6 core router switch DES-7200

by sparing great efforts, after the release of the multi-service 10,000M core router switch

DES-7200 being applicable to the backbone Ethernet. DES-7200, as a multi-service IPv6

10,000M core router switch of the new generation, provides powerful defense ability while

ensuring high performance and large capacity. It also boasts the ability of service addition

and expansion on demand, thus satisfying the design requirements of equal emphasis on

service and performance. Currently, two models are available, DES-7206 and DES-7210,

which offer ten vertical slots and six horizontal slots respectively.

The DES-7210 series multi-service Ipv6 10,000M core router switch provides users with

high-speed non-blocking data switching. With powerful switching and routing functions and

secure intelligent technologies, it can be used together with various series of D-Link

switches to provide users with complete end-to-end solutions. It is ideal for large-scale

network core backbone and heavy traffic node switch. By expanding with high-performance

multi-service cards, the DES-7200 series switches support policy routing and IPV6, and

satisfies customers’ flexible and complex application requirements.

Applications:

Core layers of such enterprise networks of educational, financial and governmental

organizations

Running environment that needs powerful routing function and carrier-class security &

reliability

High-layer switching of enterprise networks with high bandwidth and 10G needs

Enterprise environment that needs to provide high QoS assurance for various

applications

Safety Precautions for Removing

The DES-7210/7206 is large and heavy. When you handle them, please pay attention to the

following requirement:

Avoid moving the equipment frequently.

At least two people are needed to move the equipment. Do not attempt to move the

equipment by one person only.

Keep balanced in moving the equipment, and avoid injuring your leg and feet or

spraining your waist.

Turn off all power supplies and unplug all power cables before you can remove the

equipment.

First remove all the line cards, fan tray, and power module from the chassis before you

can move the DES-7210/7206 by using the handles on both sides, to avoid any

damage.

DES-7200 Series Quick Installation Guide

Correctly Moving the DES-7210 and DES-7206

Warning

Do not move the equipment by grasping the panel, power supply handle,

ventilation holes of the chassis, as they are not designed to bear the

weight of the entire equipment. Failing to do so may cause damage or

even injure yourself.

Preparation Before Installation

Temperature and Humidity Requirements

To ensure the normal working and a prolonged useful life of the DES-7210/7206, appropriate

temperature and humidity must be maintained in the equipment room.

If the equipment room has temperature and humidity that do not meet the requirements for a

long time, the equipment may be damaged.

Temperature and Humidity Requirements of the DES-7210/7206

Temperature Relative Humidity

Long-term condition Short-term condition Long-term condition Short-term condition

0ºC-45ºC 0ºC-45ºC 40%-65% 10%-90%

Note

1. The ambient temperature and humidity are measured at the point that is

1.5m above the floor and 0.4m before the equipment when there is no

protective plate in front or back of the equipment rack.

2. The short-term working condition applies where the continuous working

period does not exceed 48 hours and the accumulative total period within

a year does not exceed 15 days.

Static Discharge Damage Prevention

To prevent damage from static electricity, you must pay attention to the following:

1. Proper grounding of the equipment and floor

2. Dust prevention measures are taken in the room.

DES-7200 Series Quick Installation Guide

3. An appropriate humidity is maintained.

4. Always wear an anti-static wrist strap when you touch any circuit board.

5. Try to hold a circuit board by its edges. Do not touch any components or the PCB.

6. Do not let any clothes touch a circuit board. An antistatic wrist strap can only prevent

static electricity from human damaging the circuit board, but cannot prevent any static

electricity on clothes.

System Grounding Requirements

A good grounding system is the basis for the stable and reliable operation of the

DES-7210/7206. It is the chief condition to prevent lightning stroke and resist interference.

Please carefully check the grounding conditions on the installation site according to the

grounding requirements, and perform grounding properly as needed.

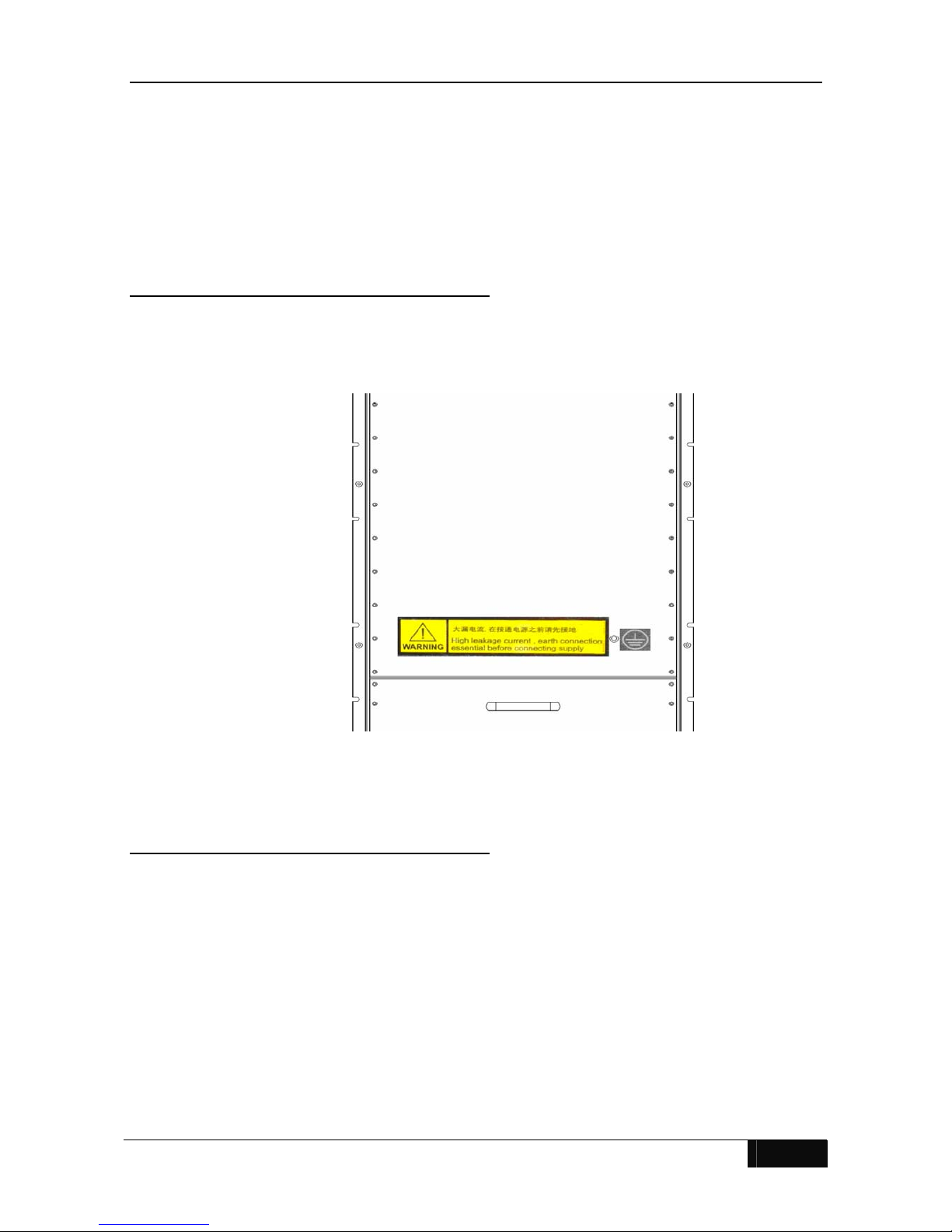

Grounding of the DES-7210/7206

The system cables must ensure the normal working of the equipment. Before you connect

the cables, please carefully read the following precautions.

Power Requirements

When the DES-7210/7206 uses the AC power supply:

AC input voltage: 90Vac~264Vac, 47Hz~63Hz

Power: 1200W/2000W

When the DES-7210/7206 uses the DC power supply:

DC input voltage: DC - 36Vdc ~ -75Vdc

Power: 1200W/2000W

Please refer to following table to evaluate the total system requirement:

DES-7200 Series Quick Installation Guide

DES-7200 Series Modules Maximum Power Consumption (W)

7200-CM1 30

7200-CM2 30

7200-24G 75

7200-24 85

7200-48 100

7200-2XG 75

7200-24P 85+15.4*N (N indicates the PoE port being used, of

which the value is less than 24)

7200-48P 100+15.4*N (N indicates the PoE port being used, of

which the value is less than 48)

Note

The DES-7210/7206 provides 1+1 redundancy of power supply. You are

recommended to use multiple power supplies for the equipment to ensure

its continuous and stable working by avoiding the impact of unexpected

power failures on the equipment. However, you must note that the

redundancy power supplies must be of the same type; a mix of power

supplies is not allowed.

Requirements of Installation Tools

List of Installation Tools

Common tools Cross screwdriver, straight screwdriver, related electric and optical

cables

Bolts, diagonal pliers, straps

Special-purpose tools Anti-static tool

Meter Multimeter

DES-7200 Series Quick Installation Guide

Installation Site Requirements

The DES-7210/7206 must be used indoors. To ensure the normal working and a prolonged

useful file of the equipment, the installation site must meet the following requirements.

Requirements for Rack Mounting

If you plan to mount the DES-7210/7206 in a frame, you must verify that the frame meets the

following conditions:

Install the switch in an open cabinet as much as possible. If you install the switch inside

a closed cabinet, please make sure that the cabinet has a good ventilation and heat

dissipation system.

Make sure that the cabinet is firm enough to bear the weight of the DES-7210/7206 and

its installation accessories.

Make sure that the dimensions of the cabinet spare certain space for the installation of

the front, rear, left and right panels of the DES-7210/7206 for the sake of heat

dissipation.

The frame should be properly grounded.

Ventilation Requirements

Following figure shows the ventilation requirements of the DES-7210/7206. You must

ensure that sufficient spacing is reserved at the ventilation openings to ensure the normal

working of ventilation. After various cables have been connected, they should be arranged

into bundles or placed on the cabling rack, to avoid blocking the air inlets.

Ventilation of the DES-7210 and DES-7206

DES-7200 Series Quick Installation Guide

Mounting the DES-7210/7206 into the Cabinet

Verify the following before installation:

The cabinet has been fastened properly and various modules in the frame have been

installed. There should be no obstacles for installation in the frame and in the surrounding.

The equipment to be installed is ready, and has been moved to a place of easy handling and

close to the frame.

Simple Installation Steps:

1. Levelly lift the DES-7210/7206 by two people on both sides, and slowly move it to the

front of the frame.

2. Levelly lift the DES-7210/7206 to a position slightly higher than the tray or the slide rail

of the cabinet, put the equipment onto the tray or the slide rail, and push it into the

cabinet.

3. Fasten the DES-7210/7206 onto the cabinet with screws. There are fastening notches

on both the left and right of the front panel on the equipment frame. Use screws to

fasten them to the fastening bracket of the cabinet. After fastened, the equipment

should be stable and still in the cabinet.

Installing the Fan Tray

The DES-7210/7206 provides a ventilation system, 7210-FAN for DES-7210, and 7206-FAN

for DES-7206. Install the fan tray by performing the following steps:

1. Remove the blank panel of the fan tray by loosing the captive screws with a straight

screwdriver and the cross screws with a cross screwdriver.

2. Push the fan into the cabinet along the guide rail.

3. Tighten the captive screws with a straight screwdriver. Figure 3-1 and Figure 3-2 show

the installed fan tray.

Installing the Fan Tray of the DES-7210 and DES-7206

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels D-Link Changer

D-Link

D-Link EasySmart DGS-1100-08P Manuel utilisateur

D-Link

D-Link xStack DGS-3420-28SC Manuel utilisateur

D-Link

D-Link DGS-1248T - Switch Manuel utilisateur

D-Link

D-Link DXS-3227P - xStack Switch - Stackable Manuel utilisateur

D-Link

D-Link DES-1250G Manuel utilisateur

D-Link

D-Link DGS-105 - Switch Manuel utilisateur

D-Link

D-Link DGS-3000-52L Manuel utilisateur

D-Link

D-Link DES-1100-10MP Manuel utilisateur

D-Link

D-Link DGS-1100-26MP Manuel utilisateur

D-Link

D-Link DWS-1008 Manuel utilisateur

D-Link

D-Link DES-1228P - Web Smart Switch Manuel utilisateur

D-Link

D-Link GO-SW-16G Manuel utilisateur

D-Link

D-Link DGS-1100-06/ME Mode d’emploi

D-Link

D-Link DES-3250TG Manuel utilisateur

D-Link

D-Link DIS-F100G Series Manuel utilisateur

D-Link

D-Link DGS-3630 SERIES Manuel

D-Link

D-Link DGS-F1210 Series Manuel utilisateur

D-Link

D-Link DGS-1210-10MP/FL Manuel utilisateur

D-Link

D-Link GO-SW-5E Manuel d'installation et d'exploitation

D-Link

D-Link xStack Manuel utilisateur

D-Link

D-Link DGS-1005P/A1A Manuel utilisateur

D-Link

D-Link Nuclias DNH-100 Manuel utilisateur

D-Link

D-Link DES-1008E Manuel utilisateur

D-Link

D-Link xStack DGS-3420 Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuel utilisateur
